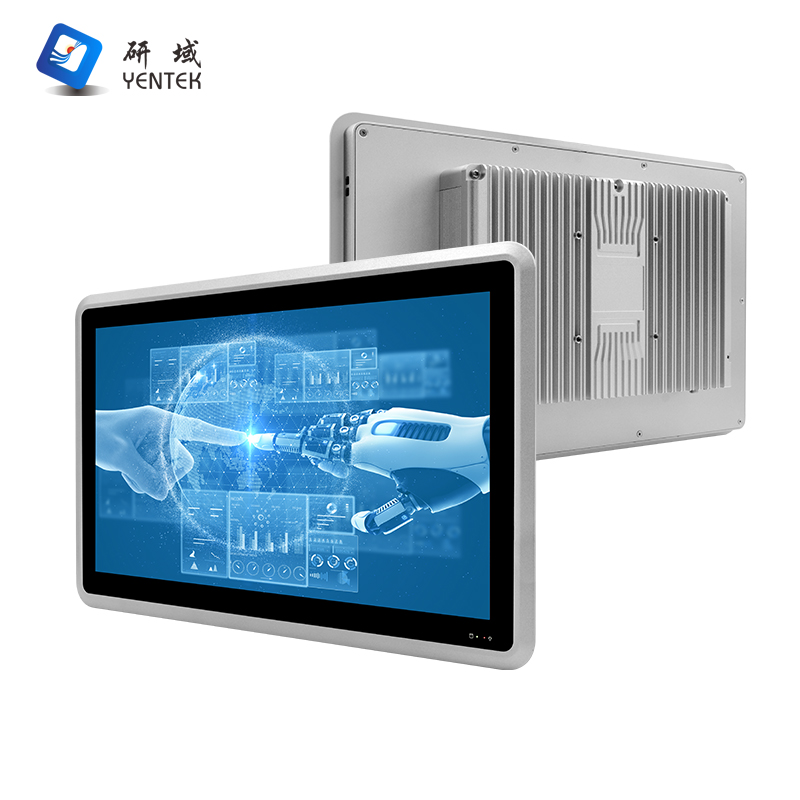

P1581Y-D2 (Embedded)

Chassis

Material/Construction

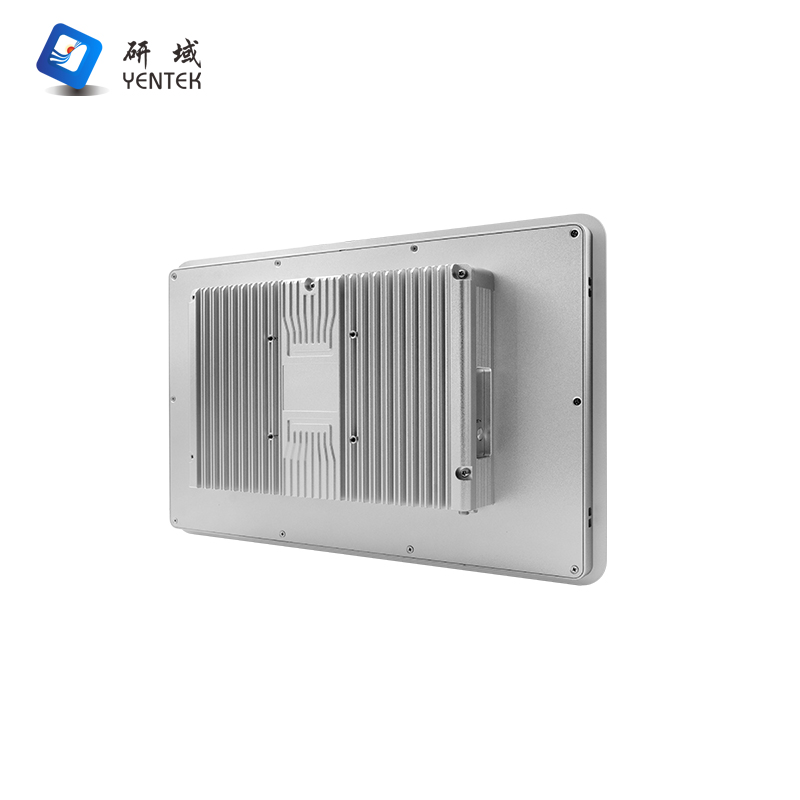

Fanless cooling structure

Colour

Bright silver

Dimensions

L400 × W253 × H62mm

Weight

3.2kg

Mounting

Embedded/Wall-mounted/VESA   (75×75)

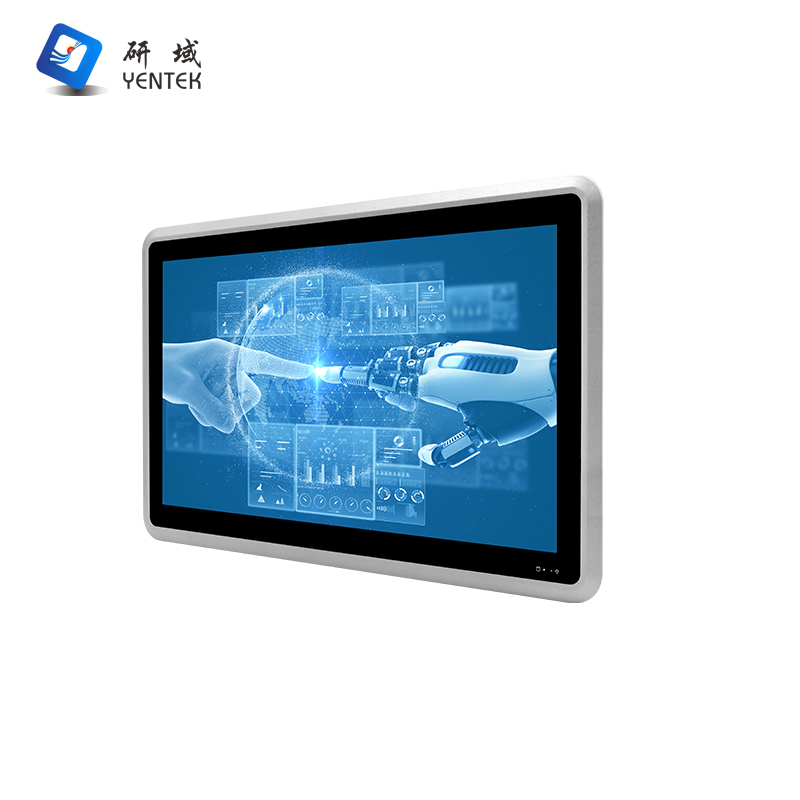

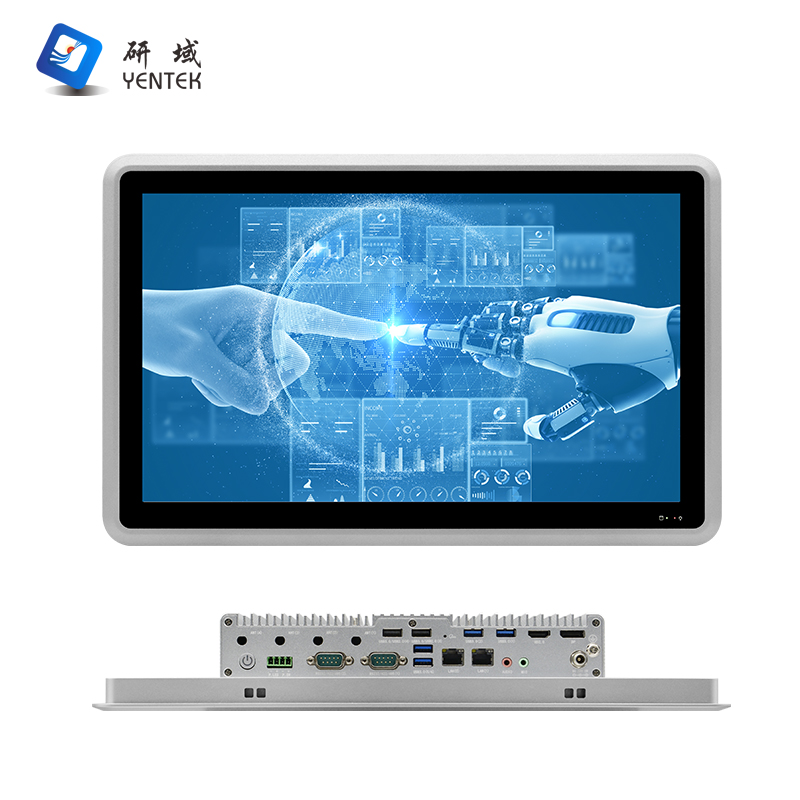

LCD Display

Type

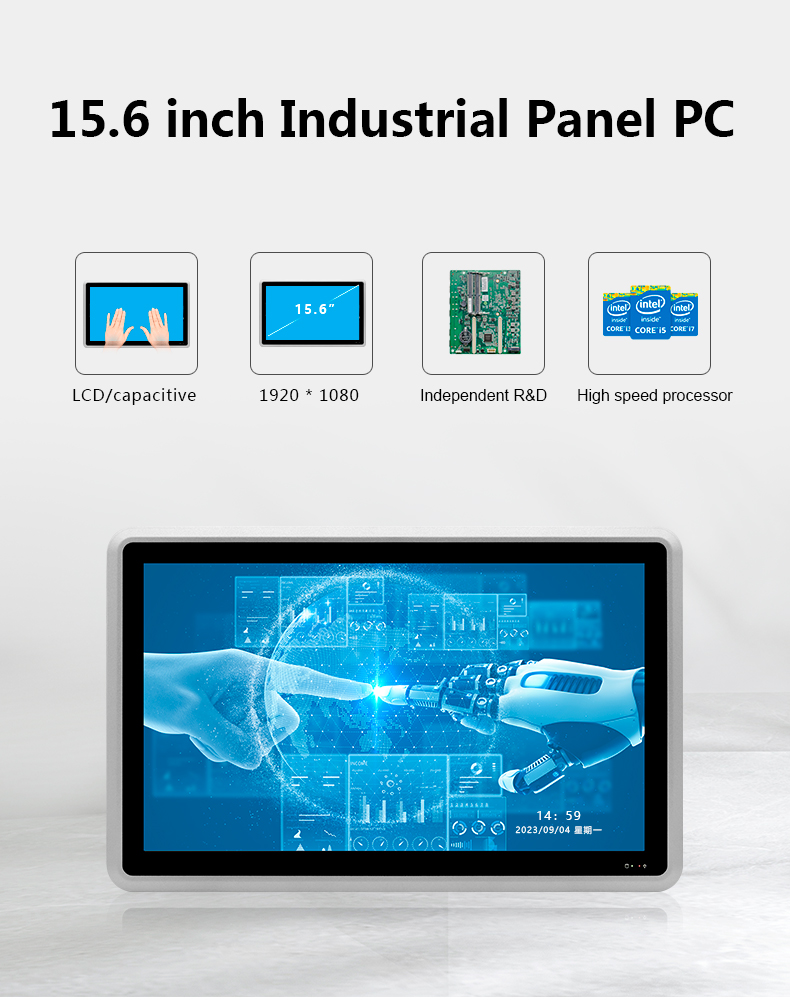

15.6-inch Full HD widescreen

Resolution

1920 × 1080

Viewing Angle

89/89/89/89

Brightness

250 cd/m²

Touchscreen

Type

Capacitive, 10-point touch

Light Transmittance

Over 85%

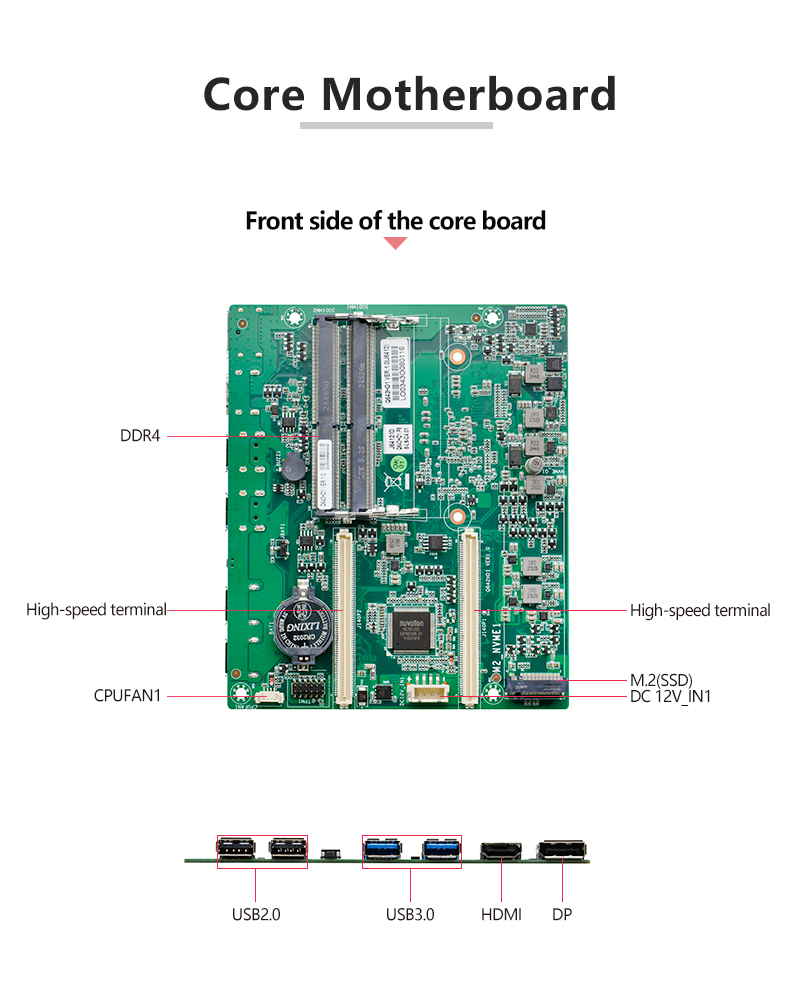

Motherboard

CPU

Intel® Celeron J6412 / 2.0GHz   quad-core quad-thread processor, TDP 10W

Memory

2x DDR4 3200MHz, supports up to   16GB

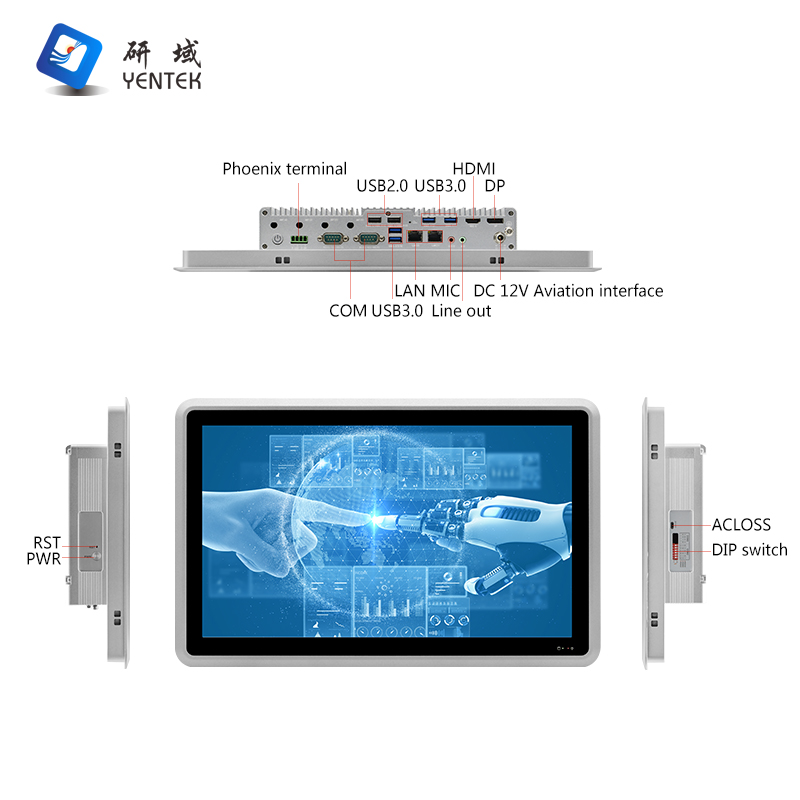

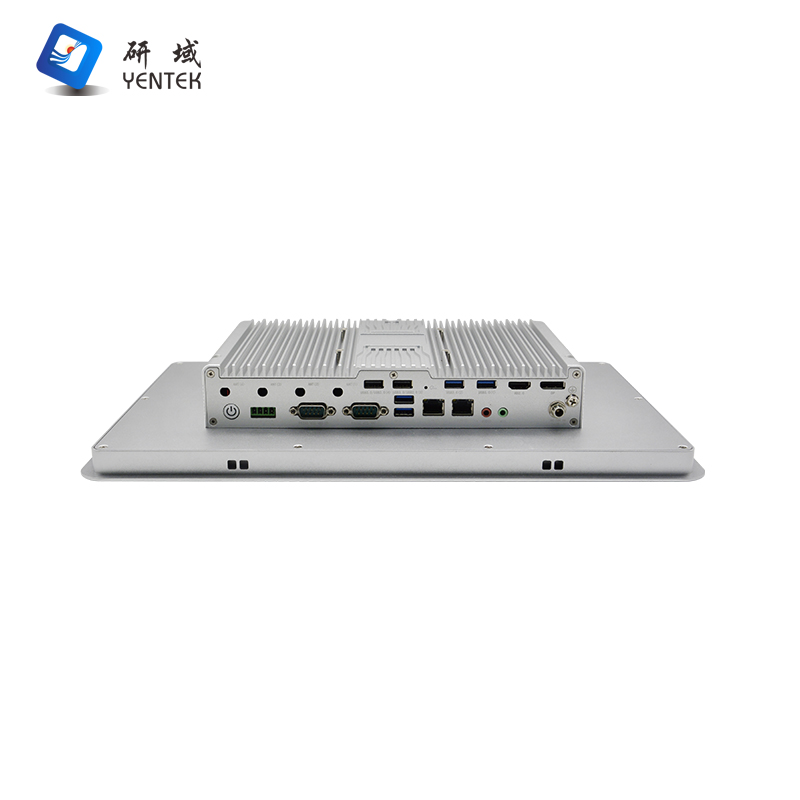

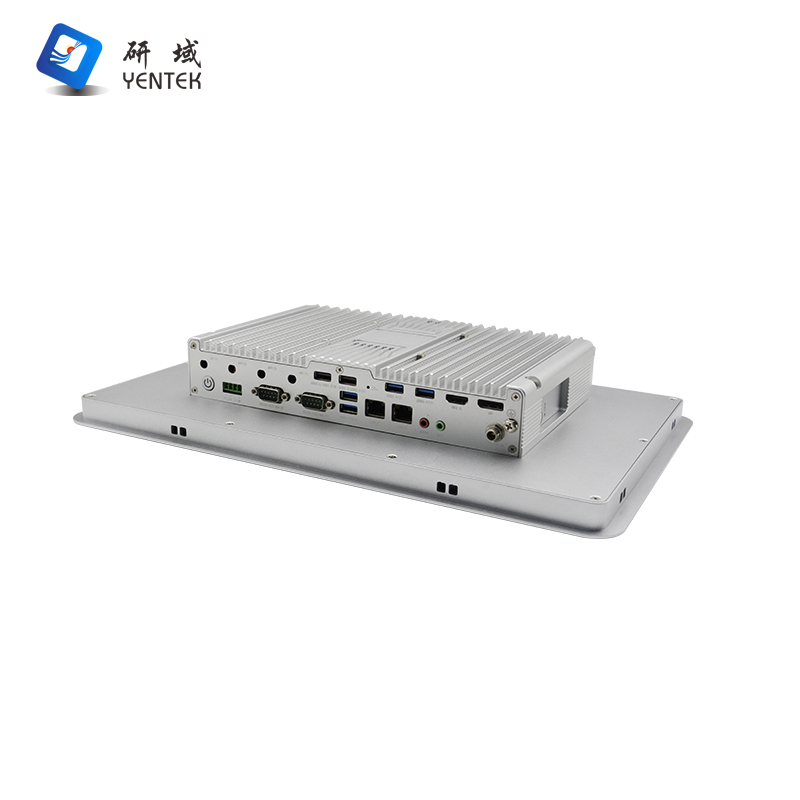

I/O Ports

POWER

1x Power button, 1x One-touch   reset, 1x CMOS reset button

Display Interface

1x HDMI 2.0 (4096×2160@60Hz), 1x   DisplayPort 1.4 (4096×2160@60Hz)

LAN

2x RTL8111H Gigabit Ethernet   ports, supporting Wake-on-LAN and PXE functionality

USB

4x USB 3.0, 2x USB 2.0 (USB   3.0/2.0 data transfer rates depend on CPU)

Audio

1x Line Out, 1x MIC

COM

2x RS232/422/485 DB9 Serial   Ports

Remote Switch

1x Power Switch, 1x Power   Indicator (located on 1x 4P Phoenix Connector)

Power Supply

1x DC 12V aviation connector

Storage

SATA

1x 2.5-inch hard drive bay

mSATA

1x mSATA

SSD

1x M.2, supporting Key-M, 2280,   NVMe PCIe x2/SATA adaptive SSD

Expansion

WiFi

1x M.2, Key-E, 2230, supporting   WiFi module

5G

1x M.2, Key-B, 3042/3052,   supporting 5G modules

System Support

Microsoft Windows

Windows 10

Linux

Ubuntu

Power Requirements

Power Supply Type

DC 12V input

Power Output

AC to DC 60W (depending on   specific device)

Environment

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5% to 95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random
