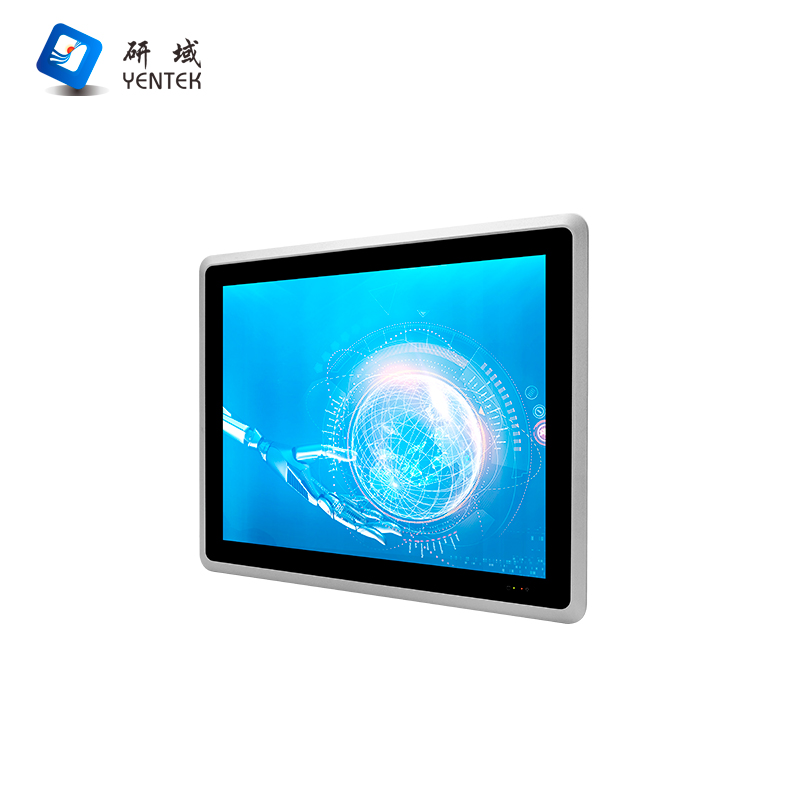

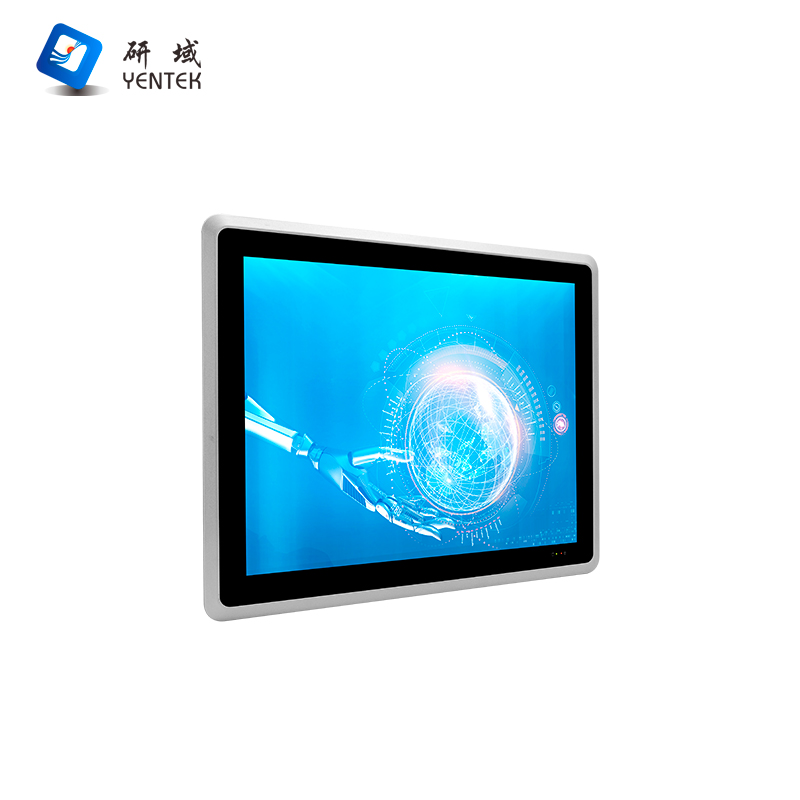

Model | P1771Y-C6 V2.0(8260U) |

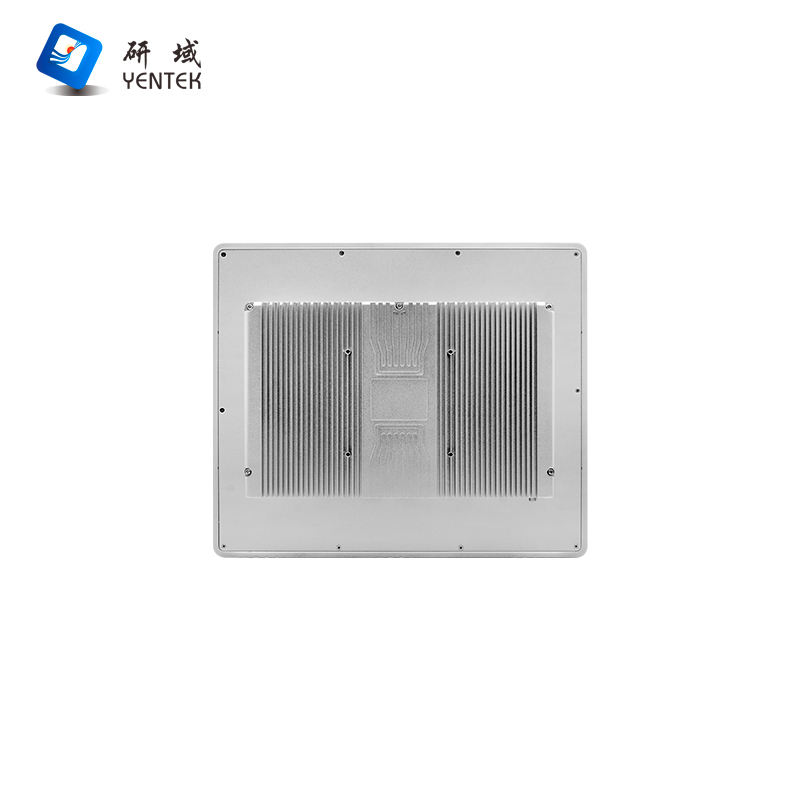

Chassis | Material/Construction | Aluminium alloy construction, fanless cooling design |
Colour | Silver |
Dimensions | L396 × W333 × H64.5 mm |
Weight | 5.2 kg |
Installation | Supports VESA (100 × 100) / flush-mounted panel installation |

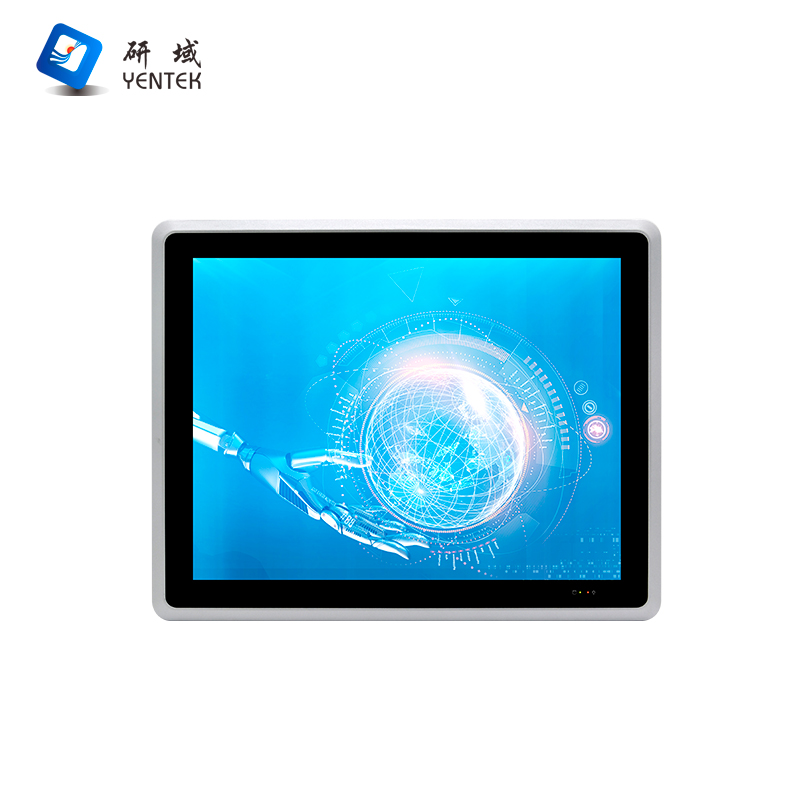

LCD screen | Type | 17-inch LCD, 4:3, standard display |
Resolution | 1280 × 1024 |
Brightness | 250 cd/m² |
Touchscreen | Type | Capacitive touchscreen, 10-point touch |
Transmittance | Over 86 per cent |
Motherboard | CPU | Integrated Intel® i5-8260U / 1.60 GHz quad-core, eight-thread processor, TDP 15 W |
Memory | 2 × SODDR4 2400 MHz memory, supports up to 64 GB |

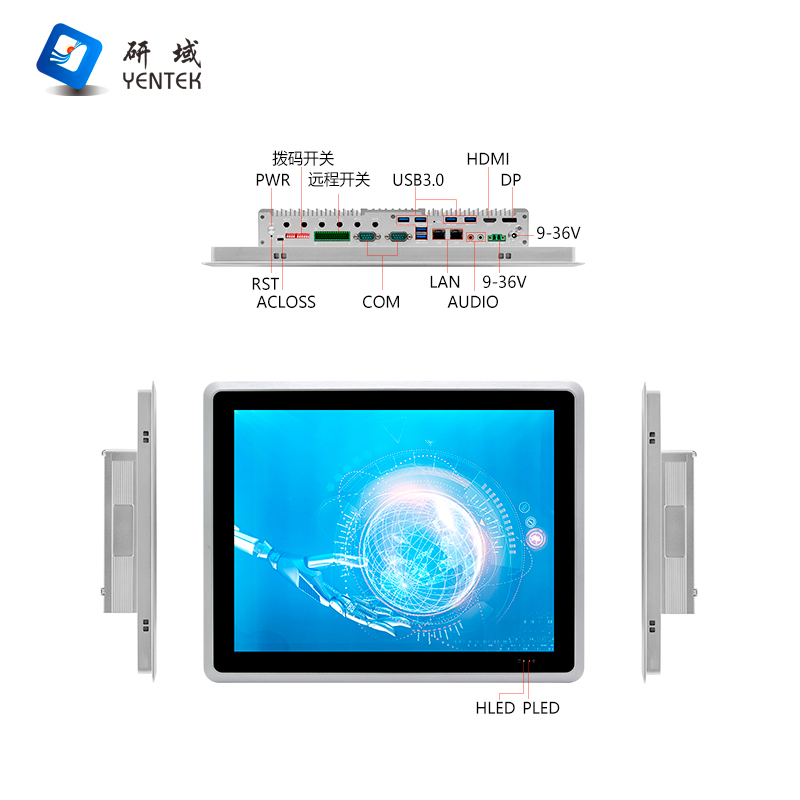

I/O ports | POWER | 1 × Power button, 1 × One-touch restore button, 1 × CMOS reset button, 1 × ACLOSS (power-on DIP switch) |
LED | 1 × power indicator, 1 × hard drive indicator |
Display Interface | 1 × HDMI 1.4 (4096 × 2304 @ 24Hz), 1 × DisplayPort (4096 × 2304 @ 60Hz) |
LAN | 2 × Intel I210 Gigabit Ethernet ports |
USB | 6 × USB 3.0 (number of USB 3.0/2.0 ports depends on the motherboard) |
COM | 6 × RS232 serial ports: COM1 – RS232 DB9 serial port; COM2 – RS232/485/422 DB9 serial port; COM3–6 – RS232 on 2 × 15-pin Phoenix connectors, with COM3 supporting RS485 and COM1–2 supporting pin 9 power supply functionality |
DI/DO | 4 × DI, 4 × DO (located on 2 × 15-pin Phoenix connectors) |
Remote Switch | 1 × PWR, 1 × PWRLED (located on 2 × 15-pin Phoenix connectors) |
DIP Switch | 10-position DIP switch: COM2–3 RS232/485 selection; COM2 RS422 enabled via the COM2_SW1 jumper cap |
Audio | 1 × Line out, 1 × MIC |
Power Supply | 1 × DC (5.5 × 2.5) aviation connector or 1 × 2-pin (P = 5.08 mm) Phoenix connector, supporting DC 9 V–36 V input |
Storage | HDD | 1 × 2.5-inch hard drive bay |
SSD | 1 × M.2 slot, supporting M.2 2260/2280 NVMe PCIe x4/SATA adaptive standard SSD |
MSATA | 1 × mSATA |
Expansion | WiFi | 1 × M.2, Key-E, 2230, supporting Wi-Fi + Bluetooth modules |
5G | 1 × M.2, Key-B, 3042/3052, supporting 5G modules |
System compatibility | Windows | Windows 10 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power requirements | Power Supply Type | DC 9V–36V wide voltage range |
Power Output | AC to DC 60W or above |
Environmental | Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
