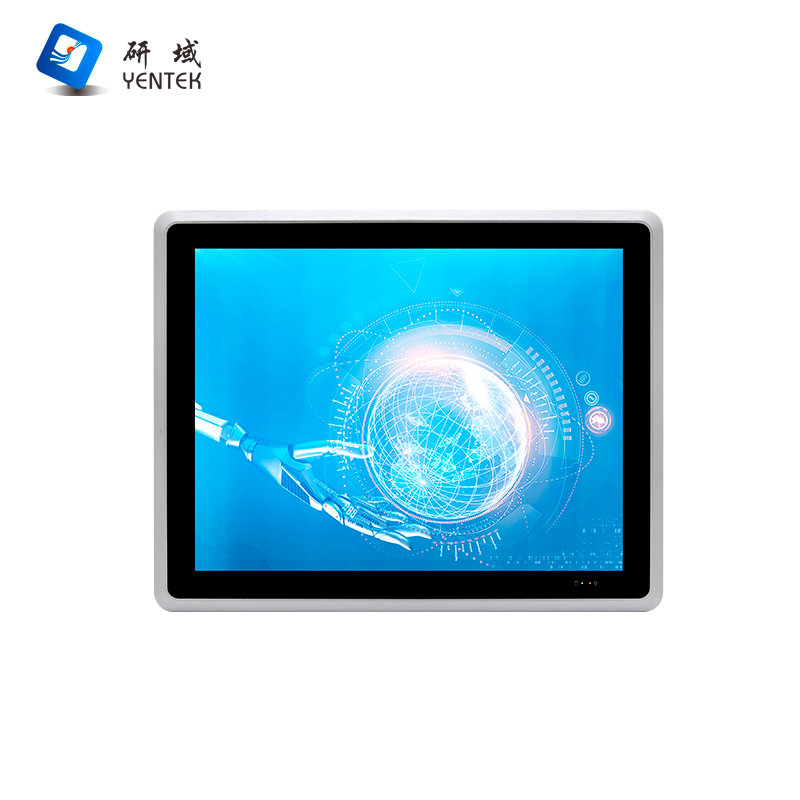

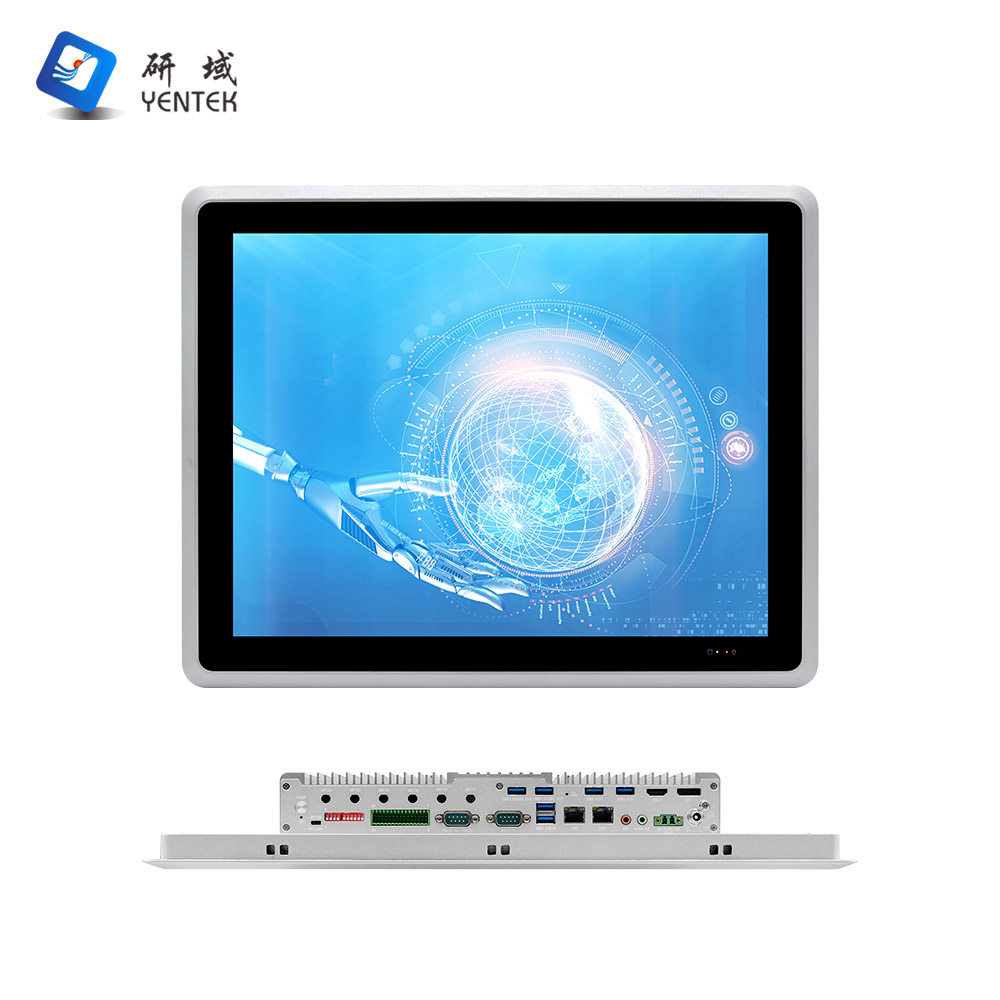

P1971Y-C6 V2.0 (Embedded)

Chassis

Material/Construction

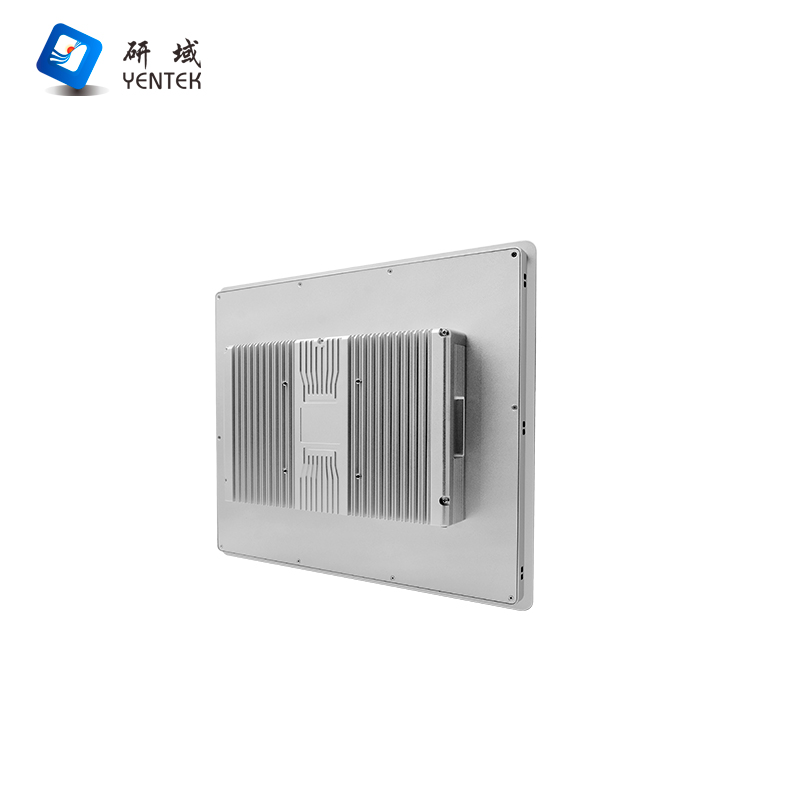

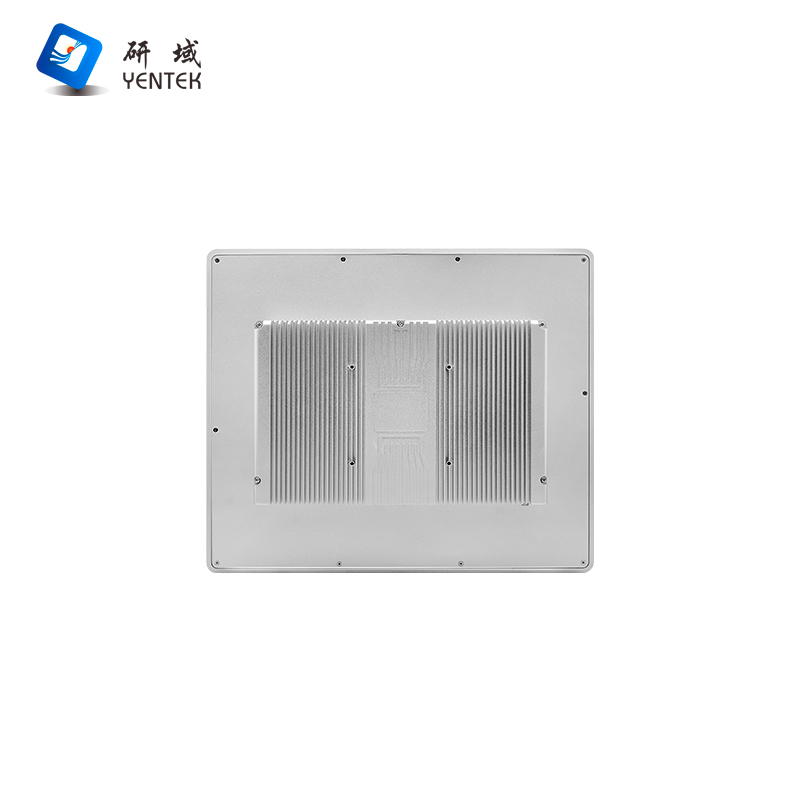

Aluminium alloy construction, fanless cooling design

Colour

Silver

Dimensions

L437 × W368 × H64.7 mm

Weight

6.2 kg

Installation

Supports VESA (100 × 100) / flush-mounted panel installation

LCD screen

Type

19-inch LCD, 5:4 aspect ratio, standard orientation

Resolution

1280 × 1024

Brightness

250 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point touch

Transmittance

Over 86 per cent

Motherboard

CPU

Integrated Intel® i5-8260U / 1.60 GHz quad-core, eight-thread processor, TDP 15 W

Memory

2 × SODDR4 2400 MHz memory, supports up to 64 GB

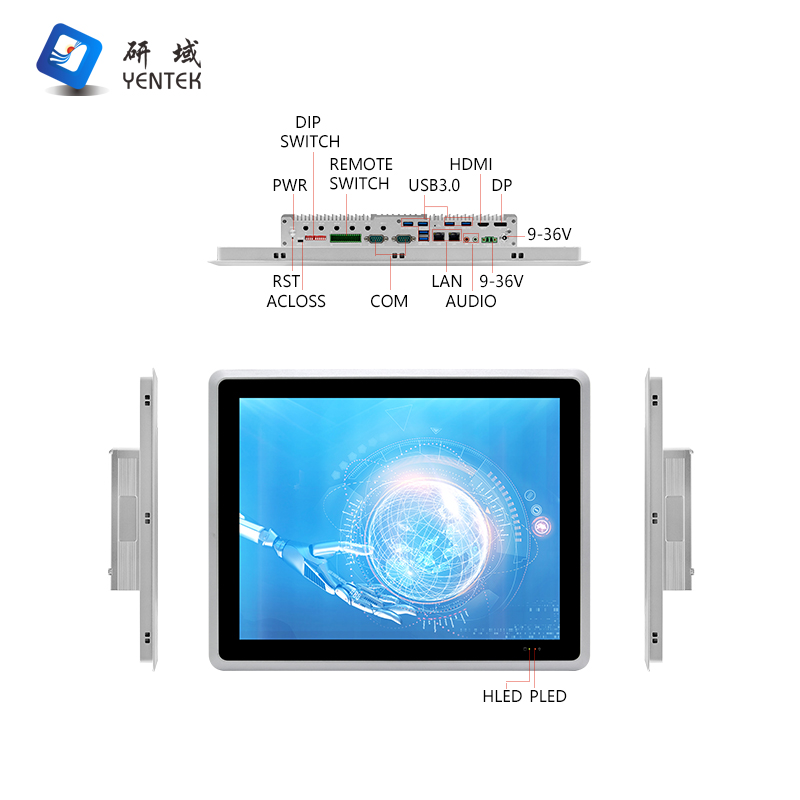

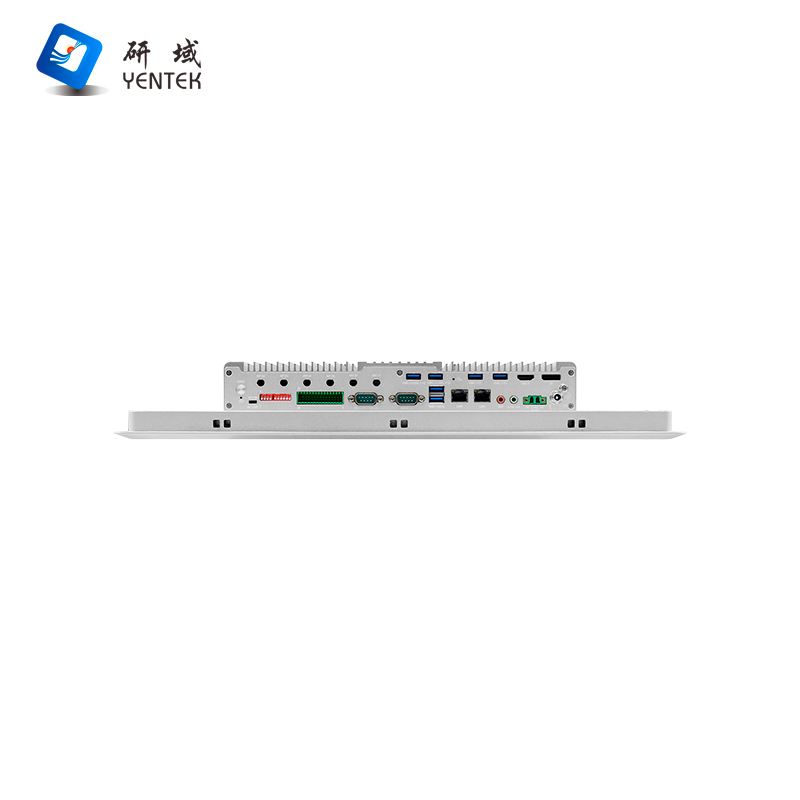

I/O ports

POWER

1 × Power button, 1 × One-touch restore, 1 × CMOS reset button, 1 × ACLOSS (Power-on DIP switch)

LED

1 × Power indicator, 1 × Hard drive indicator

Display Interface

1 × HDMI 1.4 (4096 × 2304 @ 24Hz), 1 × DisplayPort (4096 × 2304 @ 60Hz)

LAN

2 × Intel I210 Gigabit Ethernet ports

USB

6 × USB 3.0 (number of USB 3.0 ports depends on the motherboard)

COM

6 × RS232 serial ports: COM1 – RS232 DB9 serial port; COM2 – RS232/485/422 DB9 serial port; COM3–6 – RS232 on 2 × 15-pin Phoenix connectors, of which COM3 supports RS485, whilst COM1–2 support pin 9 power supply functionality

DI/DO

4 × DI, 4 × DO (located on 2 × 15-pin Phoenix connectors)

Remote Switch

1 × PWR, 1 × PWRLED (located on 2 × 15-pin Phoenix connectors)

DIP Switch

10-position DIP switch: COM2–3 RS232/422/485 selection; COM3 RS485 selection

Audio

1 × Line out, 1 × Mic

Power Supply

1 × DC (5.5 × 2.5) aviation connector or 1 × 2-pin (P = 5.08 mm) Phoenix connector, supporting 9 V to 36 V input

Storage

HDD

1 × 2.5-inch hard drive bay

SSD

1× M.2, supports Key-M, 2280, NVMe PCIe x4 SSD

MSATA

1× mSATA

Expansion

WiFi

1× M.2, Key-E, 2230, supports Wi-Fi 6 + Bluetooth modules

5G

1× M.2, Key-B, 3042/3052, supports 5G modules

System

Windows

Windows 10

Linux

Ubuntu

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power

requirements

Power Supply Type

DC 9V–36V wide voltage range

Power Output

AC to DC 90W or above

Environmental requirements

Operating Temperature

–10°C to 50°C

Storage Temperature

–20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P1971Y-C6 V2.0(J6412)

J6412/2.00G

2*SODDR4

Q642

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

2

4

9~36V

2

P1971Y-C6 V2.0(7300U)

I5-7300U/2.6G

2*SODDR4

Q68HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

2

4

9~36V

3

P1971Y-C6 V2.0(7360U)

I7-7360U/2.3G

2*SODDR4

Q68HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

2

4

9~36V

4

P1971Y-C6 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

/

6

9~36V

5

P1971Y-C6 V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

Q102HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

/

6

9~36V

6

P1971Y-C6 V2.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

/

6

9~36V

7

P1971Y-C6 V2.0(1195G7)

I7-1195G7/2.9G

2*SODDR4

Q112HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

/

6

9~36V

8

P1971Y-C6 V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q122HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

2

4

9~36V

9

P1971Y-C6 V2.0(1255U)

I7-1255U/1.2G

2*SODDR4

Q122HD1

P1082-C6/P1071-LED

2.5+M.2+MSATA

4/4

2

6

1

2

4

9~36V
