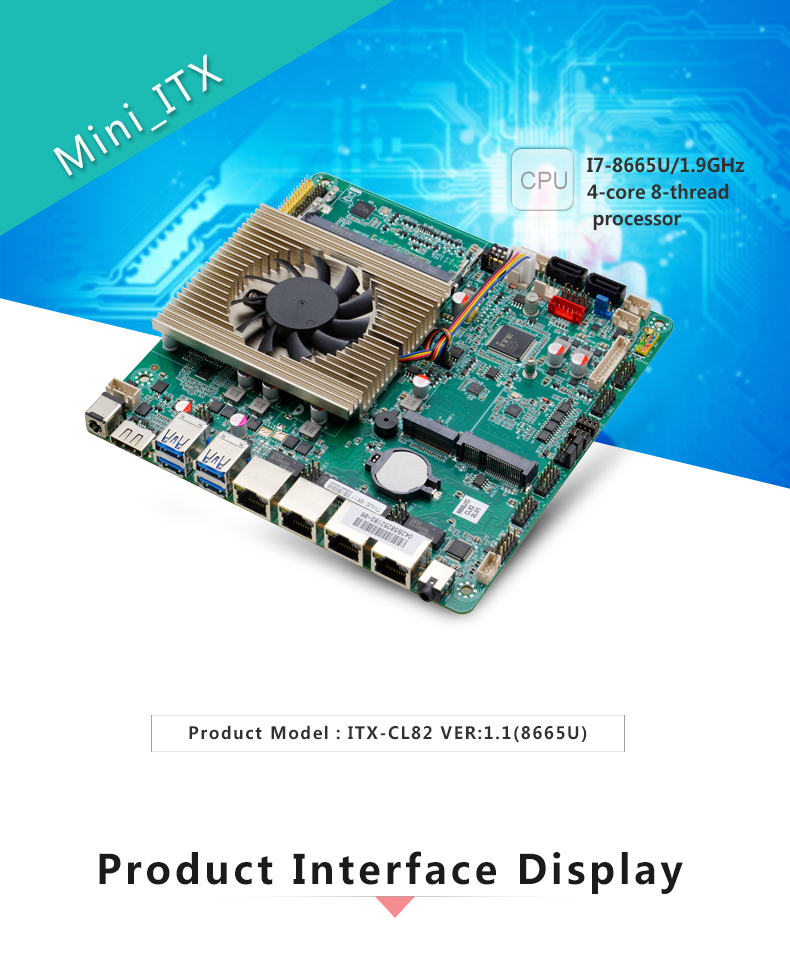

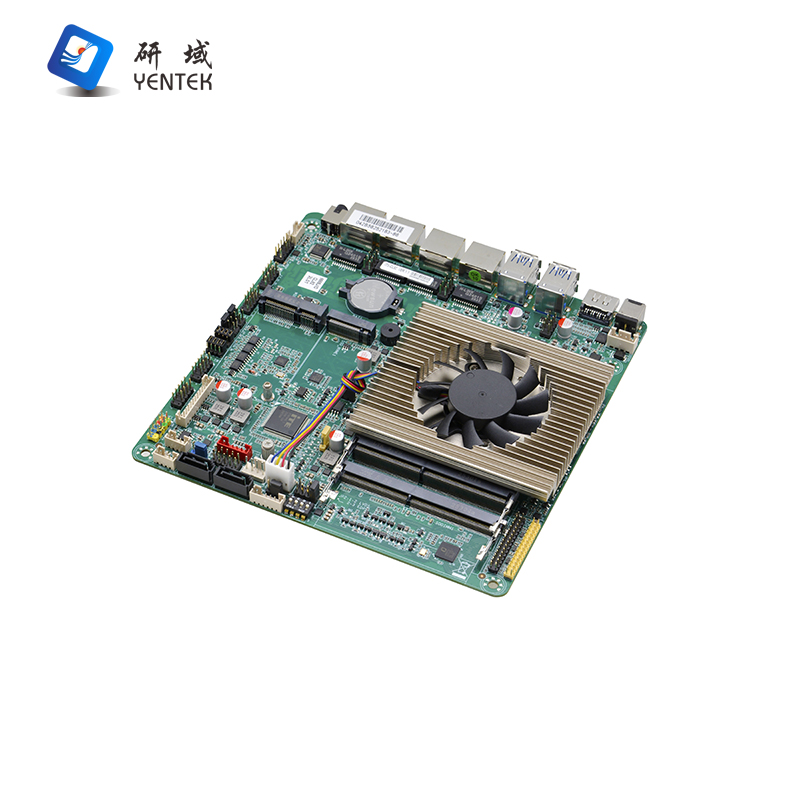

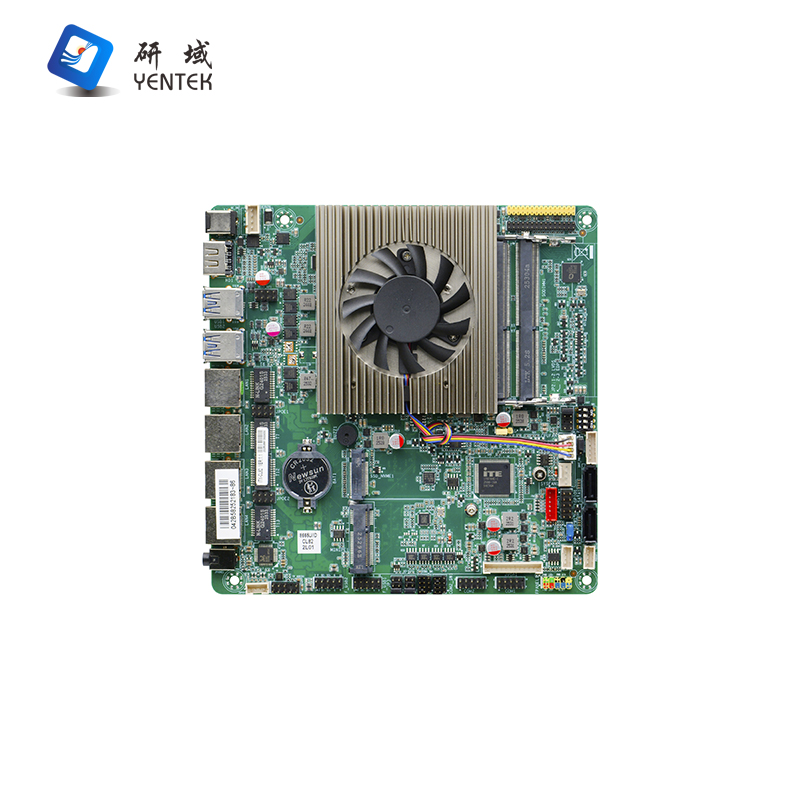

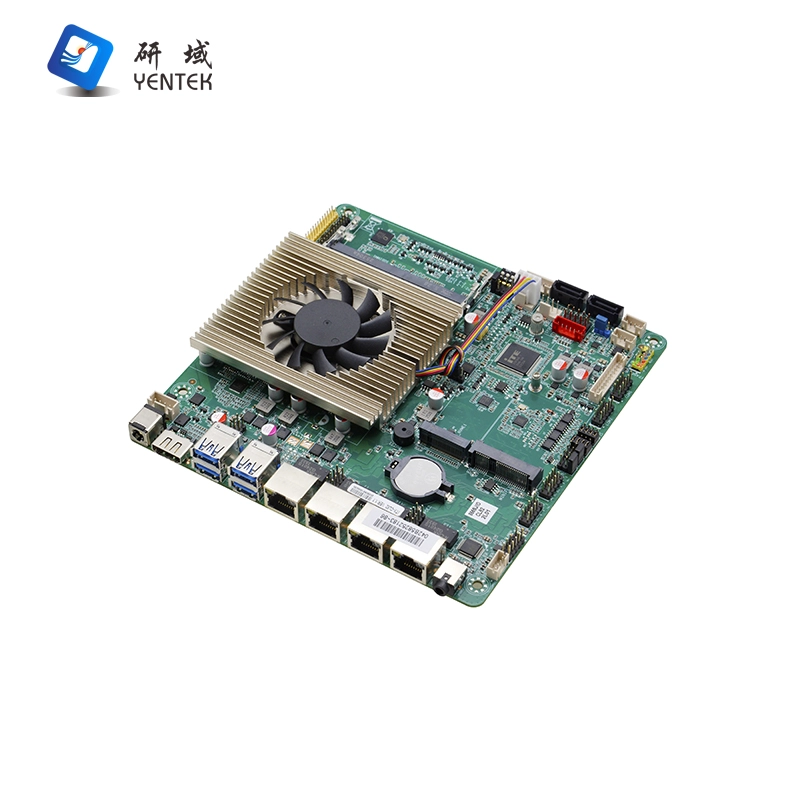

ITX-CL82

Processor

Features an 8th Generation Intel® Core™ i7-8665U processor at 1.9GHz with   quad-core and eight threads, TDP 15W

Compatible with Intel® Whiskey Lake-U/Comet Lake-U/Coffee Lake-U 8th/10th   generation Celeron/Pentium/i3/i5/i7 low-power processors

Chipset

SOC

Memory

2x DDR4 SODIMM memory slots, supporting 2400MHz memory, maximum capacity   64GB

Display

Integrated Intel® UHD Graphics, supporting DirectX 12 and OpenGL 4.5, 4K   capable

1x VGA port, maximum supported resolution: 1920x1200@60Hz

1x HDMI 1.4 port, maximum supported resolution: 4096x2304@24Hz

1x dual-channel 24-bit LVDS interface

1x EDP port, shared with LVDS via jumper selection

Network

4x Intel I210AT Gigabit Ethernet ports, supporting Wake-on-LAN and PXE   functionality.

Note: Ethernet ports support POE functionality via VL68-PW daughterboard.

Storage

2x SATA 3.0 hard drive interfaces, transfer speeds up to 6Gbps.

1x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0   x4/SATA adaptive standard SSDs.

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio controller,   supporting MIC, Line_out, and amplifier

Supports amplifier for 4Ω 3W speakers

Expansion Slots

1x Mini-PCIe slot, supporting Wi-Fi/Bluetooth/TPM-4COM modules

Note: TPM-4COM support requires BIOS modification

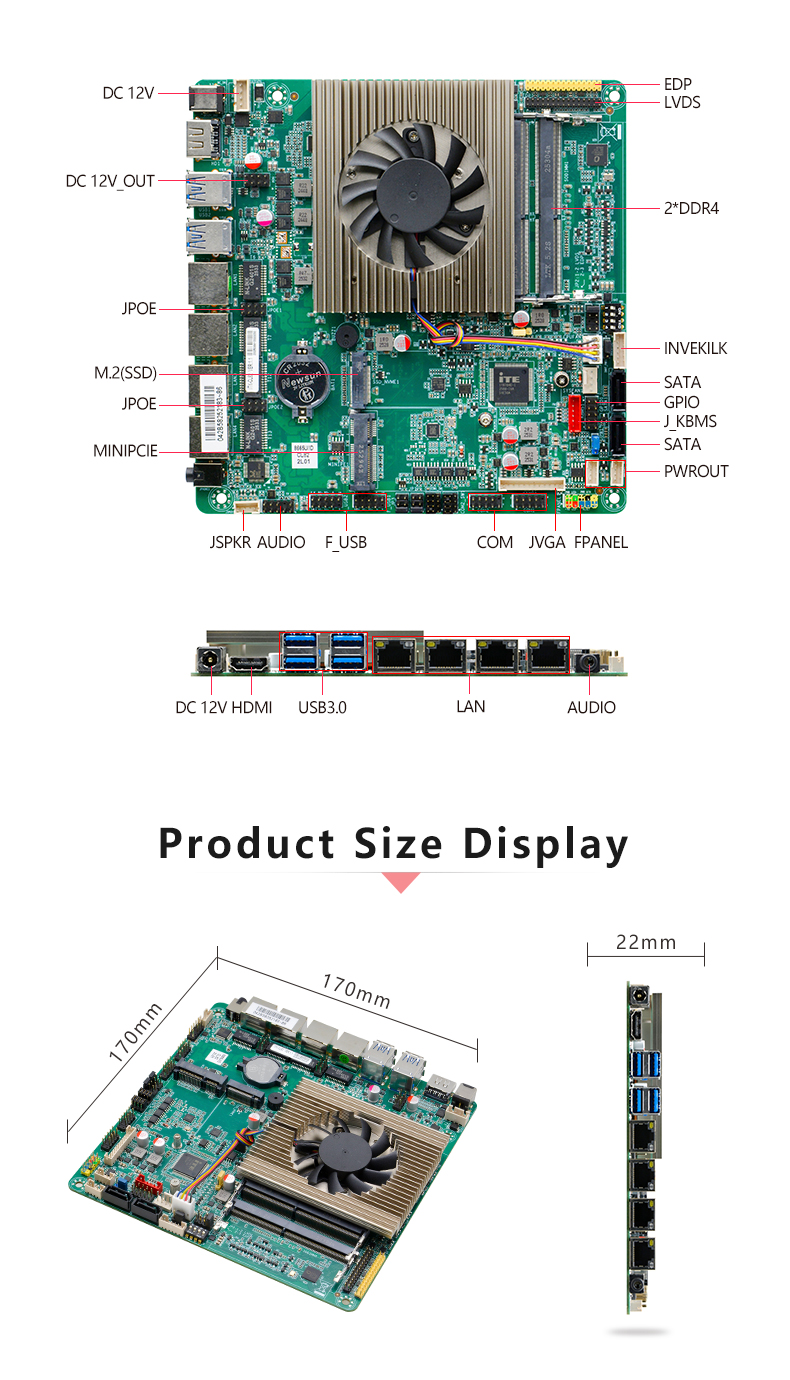

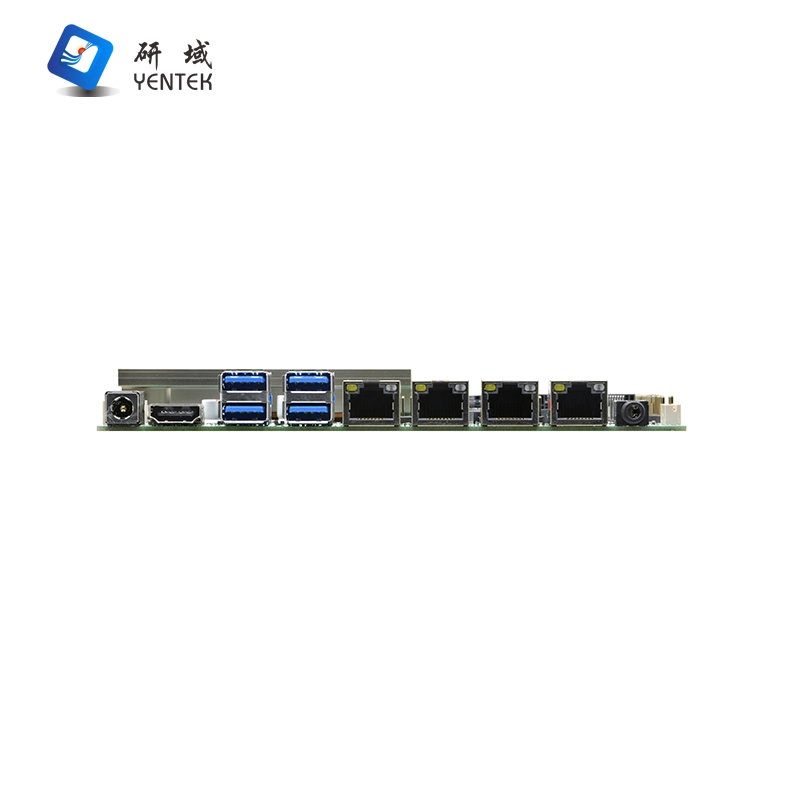

Rear Panel I/O Ports

4x USB 3.0 ports

1x HDMI 1.4 port

4x RJ45 Gigabit Ethernet ports

1x 2-in-1 audio jack supporting Line-out/MIC

1x DC12V power input connector

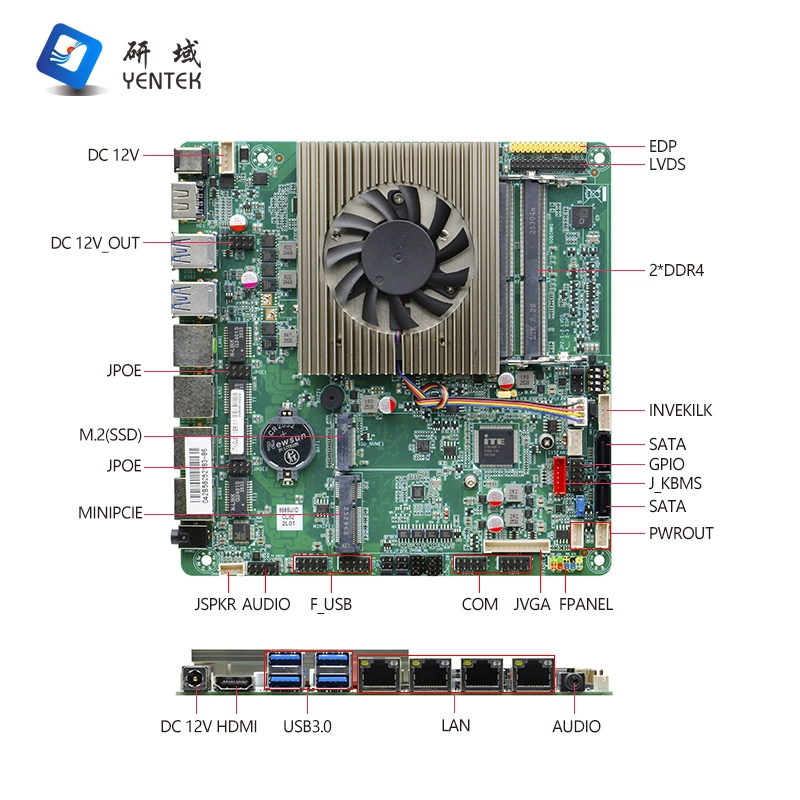

Integrated I/O Ports

1x LVDS interface (2x15-pin, PH=2.0mm) supporting dual-channel 24-bit

1x LVDS backlight power connector (1x6-pin, PH=2.0mm)

1x EDP interface 2x 15-pin, PH=2.0mm, selectable via jumper with LVDS

2x RS232 serial interfaces, 2x 5-pin, PH=2.54mm, supporting RS485/422   functionality via jumper selection

3x 2x 4-pin PH=2.54mm header pins, connecting to POE   daughterboard

1* PS/2 keyboard/mouse interface (red) 1*6-pin PH=2.0mm

4* USB 2.0 interfaces 2*5-pin, PH=2.54mm

1* Front audio interface 2*5-pin, PH=2.54mm

1* Front panel switch button and indicator interface 2*5-pin, PH=2.54mm

2* Hard Drive Power Connectors 1*4-pin, PH=2.0mm

1* Amplifier Connector 1*4-pin, PH=2.0mm

1* DC Power Connector 1*4-pin (Can function as 12V input power connector)

Fan Connectors

1*4-pin CPU Smart Fan Connector, 1* 4-pin System Fan Connector

GPIO

Supports 4-channel input/output GPIO functionality

BIOS

128Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by DC 12V supply

Operating System

Windows 10/11/Linux

Operating Temperature

-20°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

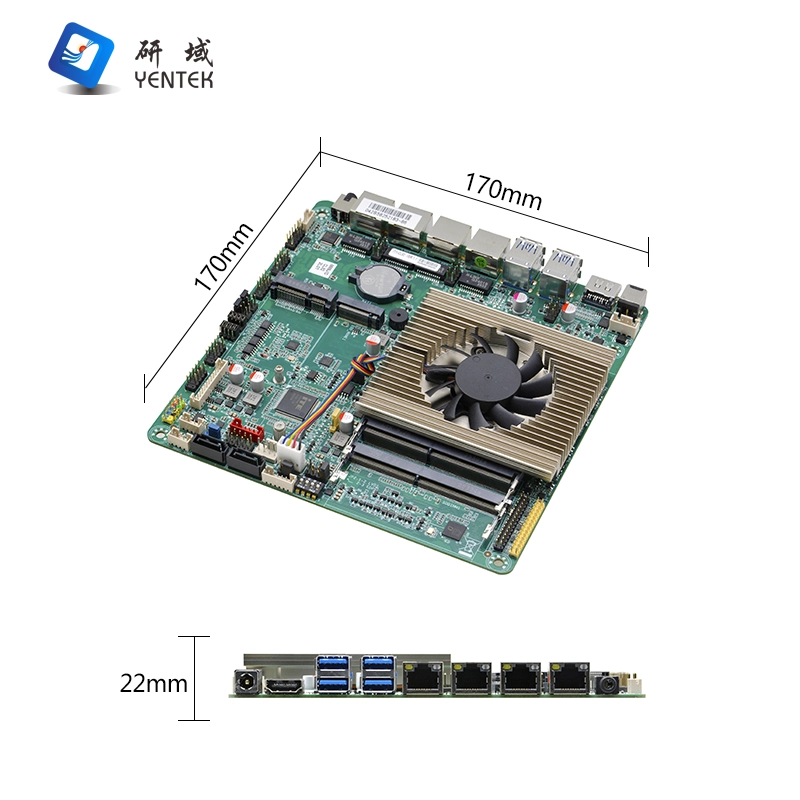

Dimensions

170mm x 170mm

1

ITX-VL82 VER:1.0(8257U)

I5-8257U

1.4G

2*SODDR4

1

1

1

1

4*I210AT

8

2

COM1/2

DC12V

2

ITX-CL82 VER:1.0(8665U)

I7-8665U

1.9G

2*SODDR4

1

1

1

1

4*I210AT

8

2

COM1/2

DC12V
