ITX-B190_D926L

Processor

Onboard Intel®   Celeron J1900/2.00GHz quad core processor, TDP 10W

Compatible with Intel® Bay Trail   -I/M/D series CPU

Chipset

Intel® Bay trail SOC

Memory

1*SODDR3L   /1.35V RAM slot, 1600/1333MHz   ,max up to 8GB

Display

Intel® HD Graphics

1* VGA,1*HDMI,1* LVDS,1*EDP，LVDS and EDP are two   option via jumper,

 default LVDS

Support VGA / HDMI / LVDS synchronous/asynchronous   display

LAN

2* Realtek   RTL8111H Gigabit Ethernet, support Wake On LAN ,PXE   function

Storage

1* SATA2.0 HDD port

1*   SATA 2.5 inch laptop HDD slot, can install HDD directly

1* MSATA slot, support SSD, transfer rate up to 3Gbps

Note:2.5” HDD bay and 7pin SATA for adaptive two options, default: 7pin   SATA

Audio

Onboard ALC262 6 channel high fidelity controller,   support MIC/Line-out. amplifier

Amplifier suggest use 4Ω3W speaker

Expansion

1* Mini-PCIE slot, support WIFI , 4G   module

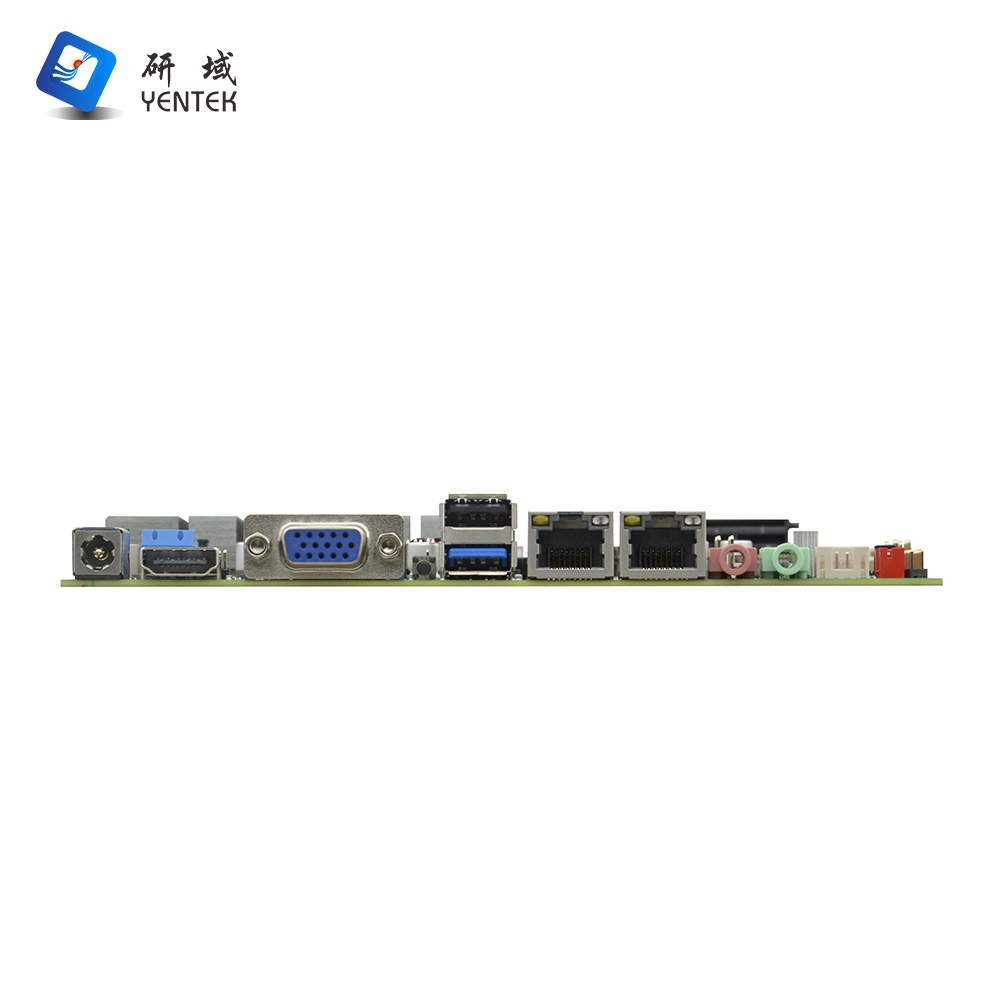

Rear panel I/O port

1* HDMI

1* VGA

1* USB 2.0

1* USB3.0

1* RJ-45 Gigabit Ethernet, LAN2 and   USB1 are two option

1* Line out port (green)、1* MIC(red)

1* 12V DC power input port

1* Clean CMOS button（reserve）

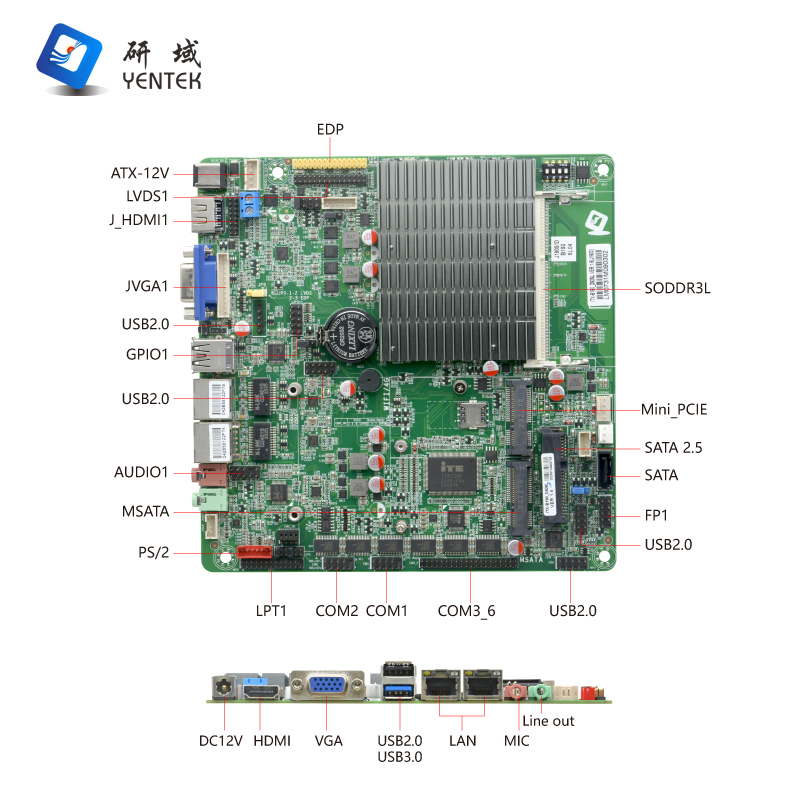

Interior I/O port

1* DC 12V power   input port,1*4pin

1* 2pin blue   power socket

1* USB2.0 port, 1*5pin

4* USB 2.0 port, 2*5Pin, USB5 and   USB1 are two option

1* J_HDMI, 2*8Pin (same   signal as HDMI1 of backplane of IO port)

1* JVGA,   1*12Pin ( same signal as DB15)

1* LVDS port, 2*15pin,2*24bit

1* Screen backlight power supply interface, 1*6pin

1* EDP，2*15pin，EDP and LVDS are two options, default LVDS

1* PS/2（red） 1*6Pin

6* RS232 COM   ports, COM1/COM2 support the 9th pin charged function

1* LPT, 2*13Pin

1* Front audio port, 2*5pin

1* Front panel button and LED port,   2*5Pin

1* HDD power supply port, 1*4pin

1* Amplifier, 1*4pin

1*   SIM card

Fan connector

Fanless cooling, reserve 1*4pin CPU   fan connector,1* 3pin system fan connector

GPIO

Support 4 input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256，0~255 seconds)

OS Support

Windows 7/Windows 10/Linux

Power Type

Adopt DC 12V power supply

Working Temp.

-10℃～60℃

Storage Temp.

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

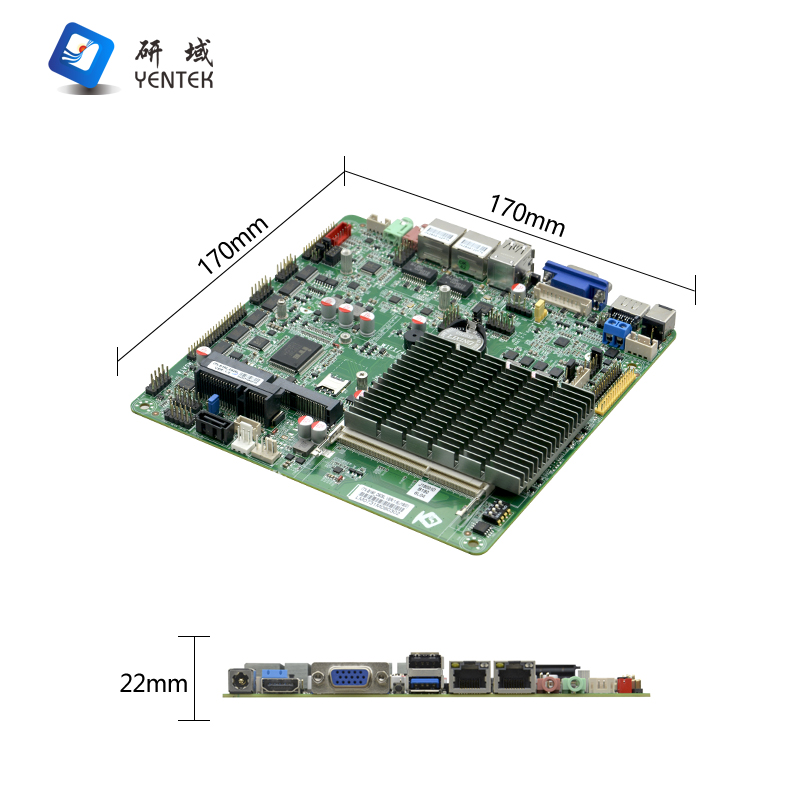

Dimension

170mm x 170mm
