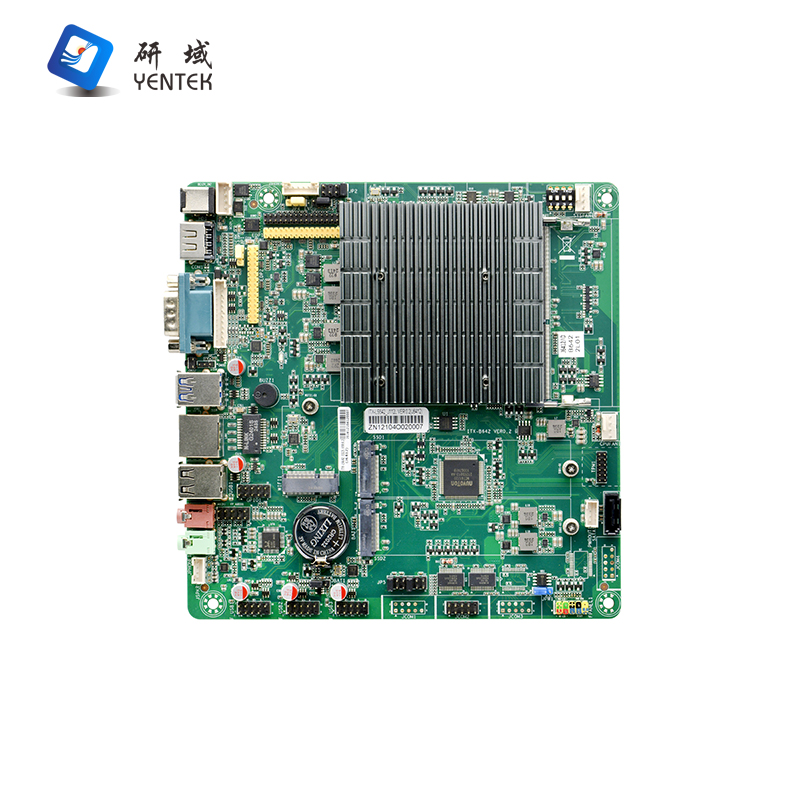

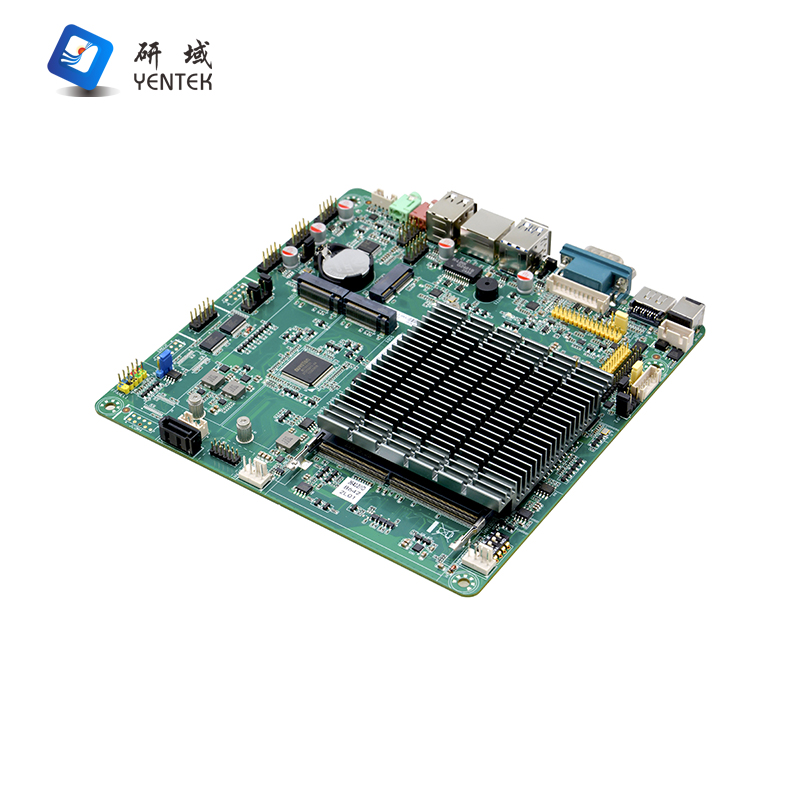

ITX-LS642_J112L

Processor

Integrated   Intel® Celeron J6412 2.0GHz Quad-Core Quad-Thread Processor,TDP 10W

Compatible with the full range of Intel® Elkhart Lake CPUs   for flexible customer selection.

Chipset

SOC

Memory

1* SODIMM   slot, support single-channel 3200MHz DDR4 memory up to 16GB.

Display

Integrated   Intel® UHD Graphics core graphics card

1* VGA,   1*HDMI interface, 1* LVDS interface, 2* EDP interface

Note: VGA   and EDP2 through the jump two choose one, LVDS and EDP1 through the jump two   choose one, can support dual EDP display or LVDS + EDP display

Network

1*   RTL8111H Gigabit LAN card, support Wake-on-LAN and PXE function.

Storage

1* 7pin SATA3.0 hard disk interface, transfer rate up to   6Gbps

1* M.2 slot, support M.2 Key M 2280 SATA specification SSDs

1* M.2   slot, supports M.2 Key M 2280 PCIE X2 SSDs

Audio

Onboard   ALC897 7.1+2-channel hi-fi audio controller, supports MIC/Line-out.

4Ω 3W   speakers are recommended for the amplifier.

Expansion   Slots

1* M.2   slot, support M.2 Key E 2230 WIFI module

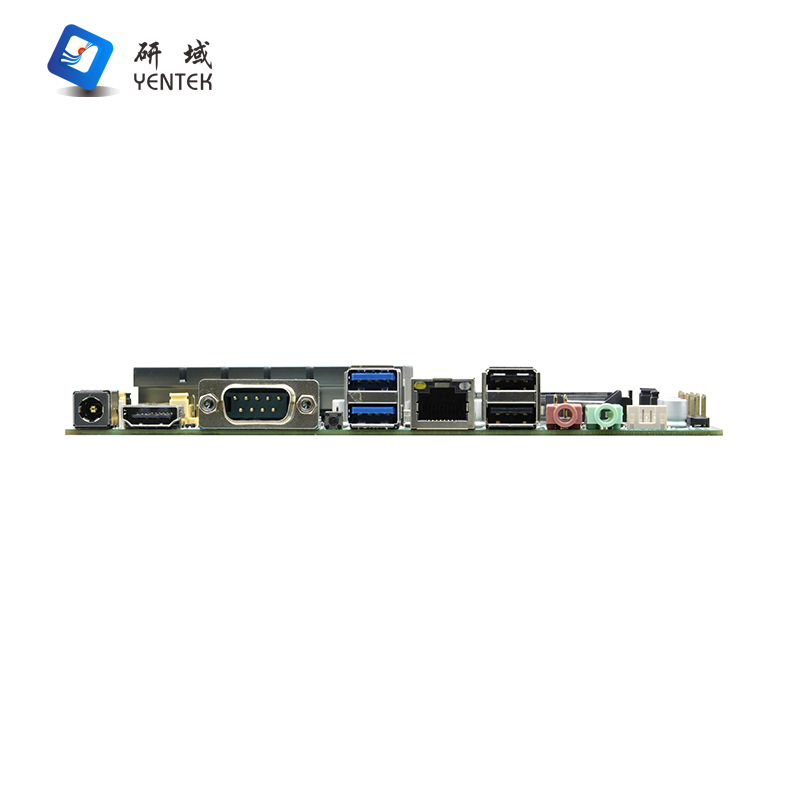

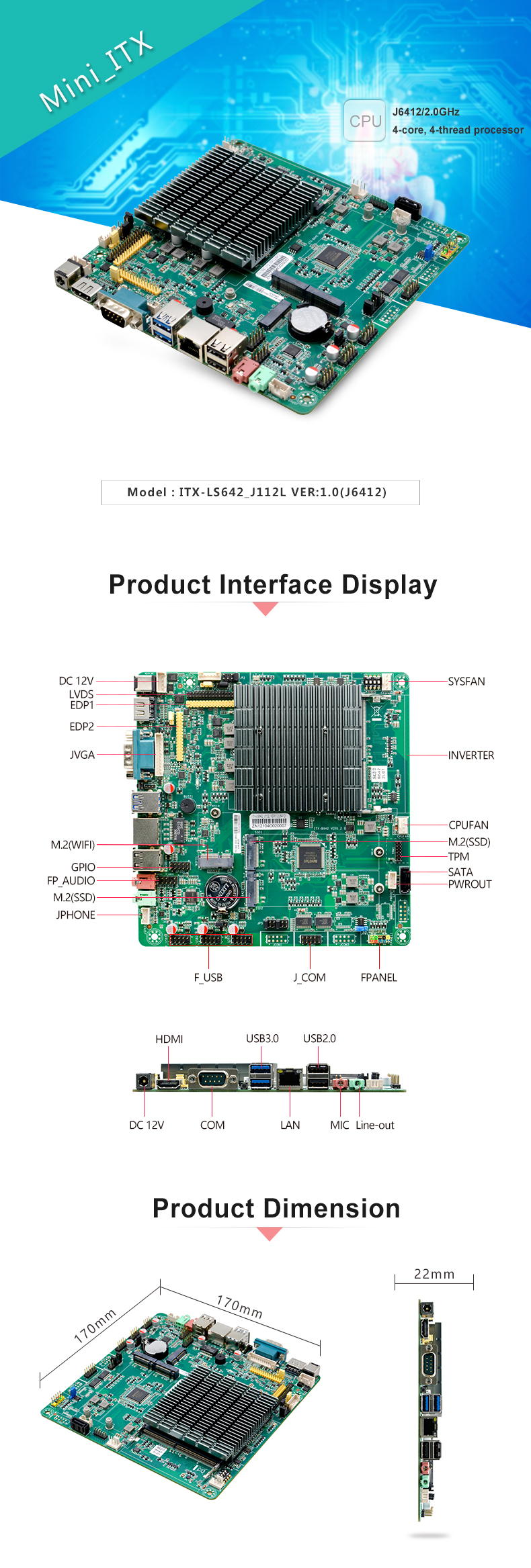

Backplane   I/O Ports

1* DC 12V power input interface

1* DB9   serial port and DB15 VGA interface for the two choose one

1* HDMI   display interface

2* USB3.0 interface, 2*USB2.0 interface

1* RJ45 Gigabit network interface

1* Line-out (Green), 1* MICK (Red)

1* Clear CMOS button

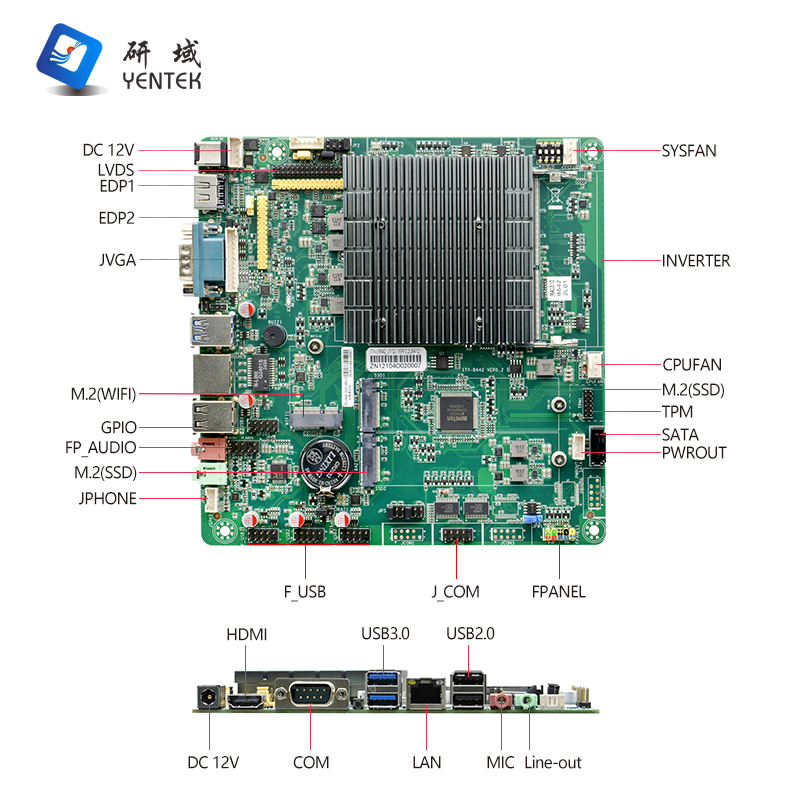

Built-in   I/O Ports

1* DC power connector, 1*4pin support 12V power input and output

1* JVGA interface 1*12pin, and DB15 with the same signal, and   EDP2 for the jump through the two optional

1* LVDS interface, 2*15pin, support for dual-channel 24BIT,   2* EDP interface, 2*4pin, support for 12V power input and output

2* EDP interface, 2*15pin, of which EDP1 and LVDS are two   choices through the jumps

1* Screen backlight power supply interface 1*6pin

6* USB2.0 interface, 2*5pin, of which F_USB3 for PCIE out of   the USB

1* RS232 serial interface, COM1/2 support for the first 9pin   charged function, JCOM1 and external DB9 for the two choose one

1* Hard disk power supply interface 1*4pin

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

1* Front Panel Function Button and Indicator Interface 2*5pin

1* TPM connector 2*6pin

Fan   Interface

Fanless cooling, reserved 1*4pin CPU intelligent fan   interface, 1*4pin system fan interface

GPIO

Support   4-way input/output GPIO

BIOS

256Mb   Flash ROM

Watchdog

Support   hardware reset function (256 levels, 0~255 seconds)

Operating   System

Windows   10/Windows 11/Linux

Power   Supply Type

DC 12V   power supply

Operating   Temperature

-10℃～60℃

Storage   Temperature

-20℃～70℃

Working   Humidity

5%-95%   relative humidity, non-condensing

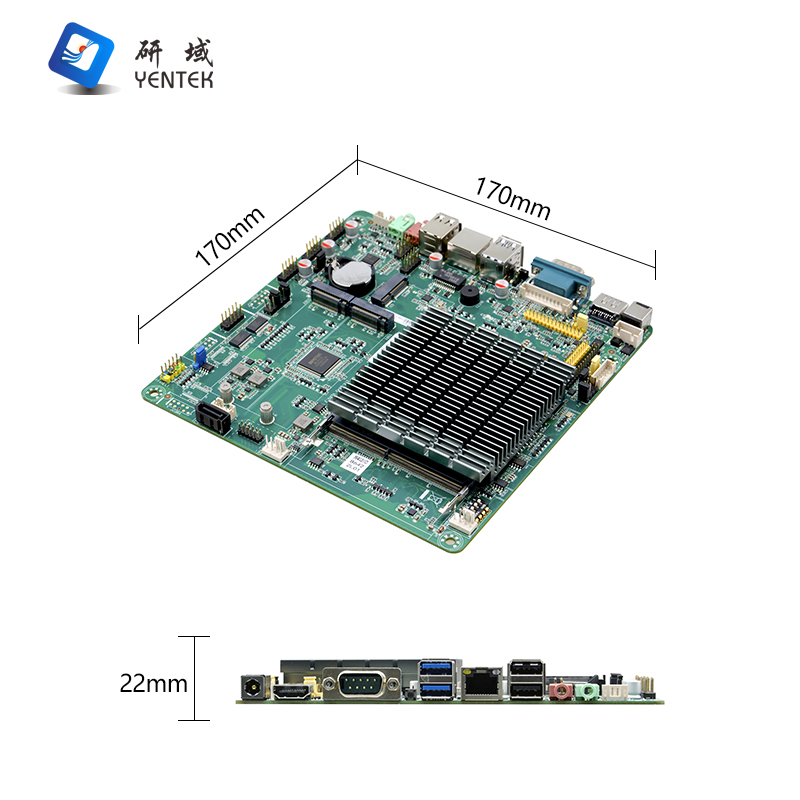

Dimension

170mm x   170mm

1

ITX-LS642_J126L   VER:1.0

 J6412

2.0G

1*SODDR4

1

1

2ch*24BIT

2

2*8111H

10

2

/

DC12V
