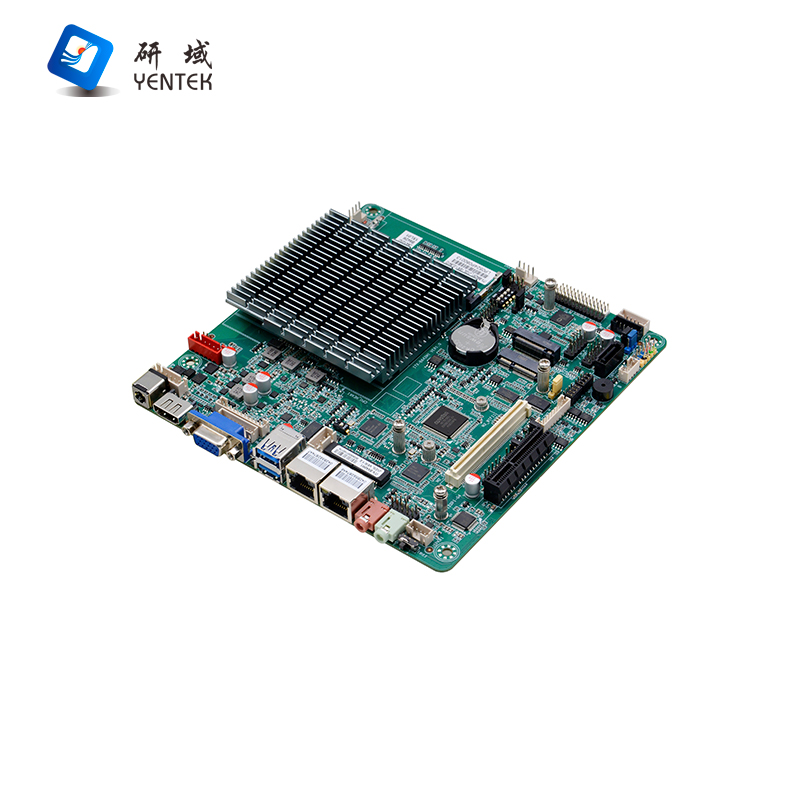

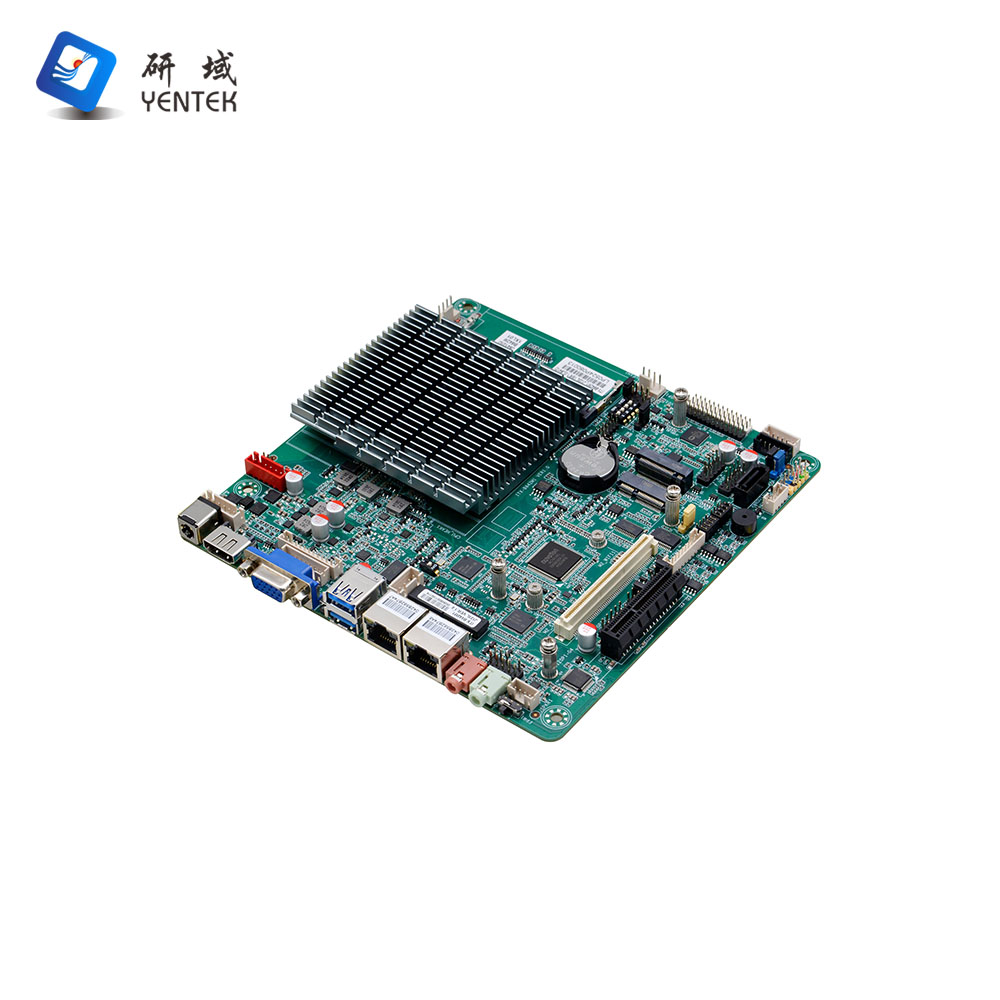

ITX-B642M1_J123L

Processor

Integrated Intel® Celeron J6412 2.0GHz quad-core, quad-thread processor, TDP 10W

Compatible with the full range of Intel® Elkhart Lake CPUs, offering customers flexible options

Chipset

SOC

Memory

1* DDR4 SODIMM slot, supporting single-channel 3200MHz memory, with a maximum capacity of 32GB

Display

Integrated Intel® UHD Graphics

1* VGA port, maximum supported resolution: 1920*1080@60Hz

1* HDMI 1.4 port, maximum supported resolution: 3840*2160@30Hz

1* LVDS port, supports dual-channel 24-bit; either this or EDP can be selected via a jumper

Note: Supports three independent displays via VGA, HDMI, LVDS or EDP

Network

2 * Intel I210AT 1GbE network cards, supporting Wake-on-LAN and PXE functionality

Note: The network ports support PoE functionality when used with the YH112-L2 expansion board

Storage

1 * 7-pin SATA 3.0 hard drive interface, with a transfer rate of up to 6 Gbps

1 * M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x1 SSDs

Note: The M.2 slot supports SATA SSDs; BIOS configuration is required

Audio

On-board ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC/Line-out and power amplifier

A 4Ω 3W speaker is recommended for the power amplifier

Expansion Slots

1 * M.2 slot, supporting M.2 Key E 2230 Wi-Fi modules

1 * 120-pin high-speed connector (4 * TTL, 1 * DP, 1 * SATA, 2 * PCIe), for use with the IVG390 series expansion board

1 * PCIe x4 slot (x2 signal)

Note: The PCIe x4 slot is not supported by default; to use the PCIe x4 slot, the M.2 SSD must be switched to SATA mode

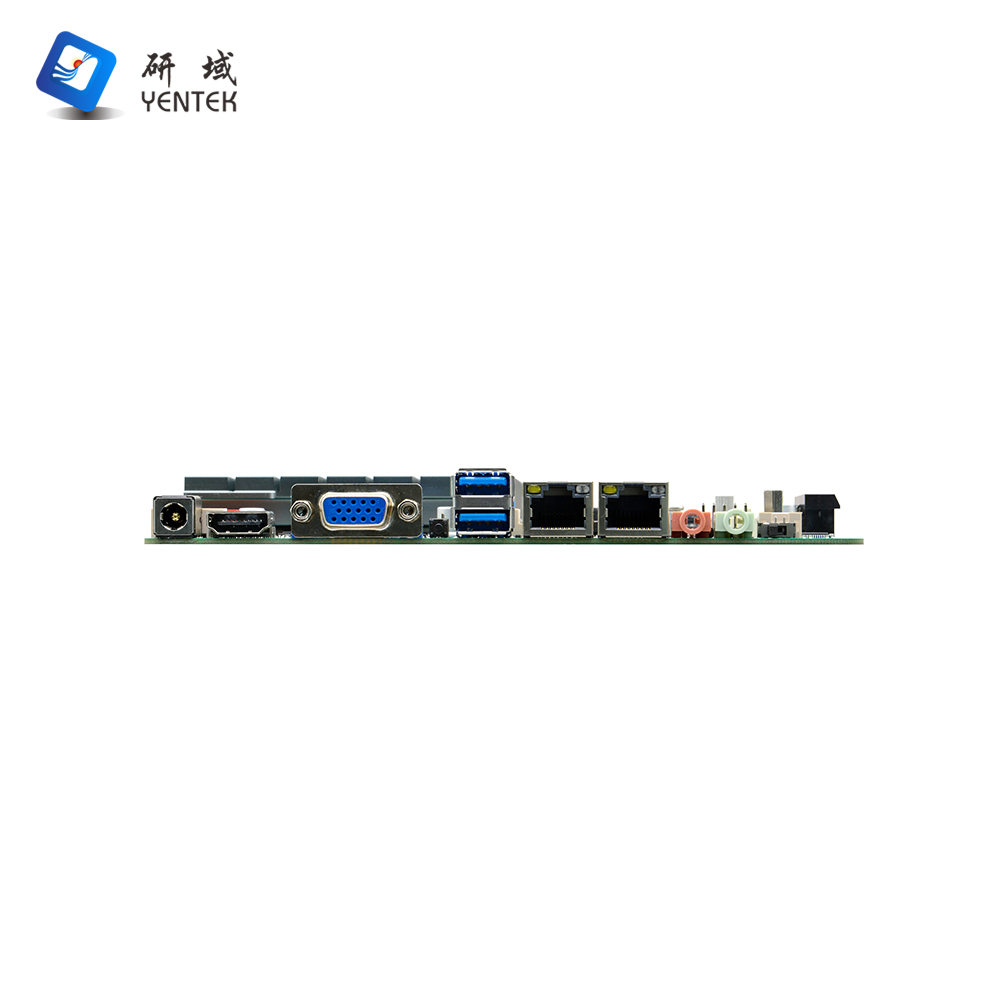

Rear Panel I/O Ports

1 * DC 12V power input connector

1 * DB15 VGA port (mutually exclusive with the DB9 serial port)

1 * HDMI 1.4 display port

2 * USB 3.0 Type-A ports (5 Gbps)

2 * RJ45 Gigabit Ethernet ports

1 * Line-out (green), 1 * Mic (red)

1 * CMOS reset button, 1 * Power-on DIP switch

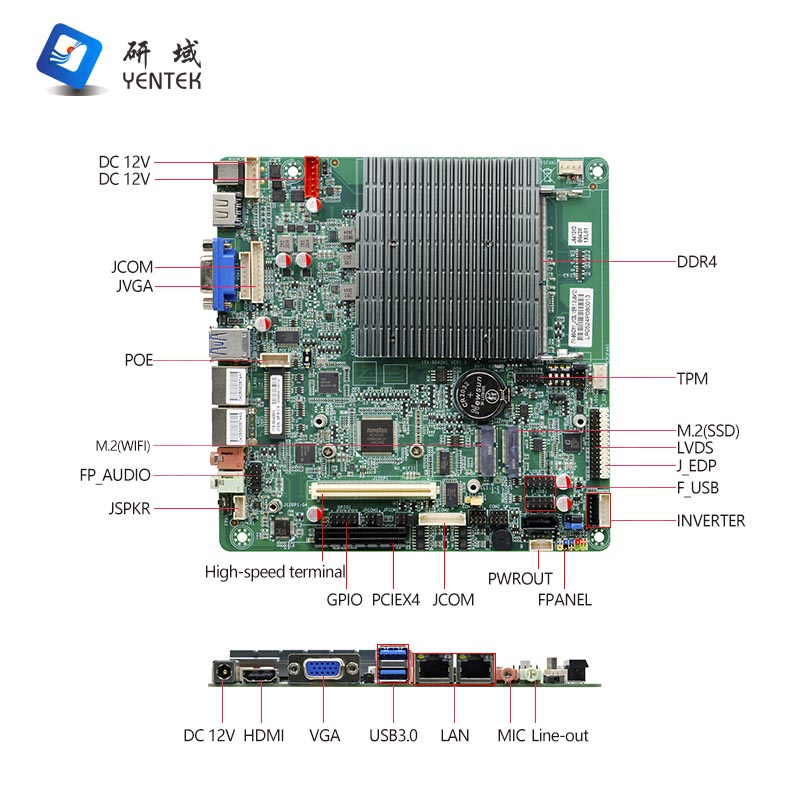

On-board I/O Ports

1 * DC power connector (1 * 6-pin, PH = 2.54 mm, white); either this or the 2 * 2-pin ATX power connectors may be used. Supports 12–24 V DC power (Requires a wide-voltage board)

1 * 6-pin DC power connector, pitch = 2.54 mm (red), supports 12 V DC power supply

1 * 12-pin JVGA connector, pitch = 2.0 mm; selectable via DIP switch between this and high-speed terminal signals

1 * LVDS connector (black), 2 * 15-pin, pitch = 2.0 mm, supports dual-channel 24-bit;

1 * EDP connector (white), 2 * 15-pin, pitch = 2.0 mm; selectable via jumper switch (either this or the LVDS connection)

1 * LVDS display backlight power connector (black), 1 * 6-pin, pitch = 2.0 mm

1 * EDP screen backlight power supply interface (white), 1 * 6-pin, pitch = 2.0 mm

4 * USB 2.0 interfaces, 2 * 5-pin, pitch = 2.54 mm

2 * RS232 serial interfaces, 1 * 9-pin, pitch = 2.0 mm; supports RS485/422 functionality, configured via jumper settings

1 * Hard Disk Power Supply Connector, 1 * 4-pin, PH = 2.0 mm

1 * Front Audio Connector, 2 * 5-pin, PH = 2.54 mm

1 * Power Amplifier Connector, 1 * 4-pin, PH = 2.0 mm

1 * Front Panel Function Button and Indicator Light Connector, 2 * 5-pin, PH = 2.54 mm

1 * TPM Connector, 2 * 6-pin, PH = 2.0 mm

1 * Ethernet POE power supply connector, 1 * 4-pin, PH=2.5mm

Fan Connectors

1 * 4-pin CPU smart fan connector, 1 * 4-pin system fan connector

GPIO

Supports 4-channel GPIO input/output

BIOS

128Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered by a 12V DC power supply; a wide-voltage board can be used to support 12–24V DC power supplies

Operating Temperature

–10°C to 60°C

Storage Temperature

–20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

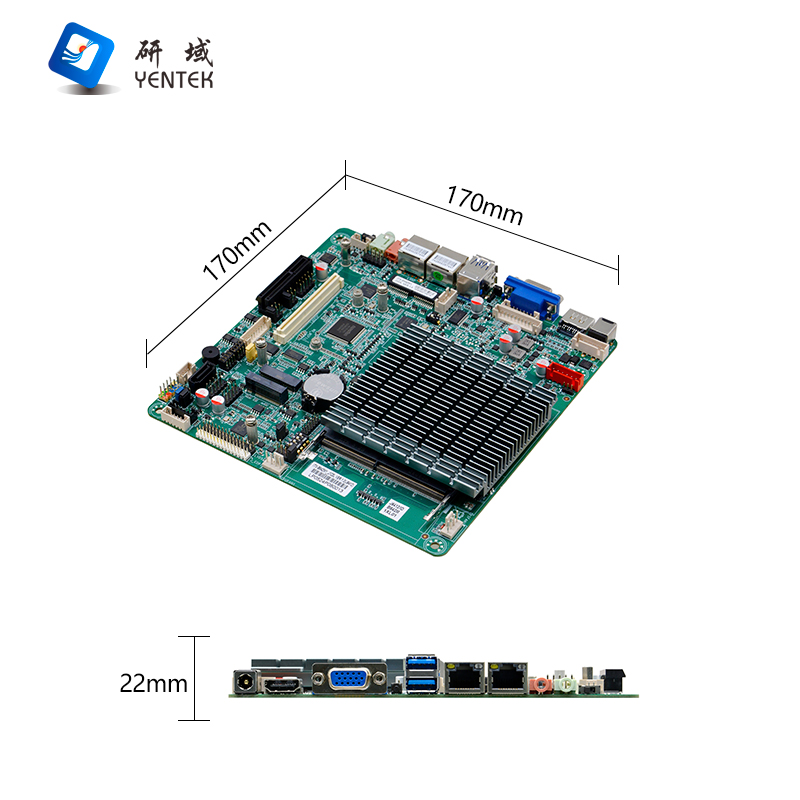

Dimensions

170mm x 170mm
