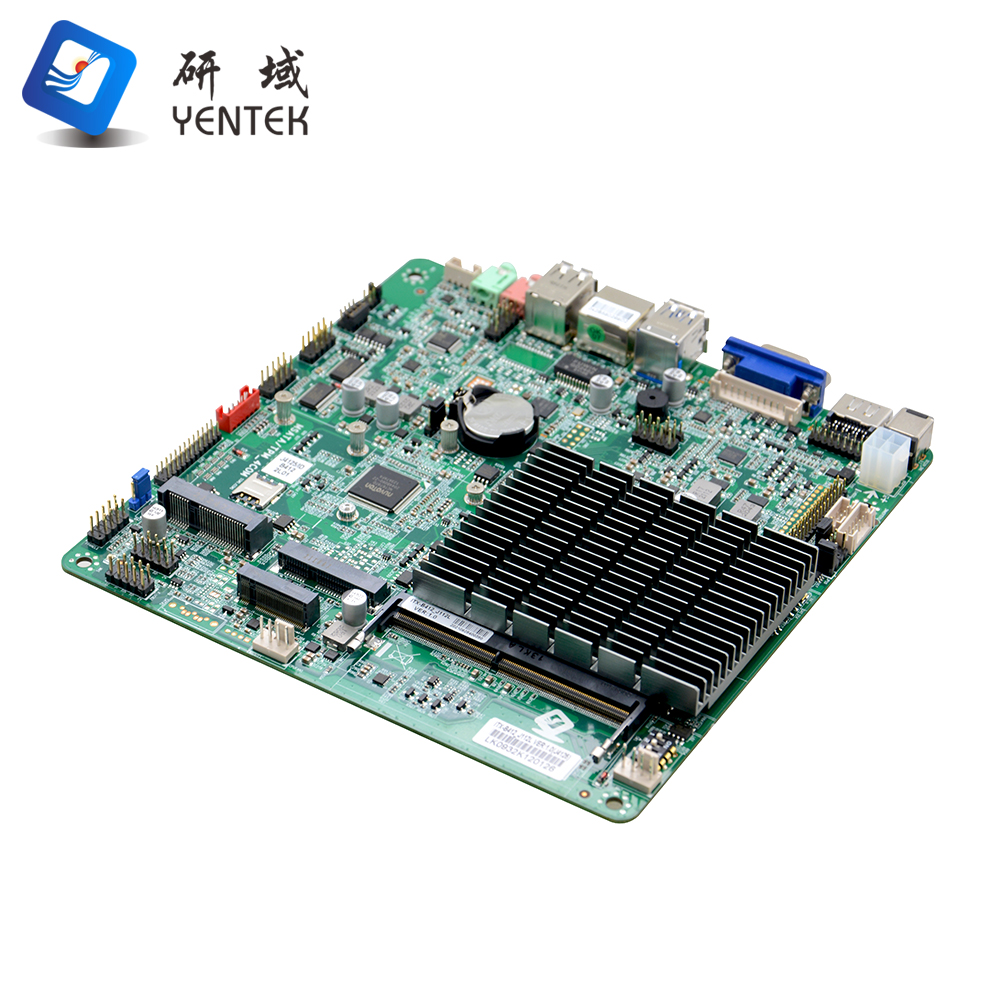

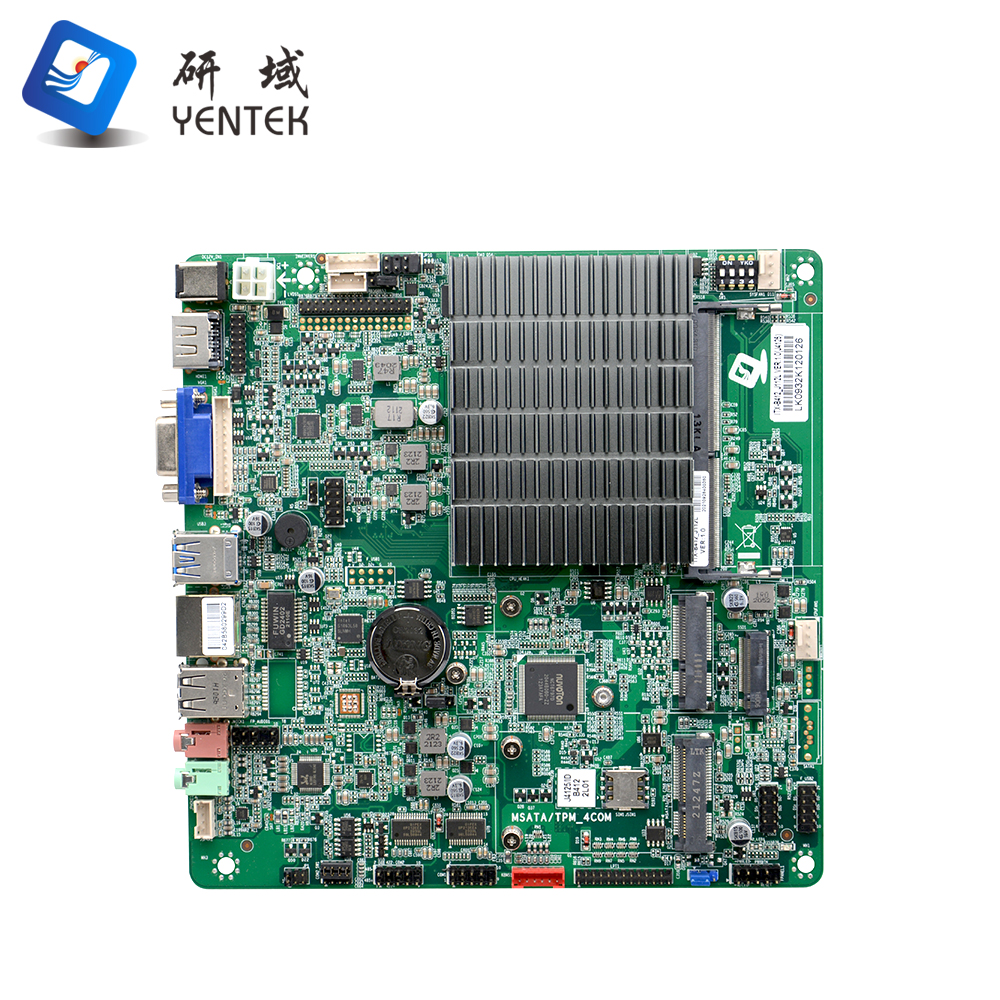

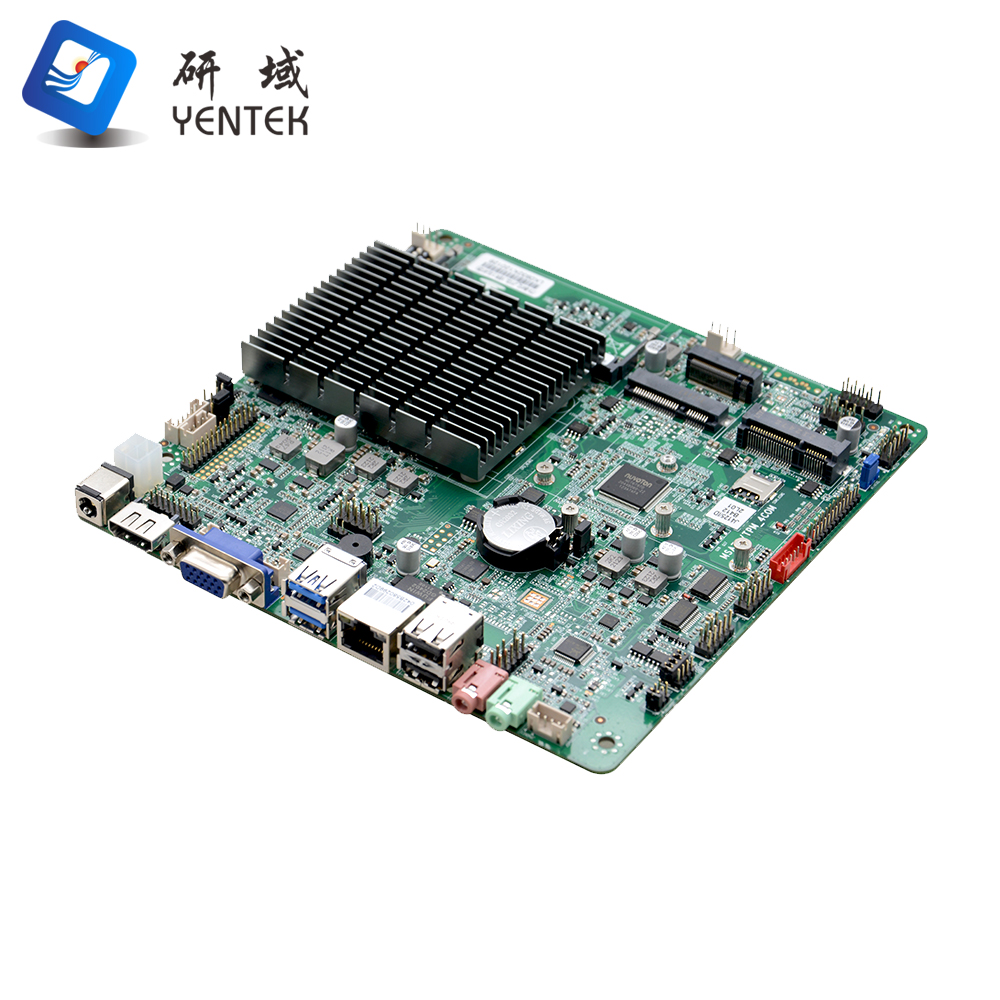

| Product model | ITX-B412_J112L VER:1.2（J4125） |
| Processor | Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W |
| Compatible with the full range of Intel® Gemini Lake CPUs for customers to choose flexibly |
| Chipset | SOC |
| RAM | 1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB |
| Show | Integrated Intel® UHD Graphics 600 Core Graphics |
| 1* VGA, 1* HDMI, 1* LVDS interface, support dual channel 24BIT |
| The internet | 1* Intel I225 Gigabit LAN, support Wake-on-LAN/PXE |
Storage
| 1* MSATA slot supports SSD solid state drive, the transfer speed can reach 6Gbps |
| 1* M.2 slot, support M.2 2280/2260 SATA standard SSD, and 7pin SATA is optional |
Note: MSATA and TPM-4COM are optional, you can use TPM-4COM to expand 4 serial ports, if you use TPM-4COM small board, you can use M.2 SSD |
| Audio | Onboard ALC892 7.1+2 channel high-fidelity audio controller, support MIC/Line-out. Power amplifier |
| It is recommended to use a 2Ω5W speaker for the power amplifier |
| Expansion slot | 1* Mini-PCIE slot, support WIFI, 4G module
|
Note: If MINIPE1 needs to support 4G module, you need to adjust the relevant hardware settings, and it will cause F_USB2 to only support 1 USB |

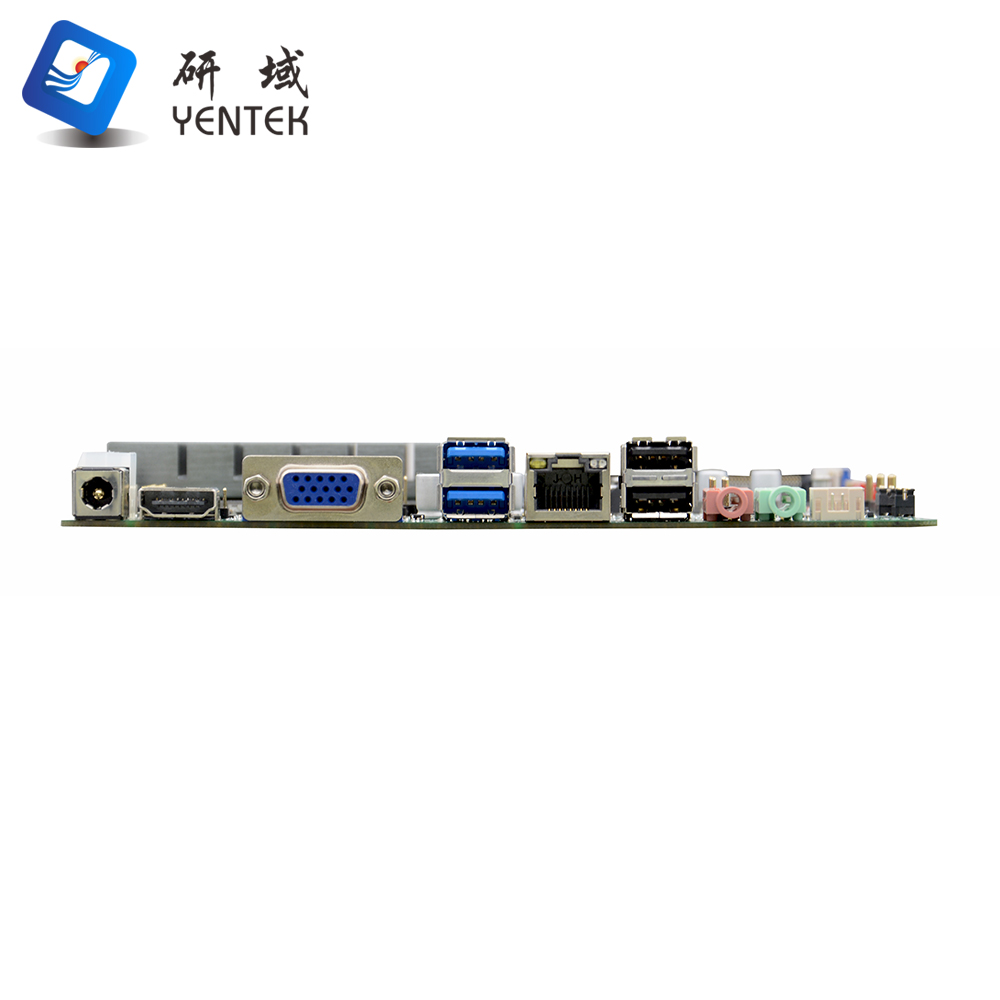

Backplane I/O Interface
| 1* HDMI display interface |
| 1* VGA display interface |
| 2* USB3.0 interface, 2*USB2.0 interface |
| 1* RJ-45 Gigabit network interface |
| 1* Line out interface (green), 1* MIC interface (red) |
| 1* 12V DC power input interface |
Built-in I/O interface
| 1* 4pin ATX power interface (can be used as 12V input and output power interface) |
| 1* LVDS interface 2*15pin, support dual channel 24BIT |
| 1* Screen backlight power supply interface 1*6pin |
| 1* Screen brightness adjustment interface 1*4pin |
4* USB 2.0 interface 2*5Pin |
| 1* J_HDMI interface 2*8Pin (same signal as HDMI1 of backplane IO interface) |
1* JVGA interface 1*12Pin (same signal as DB15) |
| 2* RS232 serial interface, COM1 supports the 9th pin live function, COM2 supports RS485/422 function |
| 1* LPT parallel interface 2*13Pin |
| 1* Front audio interface 2*5pin |
| 1* Front panel switch button and indicator port 2*5Pin |
| 1* PS/2 keyboard and mouse interface 1*6pin |
| 1* Amplifier interface 1*4pin |
| 1* SIM card holder |
| Fan interface | Fanless cooling design, reserved 1*4pin CPU fan interface, 1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Power Type Powered by DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
