NFS10

Chassis

Material/structure

Fan Cooling Structure

Colour

Black colour

Size (LWH)

117*112*38MM

Weight (bare net)

0.45KG

Installation

Desktop

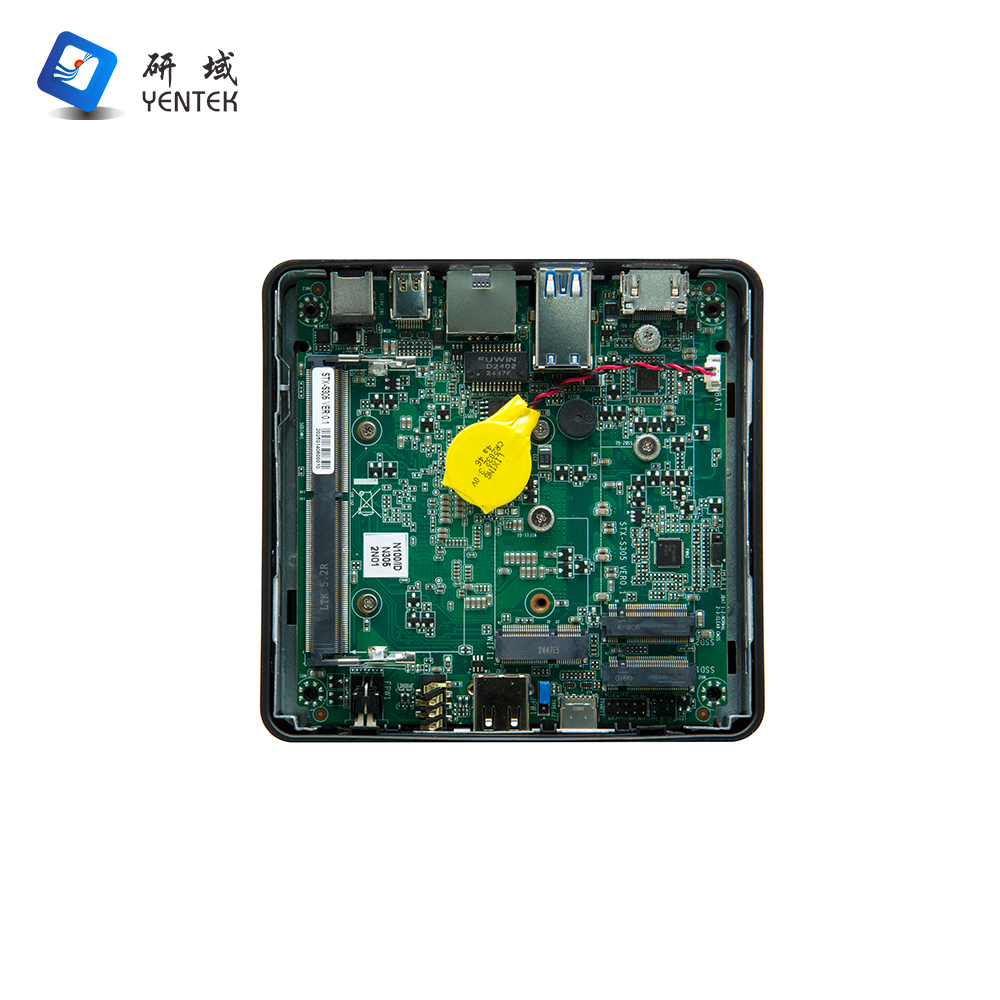

Motherboard

CPU

Integrated Intel®Twin Lake   N150/0.8~3.6GHz, Quad-Core, Quad-Thread Processor, TDP 6W

Display

Integrated Intel®Graphics

RAM

1*SODDR4 3200MHz, supports up to   32GB

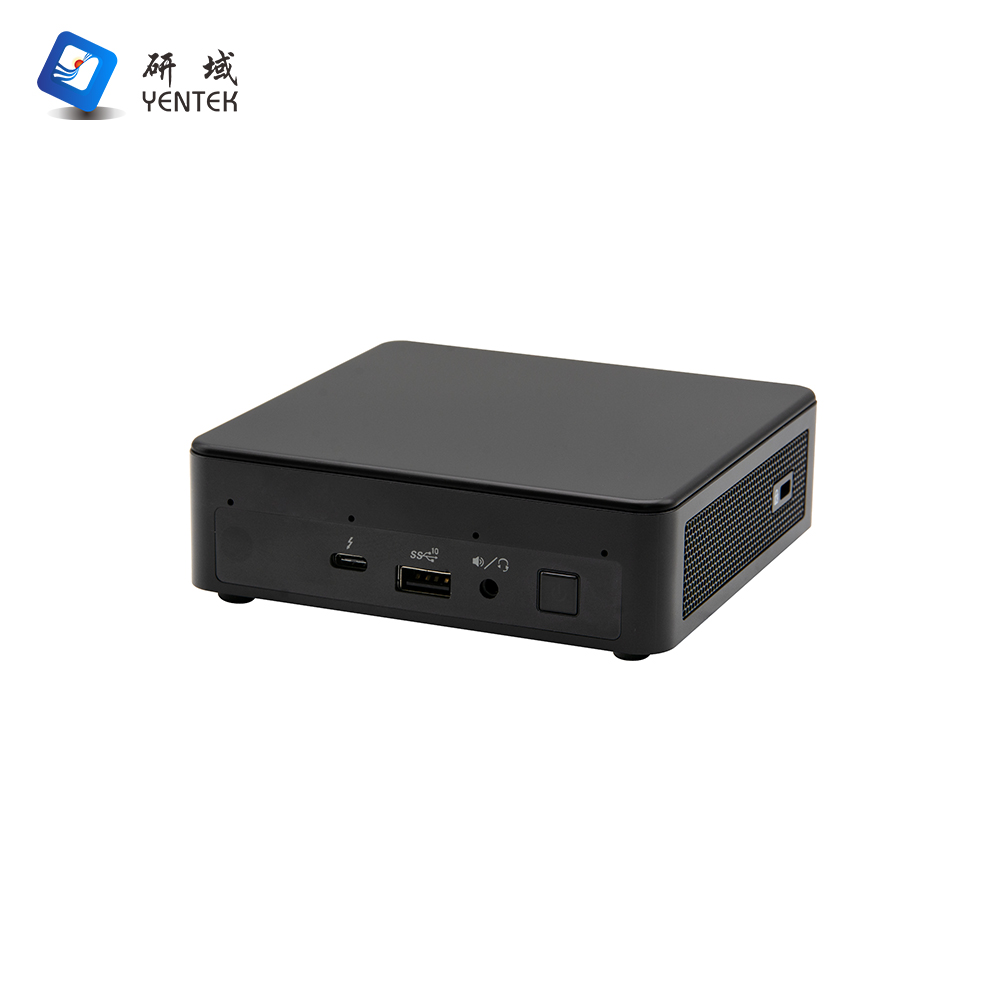

Front Panel  Interface

POWER

1*Power switch with indicator

USB

1*USB2.0

1*Type-C (5Gbps)

AUDIO

1*Audio, Line out& Mic   2-in-1

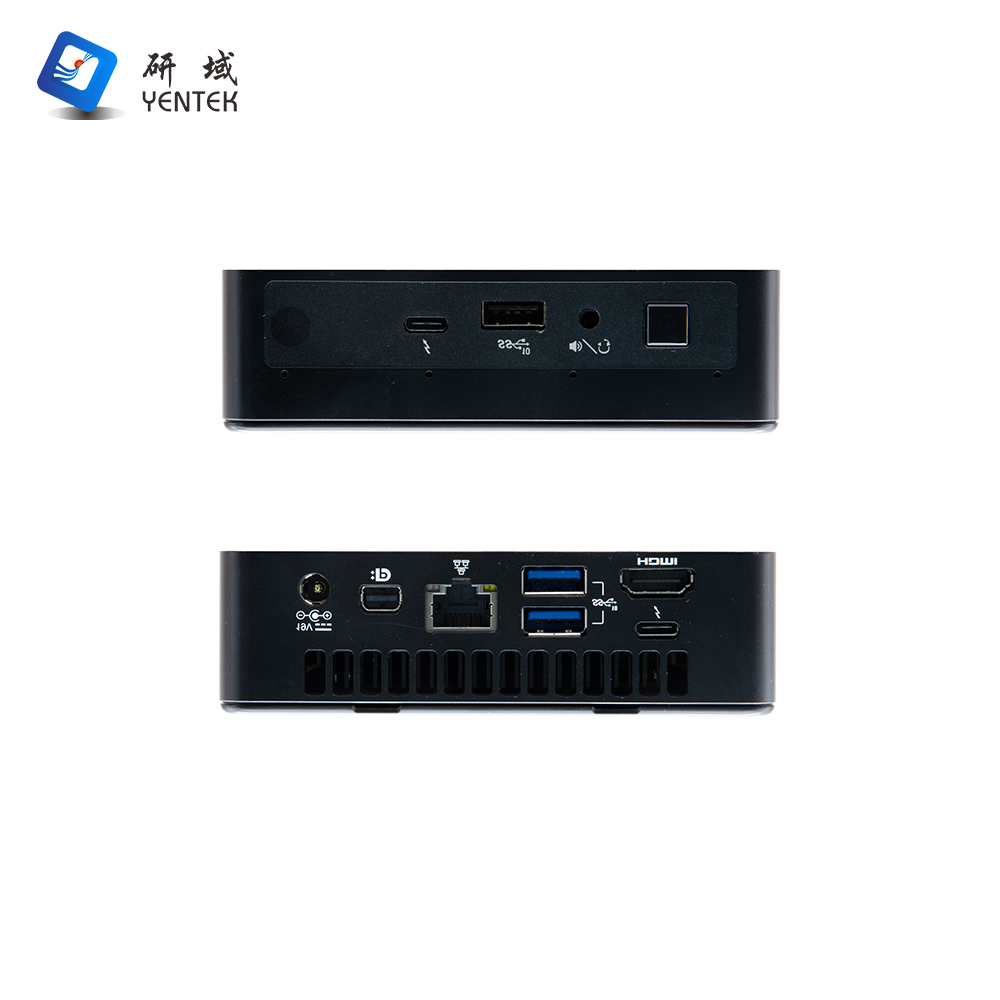

Rear Panel Interface

Display Interface

1*HDMI2.0(4096*2160@60Hz),   1*miniDP(4096*2160@60Hz), support Dual Display

LAN

1*RTL8125B 2.5G Gigabit LAN card

USB

2*USB3.0 (5Gbps)

1*Type-C (5Gbps)

Security Lock

Support Kensington security lock

Power supply

1*DC 12V power input

Storage

SSD

1*M.2, support Key-M, 2280, NVME   PCIE x1/SATA adaptive SSD

1*M.2, supports Key-M, 2242,   SATA SSD

Expansion

WiFi

1*M.2, Key-E support, 2230, WiFi   module

System Support

Microsoft

Windows 10/11

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power Type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC 60W

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5% to 95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random
