Home > Products > Mini PC/NUC > Mini PC/NUC >N8250E-HD

Mini PC/NUC

N8250E-HD

See 2 sizes

FEATURES

More

Product description
Download
Related Products
Online Message

Product description

Model number	N8250E-HD V1.0(8265U)

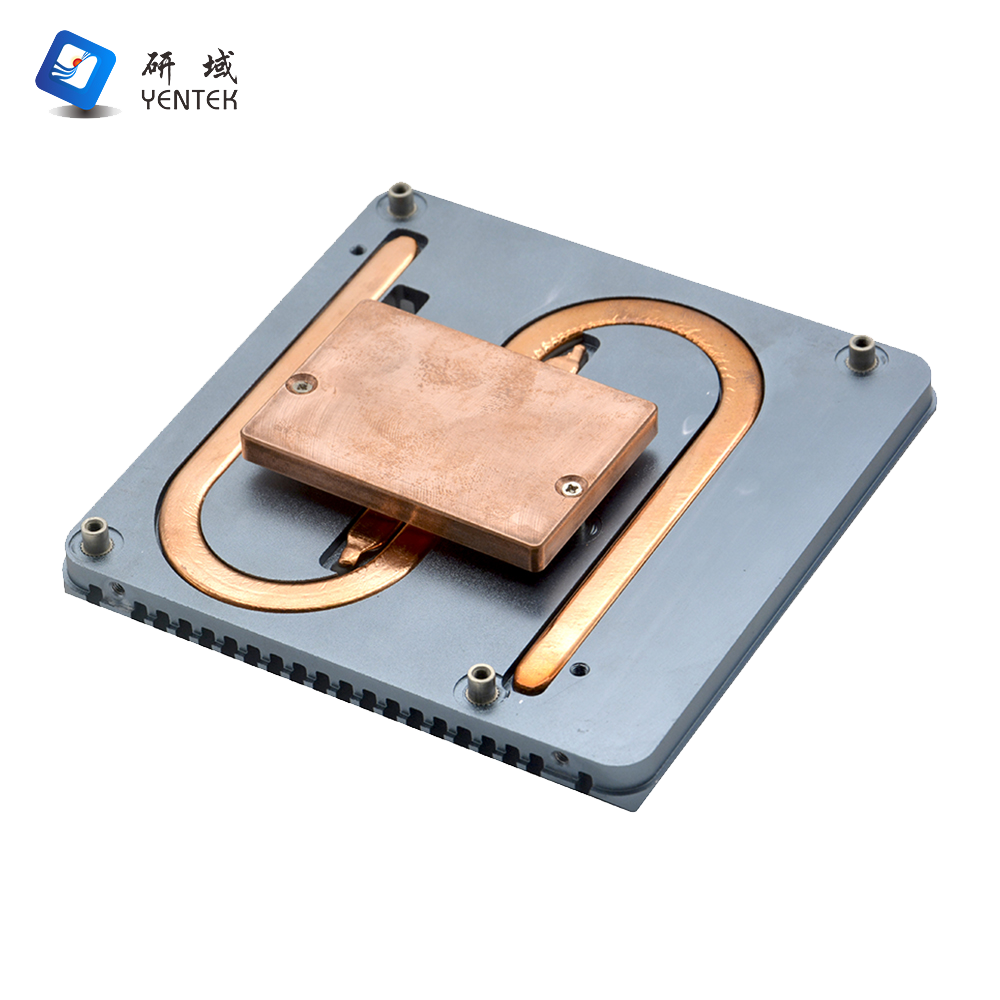

Case	Material/Structure	Full aluminum case, fan cooling structure
	Color	Sliver
	Dimension(LWH)	12812850.2MM
	Weight (Net)	1.0KG
	Install	Desktop/VESA
Motherboard	CPU	Integrated Intel i5-8265U/1.60GHz quad-core eight-thread processor，TDP 15W
	Graphics	Integrated Intel UHD Graphics, support DirectX 12 OpenGL 4.5
	Memory	Integrated 8G LPDDR3 2133MHz memory
	WNIC	Intel® Wireless-AC 9560 + Bluetooth 5.0

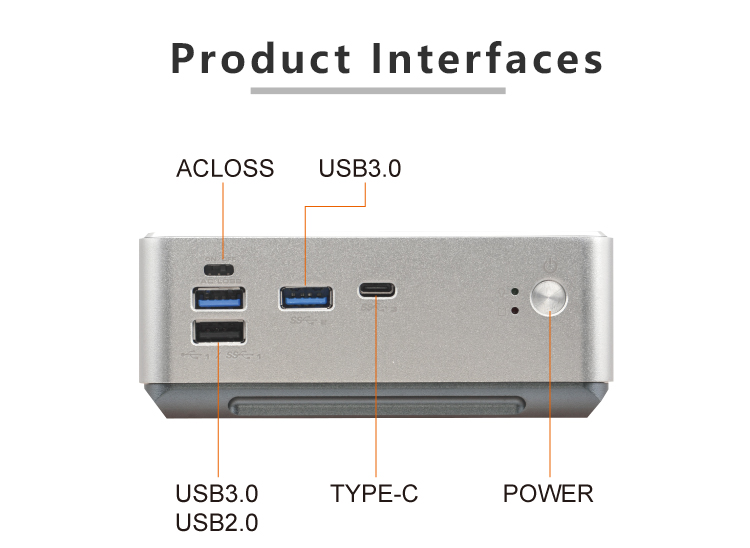

Front panel interface	POWER	1Power Switch，1 ACLOSS（power on switch）
	LED	1Power LED，1Hard drive LED
	USB	1USB2.0，2USB3.0，1*USB TYPE-C( 10Gbps)
Back panel interface	LAN	1Intel I225 Gigabit internet port，1Intel I219，support network wake up, PXE function
	Display	1DP，1HD OUTPUT，support dual display
	USB	2*USB2.0
	POWER	1*DC 12V power input
	Audio	1Line out，1 MIC
Storage	SATA	1*2.5-inches hard disk
Storage	M.2	1*M.2，Support Key-M，2280，NVME PCIEx4 SSD
System Support	Microsoft Windows	Windows 10
	Linux	Ubuntu
	Watch Dog	Support hardware reset function(L256, 0~255 seconds)
Power	Power supply type	External power adaptor
	Voltage input	DC 12V
	Power output	AC TO DC 60W above
Environment	Operating temperature	-10℃～50℃
	Storage temperature	-20℃～70℃
	Relative humidity	5%-95% relative humidity, no condensation
	Working vibration	0.5g rms/5-500HZ/random/operating

Order Information

No.	Model	Processor	Motherboard	Memory	LAN	HD OUTPUT	DP	USB2.0	USB3.0	Power-input
1	N8250E-HD V0.1(8265U)）	i5-8265U/1.6GHz	Intel NUC	LPDDR4 8G	2	1	1	3	2	DC 12V
2	N8250E-HD V0.1(1135G7）	i5-1135G7/4.2GHz	Intel NUC	LPDDR4 8G	2	1	1	3	2	DC 12V

Note: ONLY Intel Celeron CPU is fanless cooling, other CPUs are with fan cooling.
