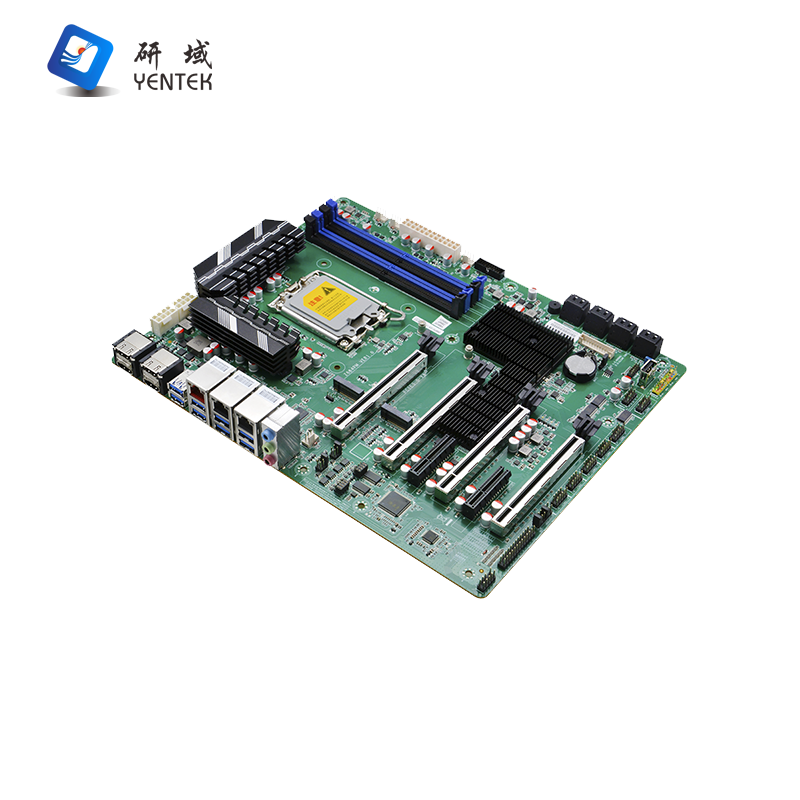

W75DM

Processor

Support LGA1155 architecture 2nd/3rd   Intel® Celeron/Pentium/Core™ i3/i5/i7 processors

Chipset

Intel   B75 high-speed chipset

Memory

2* DDR3 DIMM memory   slots, support dual-channel 1066/1333/1600MHz memory, maximum support 16GB

Display

Integrated Intel® HD Graphics   controller, 1*VGA port and 1*HDMI1.4 port.

Supports one display, Dual Graphics and   Expansion modes.

Network

2* Intel I210AT Gigabit LAN card, support   for Wake-on-LAN and PXE function.

Storage

5* SATA   2.0 hard drive interface, SATA interface transfer speed up to 3Gbps

1* MSATA   SSD interface, transfer speed up to 6Gbps

Audio

Onboard ALC662 5.1 Hi-Fi audio   controller, supports Mic, Line out, Line-in.

Expansion Slots

1* PCIE x16

1* PCIE x4

1* PCIE x1

4* PCI

Backplane I/O

1* PS/2   keyboard and mouse interface

1* VGA   Display Interface

1* HDMI display interface

2* RS232   serial port, COM1/2 support 5V/12V with power, COM1/2 support RS485/422   function

2* USB   2.0 interface

4* USB   3.0 interface, support for single port 2A current

2* RJ-45 Gigabit network interface

1* Line   out interface (green), 1* MIC interface (red), 1* Line-in interface (blue)

Built-in I/O Ports

4*RS232   serial port, 2*5pin

1*JVGA1   interface, 1*12pin pin, and external VGA for the same signal

1* PS/2   keyboard and mouse interface 1*6pin pin

1*LPT   print port 2*13pin pin 2.54mm

1* Front   Audio Interface 2*5pin Pin

4* USB   2.0 interface 2*5pin pin header

1*USB   2.0 interface USB-TYPE A

1* Front   Panel Function Button and Indicator Connector 2*5pin Pin Pin

1*24pin ATX power input connector

2*4pin   ATX power input connector

1*AC   power-on auto switch-on function 1*3pin pin header

Fan Interface

2*4pin   CPU smart fan interface, 2*4pin system smart fan interface

GPIO

Support 4-way input/output GPIO   function

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256   levels, 0~255 seconds)

Operating System

Windows 7/Linux

Power Supply Type

24Pin ATX power supply

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5 ~ 90% relative humidity,   non-condensing

Dimension

305mm x 220mm（ATX）

1

W75DM VER:1.0

LGA1155

B75

2*DDR3

1

1

2*I210AT

11

6

COM1/COM2

ATX
