YENTEK Launches Three New Industrial Motherboards: ATX, Mini ITX & 3.5" Form Factors for Smart Manufacturing and Edge Computing

Targeting diverse industrial scenarios, YENTEK introduces the W682FM, ITX-YH122M1_I523L, and EPIC-E642M1_J123L – three high-performance motherboards supporting the latest Intel processors, rich I/O, and operation in harsh environments.

With the rapid advancement of industrial automation, edge computing, digital signage, and embedded systems, YENTEK, a professional brand in the industrial motherboard sector, today announced the launch of three new products. Covering ATX, Mini ITX, and 3.5-inch form factors, these motherboards address everything from high-performance computing to low-power embedded applications.

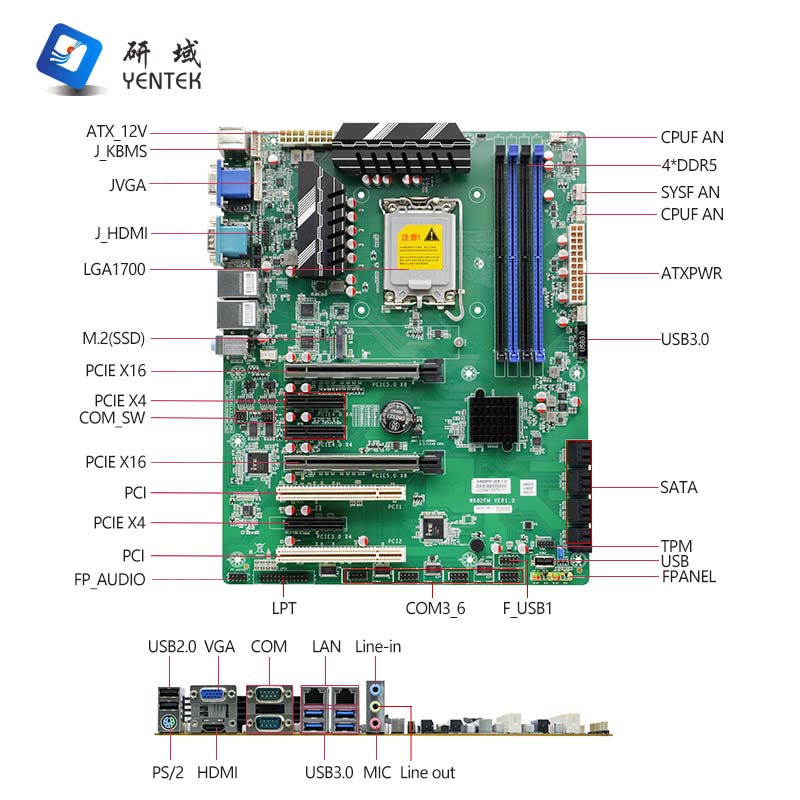

W682FM (ATX): High-Performance Workstation-Grade Platform

Ideal for: Machine Vision, Industrial Servers, Multi-Channel Data Acquisition

• Processor: Intel LGA1700 12th/13th/14th Gen Core i3/i5/i7/i9

• Chipset: Intel W680

• Memory: 4× DDR5 DIMM, up to 128GB, ECC support, up to 5600MHz

• Display: 1× VGA + 2× HDMI 1.4, 4K support

• Network: 2× I210AT Gigabit Ethernet (WOL, PXE)

• Storage: 8× SATA 3.0 (RAID 0/1/5/10), 1× M.2 NVMe PCIe 4.0 x4

• Expansion: 2× PCIe 5.0 x16 (x8 signal), 1× PCIe 4.0 x4, 2× PCIe 3.0 x4, 2× PCI

• Rear I/O: 2× COM (RS-232/485/422), 6× USB, PS/2, audio

• Operating Temperature: -20°C ~ 60°C

• Dimensions: 305mm × 245mm

Leveraging the W680 chipset, ECC memory, and extensive PCIe expansion, the W682FM is an ideal core for industrial control and edge server applications.

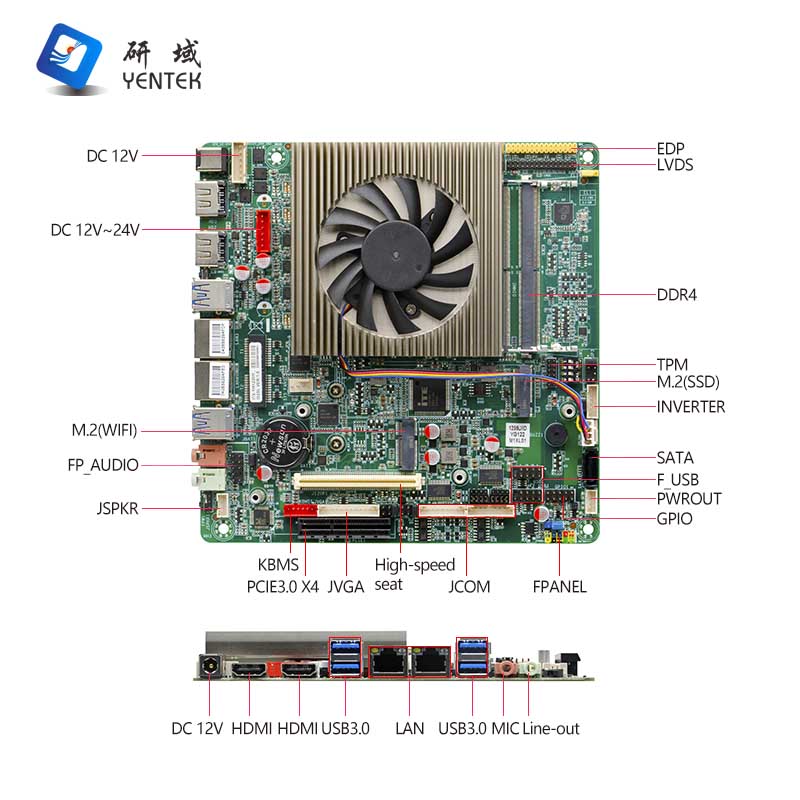

ITX-YH122M1_I523L (Mini ITX): High-Performance, Low-Power Compact Platform

Ideal for: Industrial Panel PCs, Medical Devices, Self-Service Kiosks, In-Vehicle Systems

• Processor: Intel Core i5-1235U (10 cores, 12 threads, 15W TDP); compatible with Alder Lake / Raptor Lake-U/P series

• Memory: 2× DDR5 SODIMM, up to 64GB, 4800MHz

• Display: 1× VGA + 2× HDMI 1.4 + dual-channel 24-bit LVDS + EDP (jumper-selectable); supports four independent displays

• Network: 2× I210AT Gigabit Ethernet

• Storage: 1× SATA 3.0, 1× M.2 NVMe PCIe 4.0 x4

• Expansion: 1× PCIe 3.0 x4 (x1 signal), 1× M.2 Key E (Wi-Fi/BT), 120-pin high-speed header (compatible with VG390 / YH112 series expansion boards)

• Rear I/O: 4× USB 3.0, 2× HDMI, 2× RJ45, audio, DC 12V

• Operating Temperature: -10°C ~ 60°C

• Dimensions: 170mm × 170mm

With support for up to four independent displays and multiple function expansion boards (serial/network/GPIO/wide voltage), this motherboard is perfect for space-constrained, display-rich smart terminals.

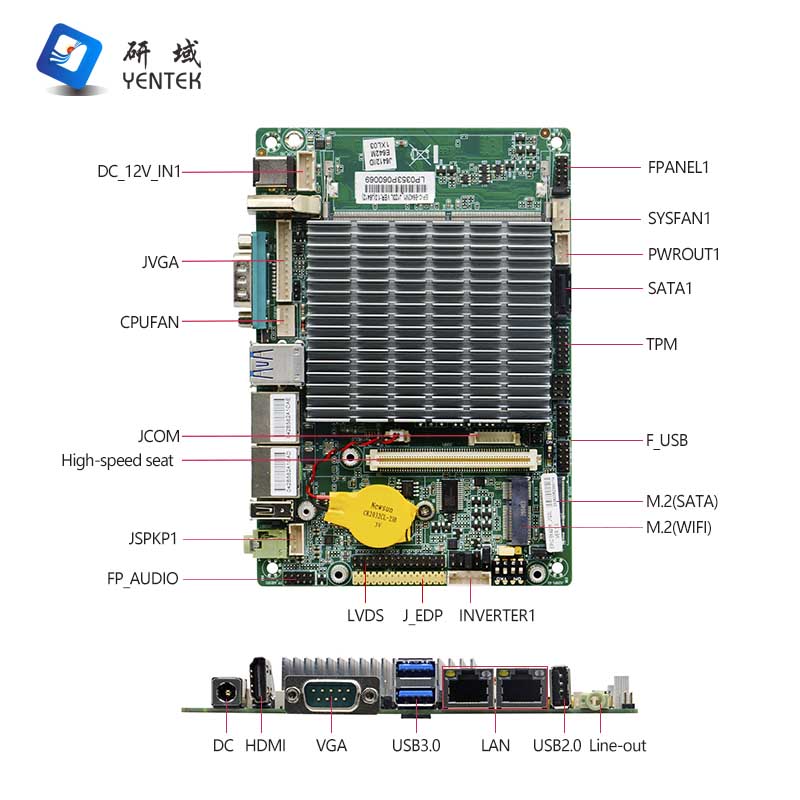

EPIC-E642M1_J123L (3.5"): Ultra-Compact Embedded Core

Ideal for: AGVs, Small Industrial Controllers, IoT Gateways, Digital Signage

• Processor: Intel Celeron J6412 (quad-core, quad-thread, 2.0GHz, 10W TDP); compatible with Elkhart Lake series

• Memory: 1× DDR4 SODIMM, up to 32GB, 3200MHz

• Display: 1× VGA + 1× HDMI 1.4 + dual-channel 24-bit LVDS + EDP (jumper-selectable); supports three independent displays

• Network: 2× I210AT Gigabit Ethernet

• Storage: 1× SATA 3.0, 1× M.2 Key M (PCIe 3.0 x1 / SATA)

• Expansion: 1× M.2 Key E (Wi-Fi/BT), 120-pin high-speed header (compatible with E642-C4/L/PW series expansion boards)

• Rear I/O: 1× COM, 2× USB 3.0, 1× USB 2.0, 1× HDMI, 2× RJ45, audio, DC 12V

• Operating Temperature: -10°C ~ 60°C

• Dimensions: 148mm × 102mm

This fanless-ready board (with fan headers available) supports wide voltage input via the E642-PW expansion board, making it the ideal choice for low-power, high-reliability embedded systems.

Common Features: Industrial-Grade Reliability, Rich Expandability, Long-Term Support

All three motherboards share the following industrial strengths:

• Industrial reliability: Operating temperatures from -10°C to 60°C or -20°C to 70°C; 5%~95% humidity non-condensing

• Watchdog timer: 256-level hardware reset (0–255 seconds)

• TPM interface: Supports Trusted Platform Module

• OS support: Windows 10/11 and major Linux distributions

• Long-term availability: YENTEK guarantees stable lifecycle management for industrial customers

Expansion Ecosystem

• Mini ITX compatible with VG390-L / VG390-C4 / VG390-5G / YH112-L2 expansion boards (LVDS/EDP/multi-COM/multi-LAN options)

• 3.5" compatible with E642-C4 / E642-L / E642-PW expansion boards (12~24V wide voltage, GPIO, multi-COM, LVDS/EDP)

Availability and Support

Samples and volume orders for all three YENTEK industrial motherboards are now available. For detailed specifications, pricing, or technical support, please contact us.
