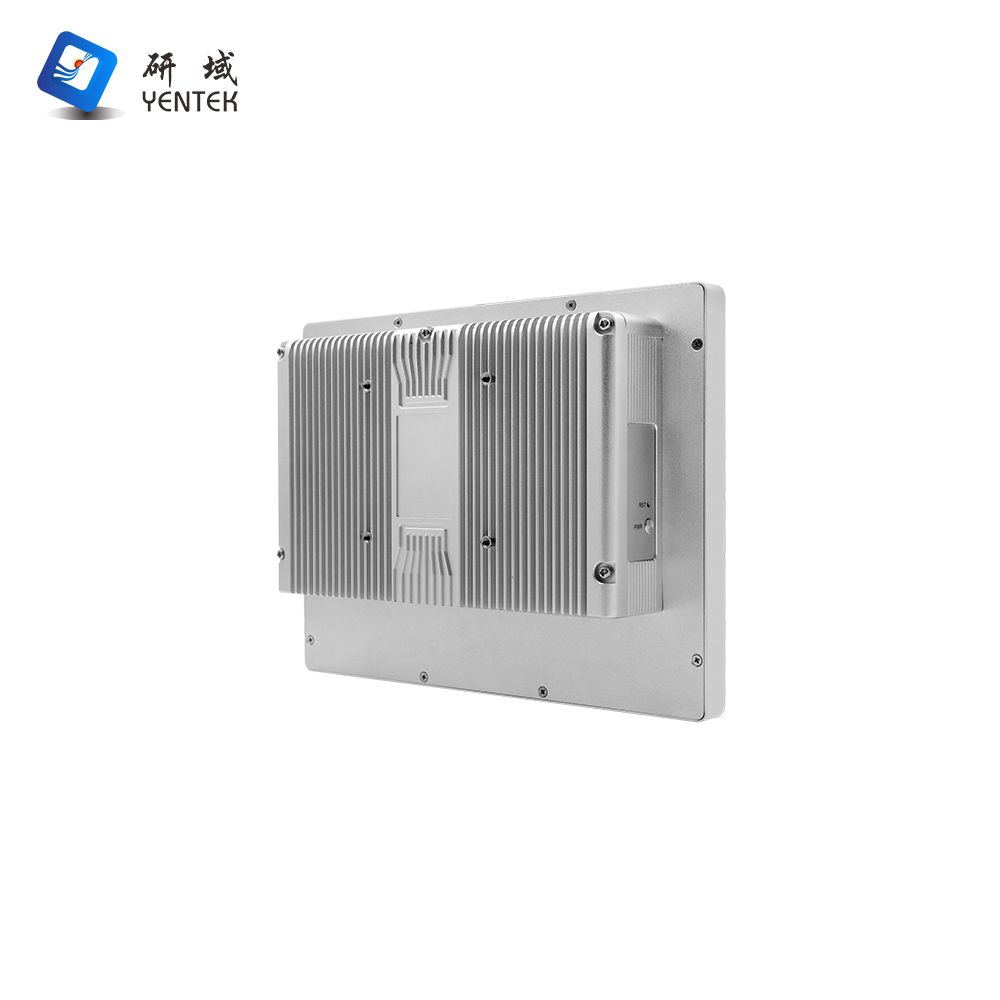

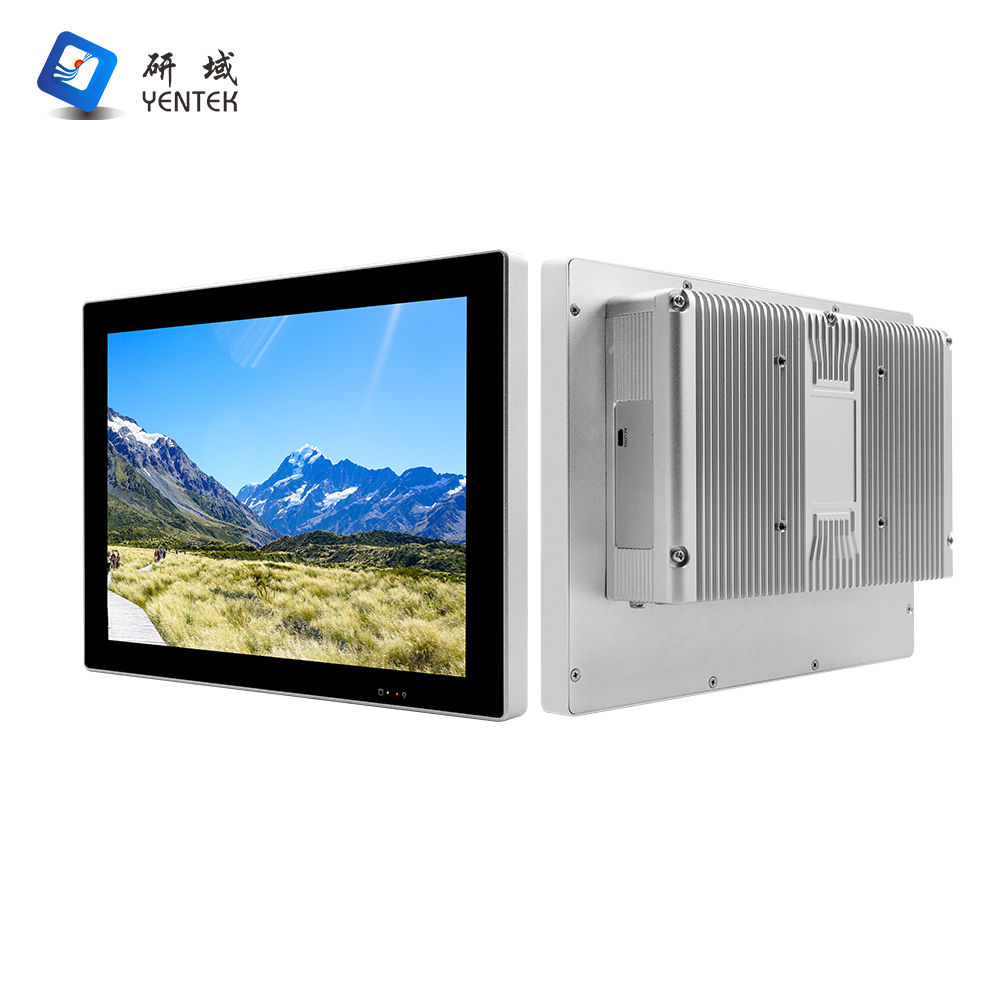

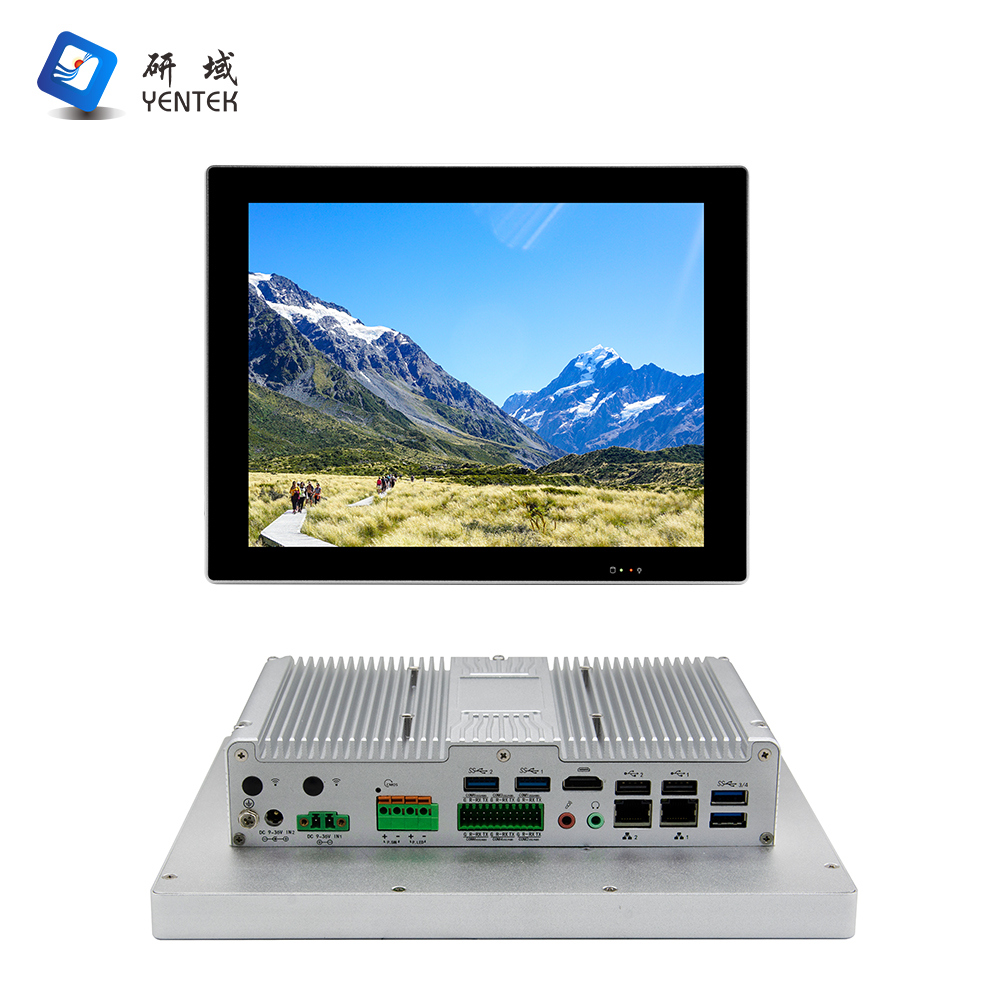

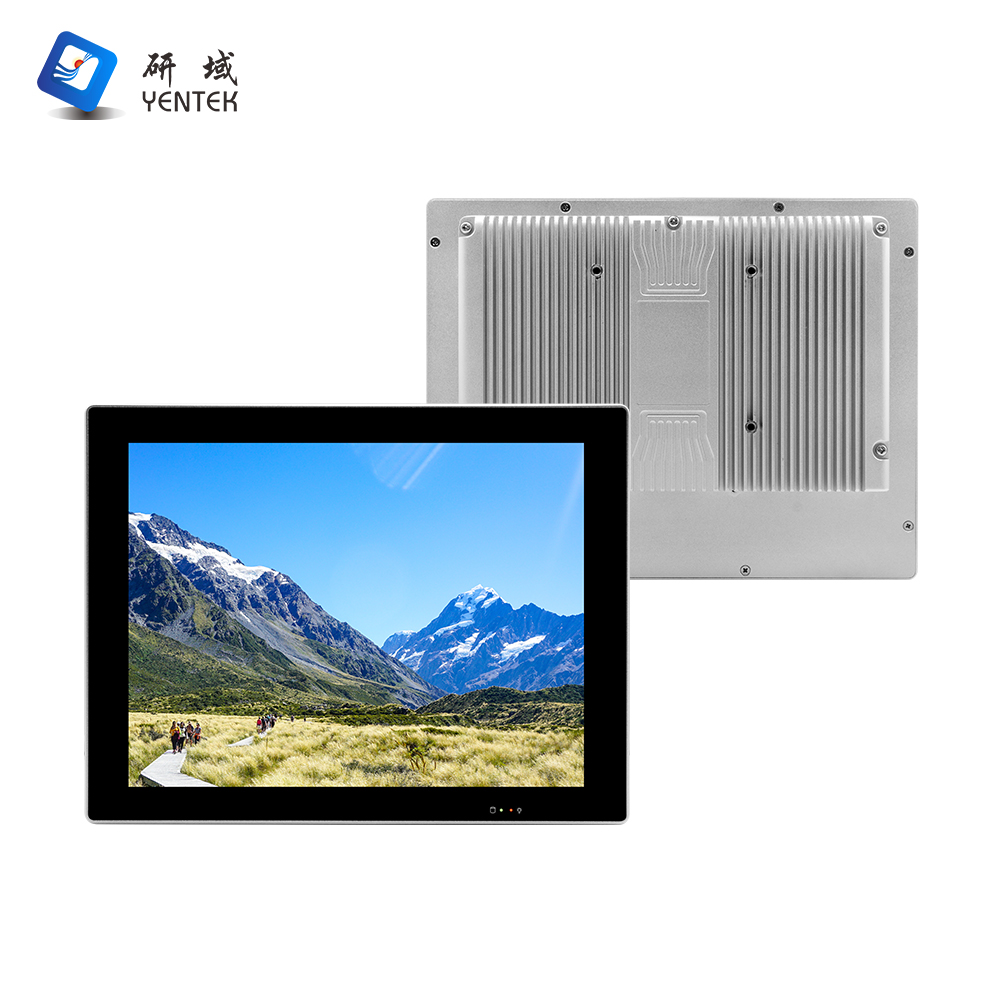

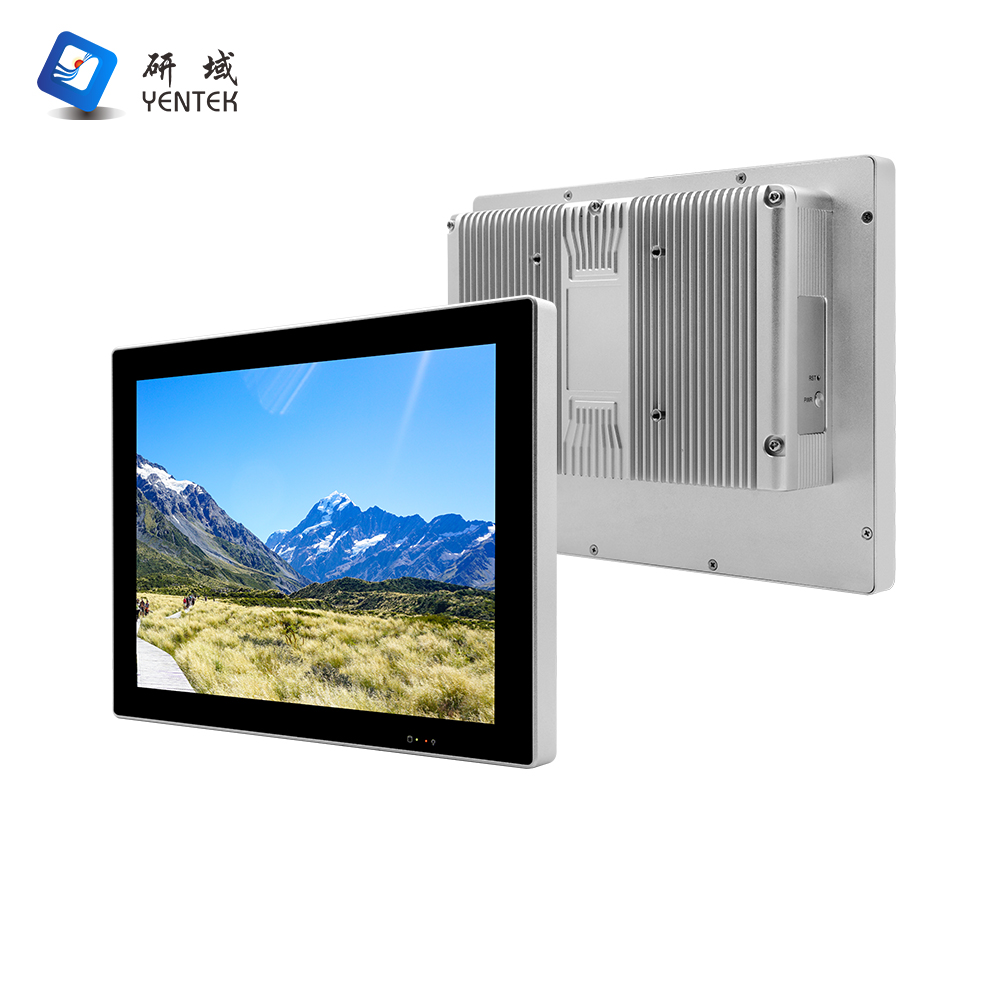

P1082X-F6 (VESA)

Chassis

Material/Construction

Aluminium Alloy

Colour

Bright Silver

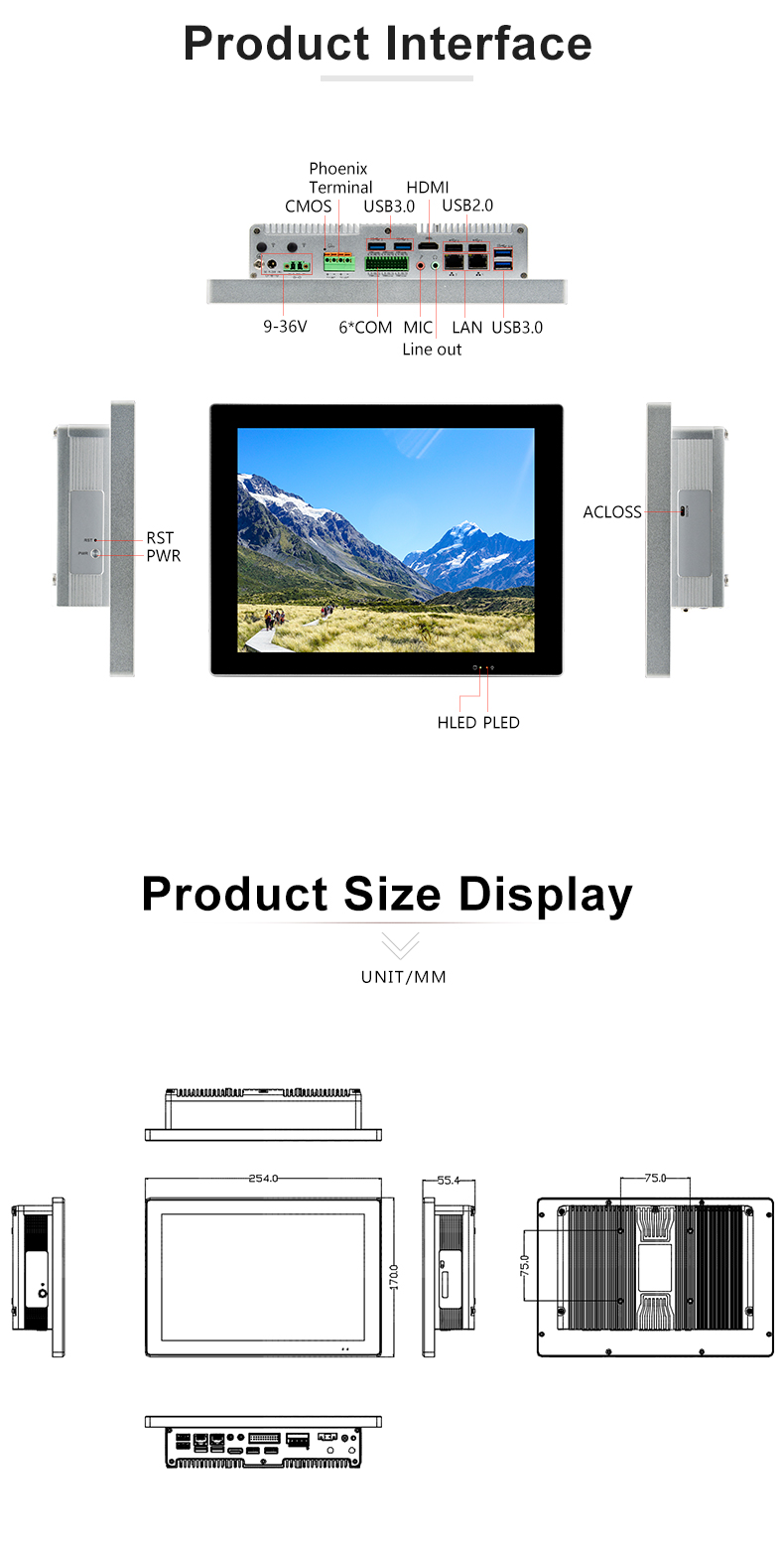

Dimensions (LWH)

L254*W170*H55.4mm

Weight (bare net weight)

2.1KG

Installation

Support VESA (75mm) / Flush   Panel Mount

LCD Screen

Type

10.1" LCD, Widescreen,   16:10

Resolution

1280 * 800

Brightness

400 cd/m2

Touch Screen

Type

Capacitive, 10-point touch

Transmittance

80% more

Motherboard

CPU

Integrated Intel® J6412/2.00GHz   Quad Core Quad Thread Processor. TDP power consumption 10W

Display

Integrated Intel® UHD Graphics

Memory

2*SODDR4 2666MHz memory, support   up to 32GB

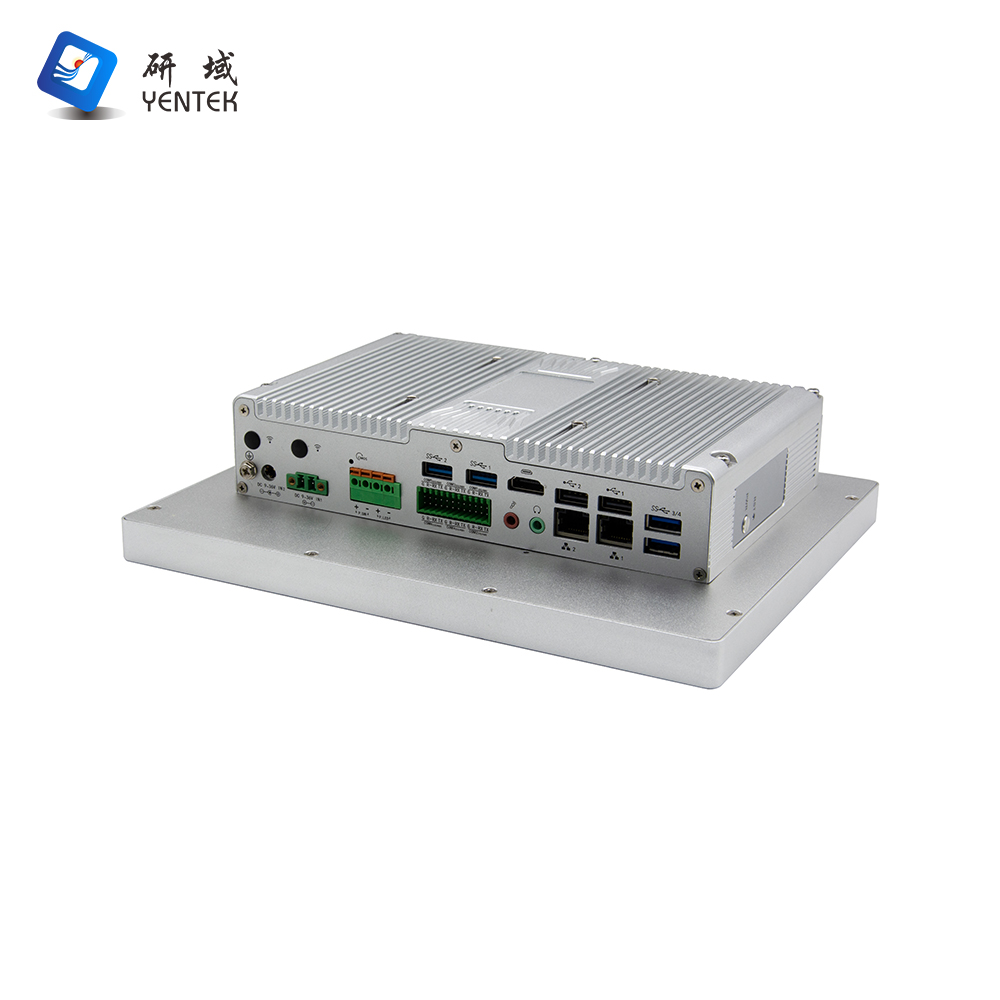

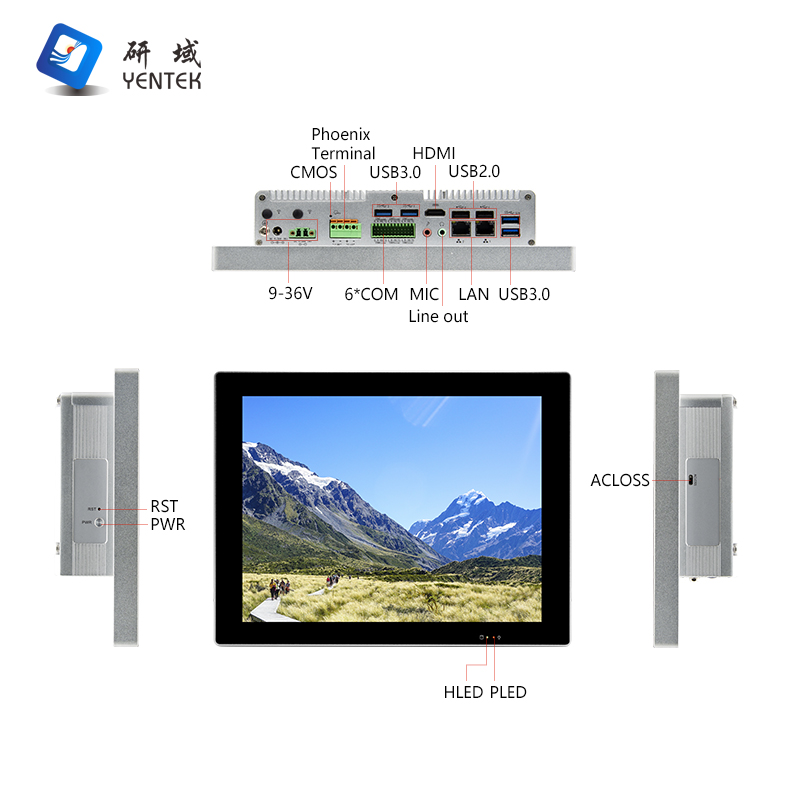

IO Interface

POWER

1*Power Switch,   1*One-Key-Restore, 1*ACLOSS (power-on toggle switch), 1*CMOS reset switch

LED

1*Power Indicator, 1*Hard Drive   Indicator

Display Interface

1*HDMI1.4

LAN

2*Intel I210AT Gigabit power   port, support Wake-on-Network/PXE

USB

4*USB3.0, 2*USB2.0

COM

6*RS232 /485 (located on 2*12P   phoenix terminal)

Audio

1*Line out, 1*Mic

Remote Switch

1*Power on signal, 1*Power   Indicator (located on 2*2P phoenix terminal)

Power Supply

1*DC or 1*2P (P=5.08mm) phoenix   terminal. Support 9~36V wide voltage input

Storage

MSATA

1*MSATA

SSD

1*M.2, support Key-M, 2260/2280,   NVME PCIEx2 SSD (motherboard side)

SSD

1*M.2, support Key-M, 2280, SATA   SSD (IO board side)

5G

1*M.2, support Key-B, 3042/3052,   5G module

WiFi

1*M.2, support Key-E, 2230, WIFI   module

Expansion

Windows

Windows 10

Linux

Ubuntu

System Support

Power Supply Category

External power adapter

Voltage input

DC 9~36V wide voltage input

Power Requirements

Operating temperature

-10℃～50℃

Storage temperature

-20℃～70℃

Relative humidity

5%-95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P1082X-F6 V1.0(J6412)

J6412/2.0G

2*SODDR4

P642

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVMEx2)

2*I210

6

1

4

2

9~36V

2

P1082X-F6 V1.0(7300U)

i5-7300U/2.6G

2*SODDR4

P68

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V

3

P1082X-F6 V1.0(8260U)

i5-8260U/1.6G

2*SODDR4

P82

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V

4

P1082X-F6 V1.0(10210U)

i5-10210U/1.6G

2*SODDR4

P102

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V

5

P1082X-F6 V1.0(5205U)

5205U/1.9G

2*SODDR4

P102

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V
