P1081Y-C2 V2.0 (Embedded)

Chassis

Material/Construction

Aluminium alloy

Colour

Bright silver

Dimensions (Length x Width x Height)

L263 × W179 × H61 mm

Weight (Net weight without accessories)

2.1 kg

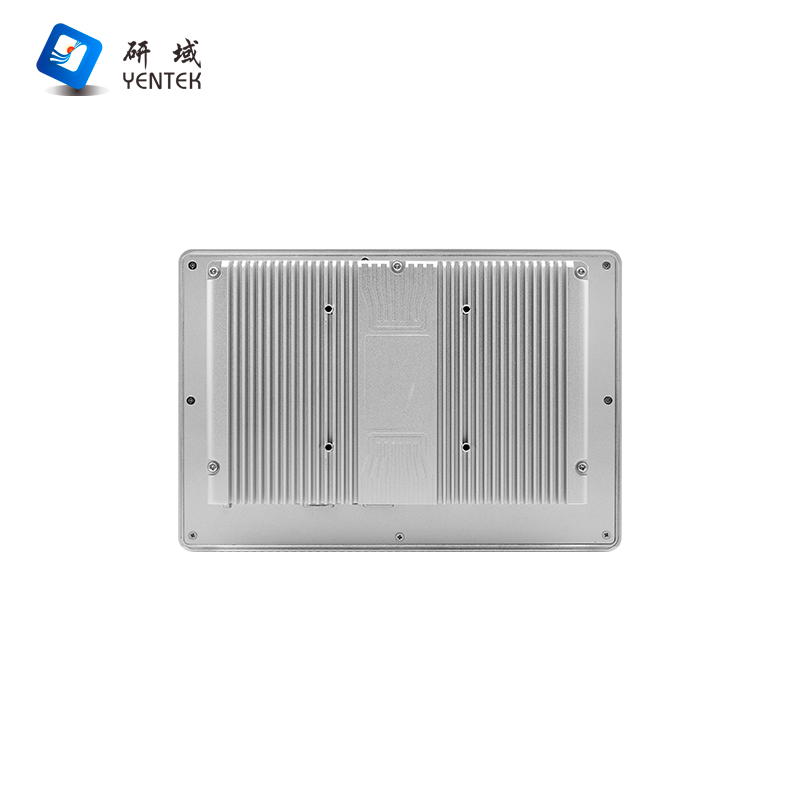

Installation

Supports VESA (75 mm) / flush-mounted panel installation

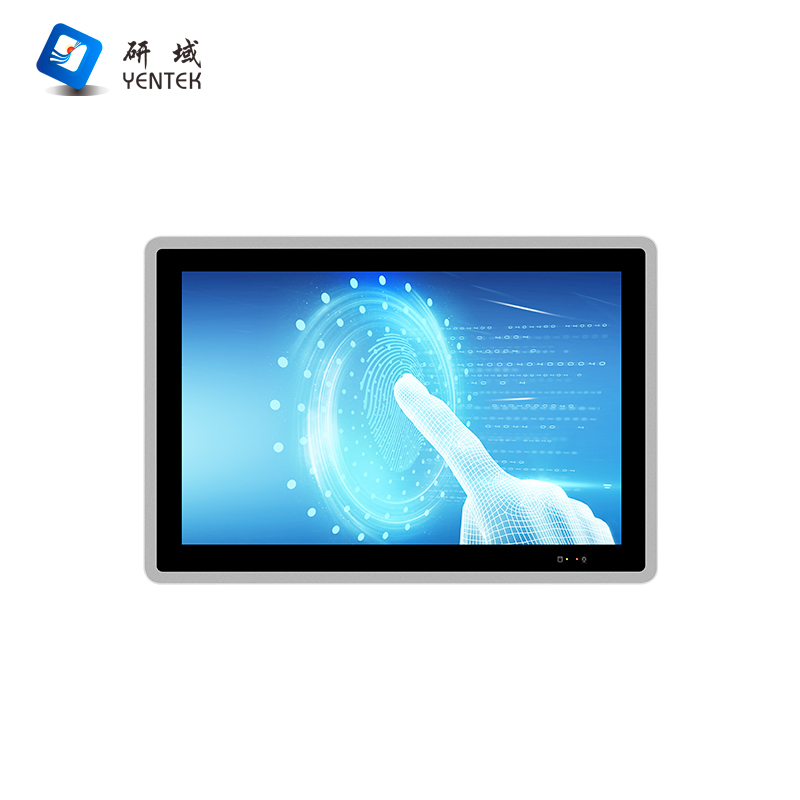

LCD screen

Type

10.1-inch LCD, widescreen, 16:10

Resolution

1280 × 800

Brightness

400 cd/m²

Touchscreen

Type

Capacitive, 10-point touch

Light transmittance

Over 80%

Motherboard

CPU

Integrated Intel® Celeron J6412 2.0 GHz quad-core, quad-thread processor, TDP 10 W

Display

Integrated Intel® UHD Graphics

Memory

2 × DDR4 SODIMM memory slots, supporting 3200 MHz memory, up to 32 GB

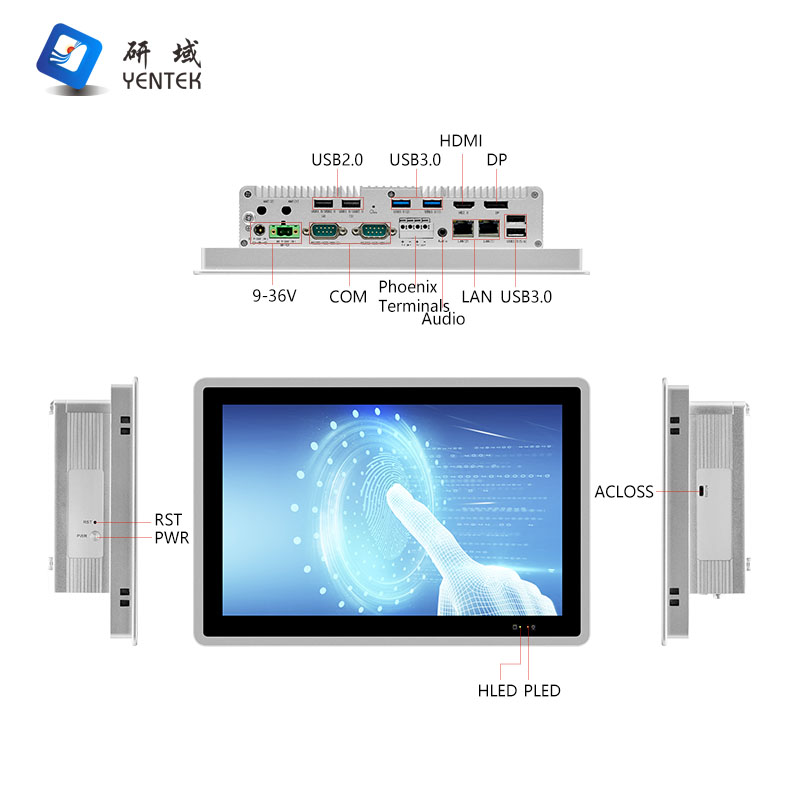

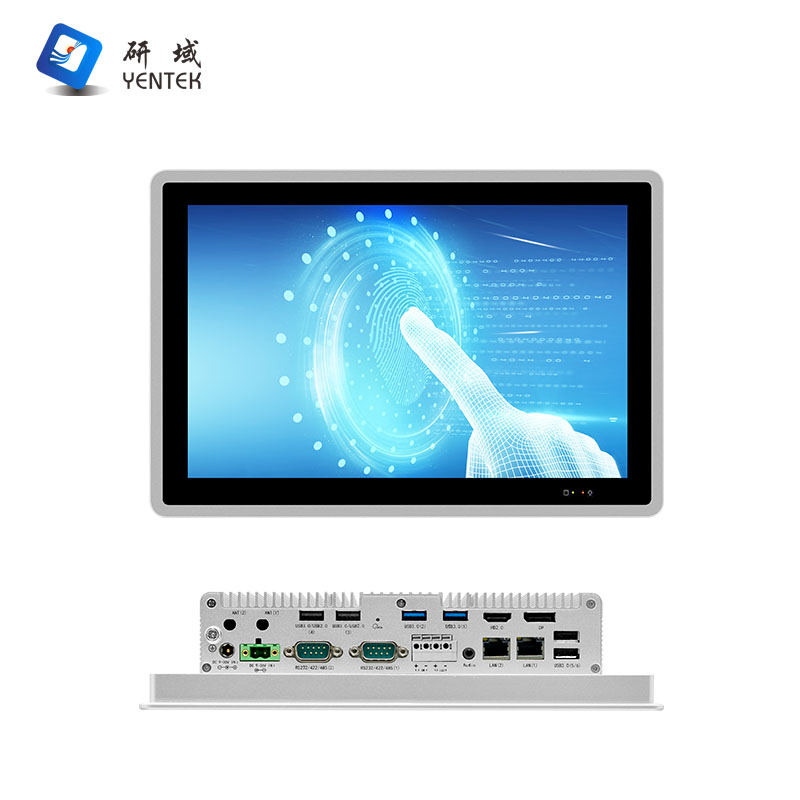

I/O ports

POWER

1 × power switch, 1 × one-touch restore, 1 × ACLOSS (power-on DIP switch), 1 × CMOS reset switch

LED

1 × power indicator, 1 × hard drive indicator

Display interfaces

1 × HDMI 1.4 (4096 × 2304 @ 60Hz), 1 × DisplayPort (4096 × 2304 @ 60Hz)

LAN

2 × RTL8111H Gigabit Ethernet ports, supporting Wake-on-LAN/PXE

USB

2× USB 3.0, 2× USB 2.0 (number of USB 3.0/2.0 ports depends on the CPU)

COM

2× RS232/422/485/CAN DB9 serial ports (CAN functionality requires a CAN module to be installed)

Remote switch

1× Power switch, 1× Power indicator (located on 1× 4-pin Phoenix connector)

Audio

1 × Audio, combined line-out and microphone

Power supply

1 × DC (5.5 × 2.5) or 1 × 2-pin (P = 5.08 mm) Phoenix terminal, supporting 9–36 V wide-voltage input

Storage

SSD

1 × M.2, supporting Key-M, 2280, SATA SSD

1 × M.2, supporting Key-M, 2280, NVMe PCIe x2 SSD

Expansion

Wi-Fi

1× M.2, supports Key-E, 2230, Wi-Fi 6 + Bluetooth

4G

1× Mini PCIe, supports 4G

System compatibility

Windows

Windows 10

Linux

Ubuntu

Power requirements

Power supply type

DC 9V–36V wide-voltage range

Power output

AC to DC 60W

Environmental

Operating temperature

–10°C to 50°C

Storage temperature

–20°C to 70°C

Relative humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P1081Y-C2 V2.0(J6412)

J6412/2.0G

2*SODDR4

Q642HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx2)

2*8111H

2

1

2

4

9~36V

2

P1081Y-C2 V2.0(7300U)

I5-7300U/2.6G

2*SODDR4

Q68HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V

3

P1081Y-C2 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

4

P1081Y-C2 V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

Q102HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

5

P1081Y-C2 V2.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

6

P1081Y-C2 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

Q305HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V

7

P1081Y-C2 V2.0(N305)

I3-N305/Turbo 3.8G

1*SODDR4

Q305HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V

8

P1081Y-C2 V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q122HD1

P1071-LED/P1042-C2

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V
