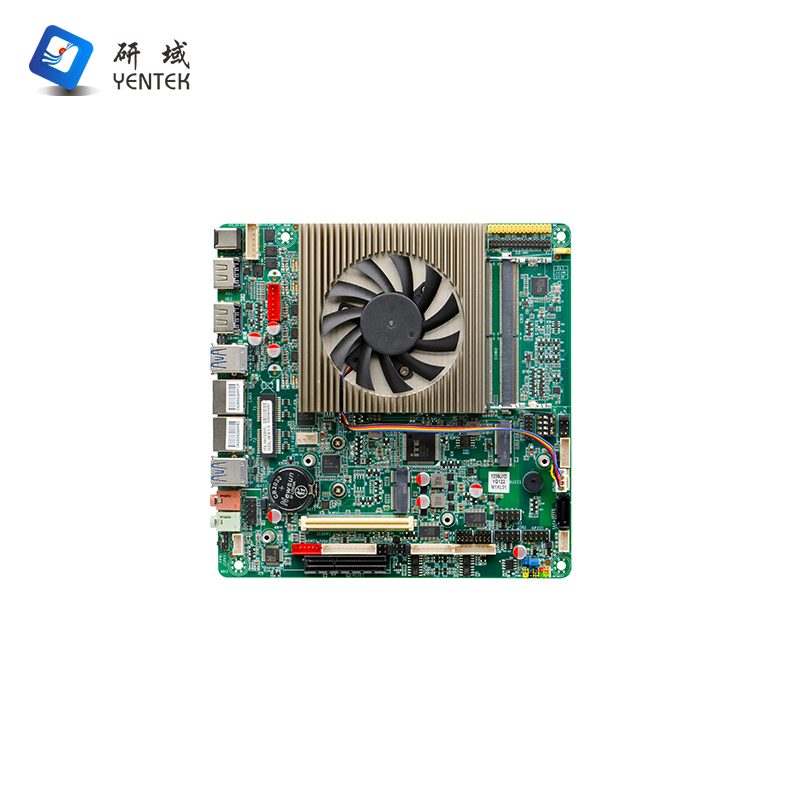

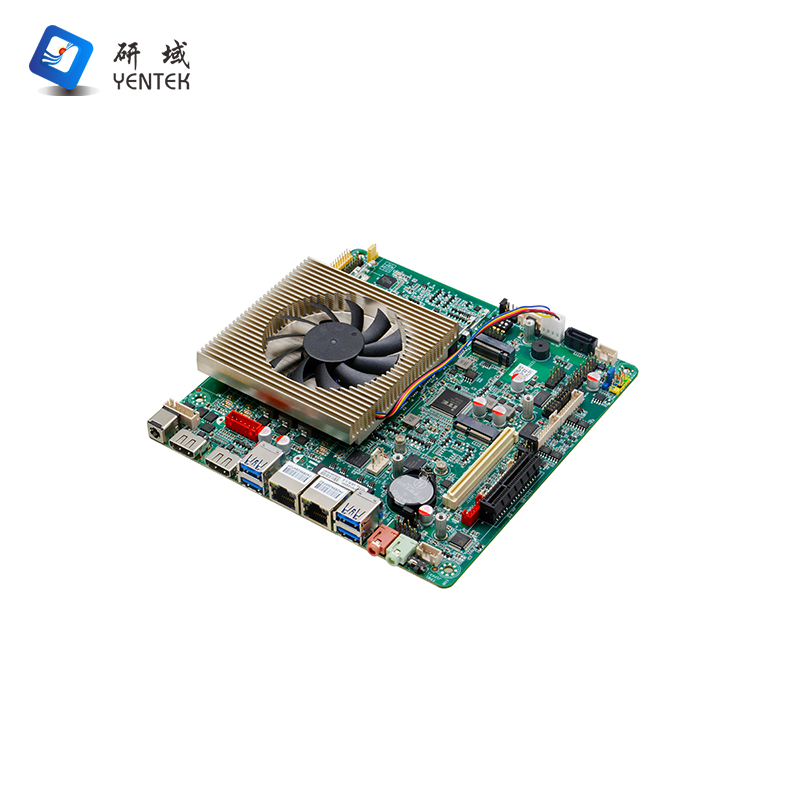

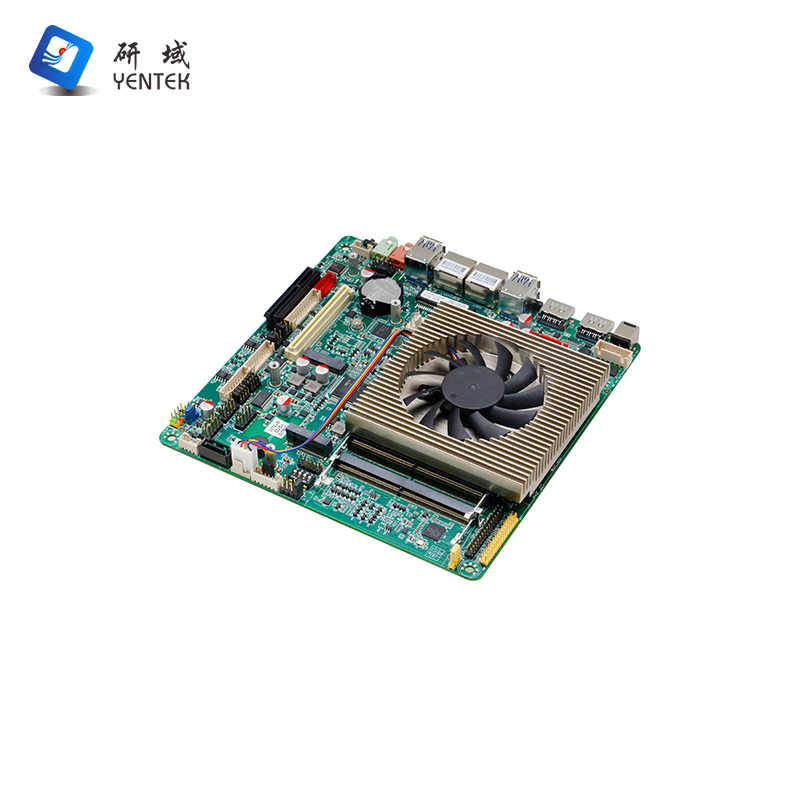

ITX-YH122M1_I523L

Processor

Intel® Alder Lake 12th Gen Core i5-1235U processor   with 10 cores and 12 threads, TDP 15W

Compatible with Intel® Alder Lake/Raptor Lake-U/P,   Celeron, Pentium, Core i3, i5 and i7 processors

Chipset

SOC

Memory

2x DDR5 SODIMM memory slots, supporting 4800MHz   memory, with a maximum capacity of 64GB

Display

Integrated Intel® Iris® Xe Graphics, supporting   DirectX 12 and OpenGL 4.5, with 4K support

1x VGA port, supporting a maximum resolution of   1920x1200@60Hz

2 x HDMI 1.4 ports, supporting a maximum resolution   of 3840x2160@24Hz

1 x dual-channel 24-bit LVDS port

1 x EDP port (selectable via jumper switch between   LVDS and EDP)

Supports four displays via VGA/HDMI/LVDS or EDP

Network

2 x I210AT 1GbE network cards, supporting   Wake-on-LAN and PXE functionality

Storage

1 x 7-pin SATA 3.0 hard drive interface, transfer   speed up to 6Gbps

1 x M.2 slot,   supports M.2 Key M 2280 NVMe PCIe 4.0 x4 standard SSD

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio   controller, supports MIC, Line Out and amplifier

Supports 4Ω 3W speakers via amplifier

Expansion Slots

1 x M.2 slot, supporting M.2 Key E 2230   Wi-Fi/Bluetooth modules

1 x 120-pin high-speed header, including 4 x TTL, 2   x PCIe, 1 x SATA, 1 x DP (for use with VG390-V and YH112-L2 mini-boards)

1 x PCIe 3.0 x4 slot (actual signal is x1)

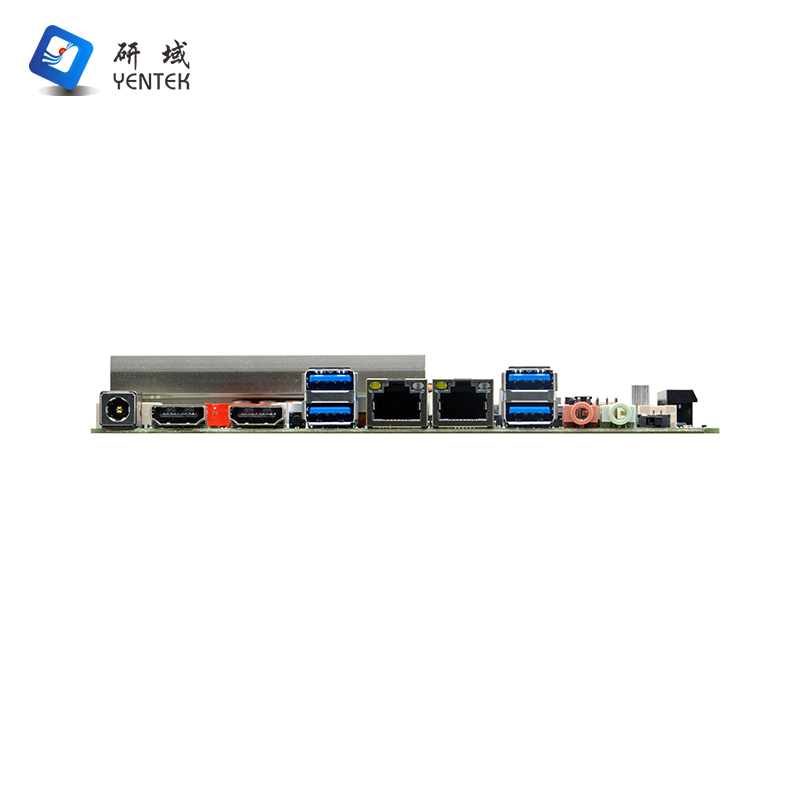

Rear Panel I/O Ports

4 x USB 3.0 Type-A ports (5Gbps)

2 x HDMI 1.4 ports

2 x RJ45 Gigabit Ethernet ports

1 x Line-out (green), 1 x MIC (red)

1 x DC power connector, supports 12V input

1 x CMOS reset button

1 x Power-on DIP switch

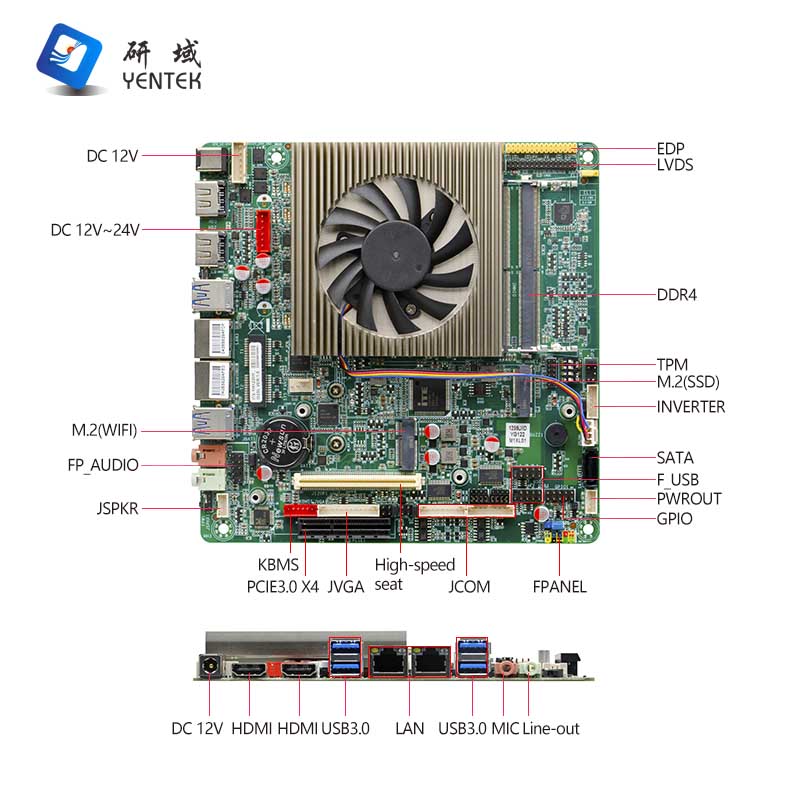

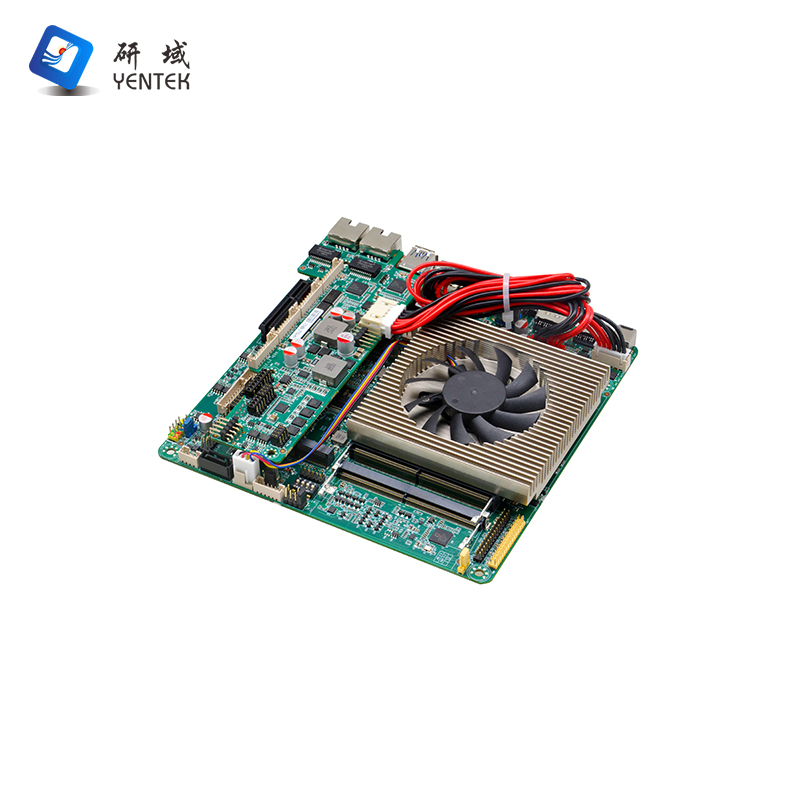

On-Board I/O Ports

1 x LVDS interface (2 x 15-pin, PH=2.0mm), supports   dual-channel 24-bit

1 x LVDS backlight power connector (1 x 6-pin,   PH=2.0mm)

1 x EDP interface (2 x 15-pin, pitch 2.0mm),   selectable via jumper switch (either EDP or LVDS)

1 x JVGA header (1 x 12-pin, pitch 2.0mm)

2 x RS232 serial interfaces (1 x 9-pin, pitch   2.0mm), supporting RS485/422 functionality, configurable via jumper switch

1 x PS/2 keyboard/mouse interface (red), 1 x 6-pin,   pitch = 2.0 mm

4 x USB 2.0 interfaces, 2 x 5-pin, pitch = 2.54 mm

1 x front audio interface, 2 x 5-pin, pitch = 2.54   mm

1 x front panel switch button and indicator light   interface, 2 x 5-pin, pitch = 2.54 mm

1 x HDD power connector (1 x 4-pin, pitch 2.0mm)

1 x Amplifier connector (1 x 4-pin, pitch 2.0mm)

1 x DC power connector (1 x 6-pin, pitch 2.54mm,   white); either this or the 2 x 2-pin ATX power connector

1 x DC power connector, 1 x 6-pin, PH=2.54mm (red),   supports 12V–24V input/output (requires a wide-voltage board)

1 x TPM connector, 2 x 6-pin ESPI specification,   PH=2.0mm

Fan Connectors

1 x 4-pin CPU smart fan connector, 1 x 4-pin system   fan connector

GPIO

Supports   4-channel GPIO input/output functionality

BIOS

128Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255   seconds)

Power Supply Type

Powered by 12V DC

Operating System

Windows 10 / 11 / Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

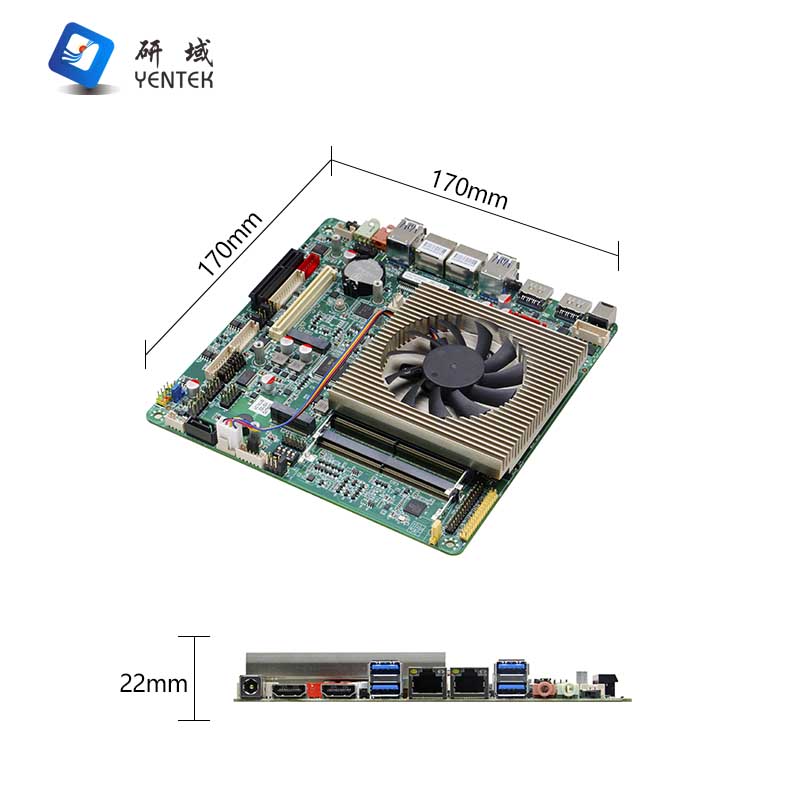

Dimensions

170mm x 170mm
