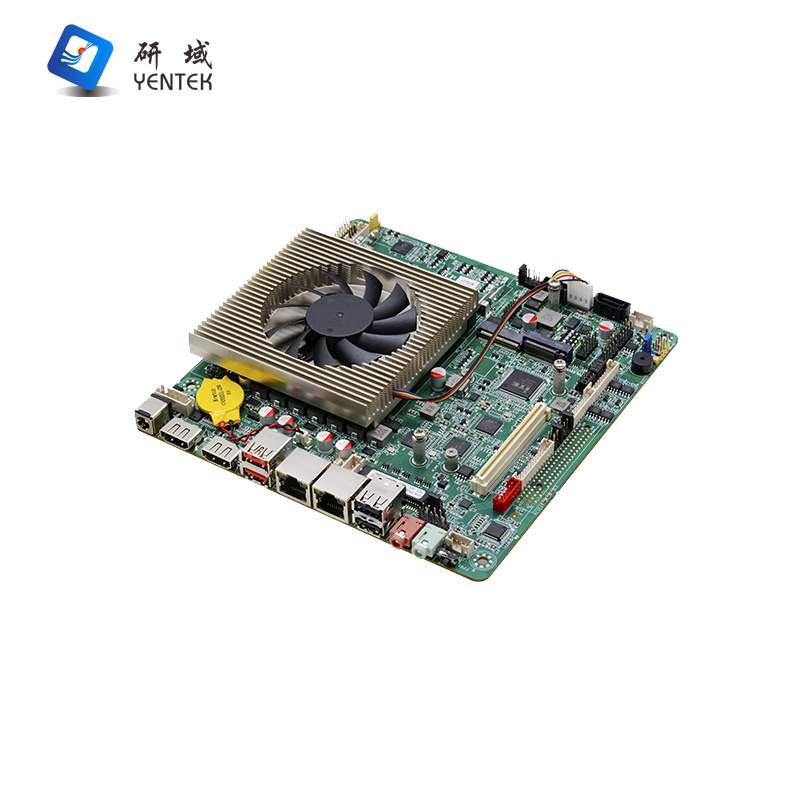

ITX-YL140M1_I526L

Processor

Integrated Intel® Meteor Lake Core™ Ultra 5 125H 4.5GHz, 14-core,

18-thread processor, TDP 28W

Compatible with Intel® Meteor Lake-U/H14th processor

Chipset

SOC

Memory

2* DDR5 SODIMM memory slots, supports 5600MHz   memory up to 96GB

Display

Integrated Intel® Arc™ graphics, support DirectX 12.1 OpenGL 4.6, support 4K.

2*HDMI2.0 interface, support for the highest  resolution of 4096 x 2304 @ 60Hz

1*Support dual-channel 24bit LVDS interface,

1*EDP interface, and LVDS through the jumper one   or the other

Network

2* Intel I210AT Gigabit LAN card, support for Wake-on-LAN and PXE   function.

Storage

2* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, support for M.2 2280 NVME PCIE  x4/SATA adaptive standard SSD

Audio

Integrated ALC897 7.1 + 2-channel hi-fi audio controller,

support for MIC, Line_out, amplifier

Supports 4Ω 3W speaker amplifier

Expansion Slots

1* M.2 slot, support for M.2 Key E 2230 WIFI module

1* M.2 slot, support M.2 Key B 2242/4452 5G module

Backplane I/O Ports

4* USB3.0 port.

2* HDMI2.0 interface,

2* RJ45 Gigabit Network Interface

1* Line-out (Green), 1* MIC (Red)

1* DC12V power connector, support 12V power input

1* Clear CMOS button (reserved)

Built-in I/O Ports

1* LVDS interface 2*15pin, support dual-channel 24bit.

1* LVDS backlight power supply interface 1*6pin

1* EDP interface 2*15pin, and LVDS through the   jumper one of the two choices

6* RS232 serial interface, COM2/3 support   RS485/422 function.

4* USB2.0 interface 2*5pin ,

2* USB3.0 interface 2 * 10pin, one of the USB3.0   and 5G for the two choose one,

the default on the 5G, so the USB3.0 default   only supports a USB3.0

1* Front Audio Interface 2*5pin

1* Front panel switch button and indicator interface 2*5Pin

2* HDD power supply interface 1*4pin

1* Amplifier connector 1*4pin

1* DC power connector 1*4pin (can be 12V input power connector)

1* SIM card slot

Fan Interface

1*4pin CPU smart fan connector, 1*4pin system fan connector

GPIO

Support 4 input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power Supply Type

DC 12V power supply

Operating System

Windows 10, /Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm

1

ITX-YL140M1_I526L VER:1.0(125H)

125H

4.5GHz

2*SODDR5

/

2

2ch/24Bit

1

2*210AT

10

6

COM2/3

DC12V
