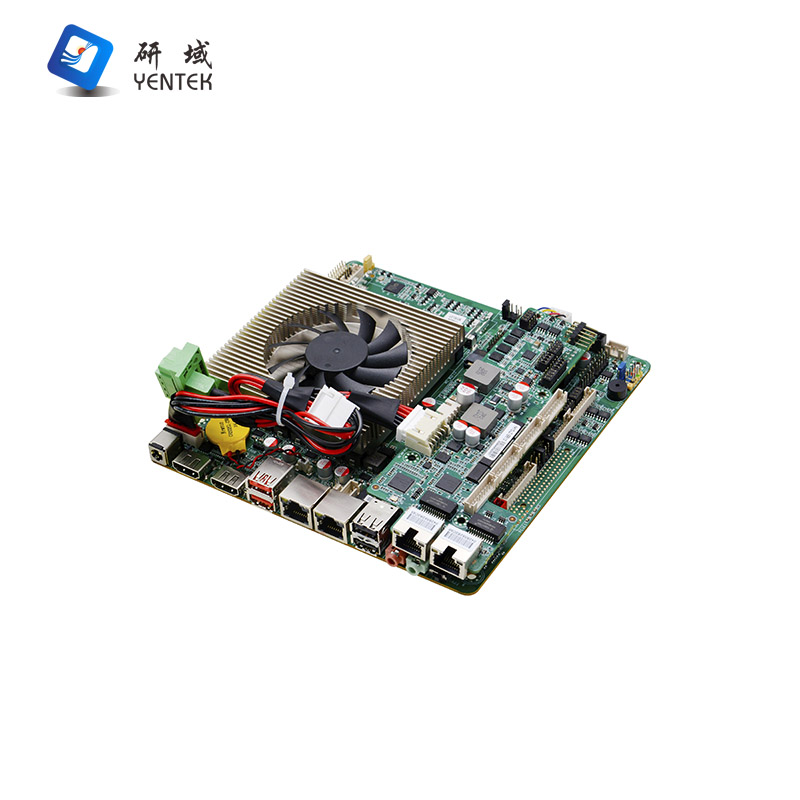

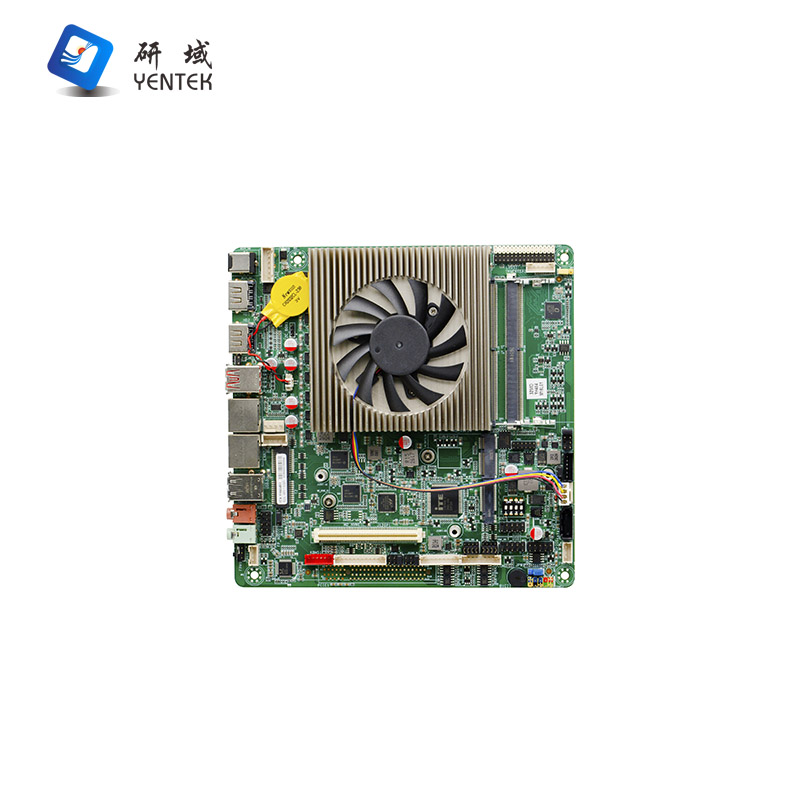

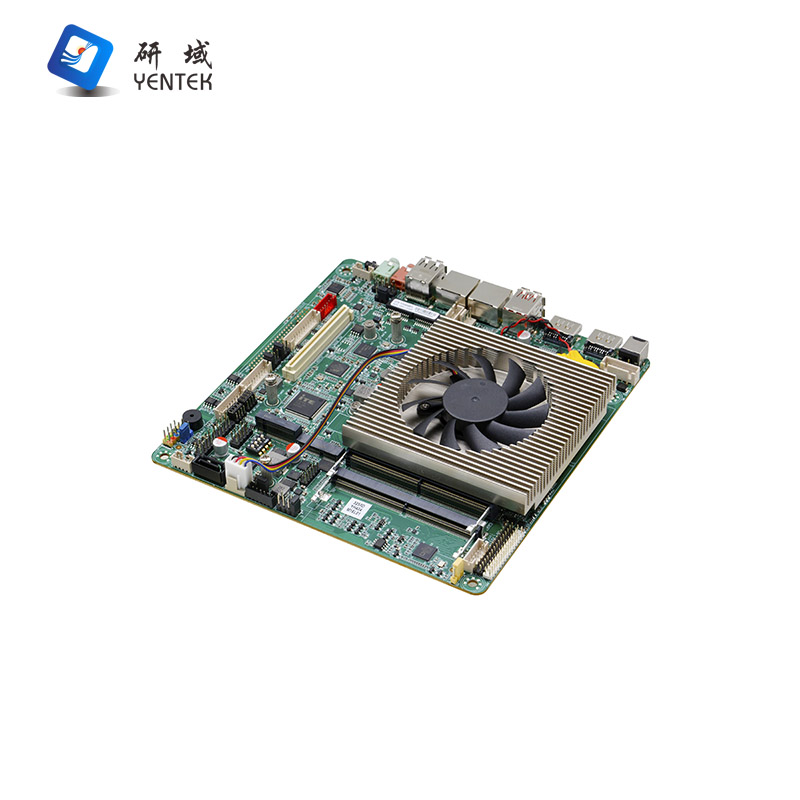

ITX-YH404M1_I523L

Processor

Integrated Intel® Panther Lake Core™ Ultra 5 Processor 325, clocked at up to 4.5 GHz, with 8 cores and 8 threads, TDP 25W, NPU TOPS (Int8) 47

Compatible with Panther Lake Ultra 3/5/7/9 processors

Chipset

SOC

Memory

2 × DDR5 SODIMM memory slots, supporting memory speeds of up to 6400 MT/s, with a maximum capacity of 64 GB

Display

Integrated Intel® Graphics GPU: TOPS (Int8) 40; supports DirectX 12, OpenGL 4.6 and OpenCL 3.0; supports 4K

1 × VGA port, supporting a maximum resolution of 1920×1200@60Hz

2 × HDMI 1.4 ports, supporting a maximum resolution of 4096×2304@24Hz

1 × dual-channel 24-bit LVDS port

1 × EDP port; either LVDS or EDP can be selected via a jumper

Supports four displays via VGA, HDMI, LVDS or EDP

Network

2 × Intel I210AT 1GbE network cards, supporting Wake-on-LAN and PXE; POE support available via an expansion board

Storage

1 × 7-pin SATA 3.0 hard drive port, with transfer speeds up to 6 Gbps

1 × M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 standard SSD

Note: The 7-pin SATA port cannot be used as a boot drive

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC, Line Out and amplifier

Supports 4Ω 3W speakers via the amplifier

Expansion Slots

1 × M.2 slot, supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

1 × 120-pin high-speed header, including 4 TTL, 2 × PCIe, 1 × SATA, 1 × DP (using VG390 series expansion board)

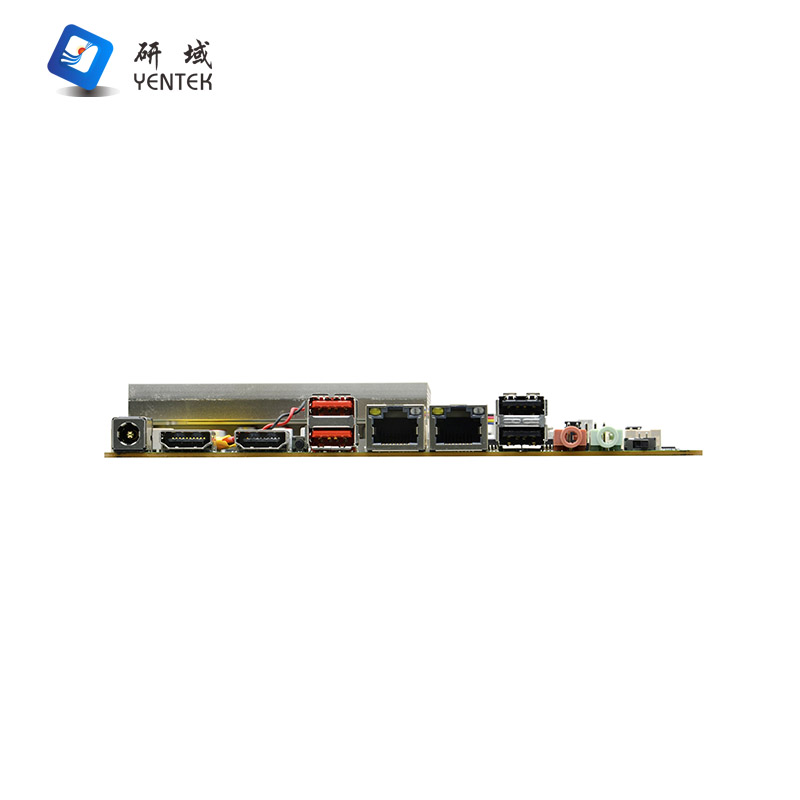

Rear Panel I/O Ports

2 × Type-A USB 3.2 ports (10 Gbps)

2 × Type-A USB 2.0 ports

2 × HDMI 1.4 ports

2 × RJ45 Gigabit Ethernet ports

1 × Line-out (green), 1 × MIC (red)

1 × DC power connector, supporting 12V input; co-located with a threaded DC connector; standard DC plug by default

1 × CMOS reset button, 1 × power-on DIP switch

On-board I/O Ports

1 × LVDS interface (2 × 15-pin, PH = 2.0 mm), supporting dual-channel 24-bit,

1 × LVDS backlight power supply port (black), 1 × 6-pin, pitch = 2.0 mm

1 × EDP port, 2 × 15-pin, pitch = 2.0 mm; selectable via jumper switch (either LVDS or EDP)

1 × EDP screen backlight power supply port (white), 1 × 6-pin, pitch = 2.0 mm

1× JVGA interface, 1× 12-pin, pitch = 2.0 mm

2× RS232 serial interfaces, 1× 9-pin, pitch = 2.0 mm, supporting RS485/422, configurable via jumper settings

1× PS/2 keyboard and mouse interface (red), 1× 6-pin, pitch = 2.0 mm

4 × USB 2.0 ports, 2 × 5-pin, pitch = 2.54 mm; one of the USB 2.0 signals in F_USB1 is shared with Bluetooth and is set to Bluetooth by default

1 × front audio port, 2 × 5-pin, pitch = 2.54 mm

1 × front panel switch and indicator port, 2 × 5-pin, pitch = 2.54 mm

1 × hard drive power connector, 1 × 4-pin, pitch = 2.0 mm

1 × power amplifier connector, 1 × 4-pin, pitch = 2.0 mm

1 × DC power connector, 1 × 6-pin, pitch = 2.54 mm; supports 12 V DC power; a wide-voltage board can be used to support 12–24 V DC input

1 × Ethernet POE connector, 1 × 4-pin, pitch = 2.5 mm

1 × TPM connector, 2 × 6-pin, pitch = 2.0 mm

Fan Connectors

1 × 4-pin CPU smart fan connector, 1 × 4-pin system fan connector

GPIO

Supports 4-channel GPIO input/output functionality

BIOS

128Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by a 12 V DC power supply; an expansion board can be used to support 12–24 V DC power supplies

Operating System

Windows 11/Linux

Operating Temperature

–10 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

170mm x 170mm

1

ITX-YH404M1_I723L VER:1.0(358H)

358H

UP TO 4.8G

2*SODDR5

2

1

1

1

2*I210AT

7

6

COM1/2

DC12V

2

ITX-YH404M1_I523L VER:1.0(325)

325

Up to 4.5G

2*SODDR5

2

1

1

1

2*I210AT

7

6

COM1/2

DC12V
