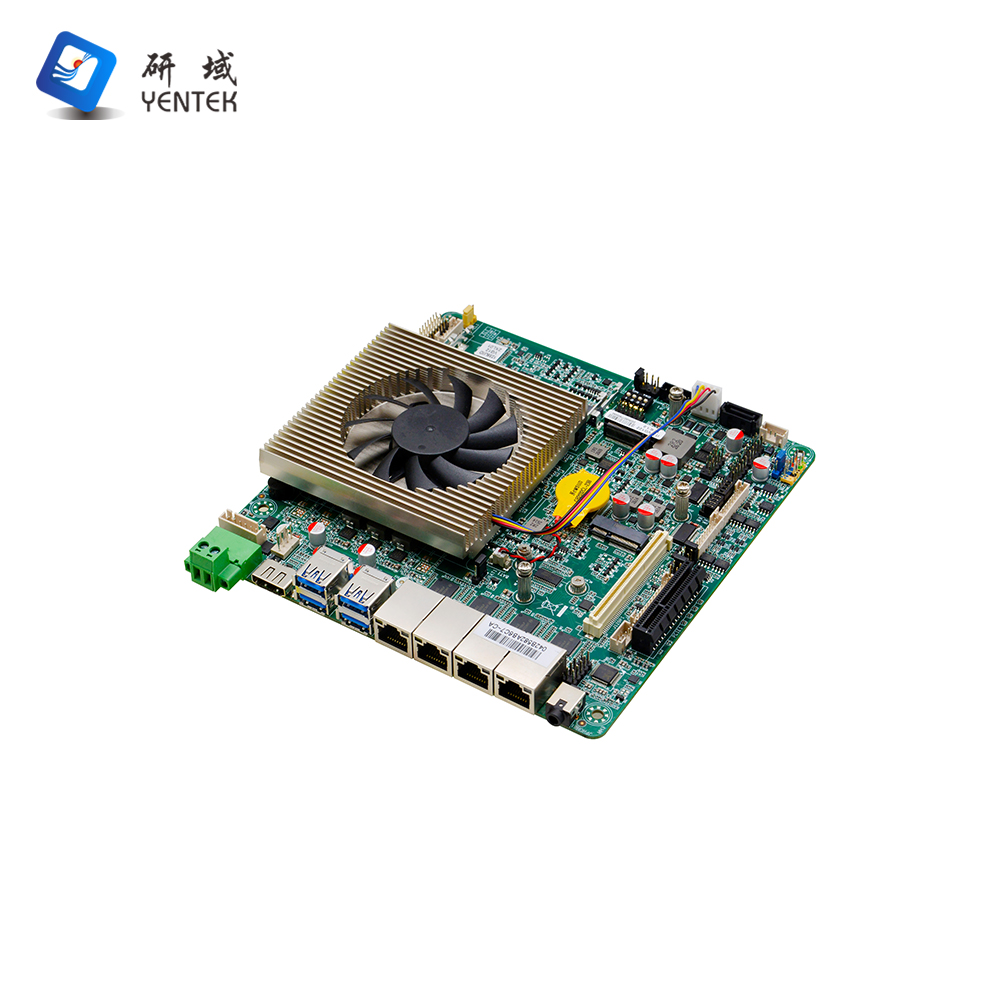

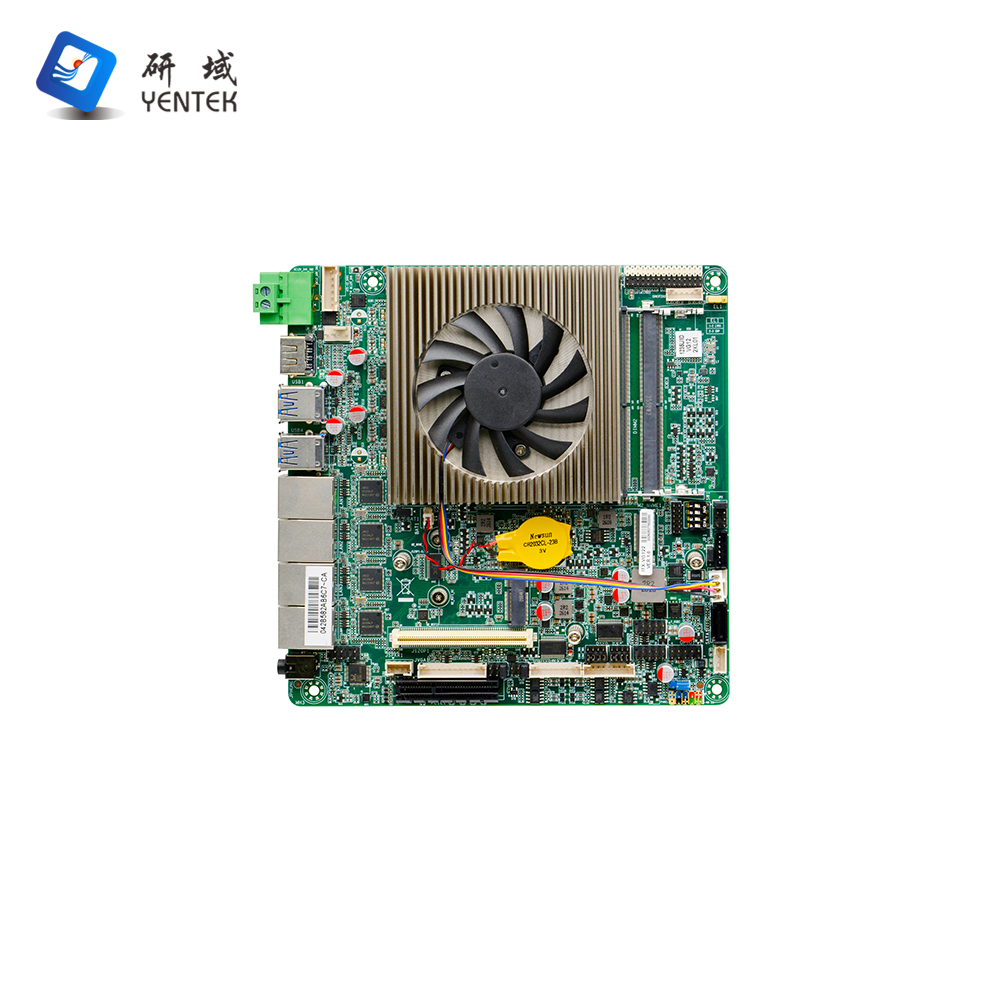

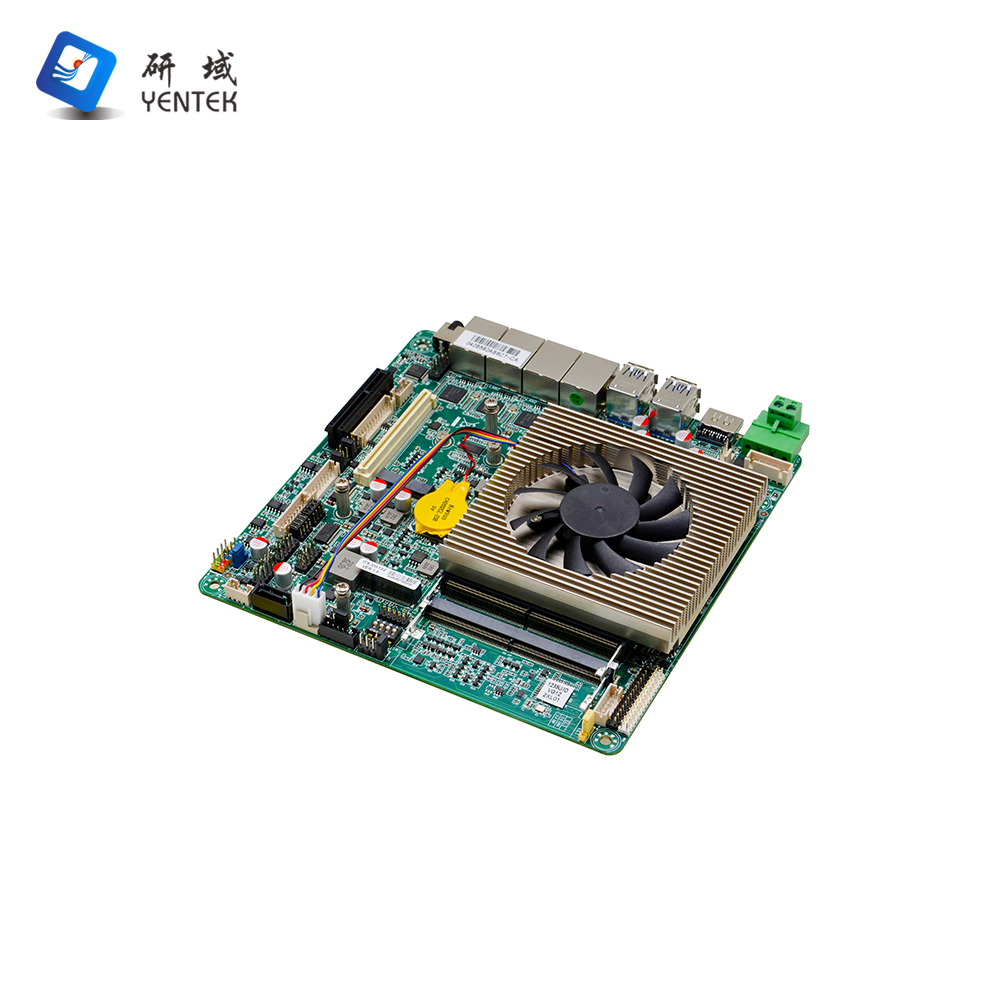

ITX-VG122 VER:1.0(1235U)

Processor

Features an integrated Intel® Alder Lake 12th Gen Core i5-1235U processor with 10 cores and 12 threads, TDP 15W

Compatible with Intel® Alder Lake/Raptor Lake-U/P Celeron, Pentium, Core i3, i5 and i7 processors

Chipset

SoC

Memory

2 * DDR5 SODIMM memory slots, supporting 4800 MHz memory, with a maximum capacity of 64 GB

Display

Integrated Intel® Iris® Xe Graphics, supporting DirectX 12 and OpenGL 4.5, with 4K support

1 * VGA port, supporting a maximum resolution of 1920*1200@60Hz

1 * HDMI 1.4 port, supporting a maximum resolution of 3840x2160@24Hz

1 * dual-channel 24-bit LVDS port

1 * EDP port; either LVDS or EDP can be selected via a jumper

Supports three displays via VGA, HDMI, LVDS or EDP

Network

4 * I210AT 1GbE network cards, supporting Wake-on-LAN and PXE functionality

Storage

1 * 7-pin SATA 3.0 hard drive interface, with transfer speeds up to 6 Gbps

1 * M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 standard SSD

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC, Line Out and power amplifier

Supports 4Ω 3W speakers via the power amplifier

Expansion Slots

1 * M.2 slot, supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

1 * 120-pin high-speed header, including 4 * TTL, 2 * PCIe, 1 * SATA, 1 * DisplayPort (for use with the VG390-V mini-ITX motherboard)

1 * PCIe 3.0 x4 slot (actual signal is x1)

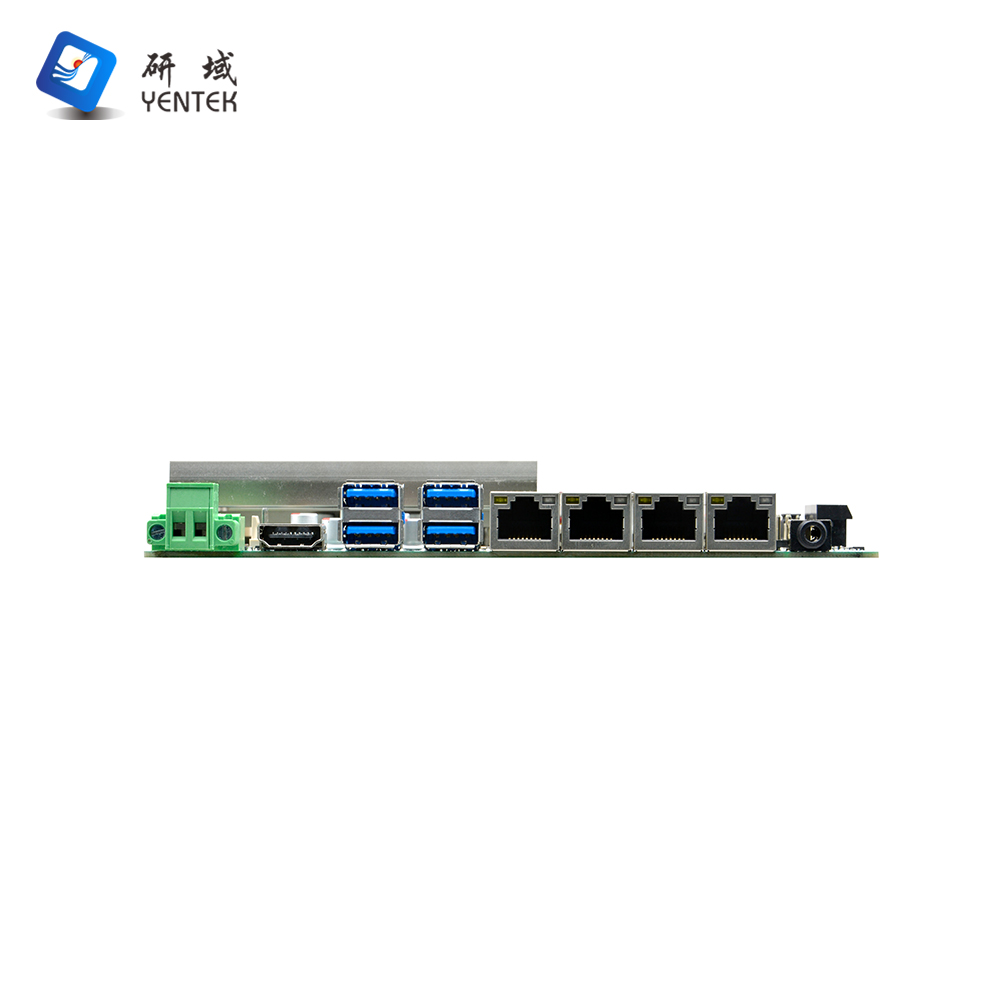

Rear Panel I/O Ports

4 * Type-A USB 3.0 ports (5 Gbps)

1 * HDMI 1.4

4 * RJ45 Gigabit Ethernet ports

1 * 2-in-1 audio port, supporting line-out and microphone input

1 * 2-pin Phoenix connector power port, supporting 12 V to 24 V power input; either this or the standard DC power connector may be used

On-board I/O Ports

1 * LVDS interface, 2 * 15-pin, PH = 2.0 mm, supporting dual-channel 24-bit

1 * LVDS backlight power supply interface (black), 1 * 6-pin, PH = 2.0 mm

1 * EDP interface, 2 * 15-pin, PH = 2.0 mm; either this or the LVDS interface may be used

1 * EDP screen backlight power supply interface (white), 1 * 6-pin, pitch = 2.0 mm

1 * JVGA header, 1 * 12-pin, pitch = 2.0 mm

2 * RS232 serial interfaces, 1 * 9-pin, pitch = 2.0 mm, supporting RS485/422 functionality, configurable via jumper settings

4 * USB 2.0 ports, 2 * 5-pin, pitch = 2.54 mm

1 * front-panel audio port, 2 * 5-pin, pitch = 2.54 mm

1 * front-panel switch and indicator port, 2 * 5-pin, pitch = 2.54 mm

1 * hard drive power supply port, 1 * 4-pin, pitch = 2.0 mm

1 * Amplifier connector: 1 * 4-pin, pitch = 2.0 mm

1 * DC power connector: 1 * 6-pin, pitch = 2.5 mm

1 * TPM connector: 2 * 6-pin (ESPI specification), pitch = 2.0 mm

Fan Connectors

1 * 4-pin CPU smart fan connector, 1 * 4-pin system fan connector

GPIO

Supports 4-channel GPIO input/output functionality

BIOS

128 Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by 12 V–24 V DC

Operating System

Windows 10 / 11 / Linux

Operating Temperature

–10 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

170mm x 170mm
