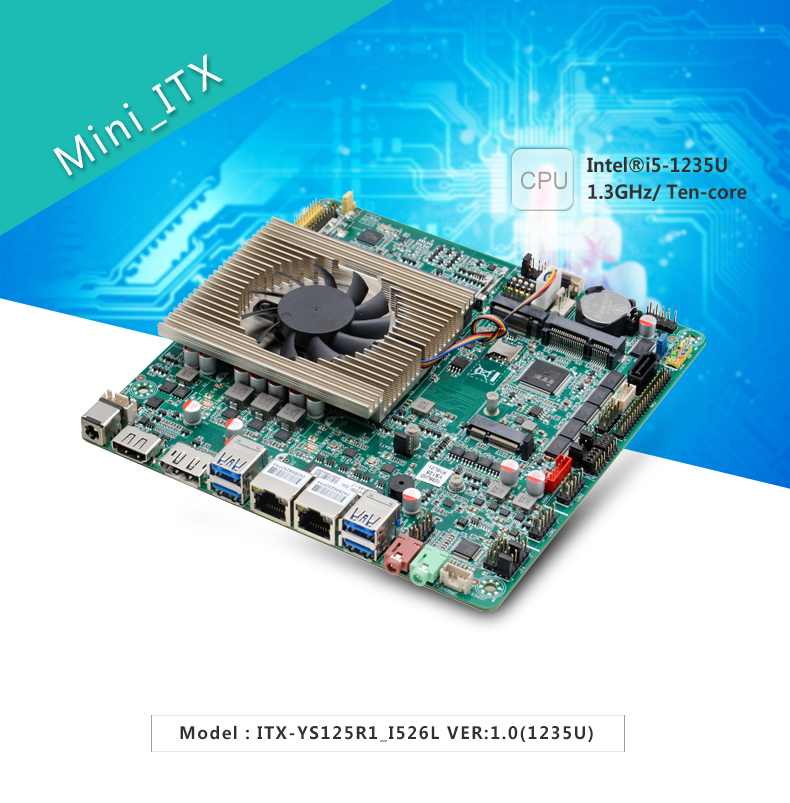

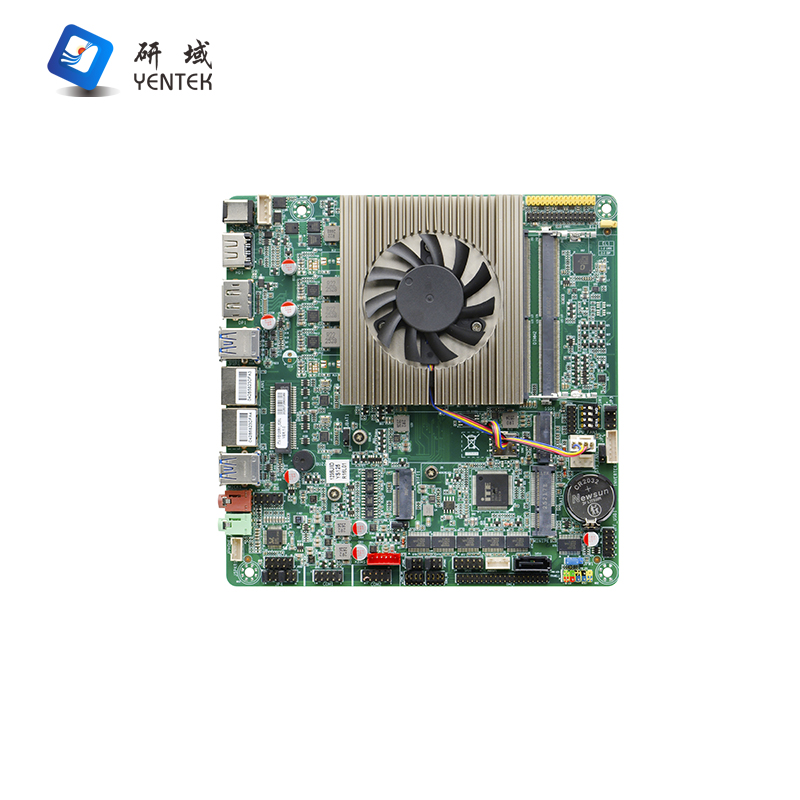

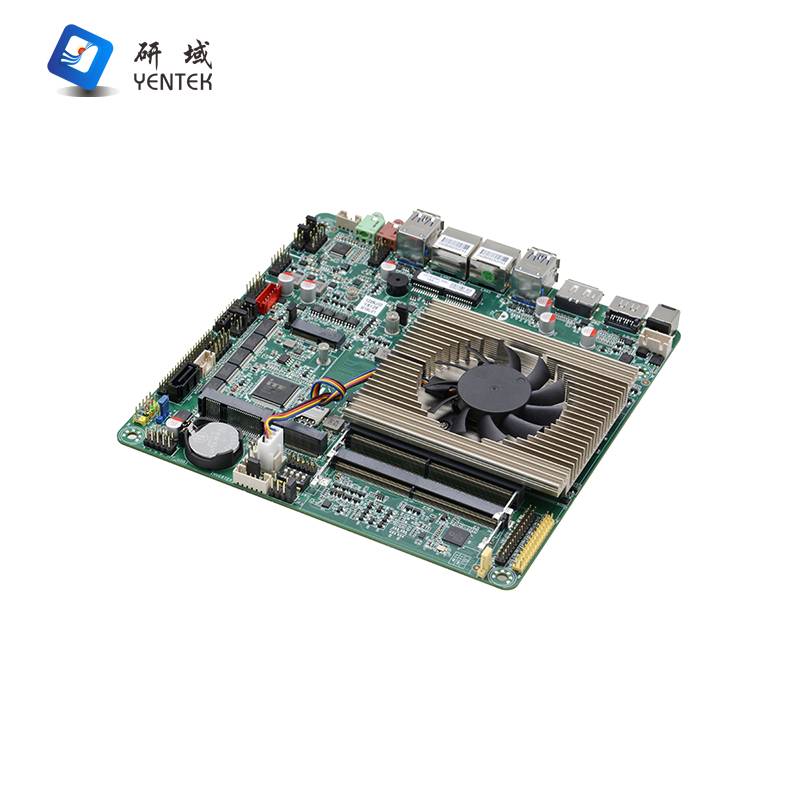

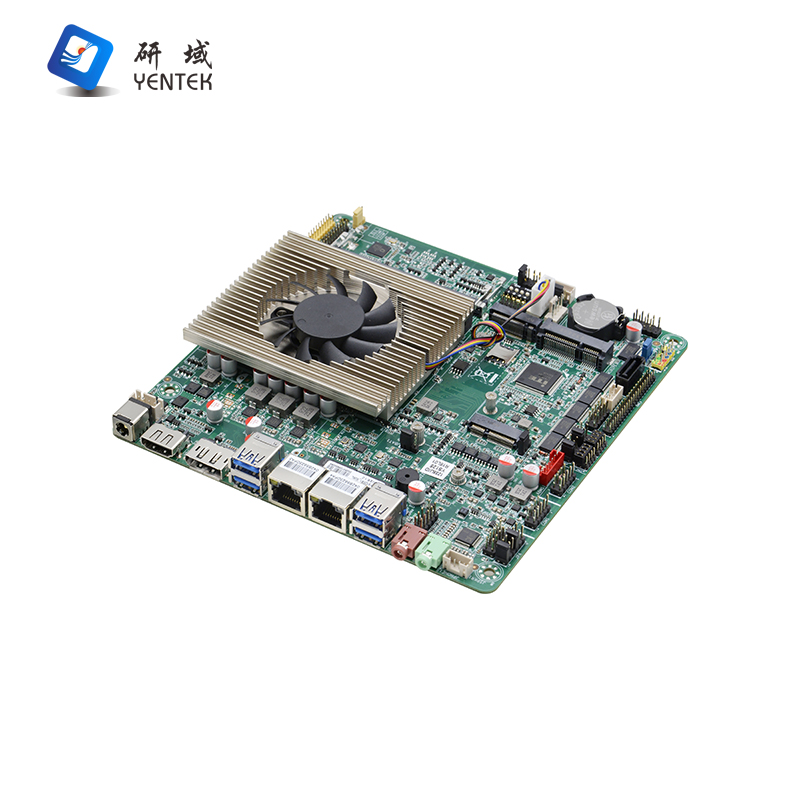

ITX-YS125R1_I526L

Processor

Integrated Intel® Alder Lake 12th Gen Core   i5-1235U 10-core 12-thread processor, TDP 15W

Compatible with Intel® Alder Lake/Raptor   Lake-U/P Celeron, Pentium, Core i3/i5/i7 processors

Chipset

SOC

Memory

2x DDR5 SODIMM memory slots, supporting   4800MHz memory, with a maximum capacity of 64GB

Display

Integrated Intel® UHD Graphics, supporting   DirectX 12 and OpenGL 4.5, support 4K

1x HDMI 1.4 port, supporting a maximum   resolution of 3840x2160 @ 24Hz

1x DP port, supporting a maximum resolution of   3840x2160 @ 60Hz

1x dual-channel 24-bit LVDS interface,

1x EDP interface, compatible with LVDS via a   jumper switch

Network

2x RTL8111H Gigabit Ethernet ports, supporting   network wake-up and PXE functionality

Storage

1* SATA 3.0 hard drive interface, with a   transfer speed of up to 6 Gbps

1*   M.2 slot, supporting M.2 2280 NVMe PCIe x4 standard SSD

Audio

Integrated ALC897 7.1+2-channel high-fidelity   audio controller, supporting MIC, Line_out, and amplifier

Supports 4Ω 3W speakers

Expansion Slots

1x M.2 slot, supporting M.2 Key E 2230 Wi-Fi   module

1x Mini-PCIe slot, supporting Wi-Fi/4G   modules

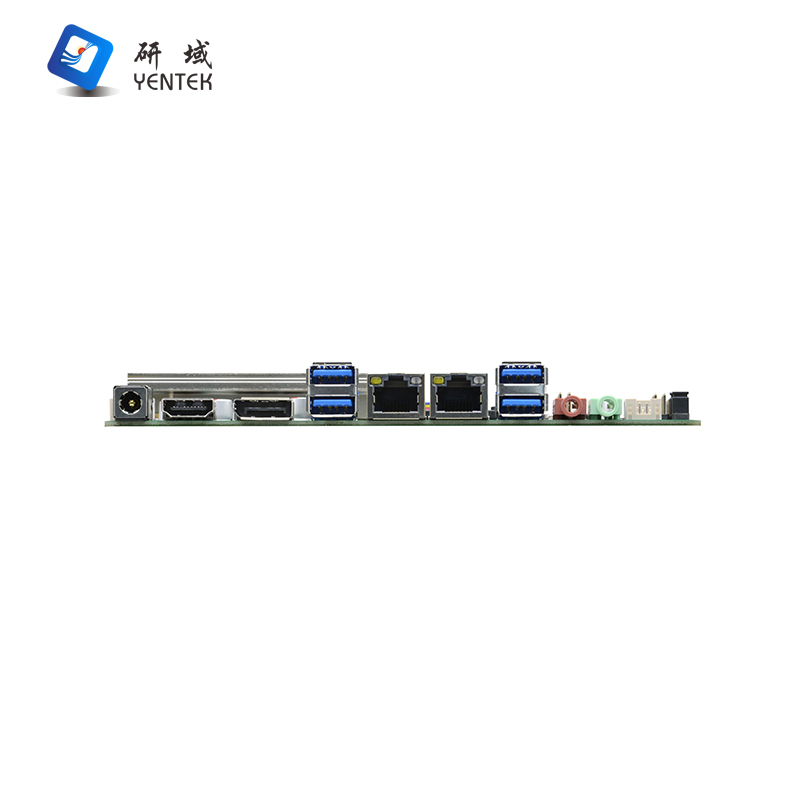

Backplane I/O Ports

4x USB 3.0 ports

1x HDMI 1.4

1x DP interface

2x RJ45 Gigabit Ethernet ports

1x Line-out (green), 1x MIC (red)

1 x DC 12V power interface, supports 12V power   input

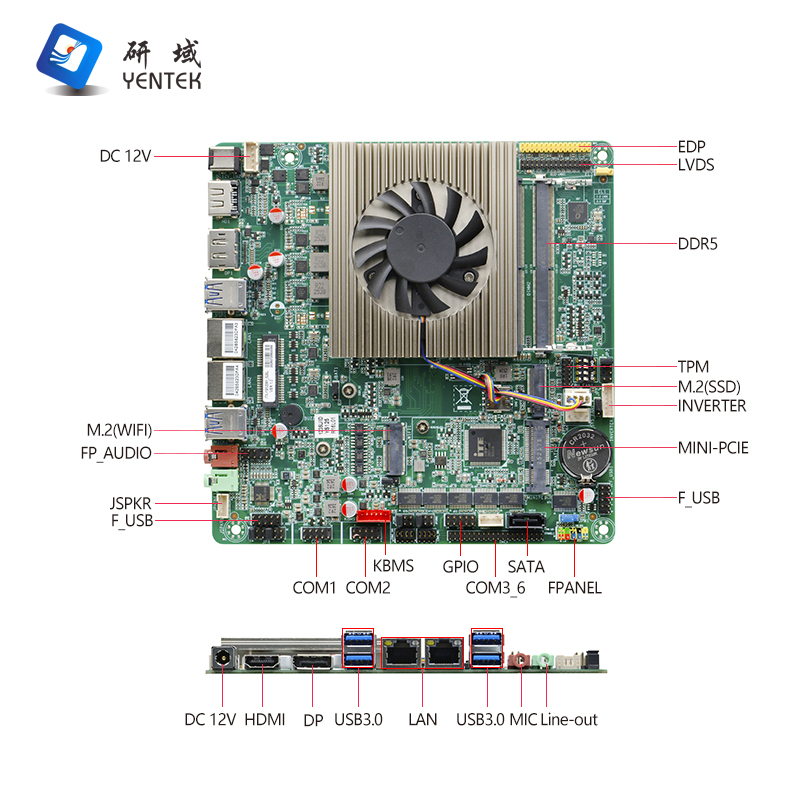

Built-in I/O Ports

1 x LVDS interface 2 x 15-pin, supports   dual-channel 24-bit

1 x LVDS backlight power interface 1 x   6-pin

1 x EDP interface 2 x 15-pin, compatible with   LVDS via jumper selection

6 x RS232 serial interface, COM1/COM2 supports   power supply function on pin 9, COM2/3 supports RS485/422 functionality

1* PS/2 keyboard/mouse interface (red)   1*6-pin

4* USB 2.0 interfaces 2*5-pin,

1* Front audio interface 2*5-pin

1* Front panel switch button and indicator   light interface 2*5-pin

1* Hard drive power supply interface   1*4-pin

1* Amplifier interface 1*4-pin

1* DC power supply interface 1*4-pin (can be   used as a 12V input power supply interface)

1* SIM card slot,

1* TPM interface 2*6-pin

Fan Connectors

1*4-pin CPU intelligent fan interface, 1*   4-pin system fan interface

GPIO

Supports 4-channel input/output GPIO   functionality

BIOS

128MB Flash ROM

Watchdog

Supports hardware reset function (256 levels,   0–255 seconds)

Power Type

Powered by DC 12V power supply

Operating System

Windows 10 / Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, no condensation

Dimensions

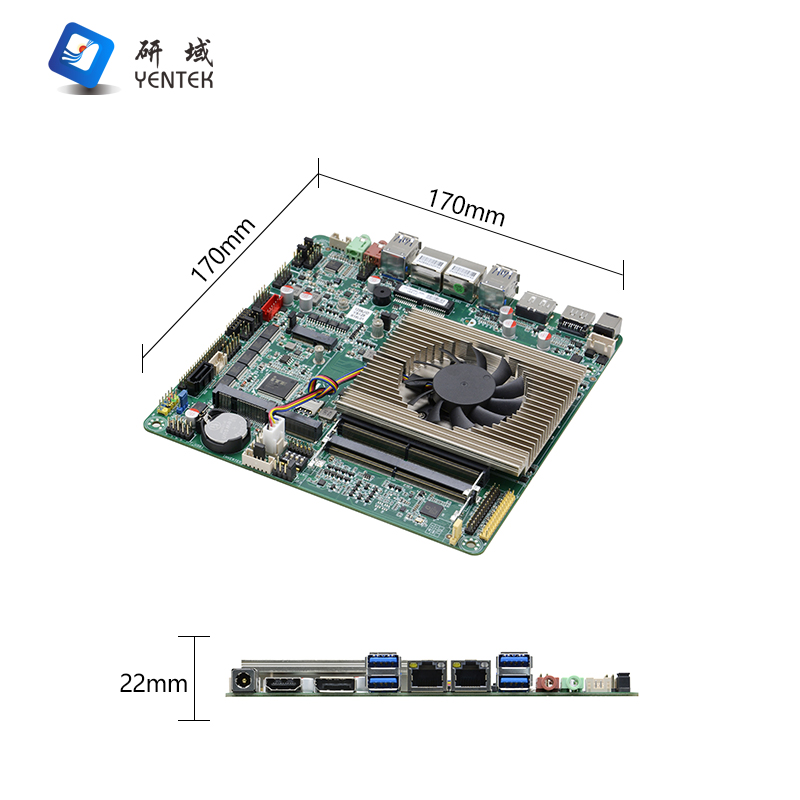

170mm x 170mm

1

ITX-YS125R1_I526L VER:1.0(1235U)

I5-1235U

4.4GHz

2*SODDR5

/

1

1

1

1

2*8111H

8

6

COM2/3

DC12V
