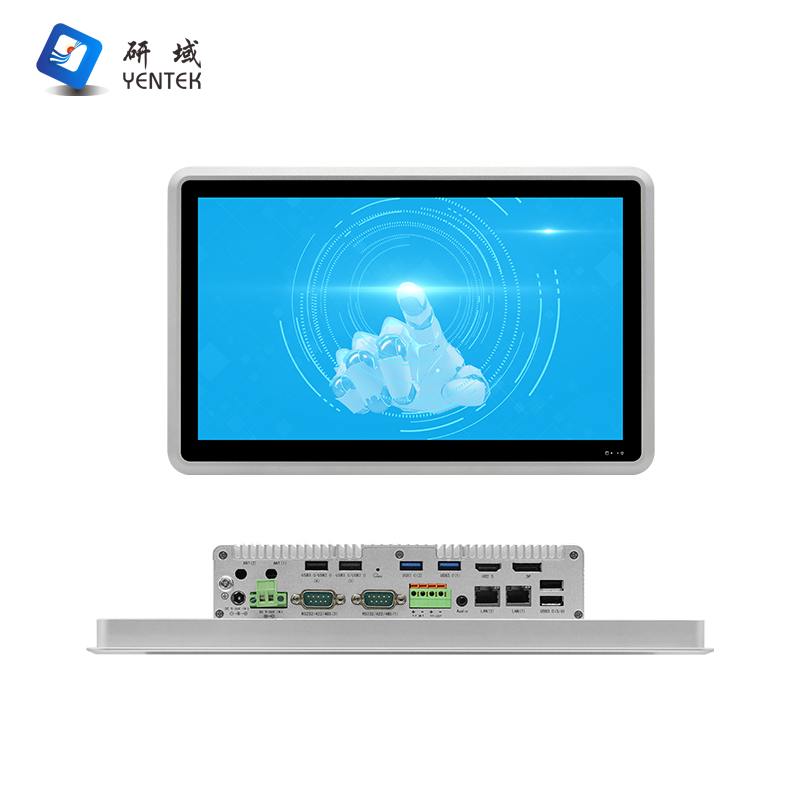

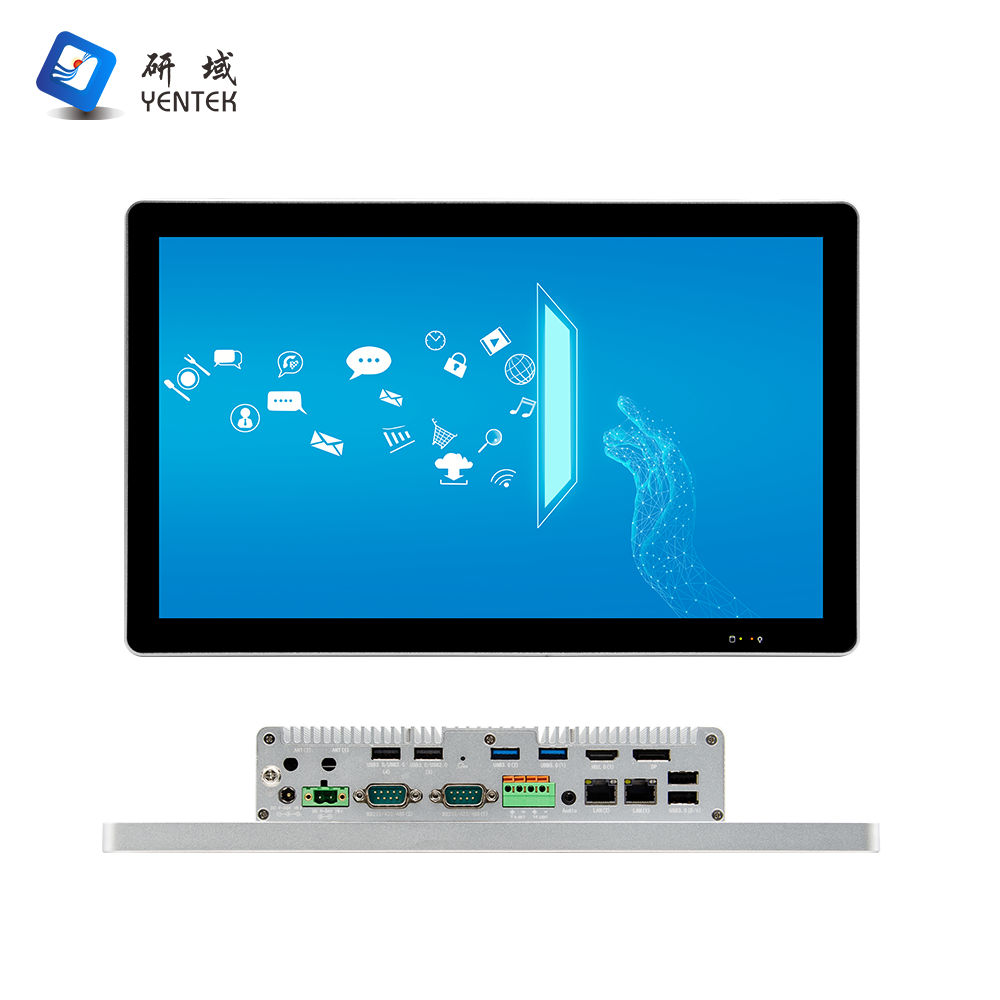

P1382X-F6 (VESA)

Chassis

Material/structure

Aluminium   alloy material, fanless cooling structure

Colour

Silver   colour

Size (LWH)

L326*W201*H56mm

Weight (bare   net)

KG

Installation

Support   VESA/Wall Mounting

LCD Screen

Type

13.3’ LCD,   Widescreen, 16:9

Resolution

1920 * 1080

Brightness

300 cd/m2

Touch Screen

Type

Capacitive   screen, 10-point touch

Transmittance

86% more

Motherboard

CPU

Integrated   Intel® Celeron J6412/2.00GHz Quad-Core Quad-Thread Processor, 10W TDP power   consumption

Display

Integrated   Intel® UHD Graphics

Memory

2*SODIMM   DDR4 2666MHz memory, support up to 32GB

IO Interface

POWER

1*Boot   button, 1*One-Key Restore, 1*ACLOSS (power-on toggle switch), 1*CMOS reset   switch

LED

1*Power   Indicator, 1*Hard Drive Indicator

Display port

1*HDMI

LAN

2*Intel   I210AT Gigabit LAN card, support Wake on LAN, PXE function

USB

4*USB3.0,   2*USB2.0

COM

6*RS232 /485   (on 2*12P Phoenix terminal)

Phoenix   Terminal

1*4P   (1*PWR/1*P.LED)

2*12P   (6*RS232/485)

Audio

1*Line out,   1*MIC

Power Supply

1*DC Air   Interface or 1*2P Phoenix terminal, support 9V~36V wide voltage input

Storage

MSATA

1*MSATA

M.2

1*M.2/SSD,   support Key-M, 2280, NVME PCIEX4 SSD

Expansion

Mini PCIE

1*Mini-PCIE,   support WIFI/4G module

System Support

Windows

Windows 7

Linux

Ubuntu

Watch Dog

Support   hardware reset function (256 levels, 0~255 seconds)

Power Requirements

Power supply   type

External   Power Adapter

Voltage   Input

9V~36V Wide   Voltage

Power Output

AC To DC 60W

Environments

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95% relative humidity,   non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

P1382X-F6 V1.0(J6412)

J6412/2.0G

2*SODDR4

P641

P1041-F6/P1082-LED

2*I210

6

1

2

4

9~36V

2

P1382X-F6 V1.0(8260U)

I5-8260U/1.6G

2*SODDR4

P82

P1042-F6/P1082-LED

2*I210

6

1

2

4

9~36V

3

P1382X-F6 V1.0(7300U)

I5-7300U/2.6G

2*SODDR4

P68

P1042-F6/P1082-LED

2*I210

6

1

2

4

9~36V

4

P1382X-F6 V1.0(10210U)

I5-10210U/1.6G

2*SODDR4

P102

P1042-F6/P1082-LED

2*I210

6

1

2

4

9~36V
