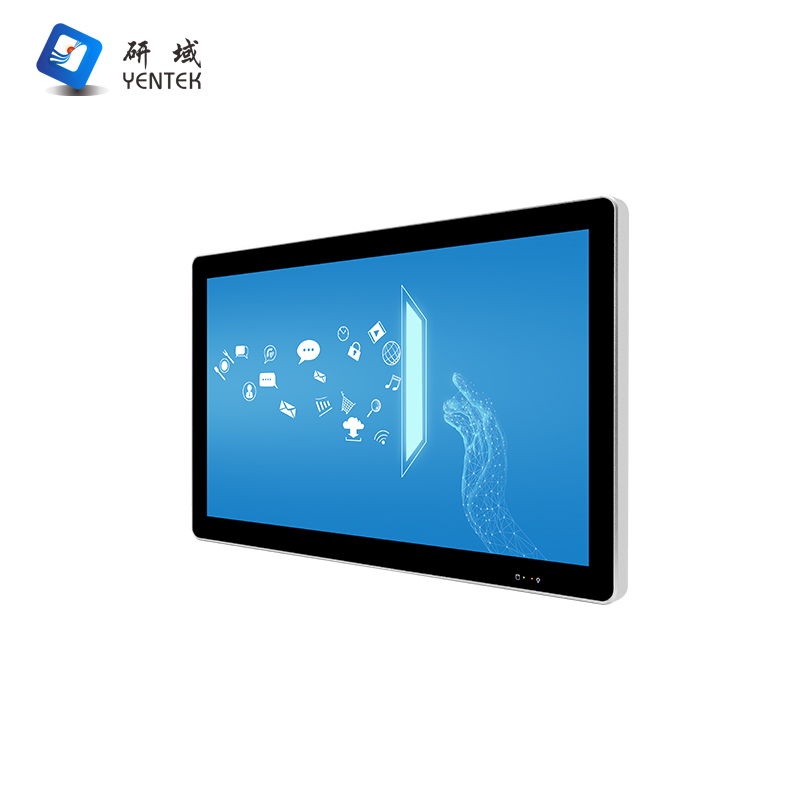

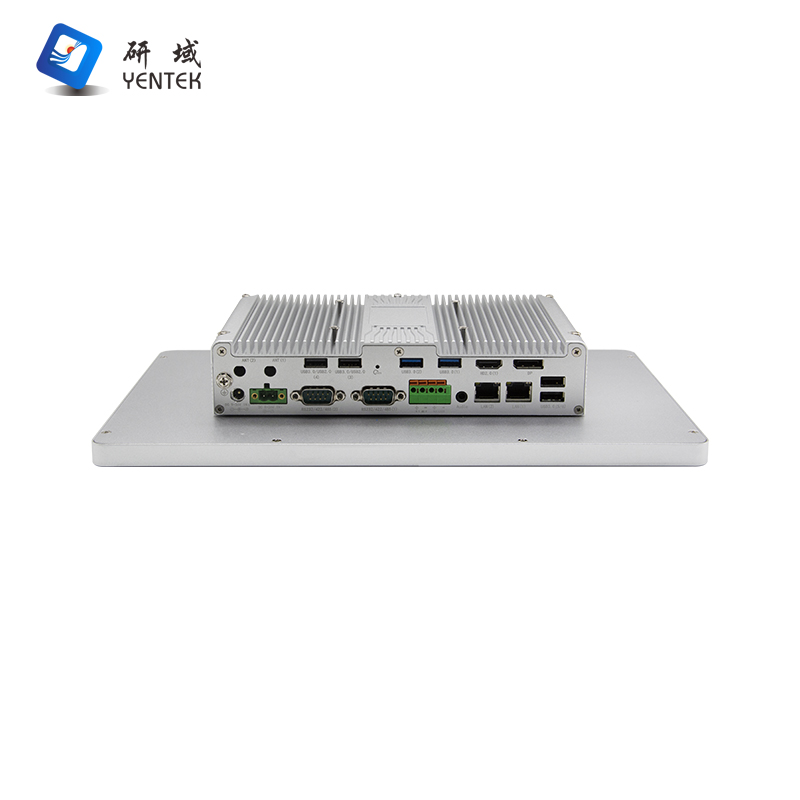

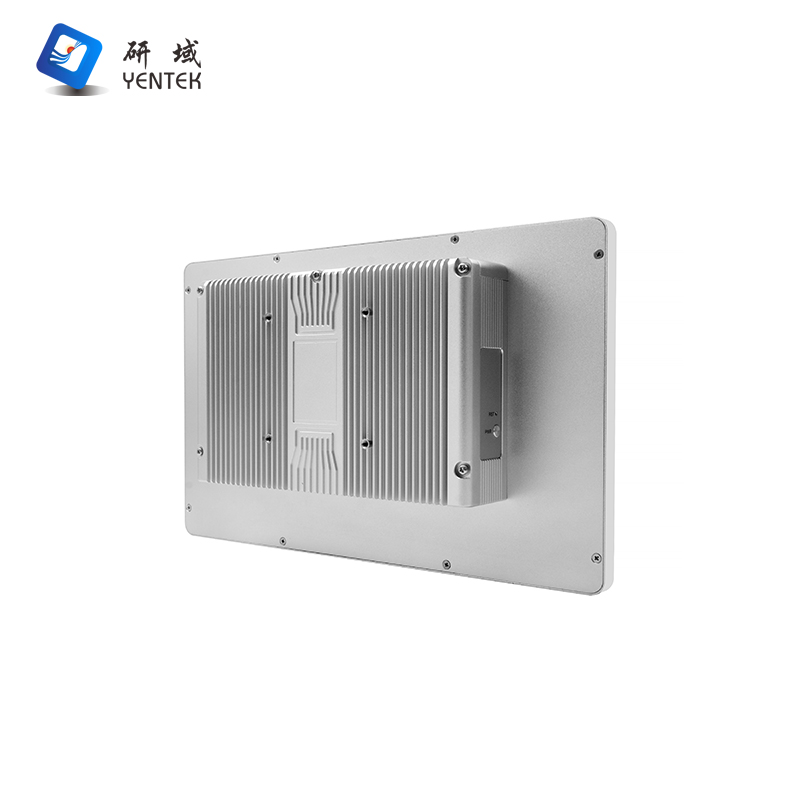

P1382X-C2 (VESA)

Chassis

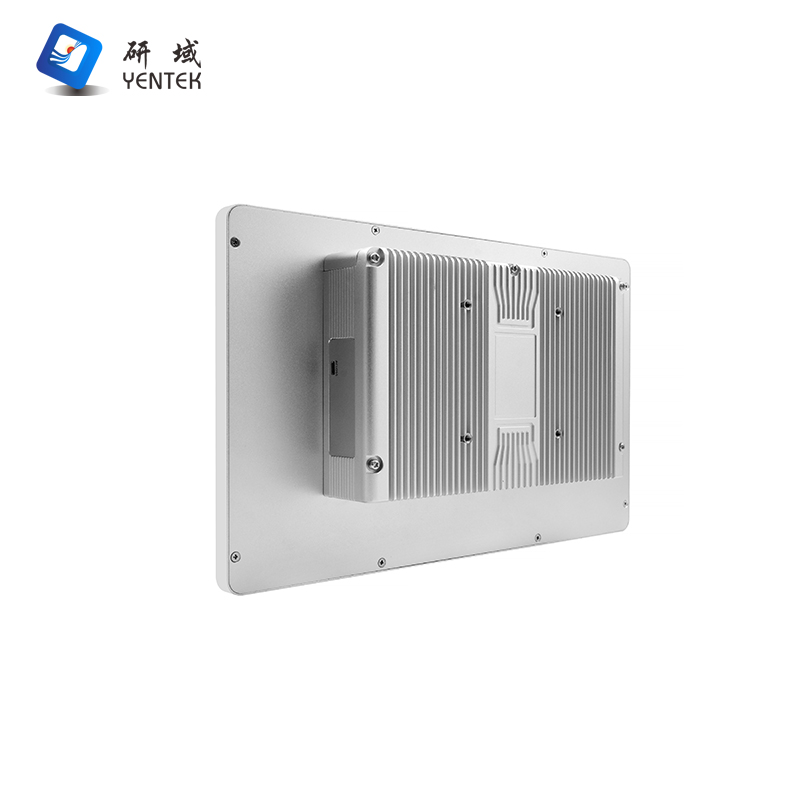

Material/Structure

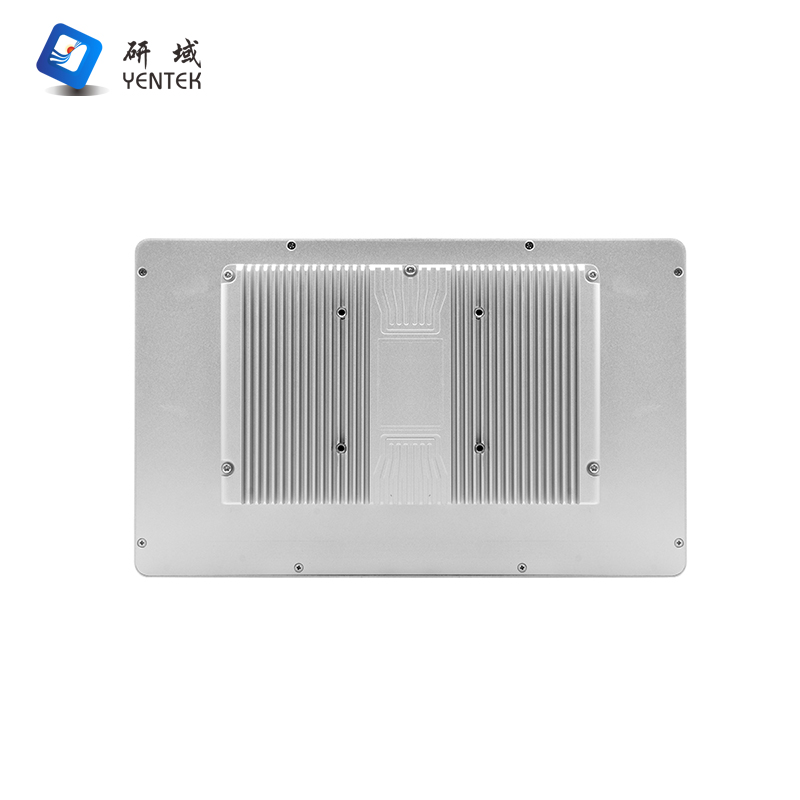

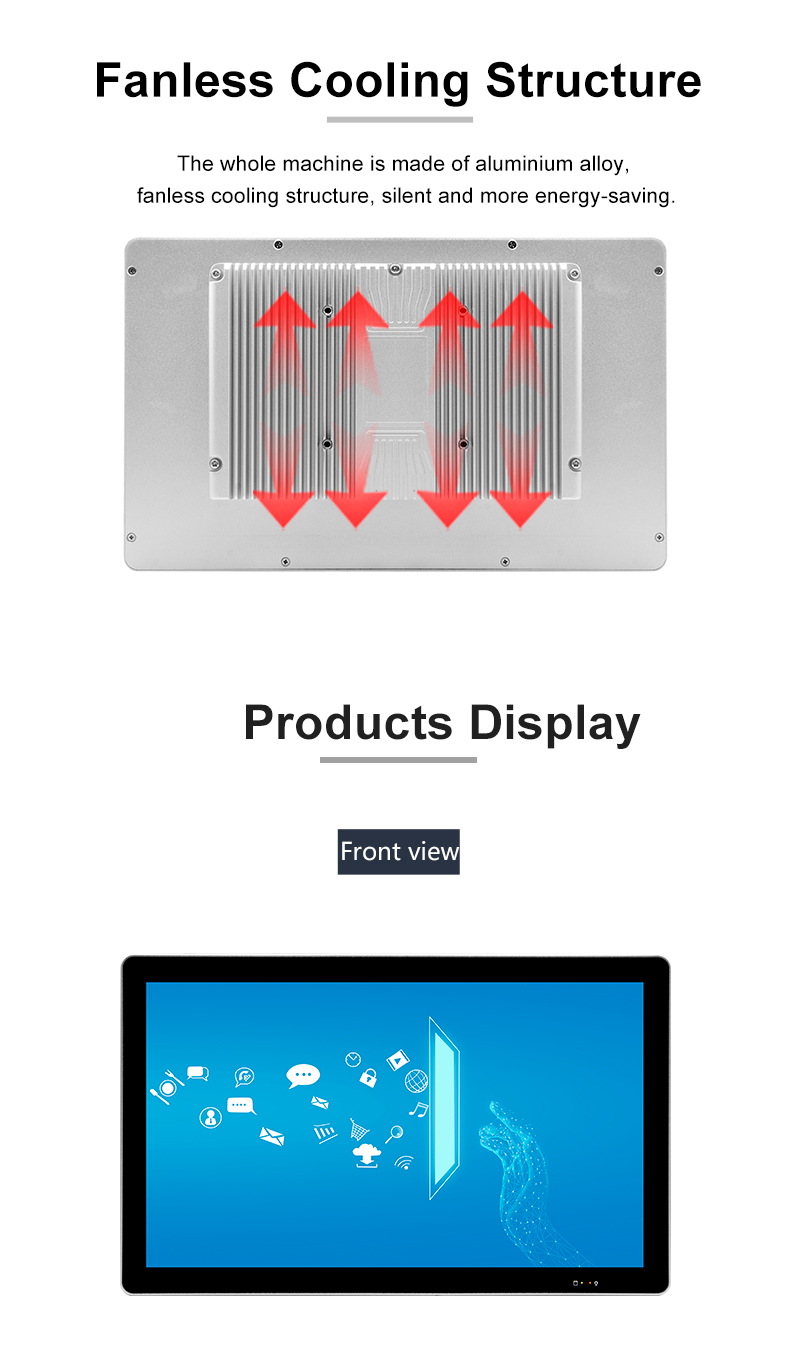

Aluminium alloy material,   fanless cooling structure

Colour

Silver

Dimensions (L x W x H)

L326 x W201 x H56 mm

Weight

2.3 kg

Installation

Supports VESA/embedded   installation

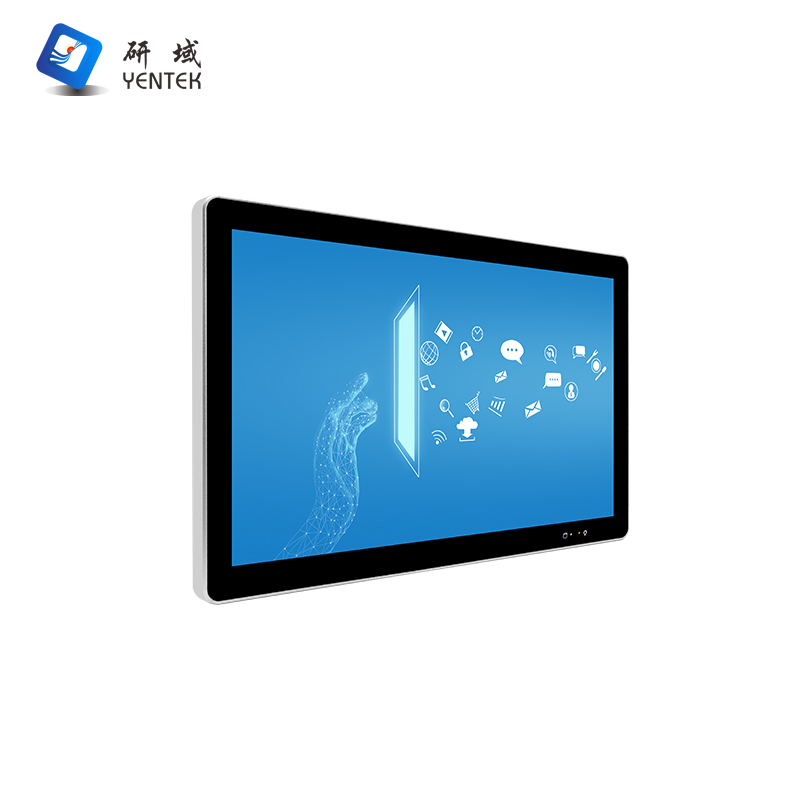

LCD screen

Type

13.3-inch LCD, widescreen, 16:9

Resolution

1920 x 1080

Brightness

300 cd/m²

Touch screen

Type

Capacitive touchscreen, 10-point   touch

Transmittance

Over 86%

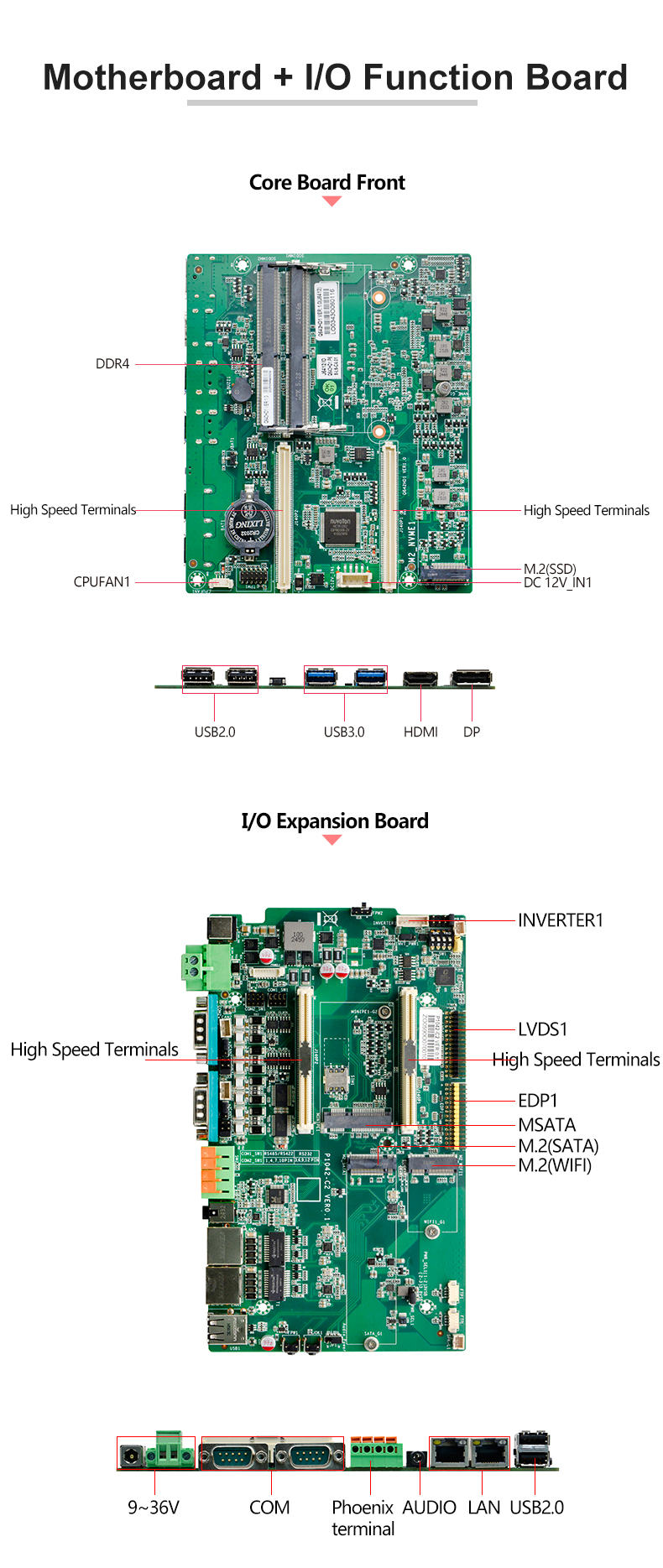

Motherboard

CPU

Integrated Intel® Celeron   J6412/2.0GHz quad-core quad-thread processor, TDP 10W

Display

Integrated Intel® Iris Xe   Graphics compatible

Memory

2*SODDR4 3200MHz， supports up   to 16GB

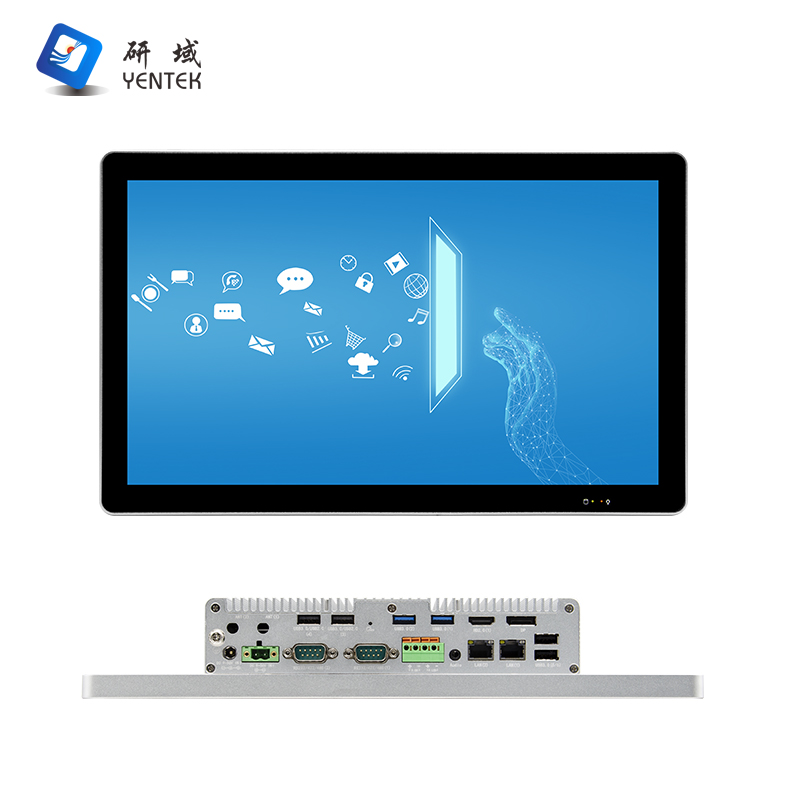

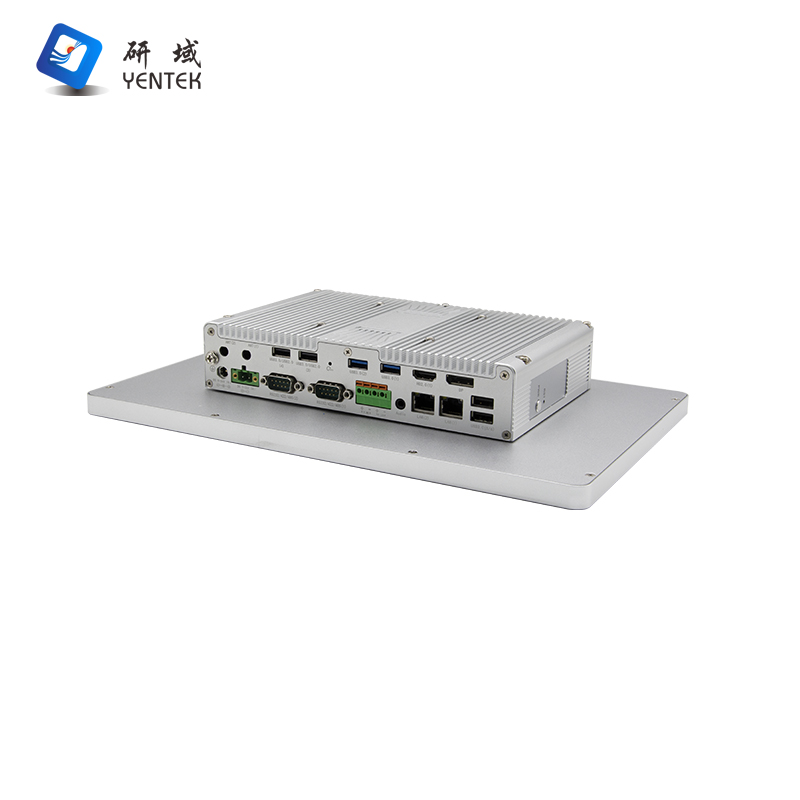

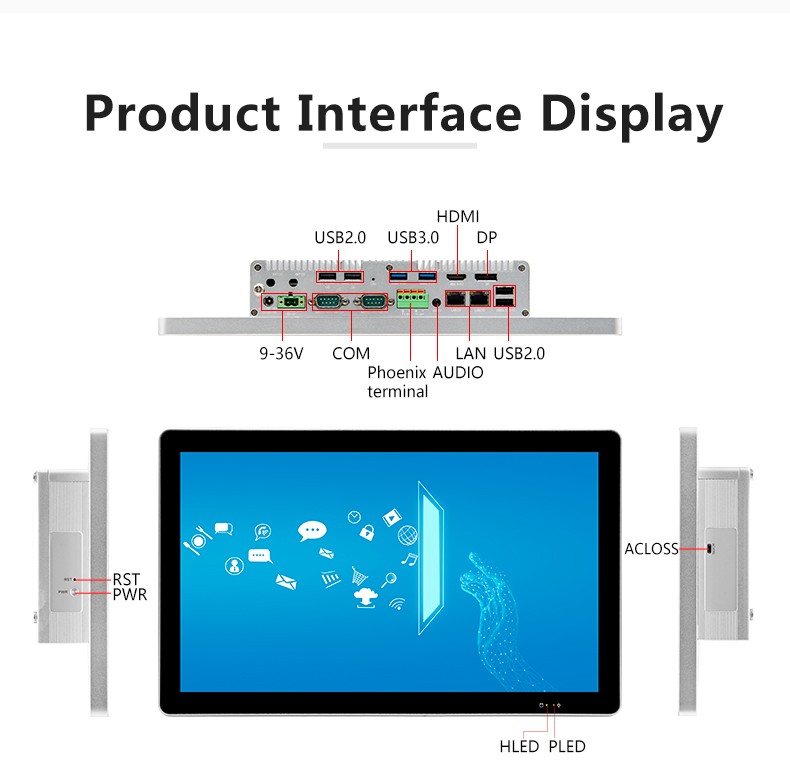

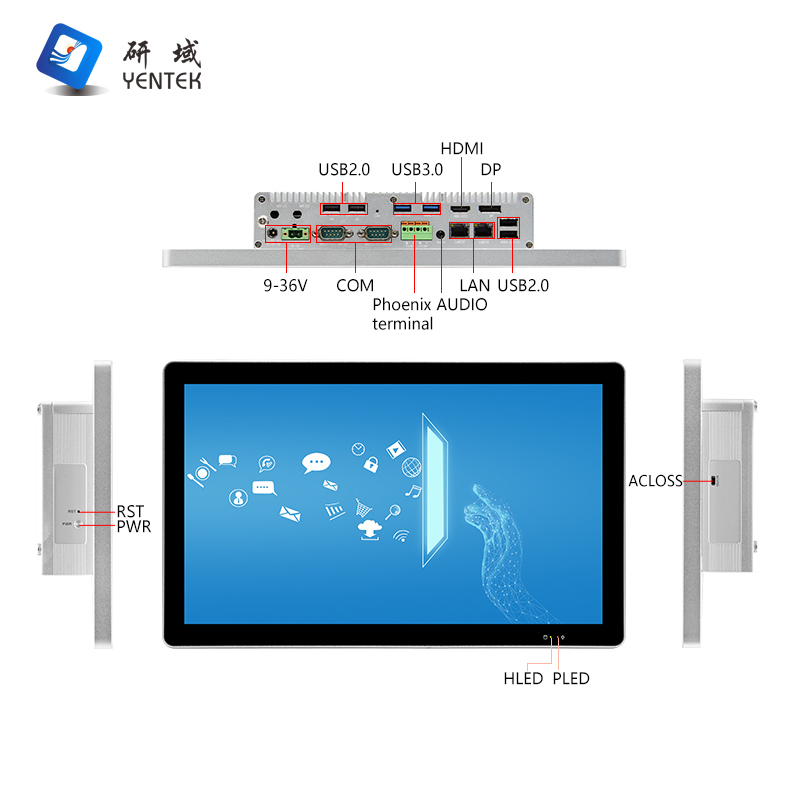

IO interface

POWER

1x Power button, 1x One-touch   reset, 1x ACLOSS (power-on boot dip switch), 1x CMOS reset switch

LED

1x power indicator light, 1x   hard drive indicator light

Display Interface

1x HDMI 1.4 (4096x2304@60Hz), 1x   DP (4096x2304@60Hz)

LAN

2x RTL8111H Gigabit Ethernet   cards, supporting network wake-up and PXE functionality

USB

2x USB 3.0, 4x USB 2.0 (USB   2.0/3.0 quantity depends on CPU)

COM

2x RS232/422/485/CAN DB9 serial   ports (supports CAN, requires CAN module installation)

Remote Switch

1x Power indicator signal, 1x   Power switch signal (1x 4-pin Phoenix connector)

Audio

1x Audio, Line out and MIC combo

Power Supply

1x DC (5.5x2.5) connector or 1x   2-pin Phoenix connector, supporting 9V to 36V wide voltage input

Storage

SSD

1x M.2, supporting Key-M, 2280,   SATA SSD

1x M.2, supporting Key-M, 2280,   NVMe PCIe x2 SSD

Expansion

WiFi

1x M.2, supporting Key-E, 2230,   Wi-Fi module

4G

1xMinnipcie, supporting 4G

System support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Supports hardware reset function   (256 levels, 0–255 seconds)

Power requirements

Power Supply Type

DC 9–36V wide voltage

Power Output

AC to DC 60W (depending on   specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, no   condensation

Vibration

0.5g rms/5-500HZ/random

1

P1382X-C2 V2.0(J6412)

J6412/2.0G

2*SODDR4

Q642HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx2)

2*8111H

2

1

4

2

9~36V

2

P1382X-C2 V2.0(7300U)

I5-7300U/2.6G

2*SODDR4

Q68HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

3

P1382X-C2 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V

4

P1382X-C2 V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

Q102HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V

5

P1382X-C2 V2.0(11135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V

6

P1382X-C2 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

Q305HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

7

P1382X-C2 V2.0(N305)

I3-305/Turbo 3.8G

1*SODDR4

Q305HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

8

P1382X-C2 V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q112HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V
