Model | P1571Y-C6 V2.0(J6412) |

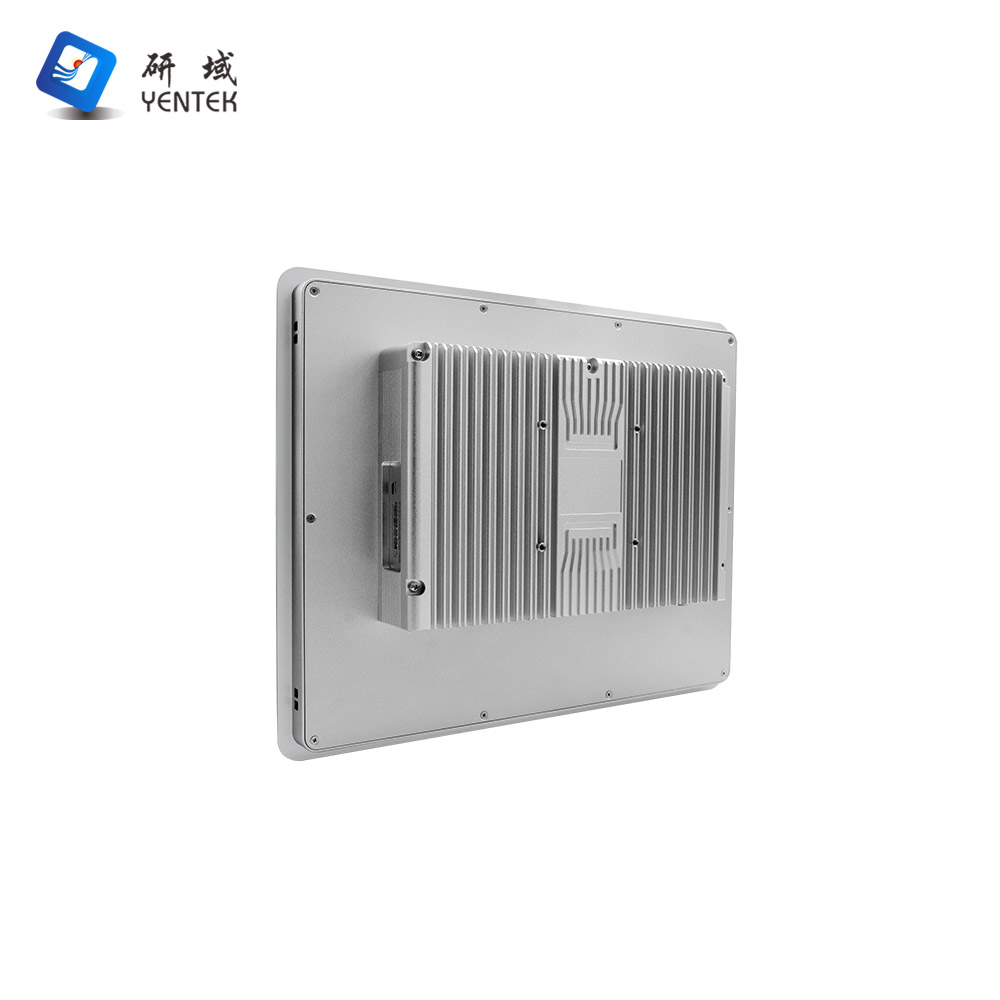

Chassis | Material/Construction | Aluminium alloy construction, fanless cooling design |
Colour | Silver |
Dimensions (L x W x H) | L368 × W292 × H62mm |
Weight (net weight without packaging) | 4.0kg |
Mounting | Supports VESA/flush-mount panel installation |

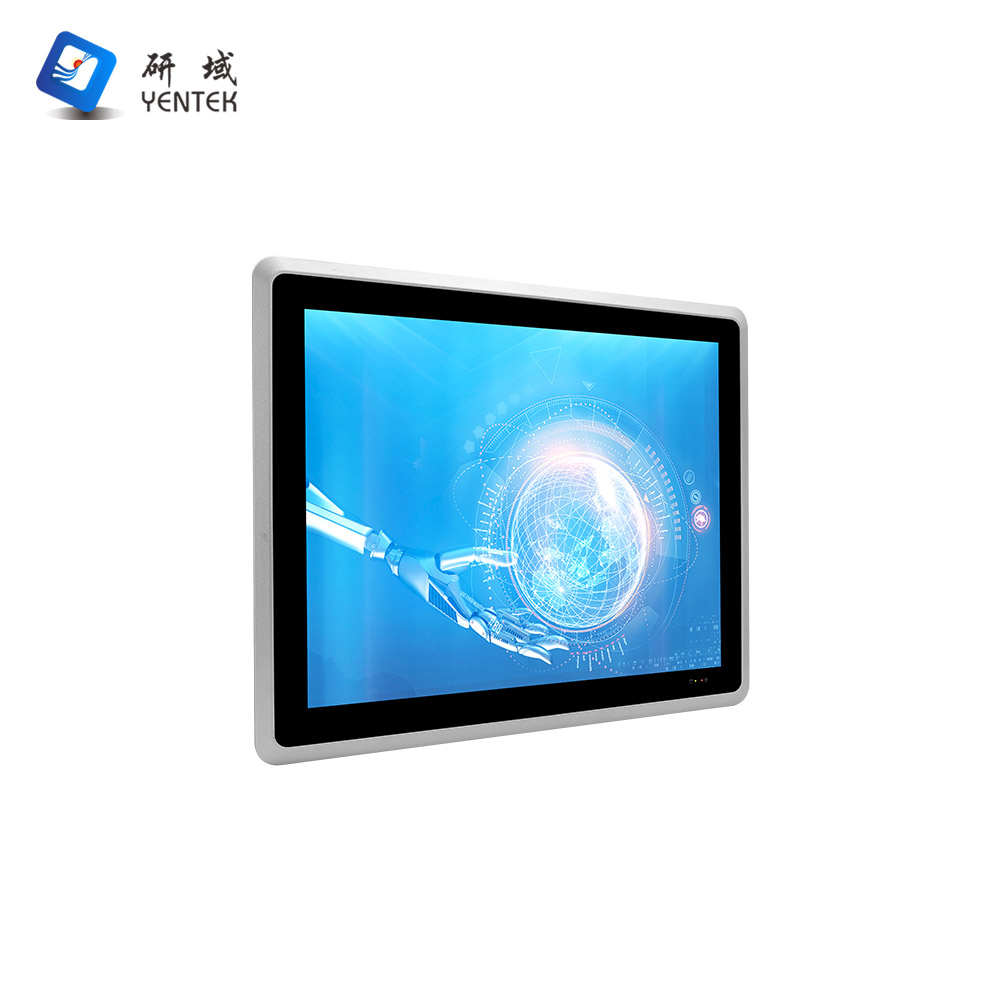

LCD Display | Type | 15-inch LCD, 4:3 aspect ratio |
Resolution | 1024 * 768 |
Brightness | 350 cd/m² brightness |
Touchscreen | Type | Capacitive touchscreen, 10-point touch |
Transmittance | Over 86% screen-to-body ratio |
Motherboard | CPU | Integrated Intel® Celeron J6412/2.00GHz quad-core quad-thread processor, TDP 10W |
Display | Integrated Intel® UHD Graphics |
Memory | 2x DDR4 2400MHz, supports up to 32GB |

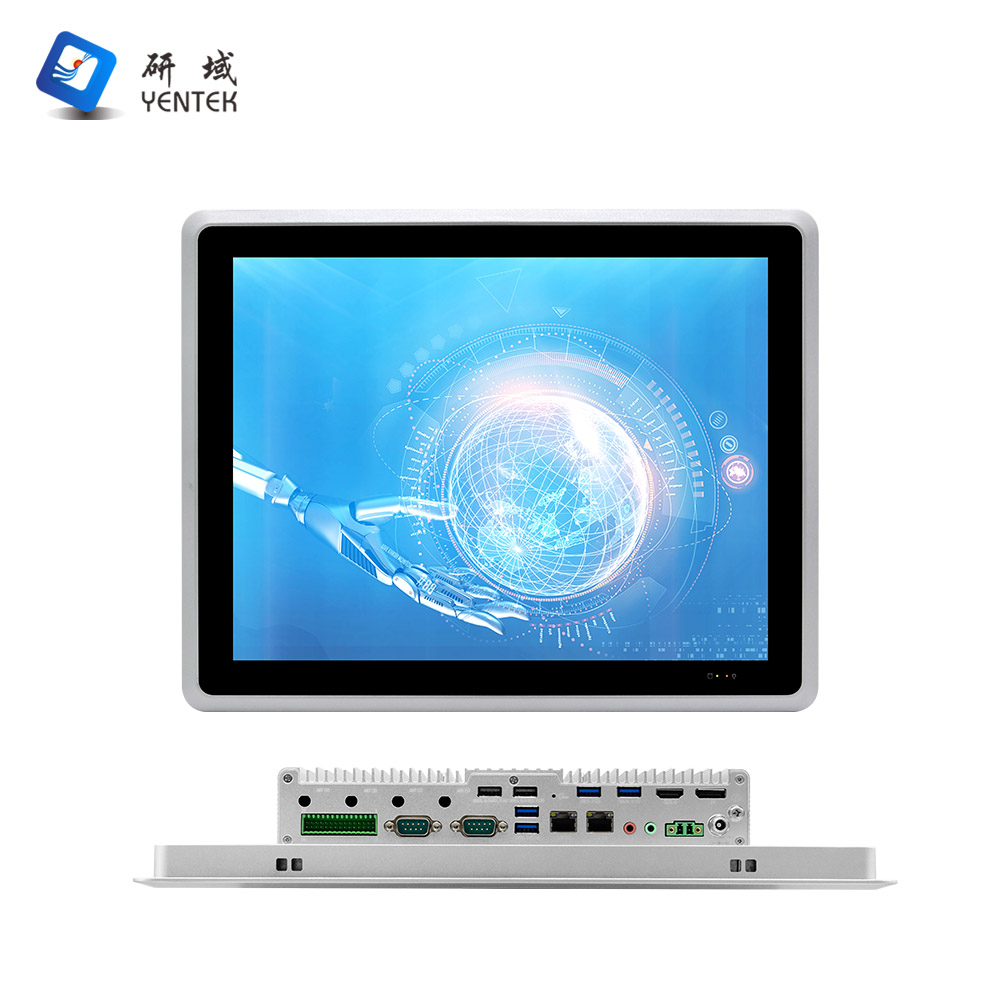

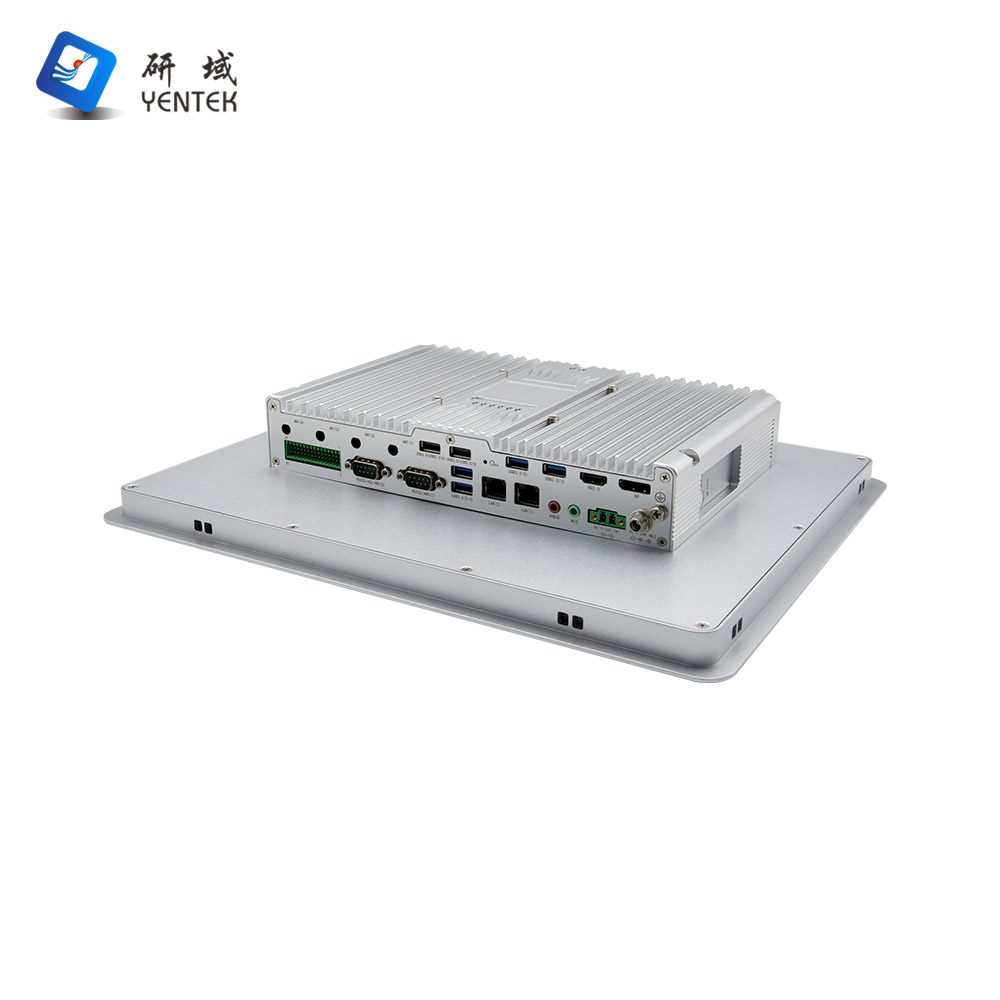

I/O Ports | POWER | 1x Power button, 1x One-touch reset, 1x ACLOSS (power-on DIP switch), 1x CMOS reset switch |
LED | 1x Power indicator, 1x HDD activity indicator |
Display Interface | 1x HDMI (4096×2160@60Hz), 1x DisplayPort (4096×2160@60Hz) |
LAN | 2x Intel I210 Gigabit Ethernet ports, supporting Wake-on-LAN and PXE boot |
USB | 4x USB 3.0, 2x USB 2.0 (USB 3.0 quantity dependent on CPU) |
COM | 6x RS232 serial ports: COM1-2 (DB9 connectors), with COM2 supporting RS485/422; COM3-6 (2x15-pin Phoenix connectors), with COM3 supporting RS485; COM1-2 featuring pin 9 power-on functionality |
DI/DO | 4x Digital Inputs (DI), 4x Digital Outputs (DO) (on 2x 15-pin Phoenix connectors) |
Remote Switch | 1x Power Switch, 1x Power Indicator (on 2x 15-pin Phoenix connectors) |
DIP Switch | 10-position DIP Switch: COM2-3 RS232/485 mode selection; COM2 RS422 enabled via COM2_SW1 jumper |
Audio | 1x Line Out, 1x MIC |
Power Supply | 1x DC (5.5*2.5) aviation connector or 1x 2P (P=5.08mm) Phoenix terminal, supporting 9V~36V input |
Storage | SATA | 1x 2.5-inch hard drive bay |
SSD | 1x M.2 slot, supporting Key-M, 2280, NVMe PCIe x4 SSD |
MSATA | 1x mSATA |
Expansion | WiFi | 1x M.2 slot, Key-E, 2230, supporting Wi-Fi 6 + Bluetooth |
5G | 1x M.2 slot, Key-B, 3042/3052, supporting 5G |
System Support | Windows | Windows 10 |
Linux | Ubuntu |
Watch Dog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Requirements | Voltage Input | DC 9V–36V wide voltage |
Power Output | AC to DC 60W (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
