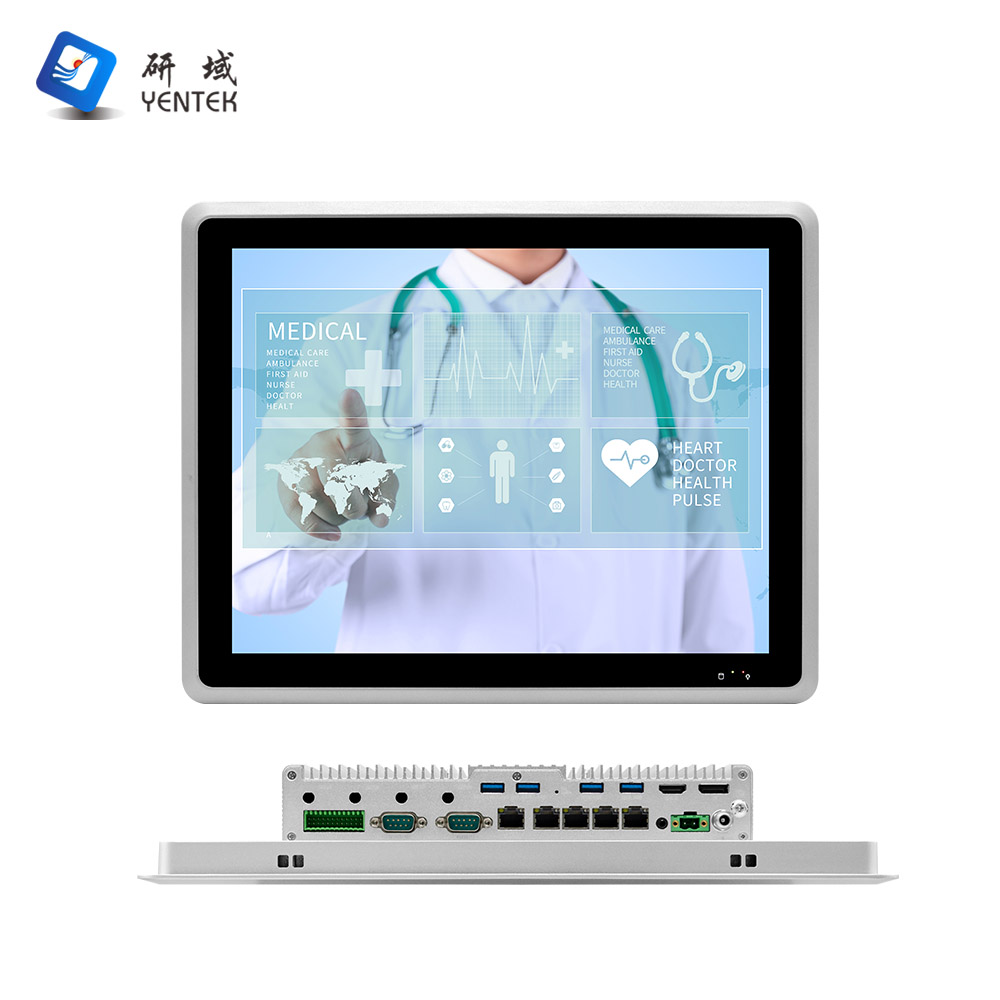

Model | P1571Y-P4 V2.0(8260U) |

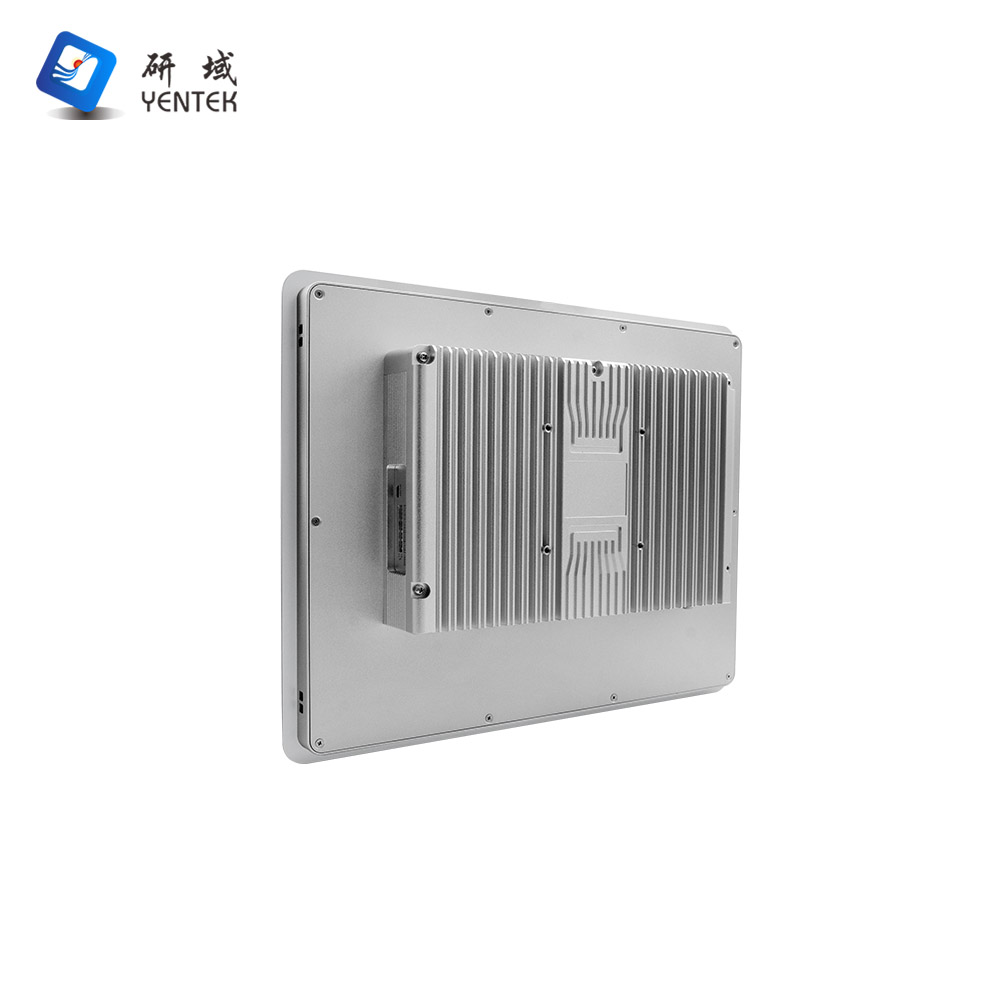

Chassis | Material/Construction | Aluminium alloy construction, fanless cooling design |
Colour | Silver |
Dimensions (L x W x H) | L368 × W292 × H62 mm |
Weight (net weight, unit only) | 3.8 kg |
Installation | Supports VESA and flush-mounted panel installation |

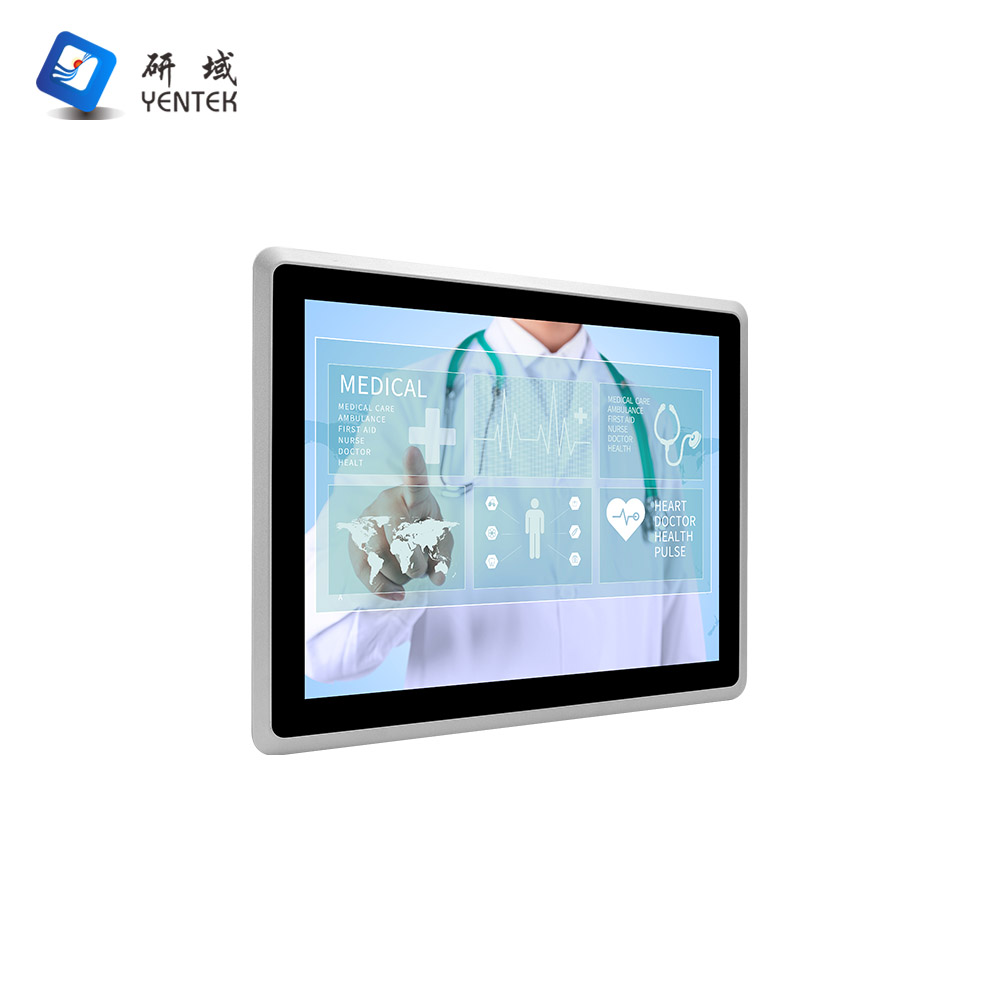

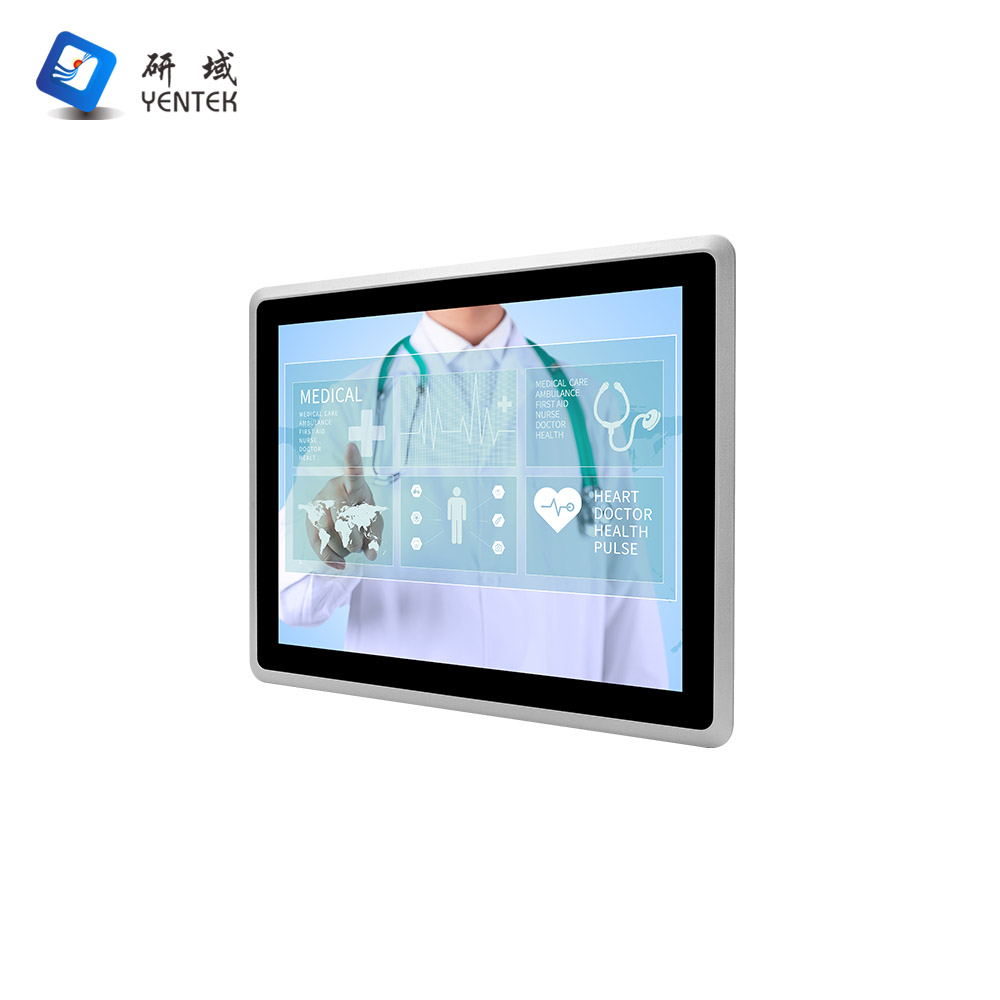

LCD screen | Type | 15-inch LCD, 4:3 aspect ratio, standard orientation |
Resolution | 1024 × 768 |
Brightness | 350 cd/m² |
Touchscreen | Type | Capacitive touchscreen, 10-point touch |
Light Transmittance | Over 86% |
Motherboard | CPU | Integrated Intel® i5-8260U/1.60 GHz quad-core, eight-thread processor, TDP 15 W |
Memory | 2 × SODDR4 2400 MHz, supports up to 64 GB |
I/O ports | POWER | 1 × power button, 1 × one-touch restore button, 1 × ACLOSS (power-on DIP switch), 1 × CMOS reset switch |
LED | 1 × power indicator, 1 × hard drive indicator |
Display Interface | 1 × HDMI 1.4 (4096 × 2304 @ 24Hz), 1 × DisplayPort (DP) (4096 × 2304 @ 60Hz) |
LAN | 5 × Intel I210AT Gigabit Ethernet ports, 4 of which support PoE/15W |
USB | 4 × USB 3.0 (the number of USB 2.0/3.0 ports depends on the CPU) |
COM | 4 × RS232 serial ports: COM1–2 are RS232 DB9 ports, of which COM2 supports RS485/422; COM3–4 are RS232 ports on 2 × 12-pin Phoenix connectors, of which COM3 supports RS485, whilst COM1–2 support pin 9 power supply functionality |
DI/DO | 4 × DI, 4 × DO (located on 2 × 12-pin Phoenix connectors) |
Remote Switch | 1 × power switch signal, 1 × power indicator signal (located on 2 × 12-pin Phoenix connectors) |
DIP Switch | 10-position DIP switch for switching between RS232 and RS485 on COM2–3; RS422 on COM2 is enabled via the COM2_SW1 jumper cap |
Audio | 1 × AUDIO, combined line-out and microphone input |
Power Supply | 1 × DC (5.5 × 2.5) aviation connector or 1 × 2-pin (P = 5.08 mm) Phoenix connector, supporting a wide input voltage range of 9 V to 36 V |
Storage | SATA | 1 × 2.5-inch hard drive bay |
SSD | 1 × M.2, supporting Key-M, 2280, NVMe PCIe x4 SSD |
mSATA | 1 × mSATA |
Expansion | Wi-Fi | 1 × M.2, supporting Key-E, 2230, Wi-Fi module |
5G | 1 × M.2, supporting Key-B, 3042/3052, 5G module |
System compatibility | Windows | Windows 10 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power requirements | Input Voltage | DC 9V–36V wide voltage range |
Power Output | AC to DC 60W (depending on specific device) |
Environmental requirements | Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
