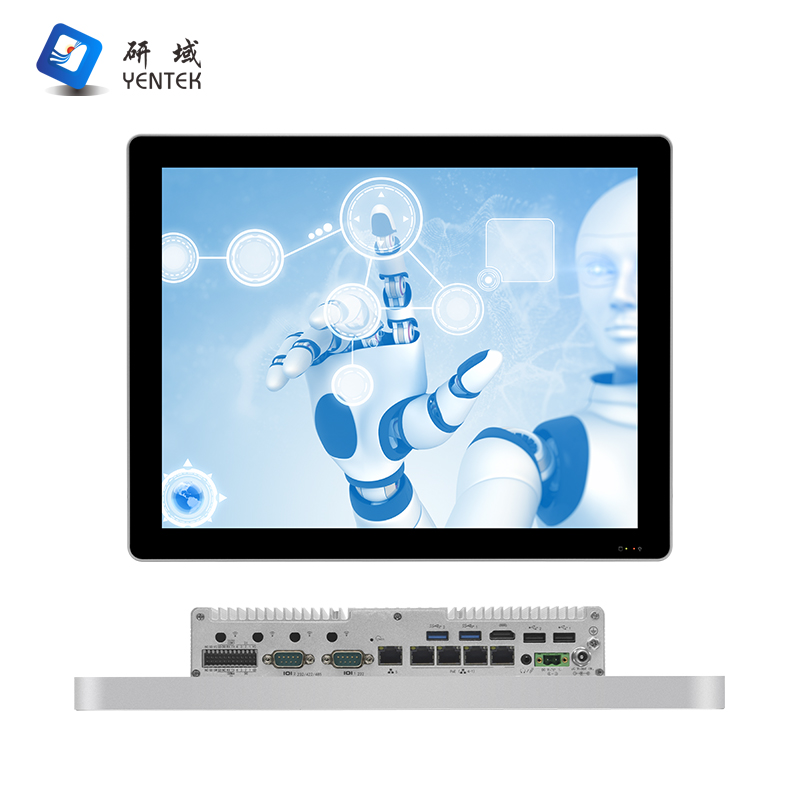

Model | P1572X-P4 V0.1(8260U) |

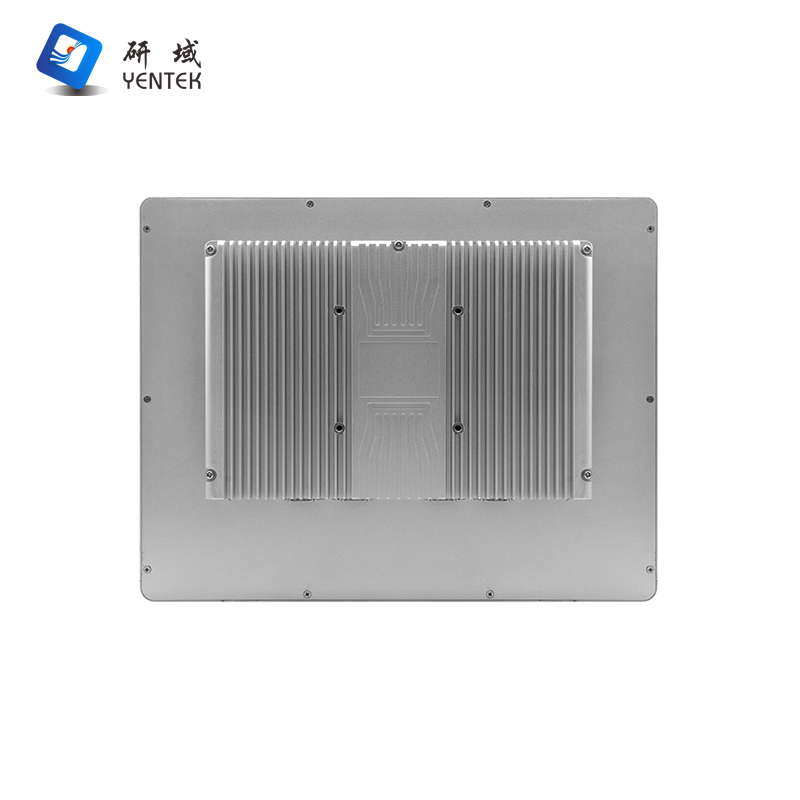

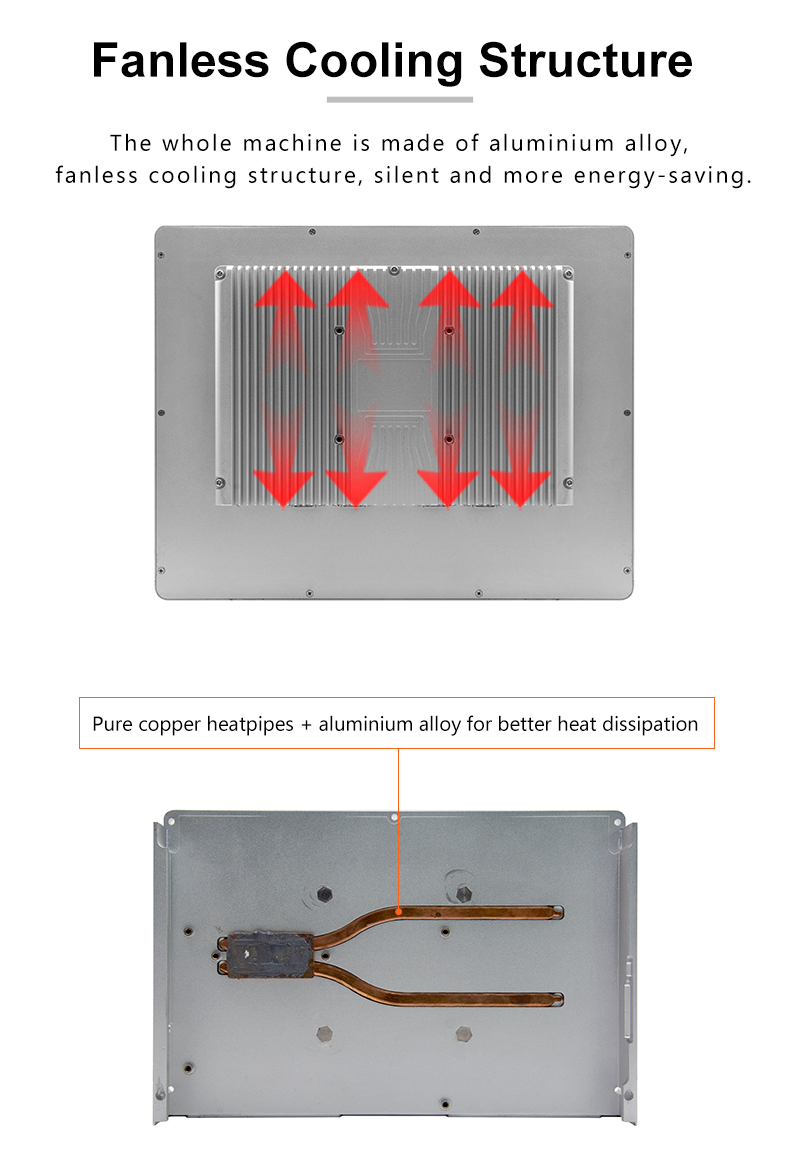

Chassis | Material/Construction | Aluminium alloy, fanless cooling structure |
Colour | Silver |

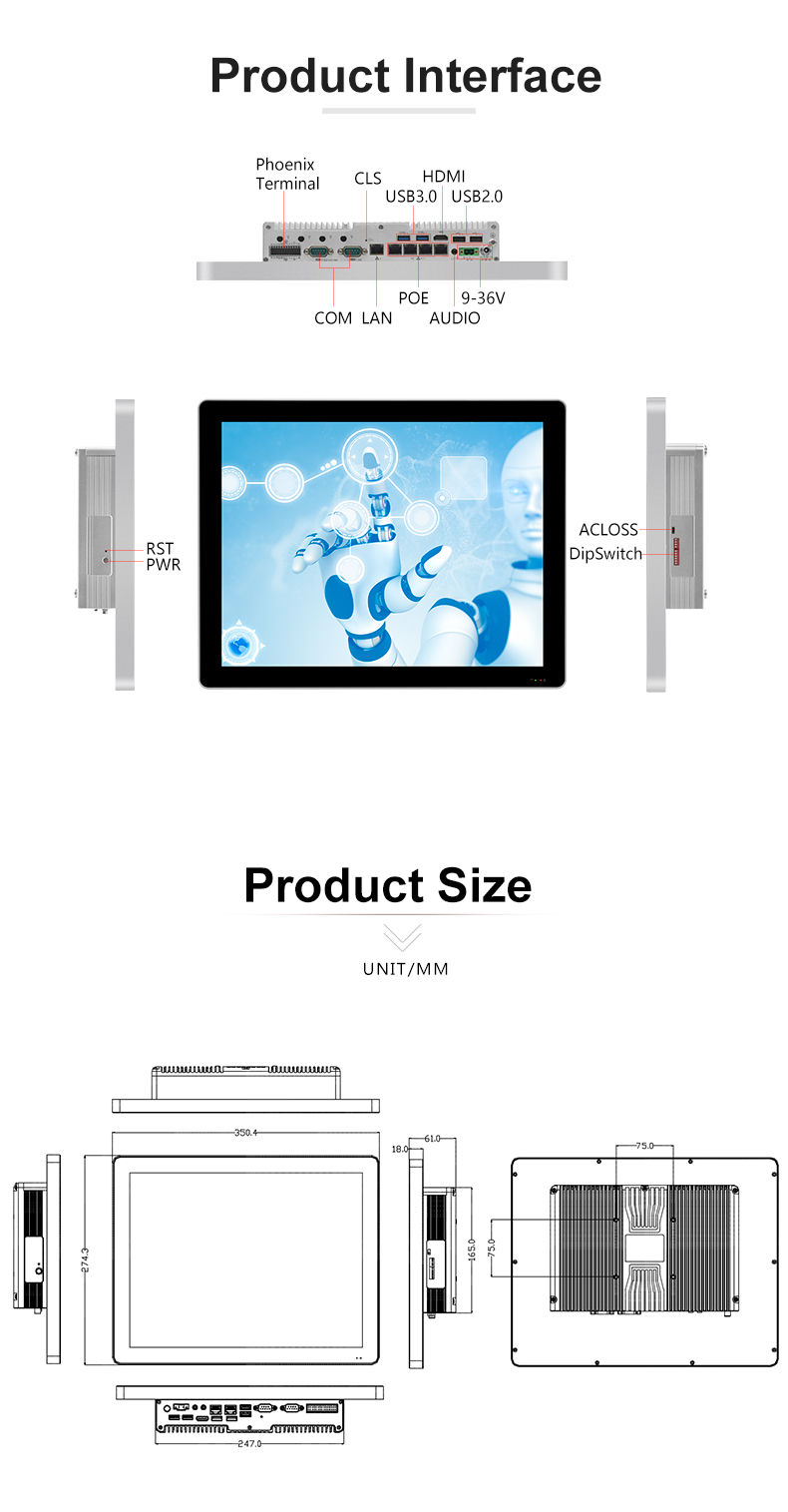

Dimensions (LWH) | L350*W274.3*H61mm |
Weight | 3.6KG |
Installation | Support VESA/Wall Mount |
LCD Screen | Type | 15" LCD, 4:3, Positive |
Resolution | 1024 * 768 |
Brightness | 350 cd/m2 |
Touch Screen | Type | Capacitive screen, 10-point touch |
Transmittance | 86%+ |
Motherboard | CPU | Integrated Intel®i5-8260U/1.60GHz Quad-core 8-thread processor, TDP 15W |
Memory | 2*DDR4 SODIMM 2400MHz RAM, supports up to 64GB |

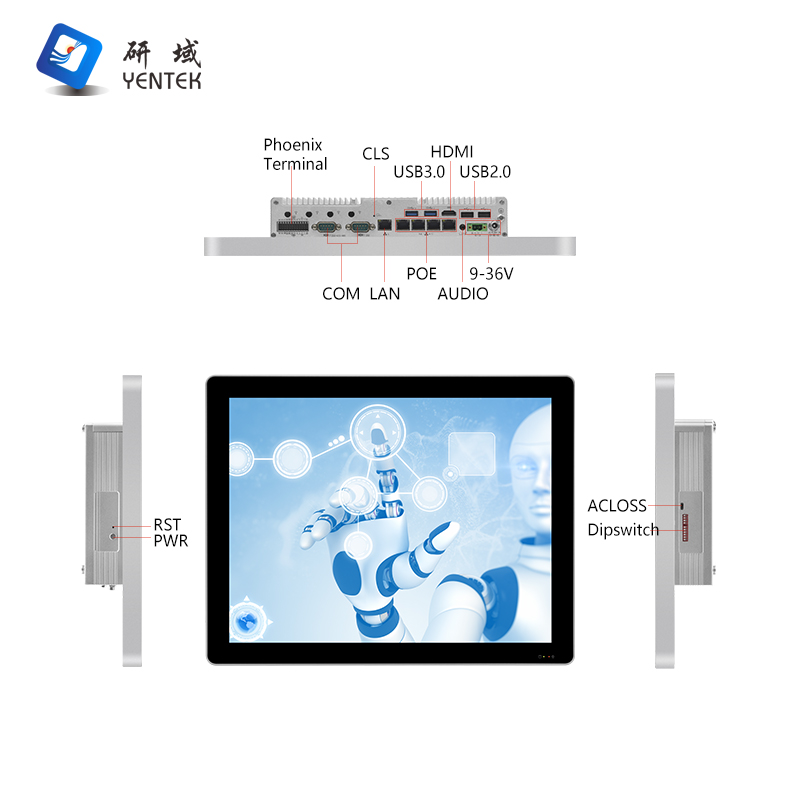

IO Interface | POWER | 1*boot key, 1*one-click restore, 1*ACLOSS (power on/off toggle switch), 1*CMOS reset switch |
LED | 1*power indicator, 1*hard drive indicator |
Display Interface | 1*HDMI1.4(4096*2304@24Hz) |
LAN | 5*Intel I210AT Gigabit NIC, of which 4 support POE/15W |
USB | 2*USB3.0, 2*USB2.0 |
COM | 4*RS232 Serial Port, COM1~2 RS232 DB9 Serial Port, of which COM2 support RS485/422, COM3~4 RS232 on 2*12P Phoenix terminal, of which COM3 support RS485, COM1-2 support the 9th pin with power Function |
Phoenix Terminal | 2*12P(4 in 4 out GPIO, switching signal, COM3~COM4, 5V VCC and GND) |
Dipswitch | 10-position dipswitch, COM2~3 RS232/485 switching, COM2 RS422 through COM2_SW1 jump cap |
Audio | 1*AUDIO, Line out and MIC 2 in 1 |
Power Supply | 1*DC Air Interface or 1*2P Phoenix terminal Support 9V~36V wide voltage input |
Storage | SATA | 1*2.5 inch HDD bay |
M.2 | 1*M.2/SSD, support Key-M, 2280, NVME PCIEX4 SSD |
MSATA | 1*MSATA |
Expansion | M.2 | 1*M.2/WiFi, support Key-E, 2230, WiFi module |
1*M.2/5G, support Key-B, 2242/52, 5G module |
System Support | Windows | Windows 10 |
Linux | Ubuntu |
Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) |
Power Requirements | Power Type | External power adapter |
Voltage Input | DC 9V~36V Wide Voltage |
Power Output | AC To DC 90W or above (depending on specific devices) |
Environments | Operating Temperature | -10℃～50℃ |
Storage Temperature | -20℃～70℃ |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Operating Vibration | 0.5g rms/5-500HZ/random/operating |
