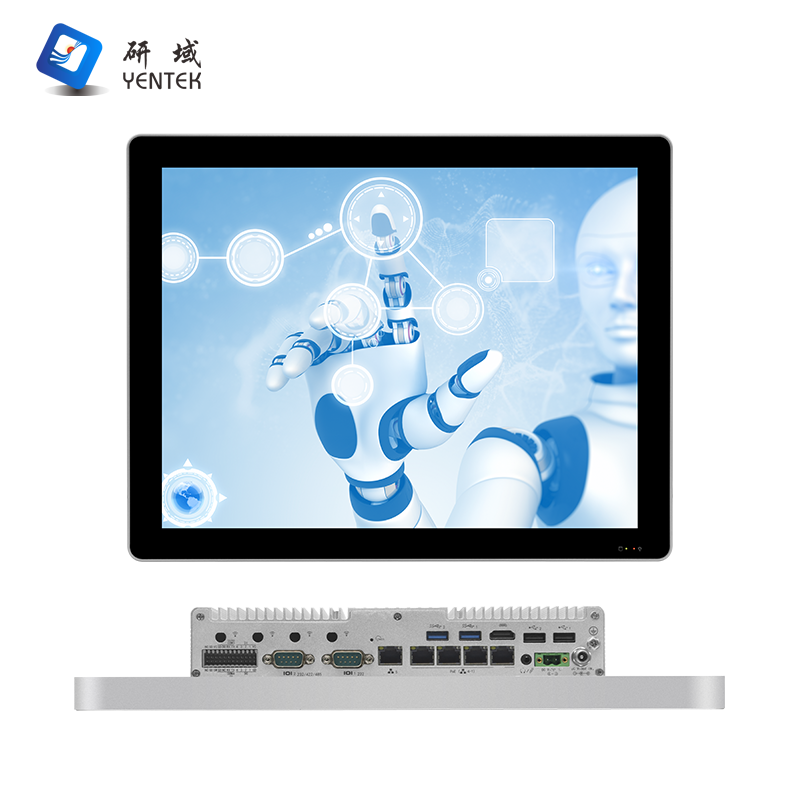

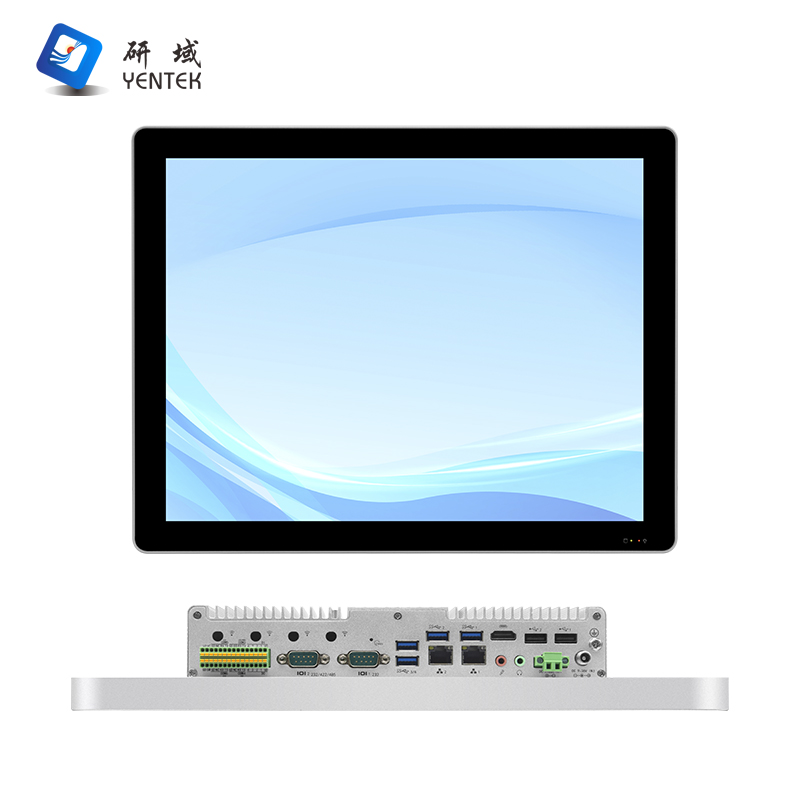

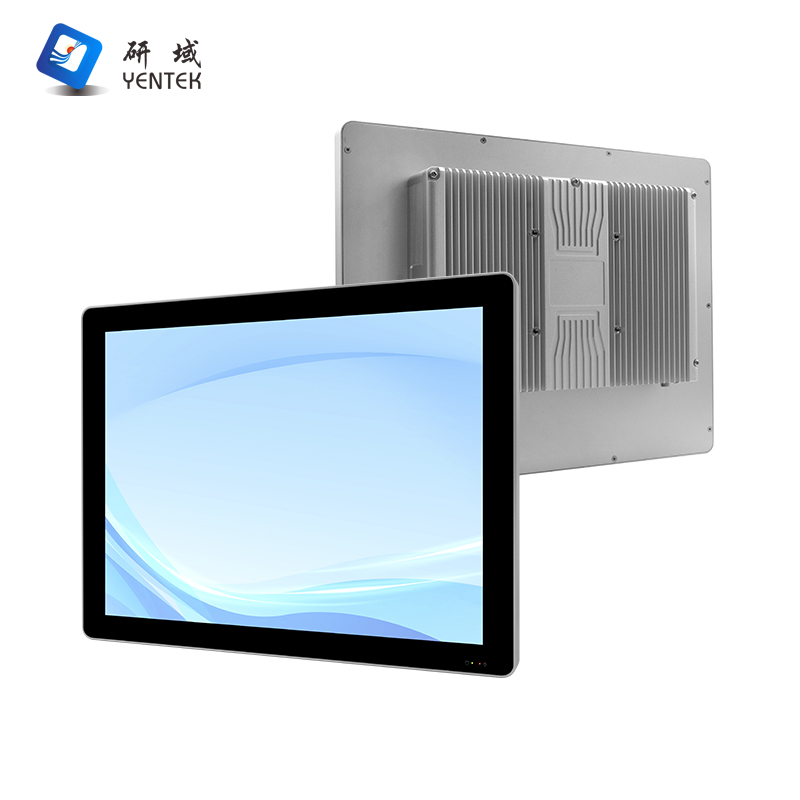

Model | P1572X-C6 V1.0(8260U) |

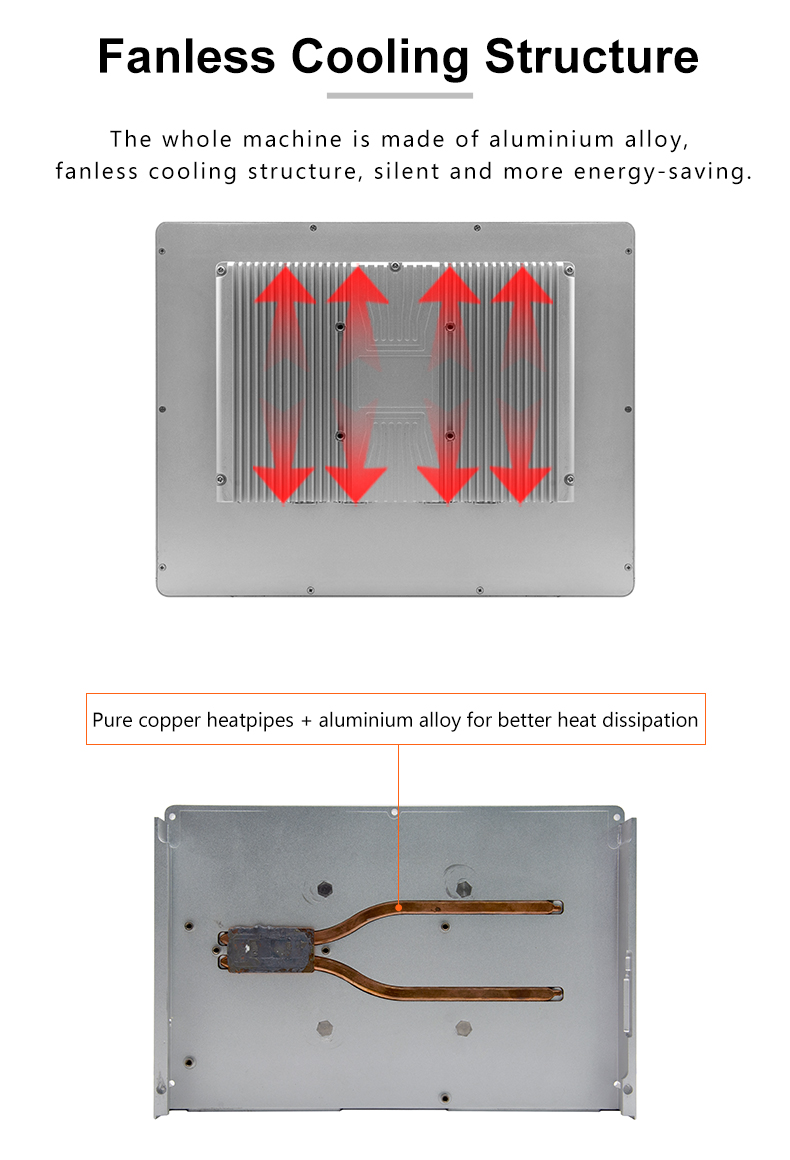

Chassis | Material/Construction | Aluminium alloy, fanless cooling structure |
Colour | Silver |

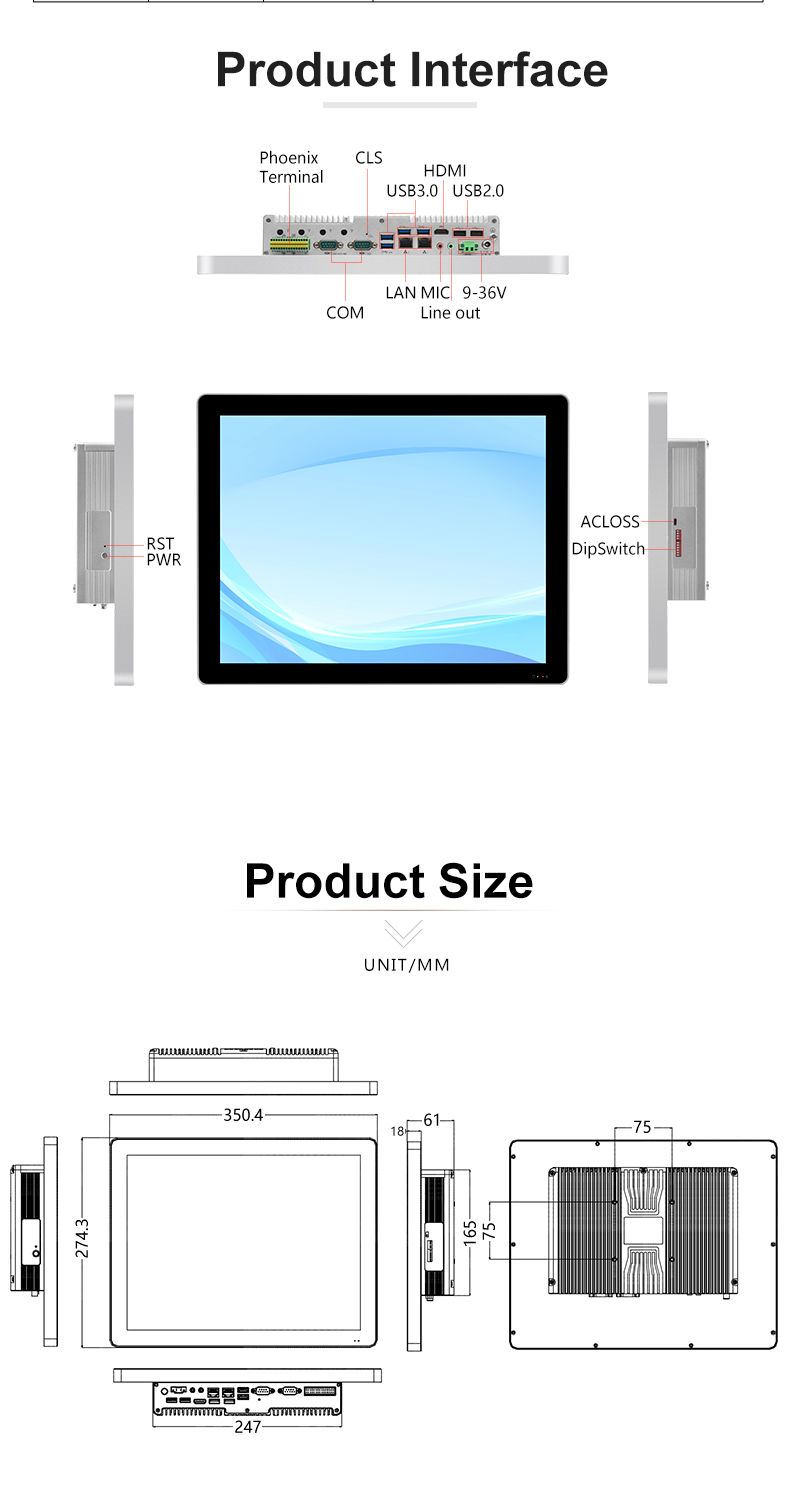

Dimensions (LWH) | L350*W274.3*H61mm |
Weight | 3.5KG |
Installation | Support VESA/wall mount panel installation |

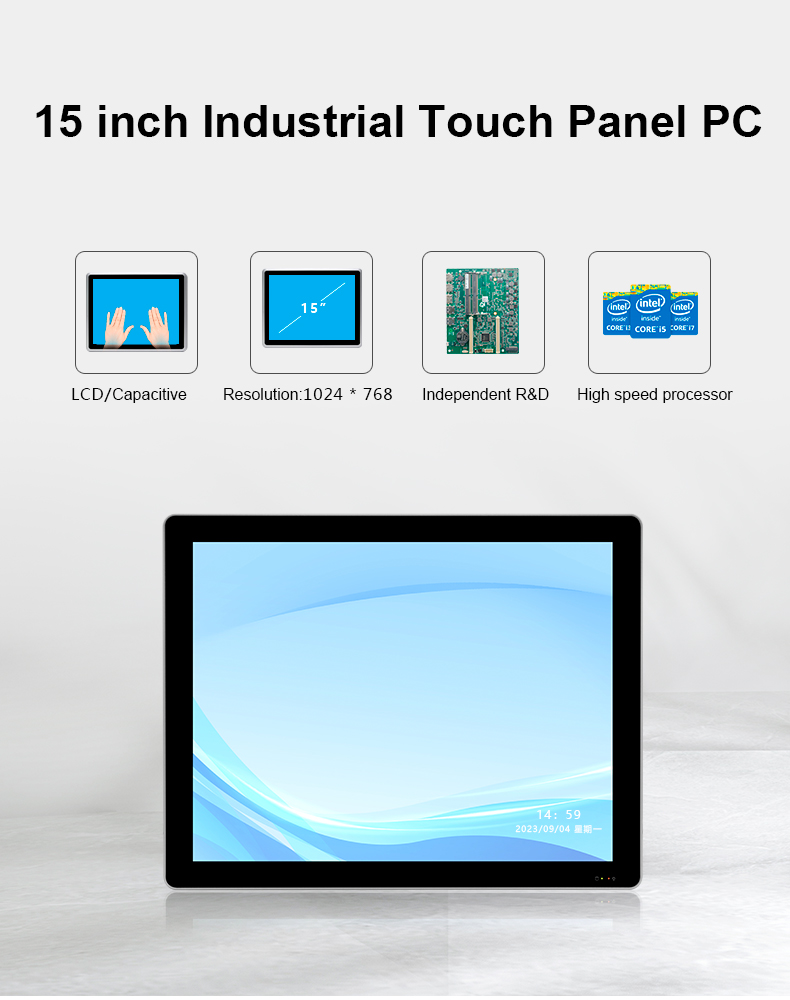

LCD Screen | Type | 15-inch LCD |
Resolution | 1024 * 768 |
Brightness | 350 cd/m2 |
Touch Screen | Type | Capacitive screen, 10-point touch |
Transmittance | 86%+ |
Motherboard | CPU | Integrated Intel® i5-8260U/1.60GHz Quad-Core 8-Thread Processor, TDP 15W |
Display | Integrated Intel® UHD Graphics 620 |
Memory | 2*DDR4 SODIMM 2400MHz memory, supports up to 64GB |

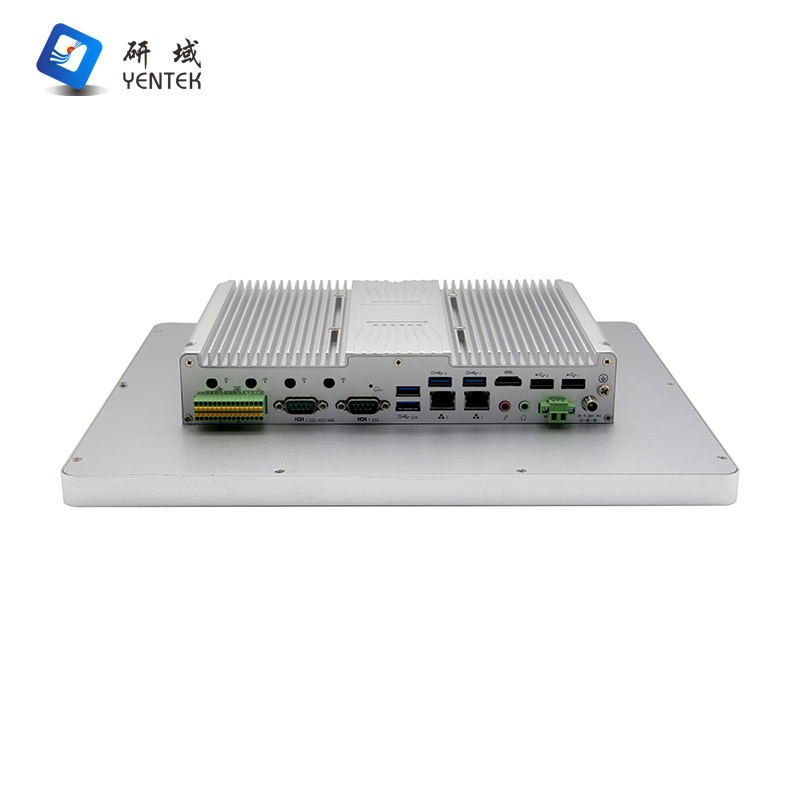

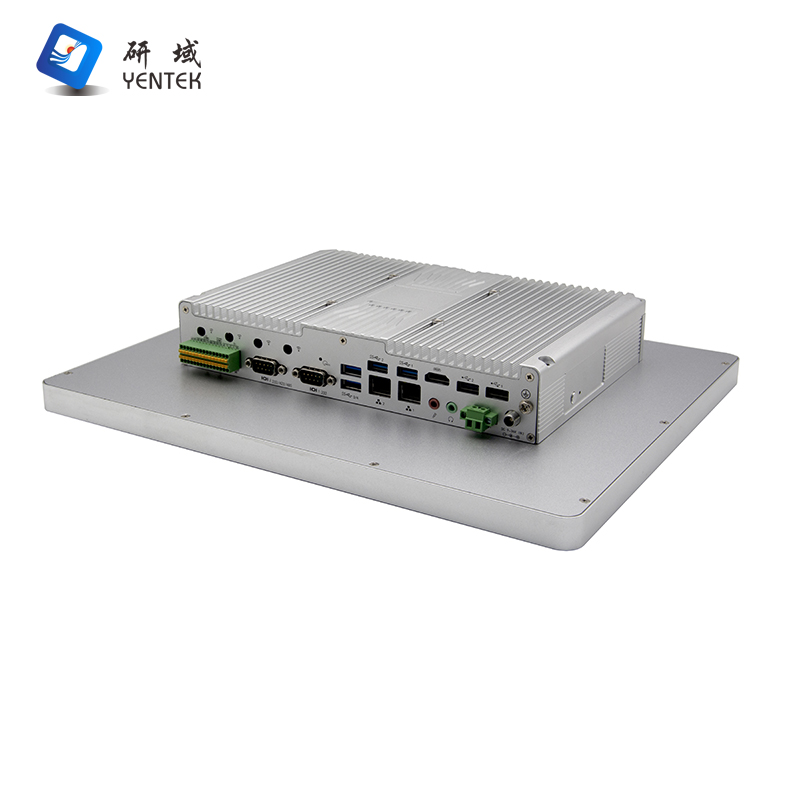

IO Interface | POWER | 1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power On and Off DIP Switch), 1*CMOS Reset Switch |
LED | 1*Power Indicator, 1*Hard Disk Indicator |
Display Interface | 1*HDMI1.4 (4096*2304 @ 24Hz) |
LAN | 2*Intel I210AT Gigabit LAN card, support Wake-on-Network, PXE function |
USB | 4*USB3.0, 2*USB2.0 |
COM | 6*RS232 Serial Ports, COM1 ~2 RS232 DB9 Serial Ports, COM2 support RS485/422, COM3-6 RS232 on 2*15P Phoenix Terminals, where COM3 support RS485, COM1-2 support 9thpin powered function |
Phoenix Terminal | 2*15P (4 in 4 out GPIO, switch signal, COM3~COM6, 5V VCC and GND) |
Dipswitch | 10-position dipswitch, COM2~3 RS232/485 switching, COM2 RS422 via COM2_SW1 jump cap |
Audio | 1*Line out, 1*MIC |
Power Supply | 1* DC Air Interface or 1*2P Phoenix terminal, support 9V~36V wide voltage input |
Storage | SATA | 1*2.5 inch HDD bay |
M.2 | 1*M.2/SSD, support Key-M, 2280, NVME PCIEX4 SSD |
MSATA | 1*MSATA |
Expansion | M.2 | 1*M.2/WiFi, support Key-E, 2230, WiFi module |
1*M.2/5G, support Key-B, 3042/3052, 5G module |
System Support | Windows | Windows 10 |
Linux | Ubuntu |
Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) |
Power Requirements | Power Type | External power adapter |
Voltage Input | DC 9V~36V Wide Voltage |
Power Output | AC To DC 90W or more (depending on specific devices) |
Environments | Operating Temperature | -10℃～50℃ |
Storage Temperature | -20℃～70℃ |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Operating Vibration | 0.5g rms/5-500HZ/random/operating |
