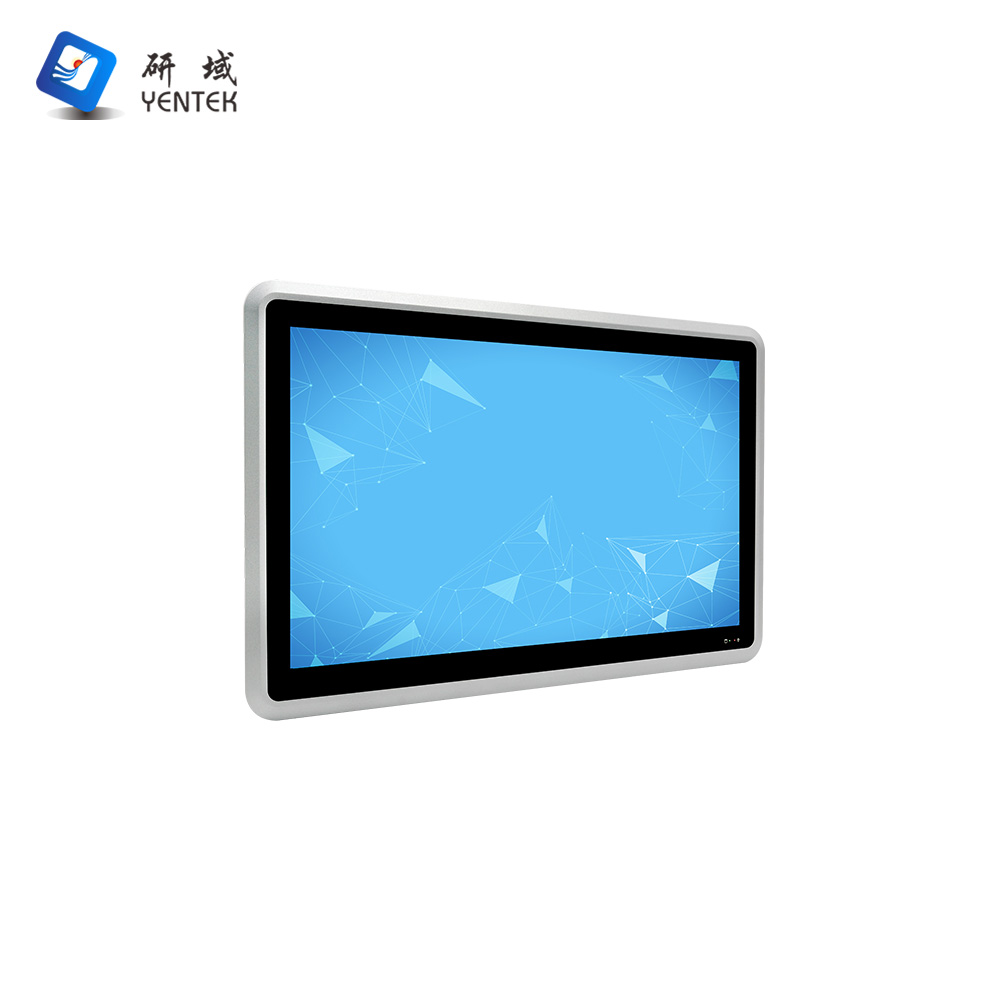

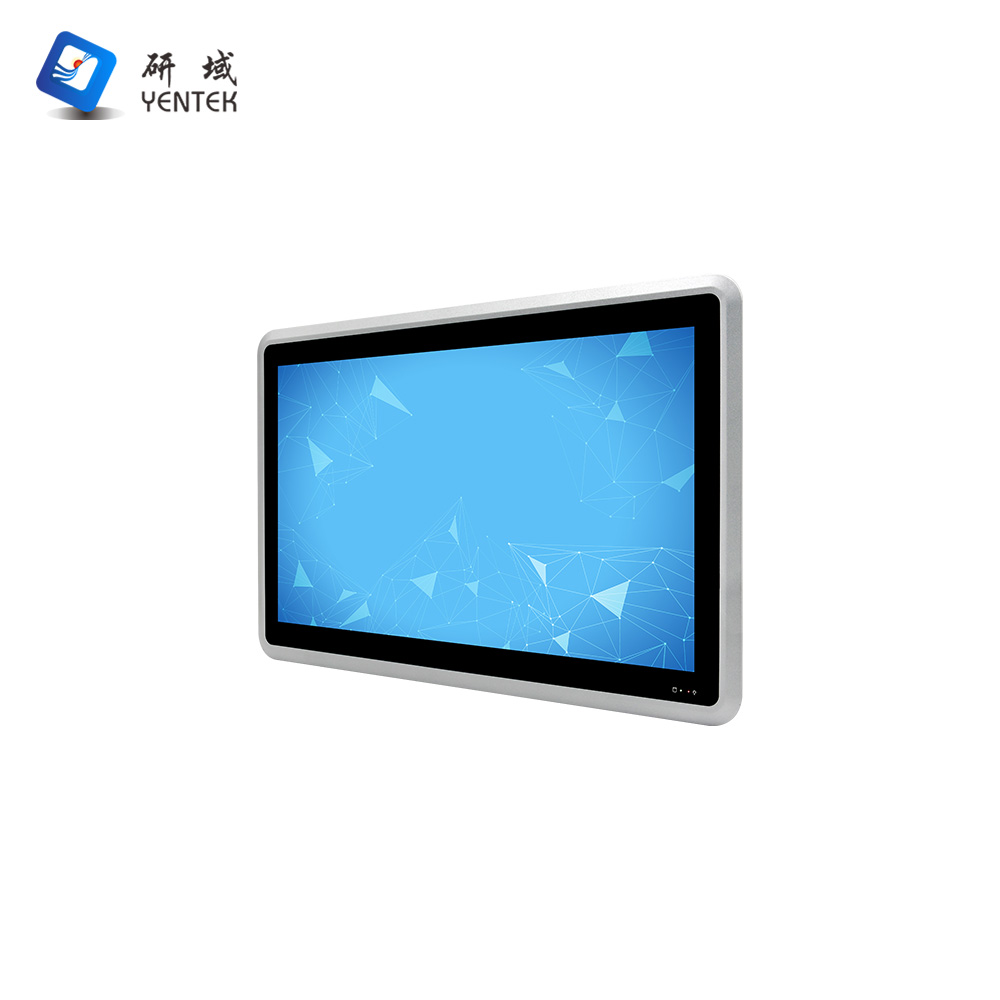

Model | P1541Y-C6 V1.0(7200U) |
Chassis | Material/Construction | Aluminum alloy construction, fanless cooling design |
Color | Silver |
Dimensions | L400 × W253 × H68.5 mm |
Weight | 2.45 kg |

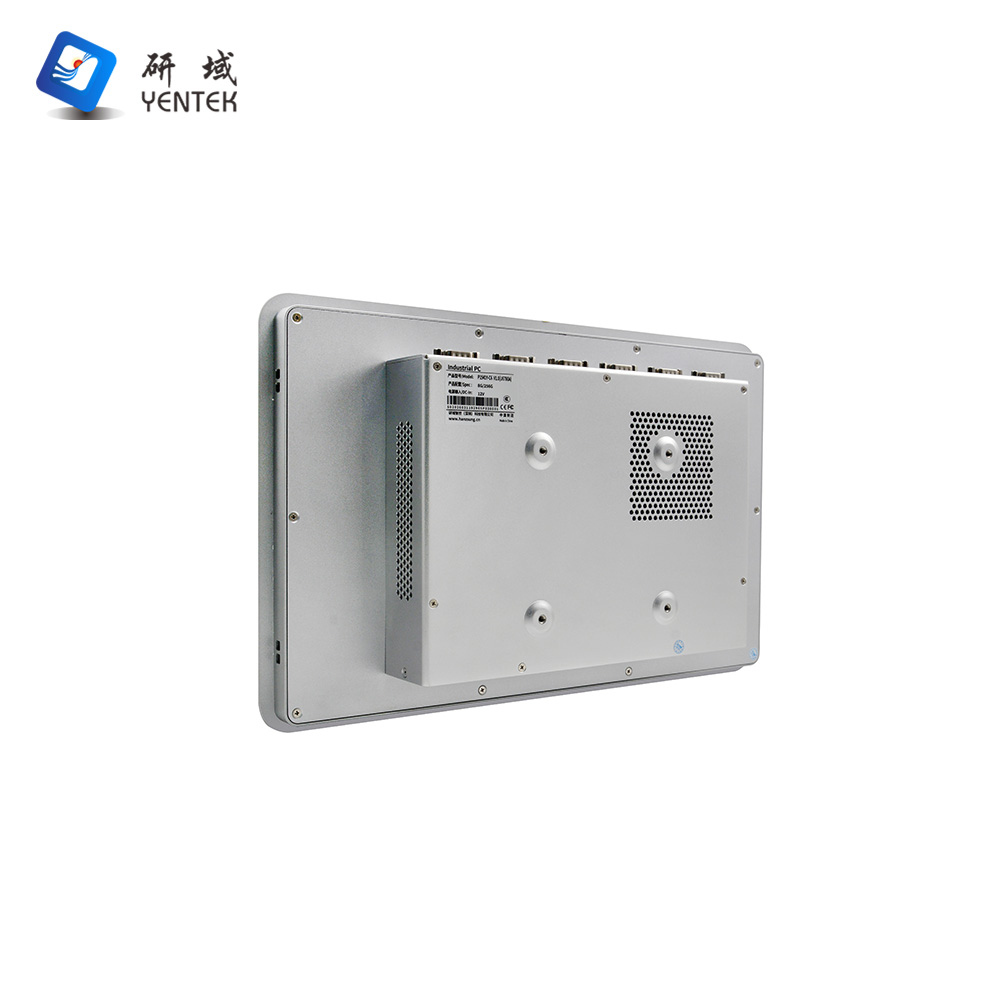

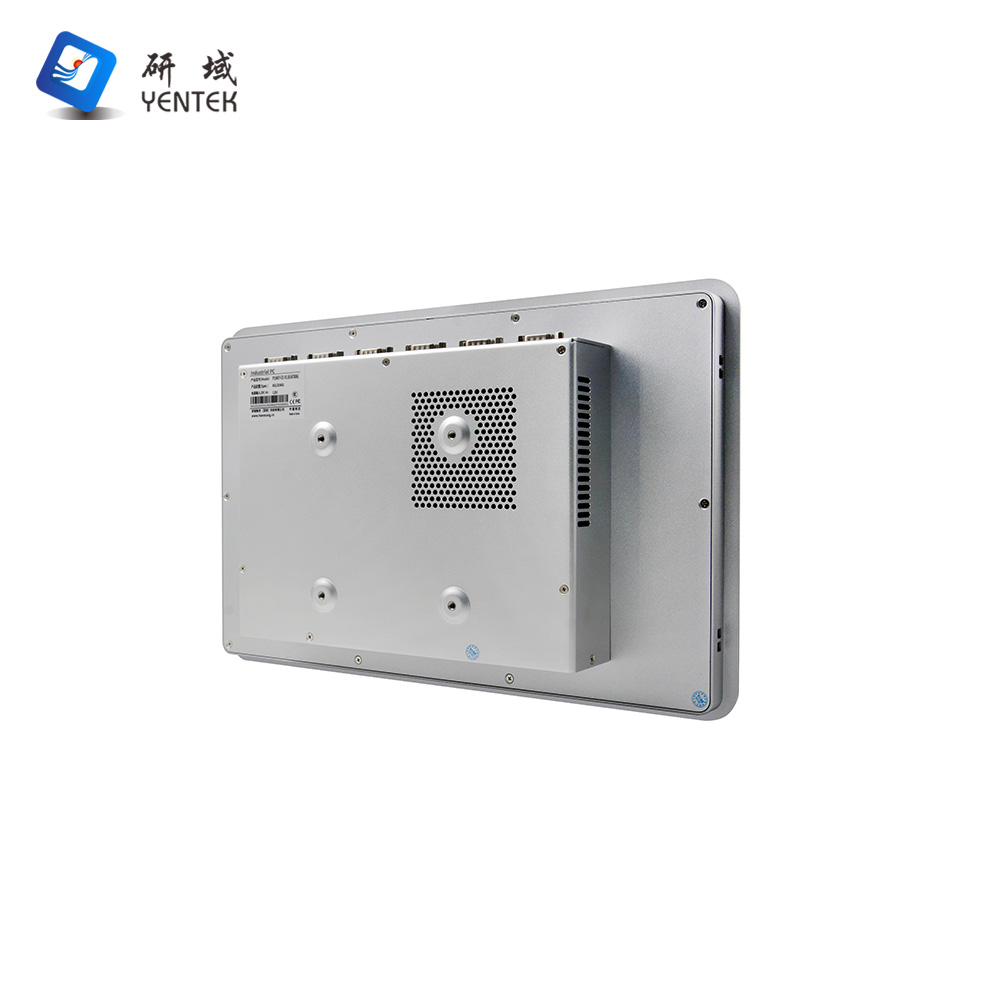

Installation | Supports VESA mounting/embedded installation |
LCD Screen | Type | 15.6-inch LCD |
Resolution | 1920 × 1080 |
Brightness | 250 cd/m² |
Touchscreen | Type | Capacitive touchscreen |
Transmittance | Over 86% |
Motherboard | CPU | Integrated Intel® i5-7200U 2.5 GHz dual-core, quad-thread processor, TDP 15 W |
Display | Integrated Intel® HD Graphics 620, supports DirectX 12, OpenGL 4.5, and 4K |
Memory | 2 × DDR3L SODIMM memory slots, supports 1600 MHz memory, up to 16 GB |
I/O Ports | POWER | 1 × Power Button |
LED | 1 × Power LED, 1 × Hard Drive LED |
Display Interfaces | 1 × HDMI 1.4 (4096 × 2160 @ 24 Hz), 1 × VGA |
LAN | 2 × RTL8111H Gigabit Ethernet ports, supporting Wake-on-LAN and PXE |
USB | 2 × USB 3.0 (5 Gbps), 2 × USB 2.0 ports |

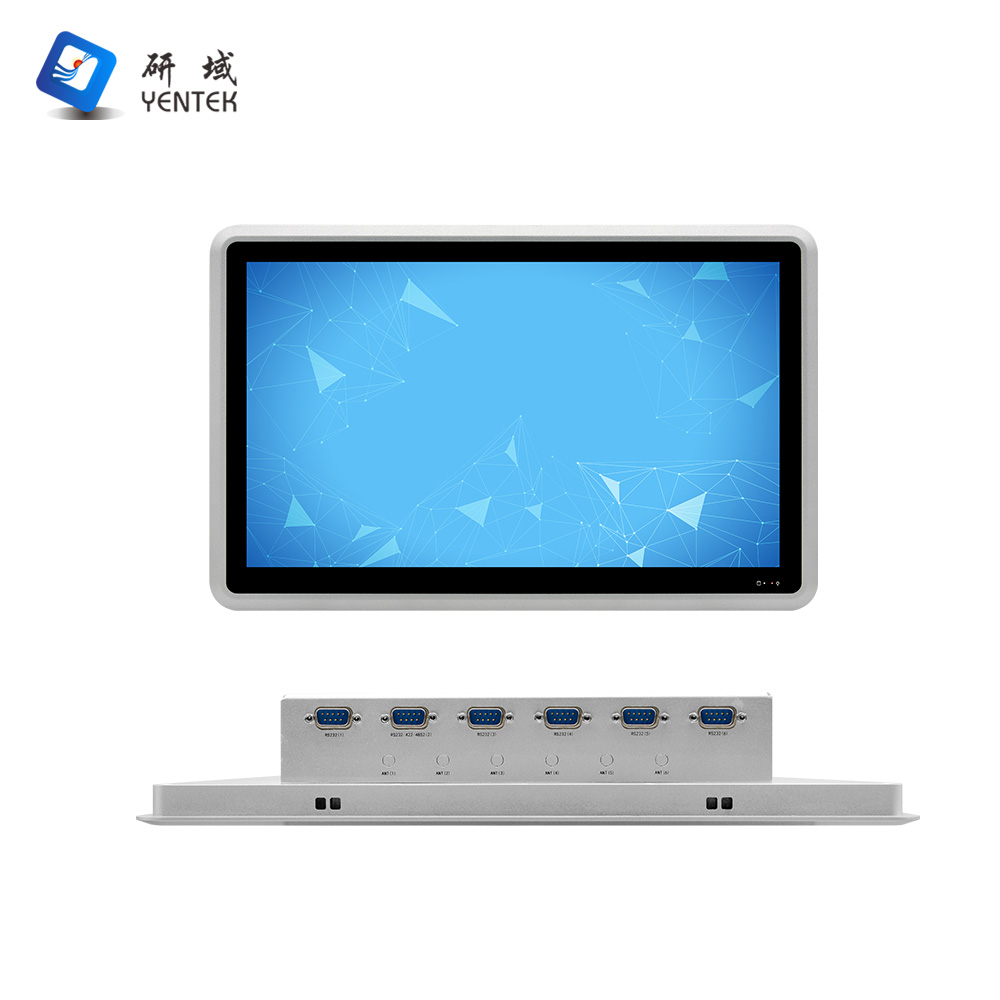

COM | 6* RS232 DB9 serial ports, with COM2/3 supporting RS485/422, |
Audio | 1* Line Out, 1* Mic |
Power Supply | 1* DC connector |
Storage | MSATA | 1* mSATA slot, supports Intel-protocol SSDs, transfer speeds up to 6 Gbps |
M.2 | / |
Expansion | Mini PCIe | 1* Mini-PCIe slot, supports Wi-Fi/4G modules |
System Support | Windows | Windows 7, Windows 8, Windows 10, Linux |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Requirements | Power Supply Type | External power adapter |
Input Voltage | 12V DC power supply |
Output Power | 60W AC to DC (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Operating Vibration | 0.5g rms/5-500HZ/random/operating |
