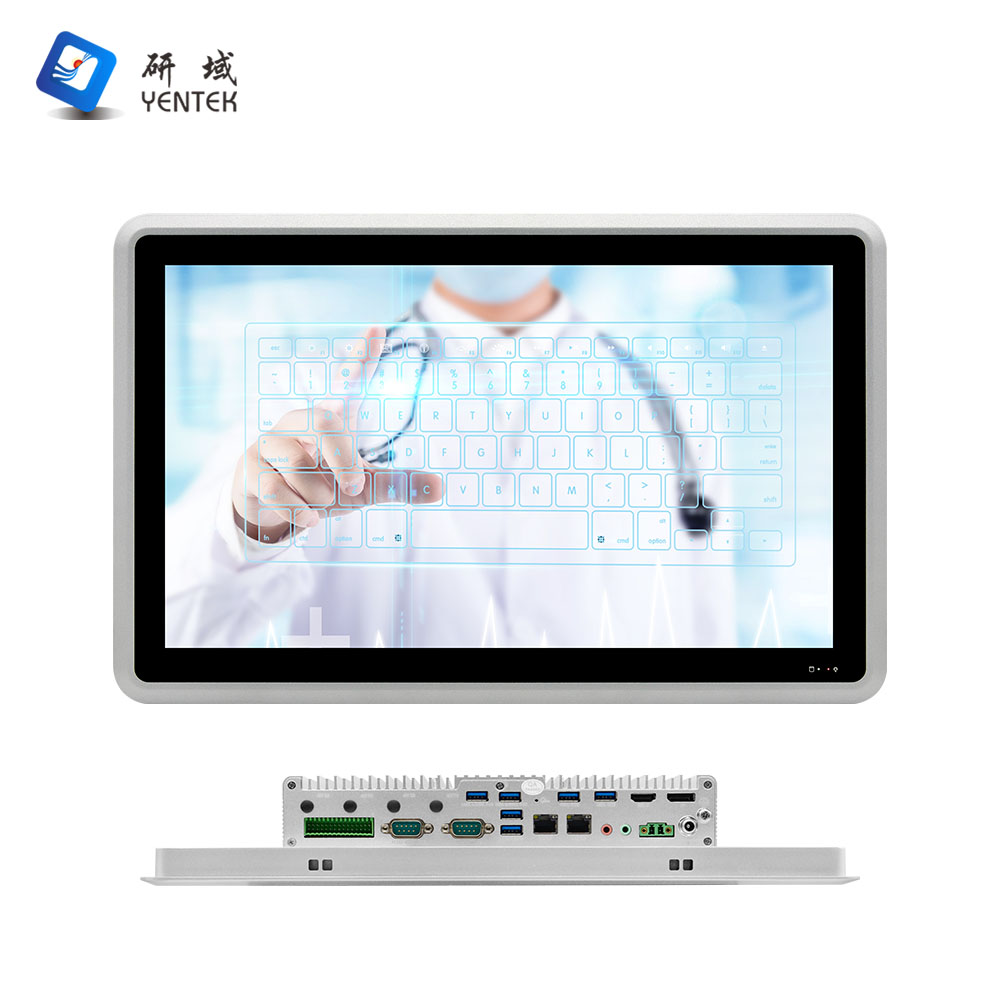

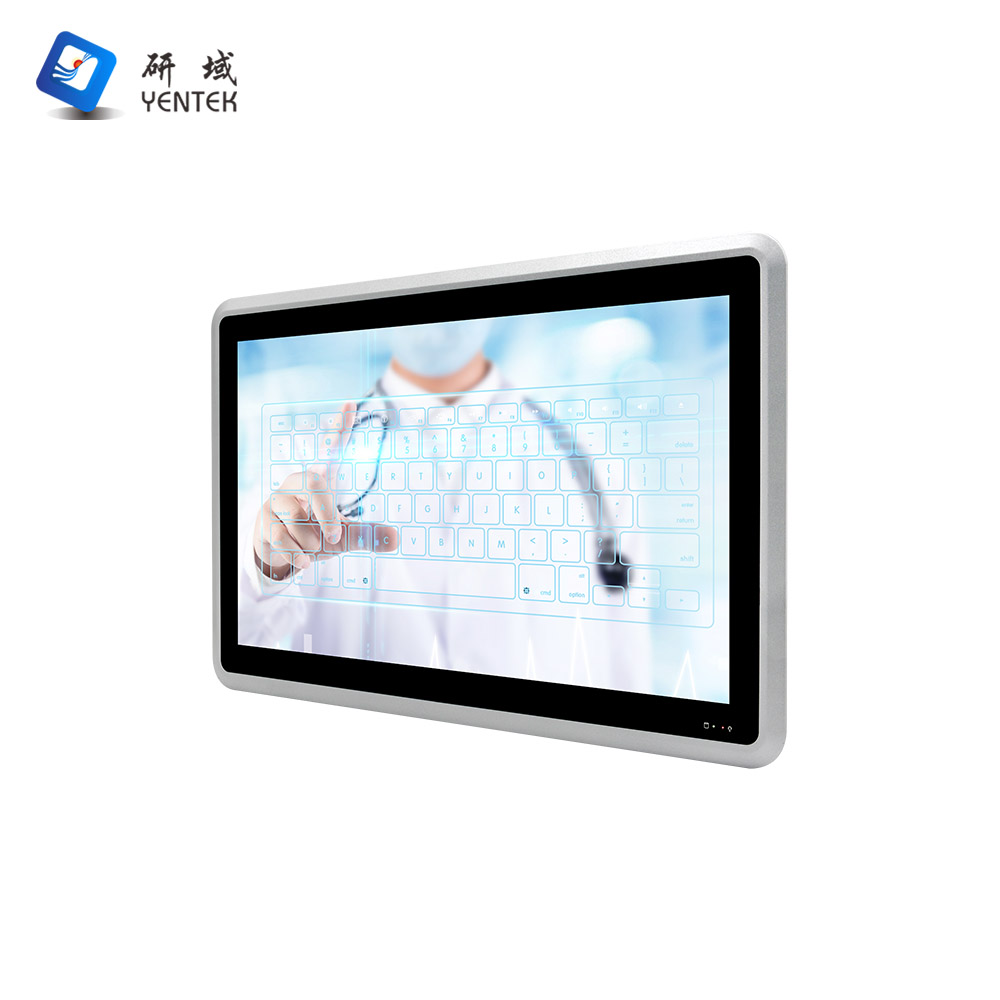

Model | P1581Y-C6 V2.0(1135G7) |
Chassis | Material/Construction | Fanless cooling design |
Colour | Bright silver |
Dimensions | L400 × W253 × H64.5 mm |
Weight | 3.2 kg |

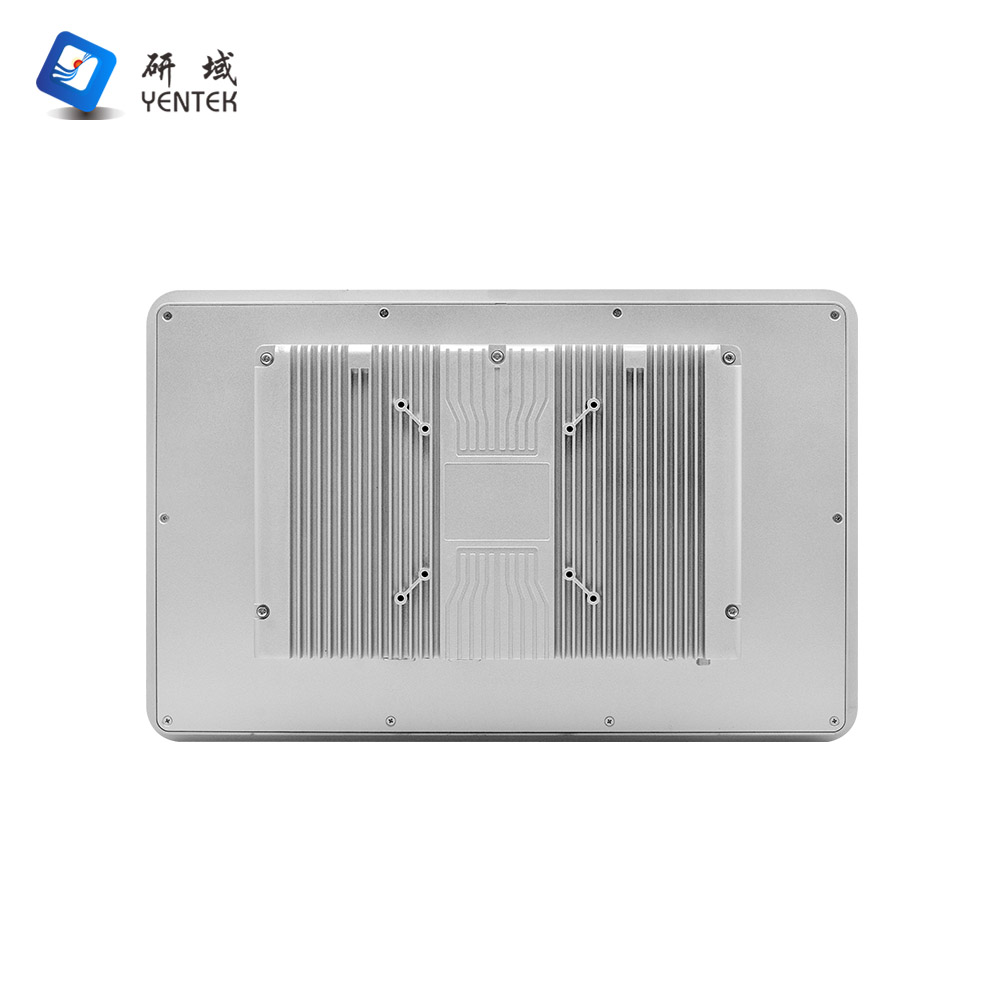

Mounting | Embedded/Wall-mounted/VESA (75×75) |
LCD screen | Type | 15.6-inch Full HD widescreen |
Resolution | 1920 × 1080 |
Viewing angle | 89/89/89/89 |
Brightness | 250 cd/m² |
Touchscreen | Type | Capacitive, 10-point touch |
Transmittance | Over 85% |
Motherboard | CPU | Intel® i5-1135G7 / 2.40 GHz quad-core, eight-thread processor, TDP 15W |
Memory | 2 x SODDR4 3200 MHz, supports up to 64 GB |

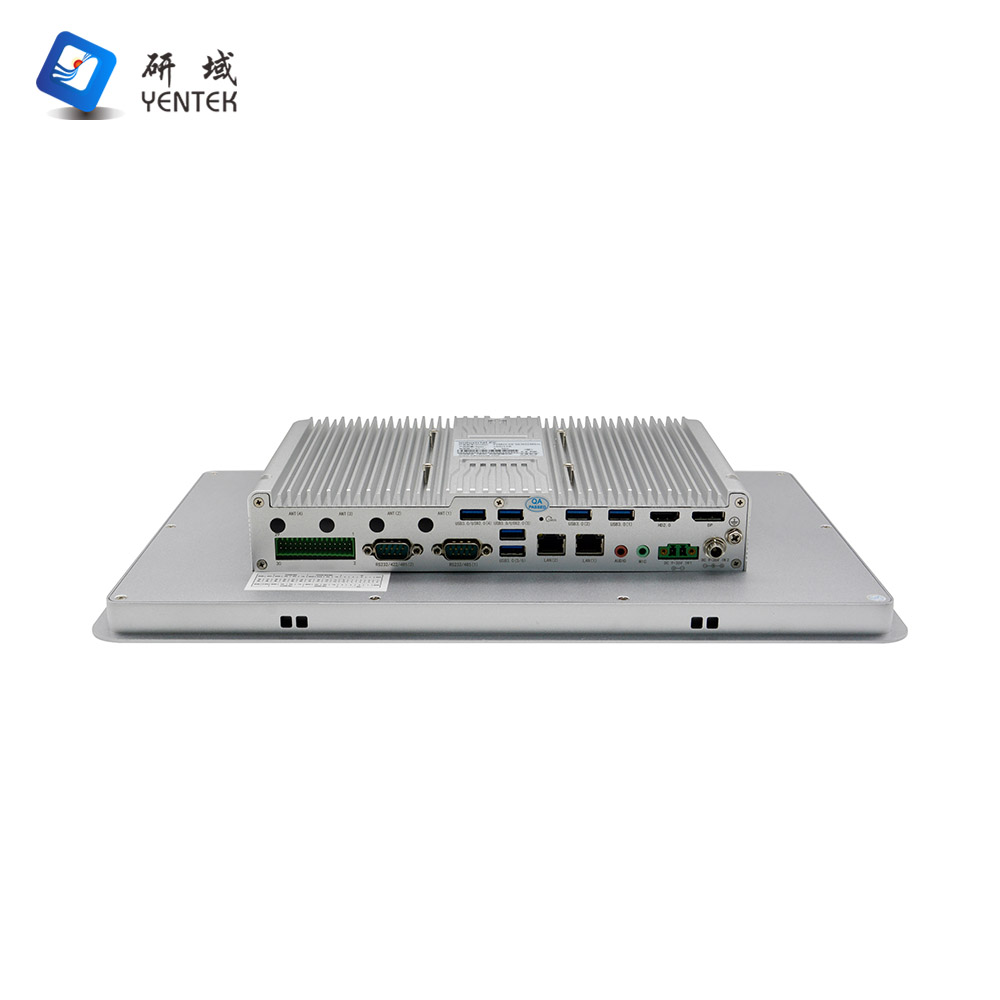

I/O ports | Power | 1 x Power button, 1 x One-touch restore, 1 x ACLOSS (power-on DIP switch), 1 x CMOS reset button |
Display interfaces | 1 x HDMI 2.0 (4096 x 2160 @ 60Hz), 1 x DisplayPort 1.4 (4096 x 2160 @ 60Hz) |
LAN | 2 x Intel I210 Gigabit Ethernet ports, supporting Wake-on-LAN and PXE |
USB | 6 x USB 3.0 (USB 3.0 and USB 2.0 data transfer speeds depend on the CPU) |
Audio | 1 x Line out, 1 x MIC |
COM | 6 x RS232 serial ports, COM1–2 DB9 connectors (COM1 supports RS232, COM2 supports RS232/422/485),COM3–6 RS232 located on 2×15-pin Phoenix connectors, with COM3 supporting RS485 |
DI/DO | 4×DI, 4×DO (PNP, located on 2×15-pin Phoenix connectors) |
Power supply | 1 x DC aviation connector or 1 x 2-pin (P=5.08mm) Phoenix connector, supporting 9V–36V wide-voltage input |
Storage | SATA | 1 x 2.5-inch hard drive bay |
mSATA | 1 x mSATA (on I/O board) |
SSD | 1 x M.2, supporting Key-M, 2280, NVMe PCIe x2/SATA adaptive SSD (on motherboard) |
Expansion | Wi-Fi | 1 x M.2, Key-E, 2230, supports Wi-Fi modules |
5G | 1 x M.2, Key-B, 3042/3052, supports 5G modules |
System requirements | Microsoft Windows | Windows 10 |
Linux | Ubuntu |
Power requirements | Power supply type | DC 9V–36V wide voltage range |
Environment | Operating temperature | 0°C–50°C |
Storage temperature | –20°C–70°C |
Relative humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
