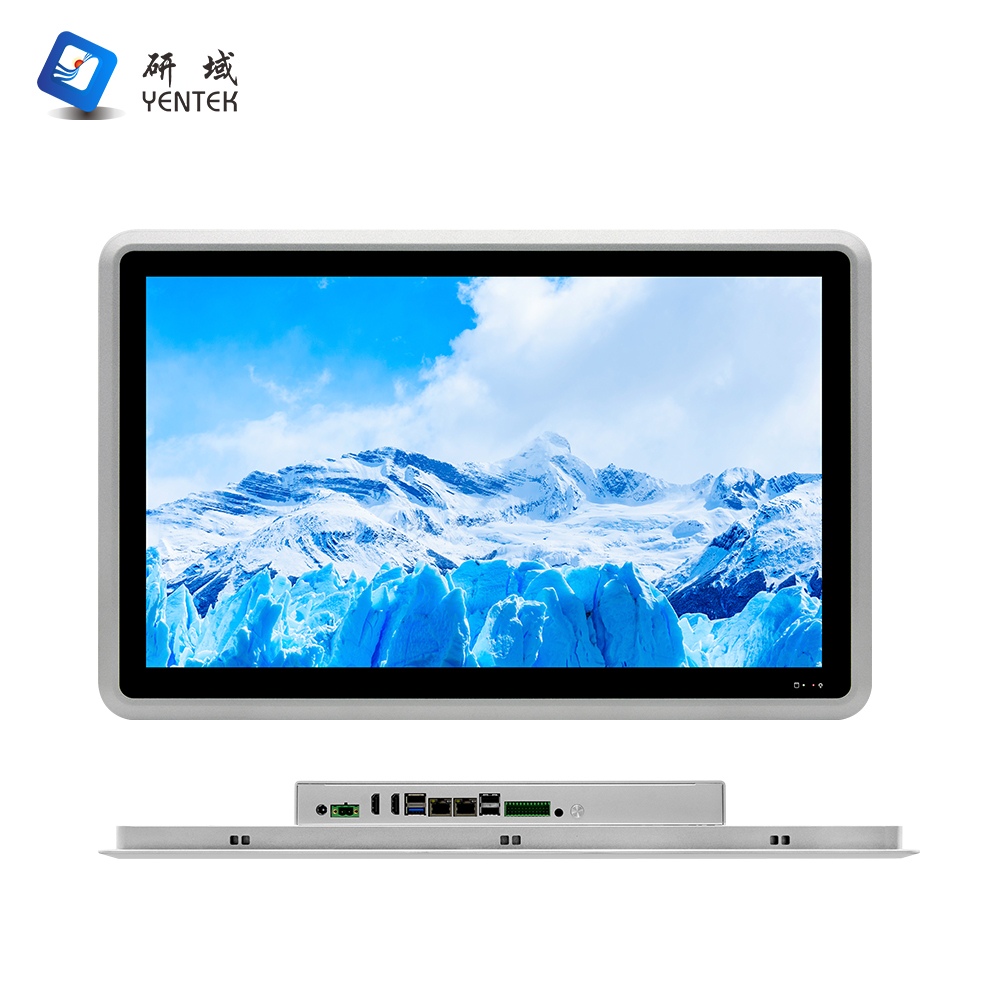

Model | P2141Y-C4 V1.0(CK35H) |
Chassis | Material/structure | Aluminium Alloy |
Colour | Silver |

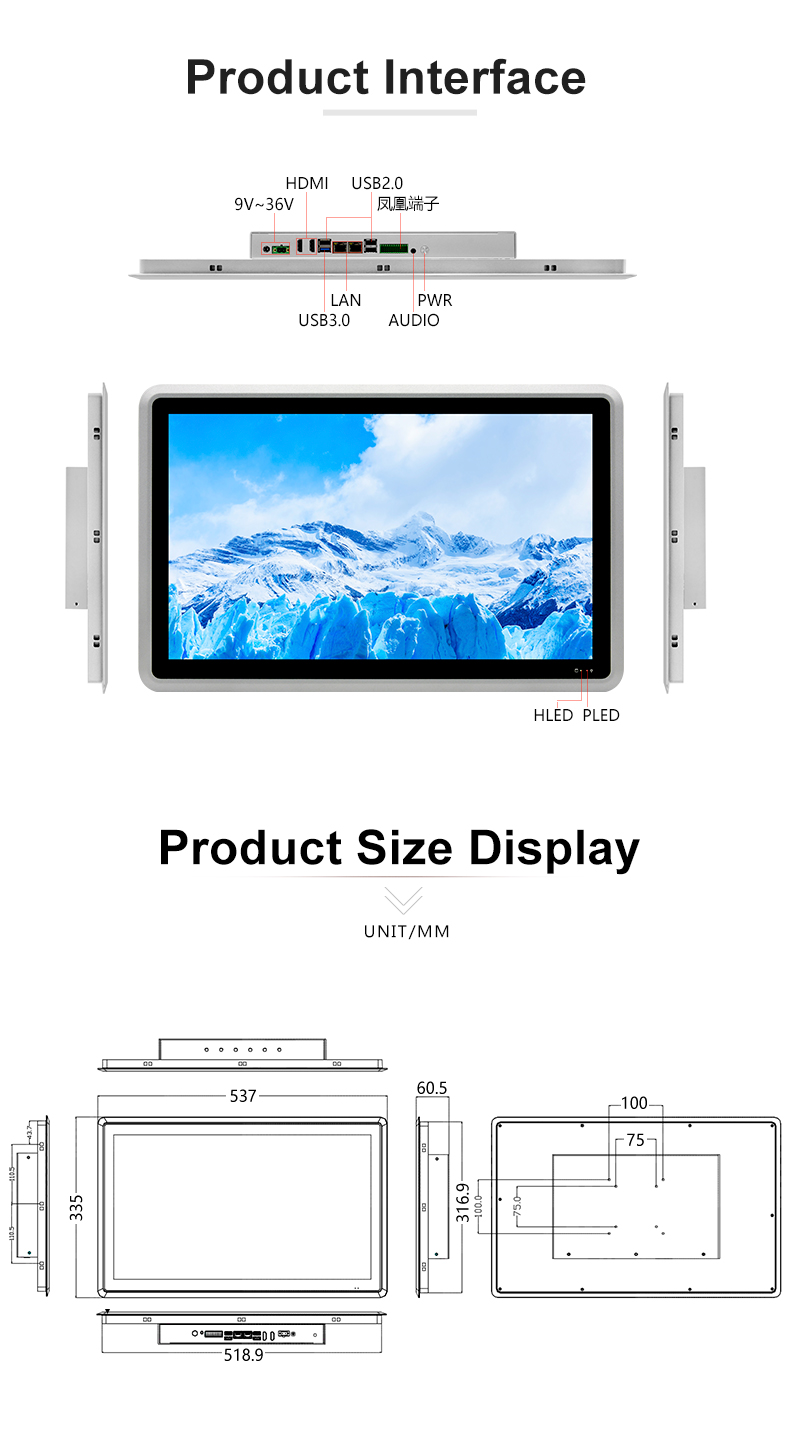

Dimensions (LWH) | L537*W335*H60.5mm |
Weight (bare net weight) | 6.5KG |
Installation | Support VESA/Embedded Panel Mount |

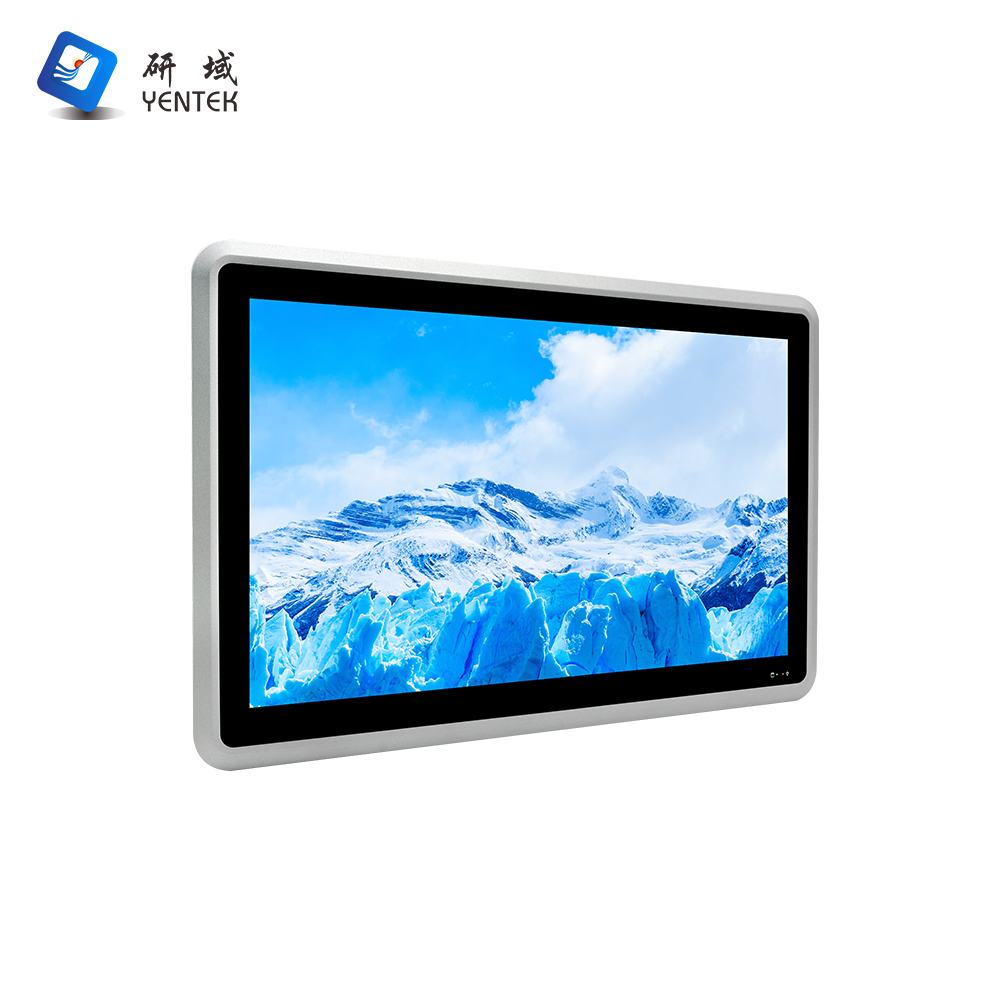

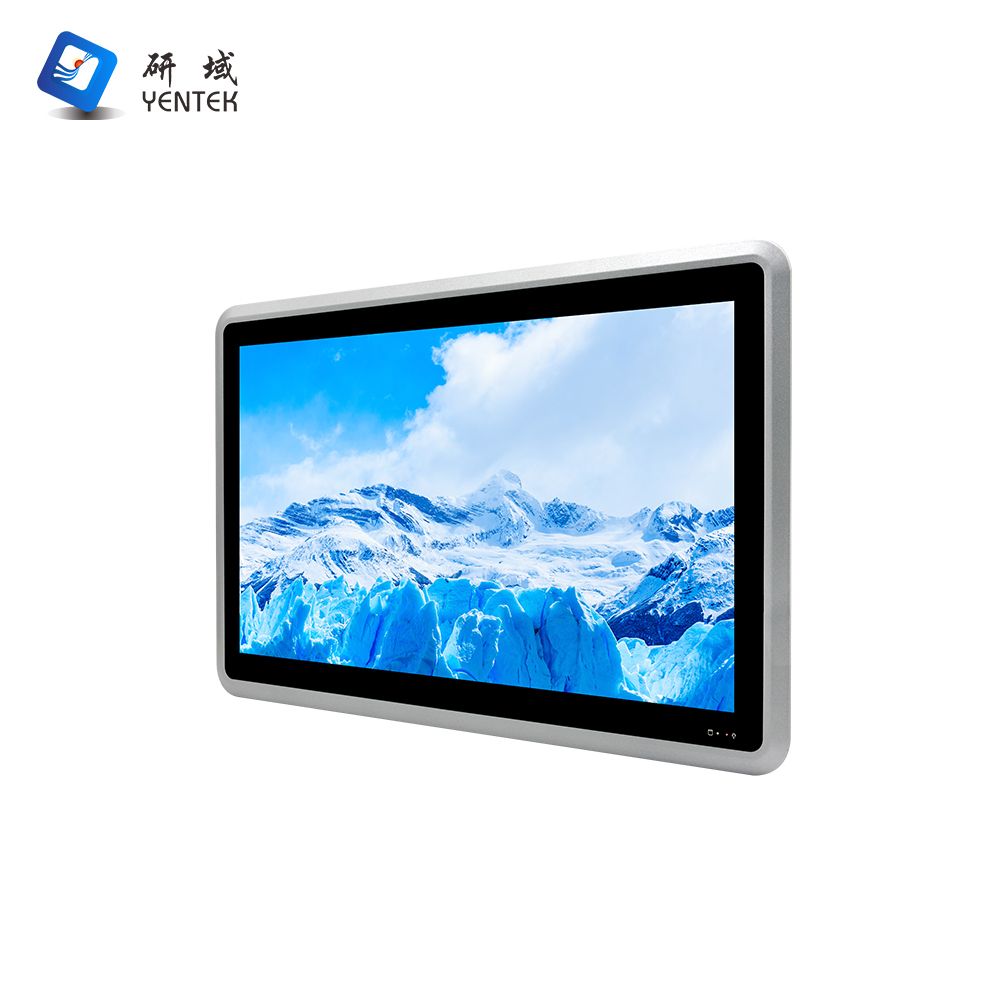

LCD Screen | Type | 21.5" LCD, 16:9, Widescreen |
Resolution | 1920 * 1080 |
Brightness | 300 cd/m2 |
Touch Screen | Type | Capacitive Screen, 10-point touch |
Transmittance | 86%+ |

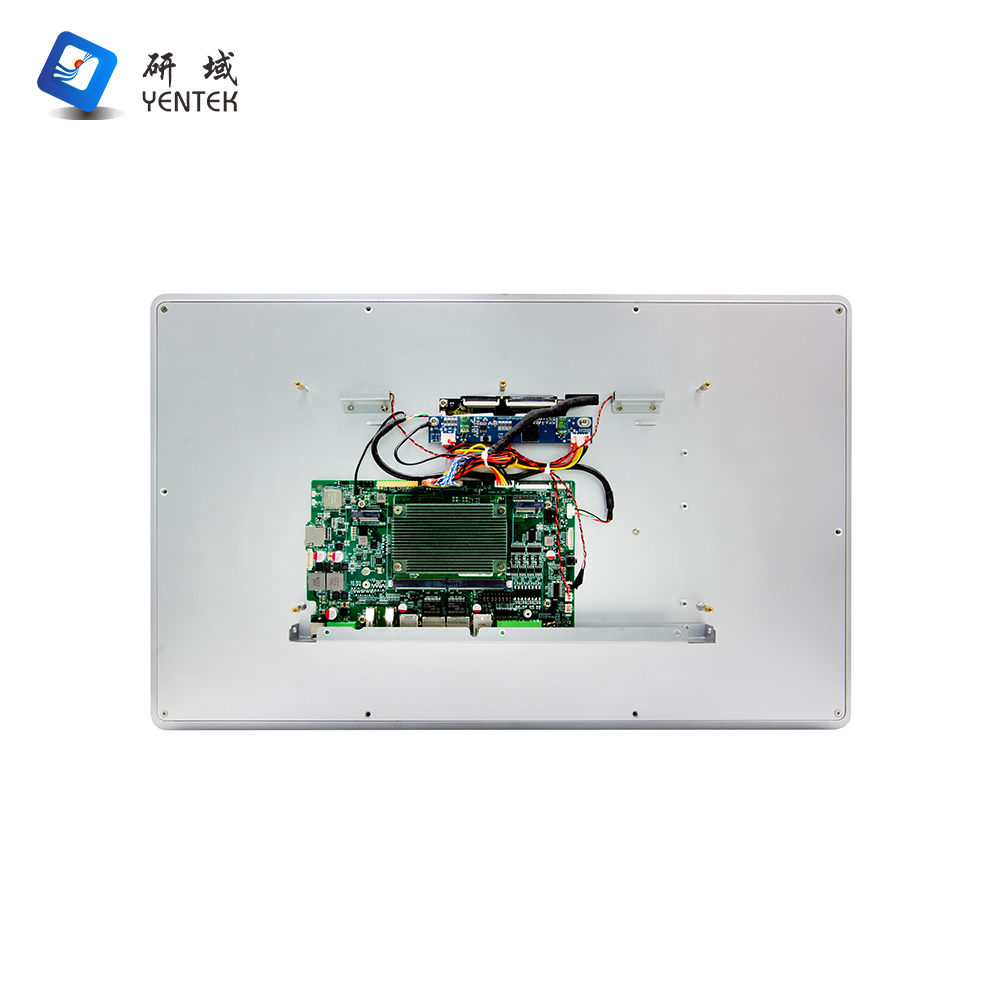

Motherboard | CPU | Integrated RK3568B2 Quad-Core Cortex-A55 Up to 2.0G Processor |
Memory | Integrated LPDDR4 4G(Optional 8G/16G) |
Storage | Integrated eMMC5.1 32G(Optional 64G/128G) |
SSD | 1*M.2, Support Key-M, 2280 NVME PCIEx1 SSD |

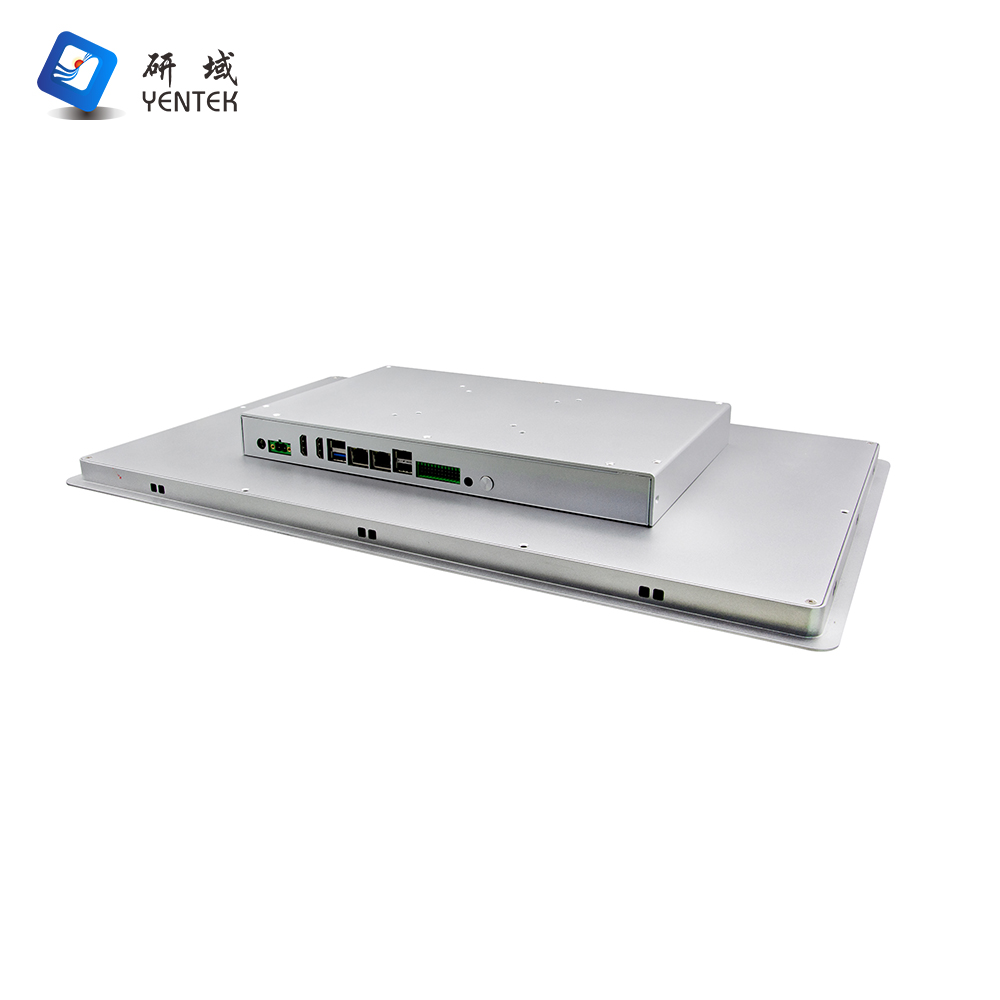

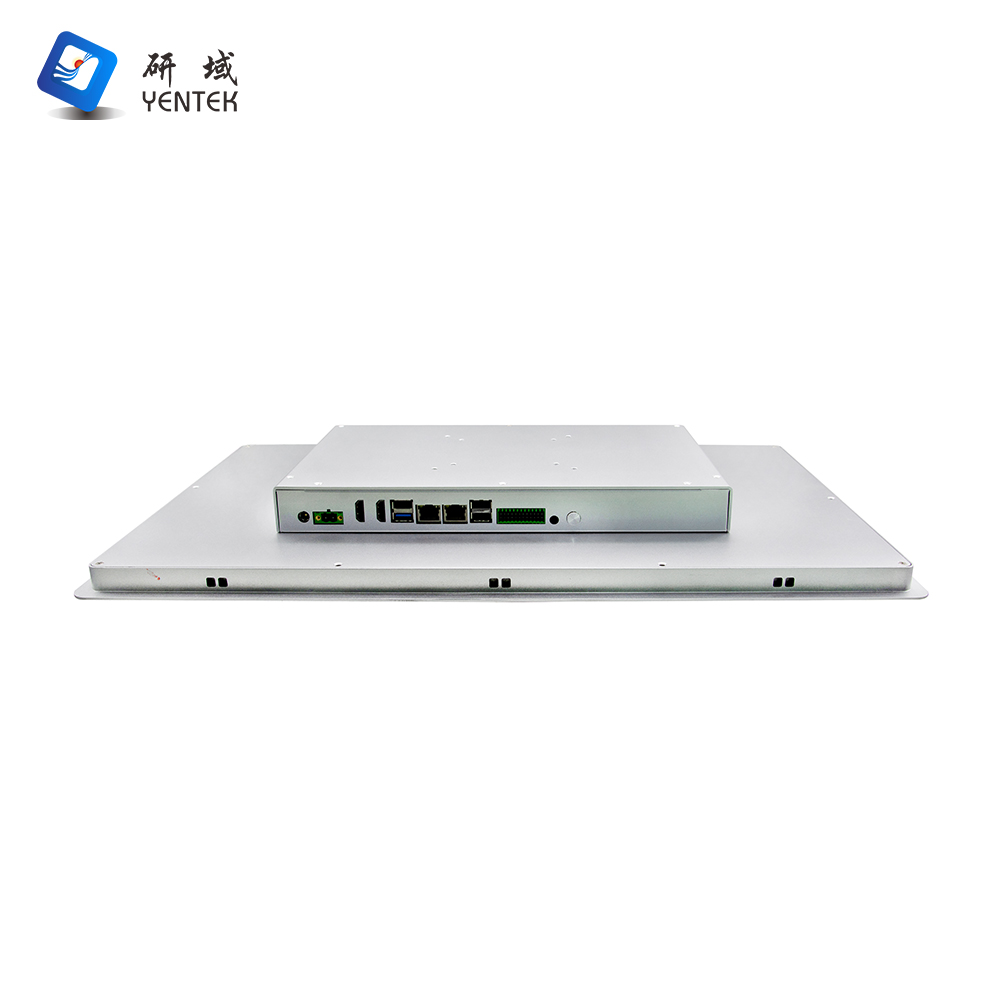

IO Interface | POWER | 1* Boot Key, 1* Burn-in Key (located inside the chassis) |
LED | 1* Power Indicator, 1* HDD Indicator |
Display Interface | 1* HDMI OUT |
LAN | 2* Gigabit LAN card, support POE |
USB | 1*USB3.0, 3*USB2.0 (USB2.0 above USB3.0 is OTG) |
COM | 4*RS232/485 (located on the 2*12P Phoenix terminals) |
DI/DO | 4*DI, 4*DO (located on the 2 *12P Phoenix terminals) |
Audio | 1*Audio, Line out and MIC 2-in-1 |
WiFi | Onboard WiFi6+BT5.0, support 802.11a/b/g/n/ac/ax |
TF/SIM | 1*TF, 1*SIM (located inside the chassis) |
Speaker | 2 x 4-ohm 2W speakers |
Power supply | 1*DC connector or 1*2P (P=5.08mm) Phoenix terminal, support 9V~36V input |
Expansion | 5G | 1* M.2, Key-B, 3042/3052, support 5G module |
System Support | Linux | Android 7.1, Android 10, Android 12, Ubuntu18.04, Debian10(CK33H) |
Android 11, Ubuntu20.04, Debian10(CK35H) |
Android 13 Ubuntu20.04, Ubuntu20.04(VR58J) |
Power Requirements | Power Type | External Power Adapter |
Voltage Input | 9V~36V Wide Voltage |
Environment | Operating Temperature | -10℃～50℃ |
Storage Temperature | -20℃～70℃ |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Operating Vibration | 0.5g rms/5-500HZ/random/operating |
