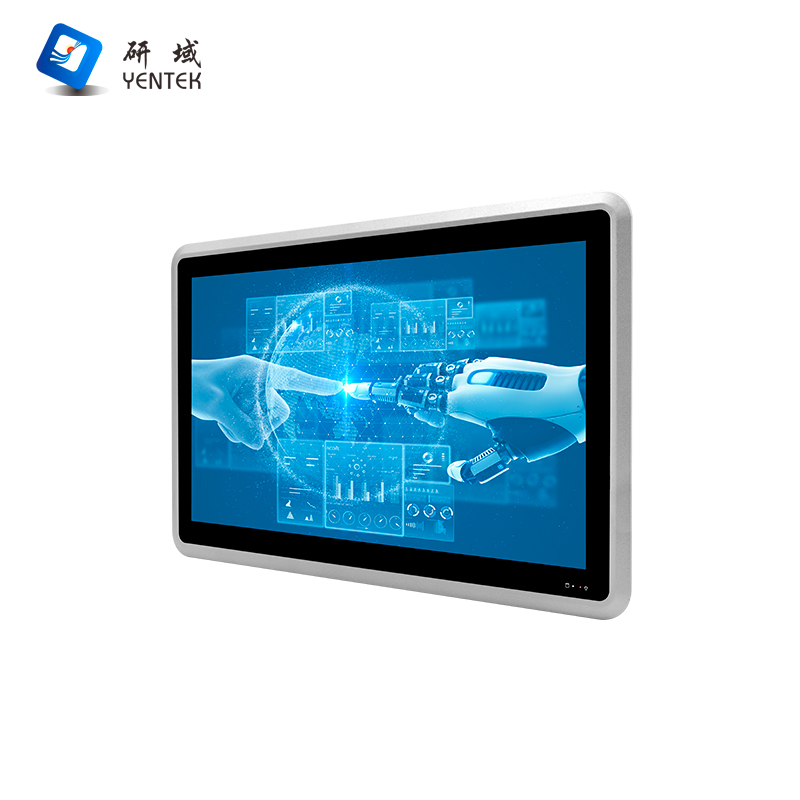

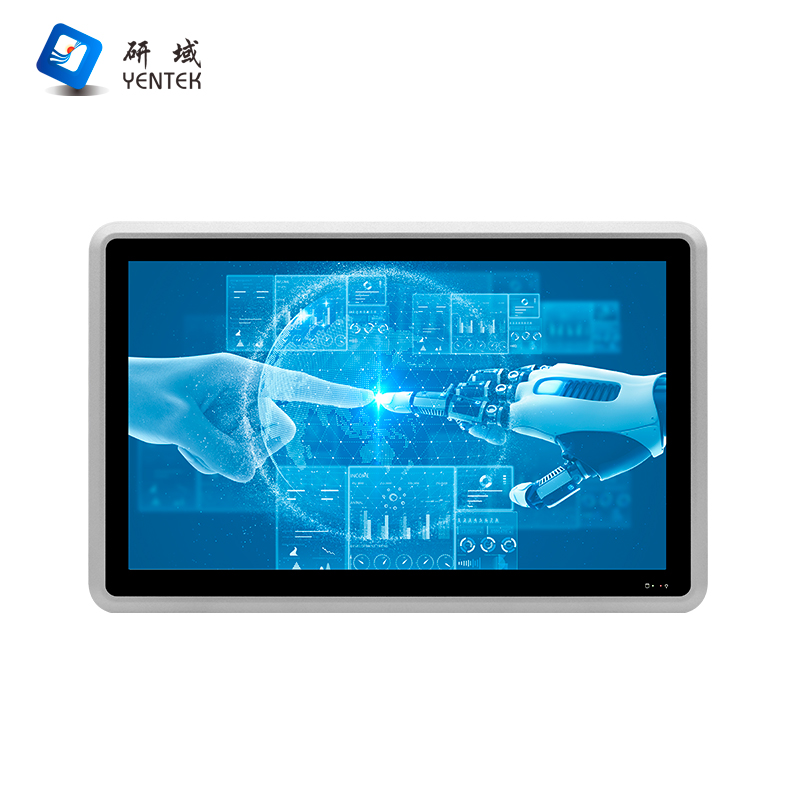

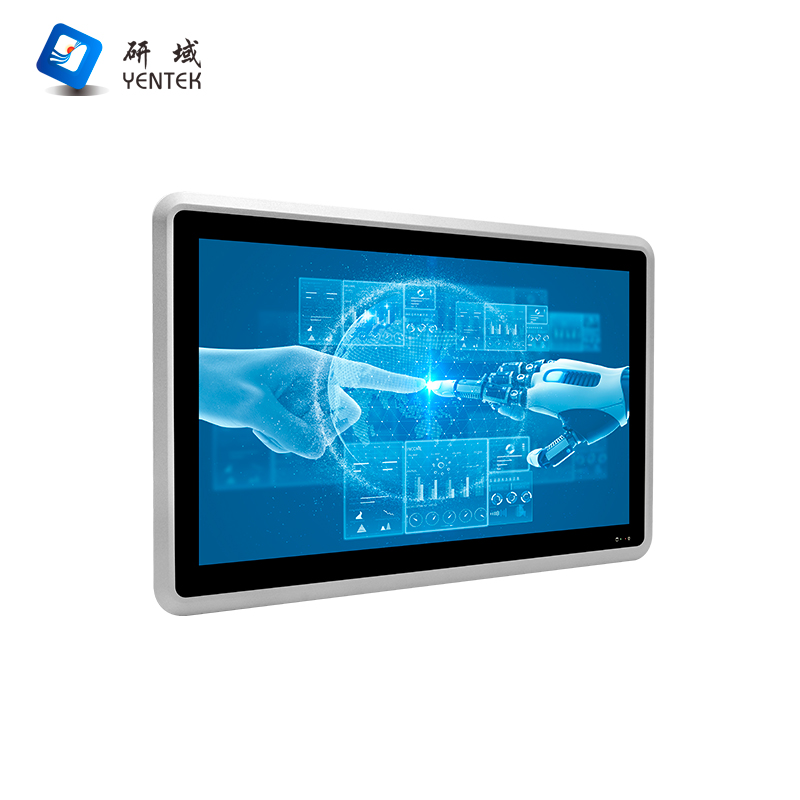

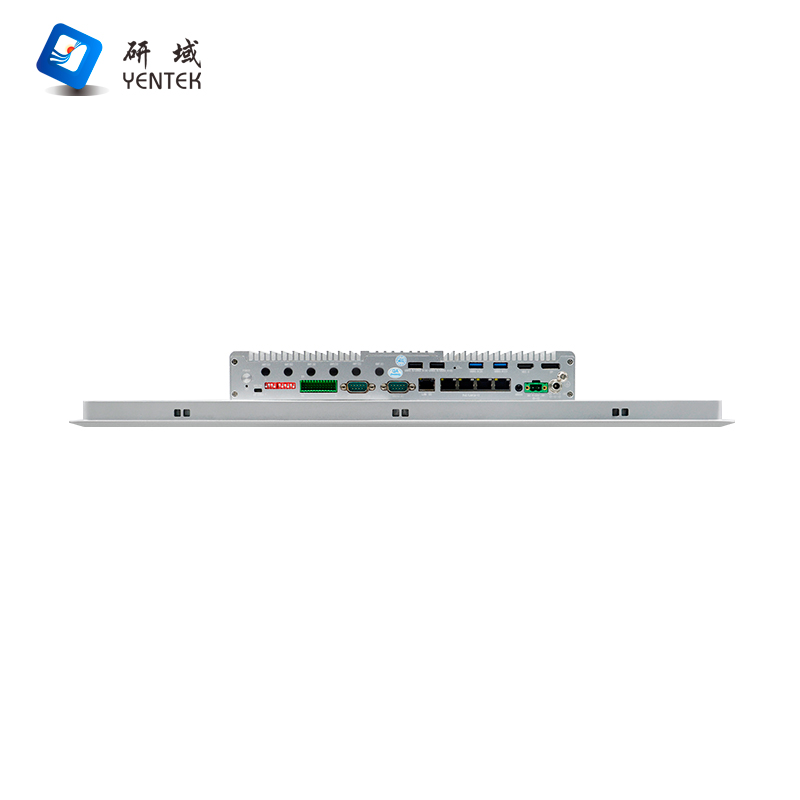

P2181Y-P4 (Embedded)

Case

Material/Structure

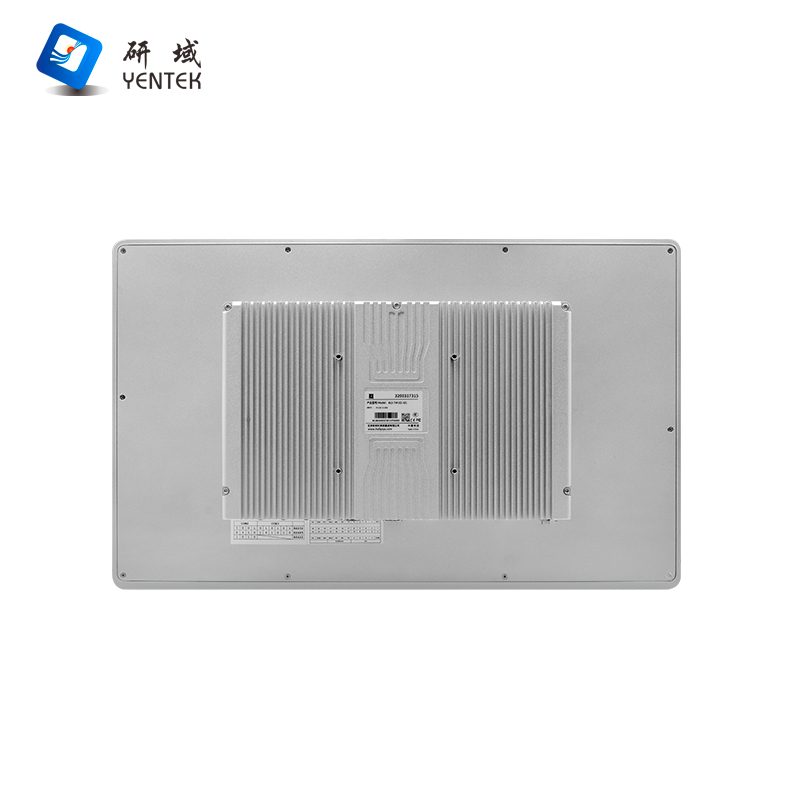

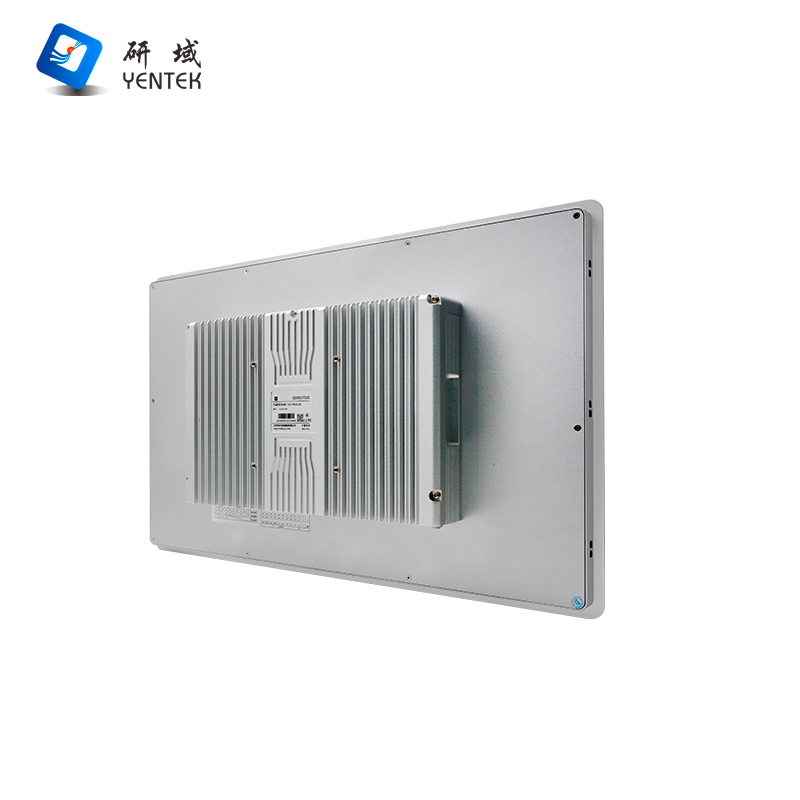

Aluminum alloy, fanless cooling structure

Color

Silver

Dimension

L537*W335*H65.5mm

Net Weight

7.5KG

Installation

Wall-mount/VESA（100*100）

LCD Screen

Type

21.5-inch Full HD Widescreen, 16:9

Resolution

1920 * 1080

Brightness

250cd/m2

Touch Screen

Type

Capacitive, 10-point touch

Transmittance

>85%

Motherboard

CPU

Integrated Intel®Celeron J6412/2.0GHz quad-core quad-thread processor, TDP 10W

Display

Integrated Intel® UHD Graphics

Memory

2*SODDR4 3200MHz memory, support up to 16GB

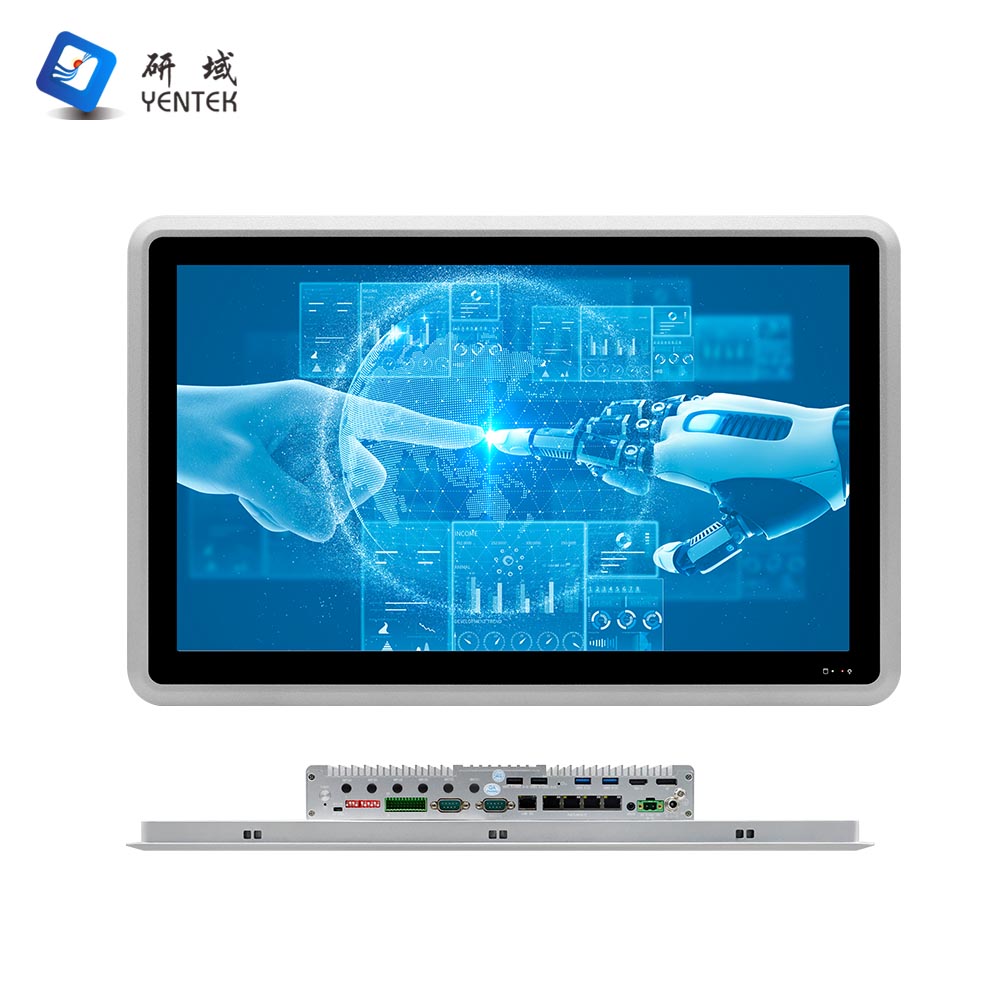

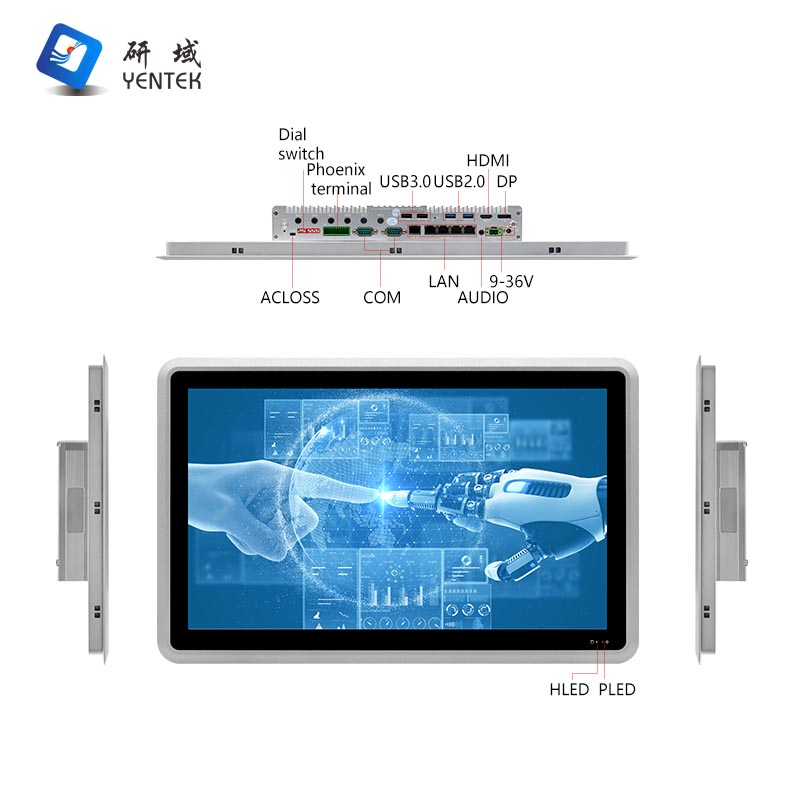

IO Ports

POWER

1*Boot button, 1*One-Key Restore, 1*CMOS reset button, 1*ACLOSS

Display

1*HDMI（4096x2160@60Hz）, 1*DP

LAN

5*Intel I210 Gigabit LAN card. 4 of them support POE

USB

2*USB3.0, 2*USB2.0

Audio

1*AUDIO, Line out and MIC 2 in 1

COM

4*RS232 serial ports, COM1~2 RS232 DB9 serial ports,  COM2 supports RS485/422, COM3~4 RS232 on the 2*12P  Phoenix connector, COM3 supports RS485, COM1-2 support 9th pin charged

DI/DO

4*DI，4*DO (on the 2*12P phoenix connector)

Remote Switch

1*Power-on signal, 1*Power indicator light signal（On the 2*12P phoenix connector）

DIP switch

10-digt DIP, COM2~3 RS232/485 selection, COM2 RS422 select via COM2_SW1 jumper

Speaker

2-set 4Ω2W speaker

Power

1*DC aviation port, 1*2Pin Phoenix connector, support DC9~36V voltage input

Storage

SATA

1*2.5”SATA port

MSATA

1*MSATA

SSD

1*M.2, supports Key-M, 2280, NVME PCIEx4 SSD

Expansion

WiFi

1*M.2, supports Key-E, 2230, WiFi module

5G

1*M.2, supports Key-B, 3042/3052, 5G module

OS

Microsoft Windows

Windows 7/10

Linux

Ubuntu

Power Supply

Power Type

DC 9V~36V

Voltage Input

AC To DC 90W

Environment

Operating Temp.

0℃～50℃

Storage Temp.

-20℃～70℃

Relative Humidity

5%-95%  relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
