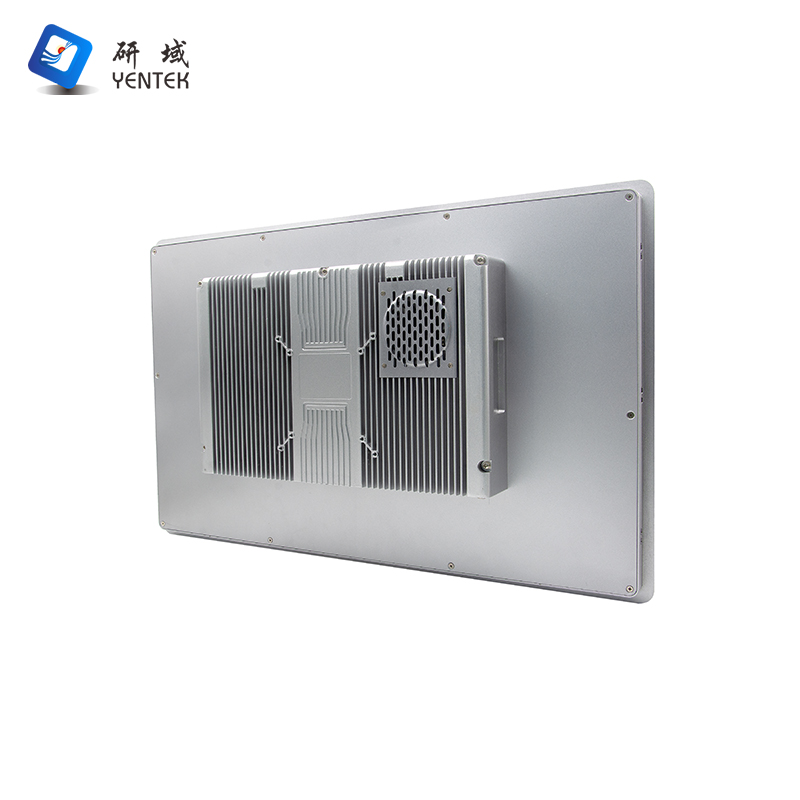

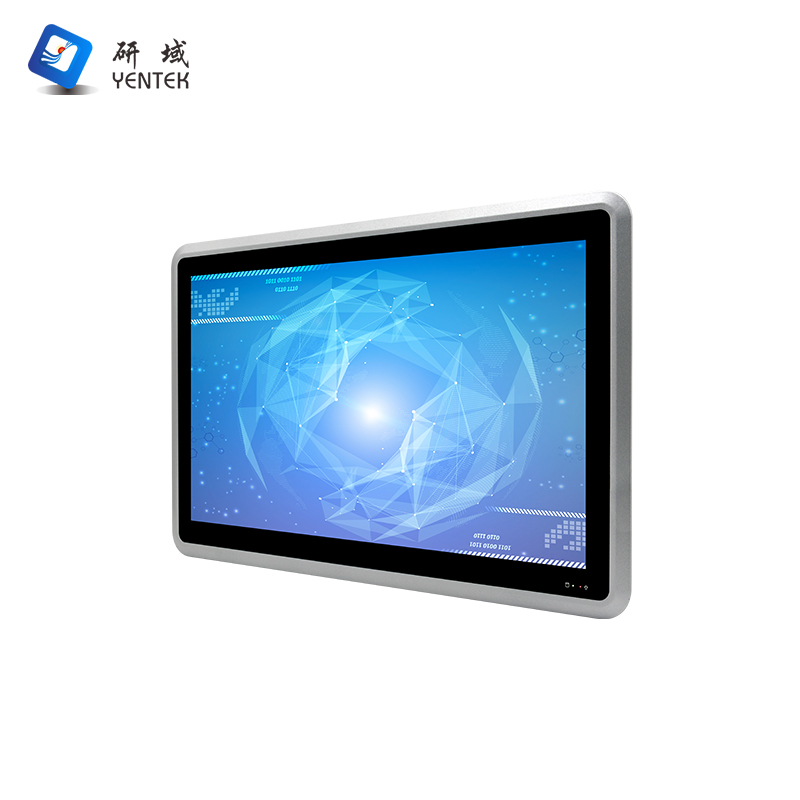

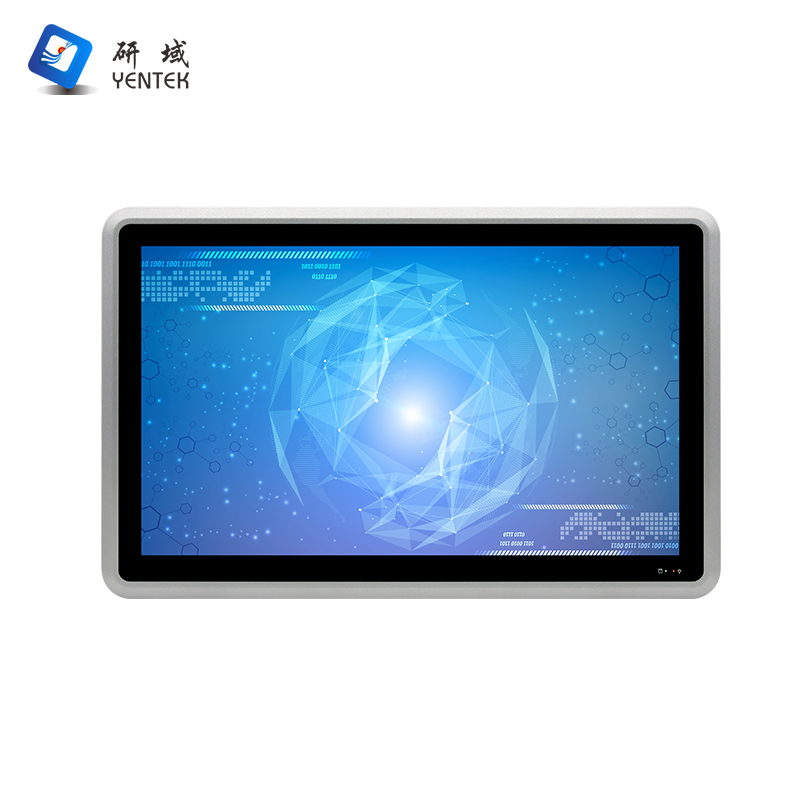

P2181F-C6 (Embedded)

Chassis

Material/Construction

Aluminum alloy construction,   fan-cooled design

Color

Silver

Dimensions

L537 x W335 x H65 mm

Weight

7.67 kg

Mounting

Supports VESA/flush-mount   installation

LCD Screen

Type

21.5-inch LCD, 16:9 widescreen

Resolution

1920 x 1080

Brightness

300 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point   touch (can be upgraded to resistive touchscreen)

Transmittance

Over 86%

Motherboard

CPU

Integrated Intel®   i5-8260U/1.60GHz quad-core, eight-thread processor, TDP 15W

Memory

2x DDR4 SODIMM 2400MHz memory,   supports up to 64GB

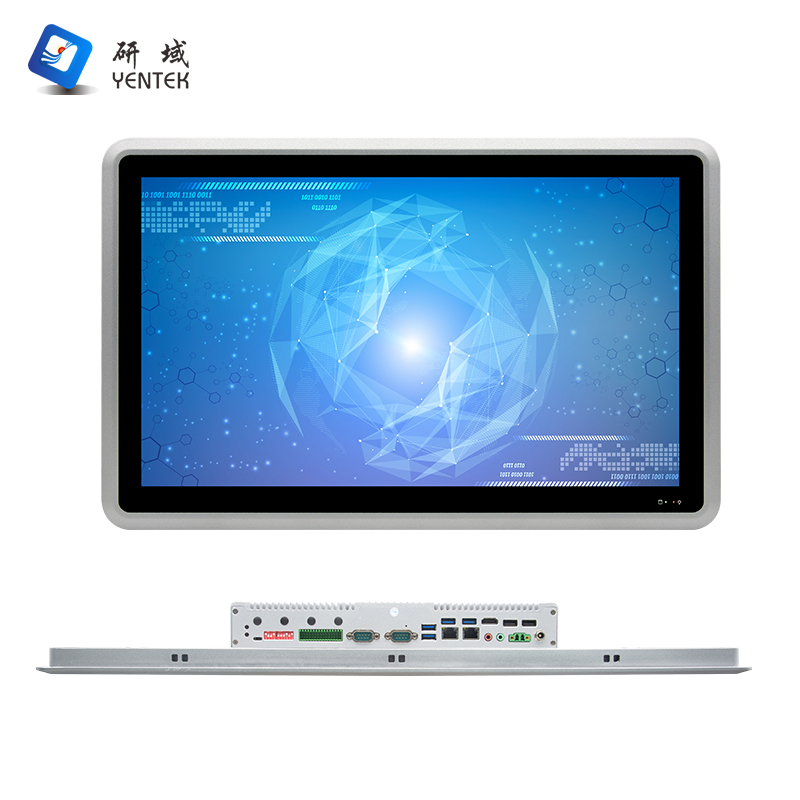

I/O Ports

Power

1x Power button, 1x One-Touch   Restore (either this or the Reset button), 1x ACLOSS (power-on jumper)

LED

1 x Power LED, 1 x HDD LED

Display Interface

1 x HDMI

LAN

2 x Intel I210 Gigabit Ethernet,   supports Wake-on-LAN and PXE

USB

4 x USB 3.0, 2 x USB 2.0

COM

6 x RS232   serial ports: COM1 RS232 DB9 port, COM2 RS232/485/422 DB9 port, COM3–6   RS232/485 on 2 x 10-pin Phoenix connectors; COM1–2 support pin 9 power-on   functionality

Phoenix Connector

2x 15-pin headers   (4-input/4-output GPIO, switch signals, COM3–COM6 (RS232/RS485), 5V VCC, and   GND)

DIP Switch

10-position DIP switch: COM2–3   RS232/485 selection; COM2 RS232/485/422 configuration via DIP switch +   COM2_SW1 jumper

Audio

1 x Line Out, 1 x MIC

Power Supply

1 x DC aviation connector or 1 x   2-pin Phoenix connector (Pitch 5.08mm), supports 9V–36V input

Storage

SATA

1 x 2.5-inch hard drive bay

M.2

1x M.2/SSD, supports Key-M,   2280, NVMe PCIe x4 SSDs

mSATA

1x mSATA

Expansion

M.2

1x M.2/WiFi, Key-E, 2230,   supports WiFi modules

1x M.2/5G, Key-B, 2242/52,   supports 5G modules

System Support

Windows

Windows 10

Linux

Ubuntu

Watchdog

Supports hardware reset function   (256 levels, 0–255 seconds)

Power Requirements

Power Supply Type

External power adapter

Input Voltage

9V–36V wide voltage range

Output Power

60W–180W

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating
