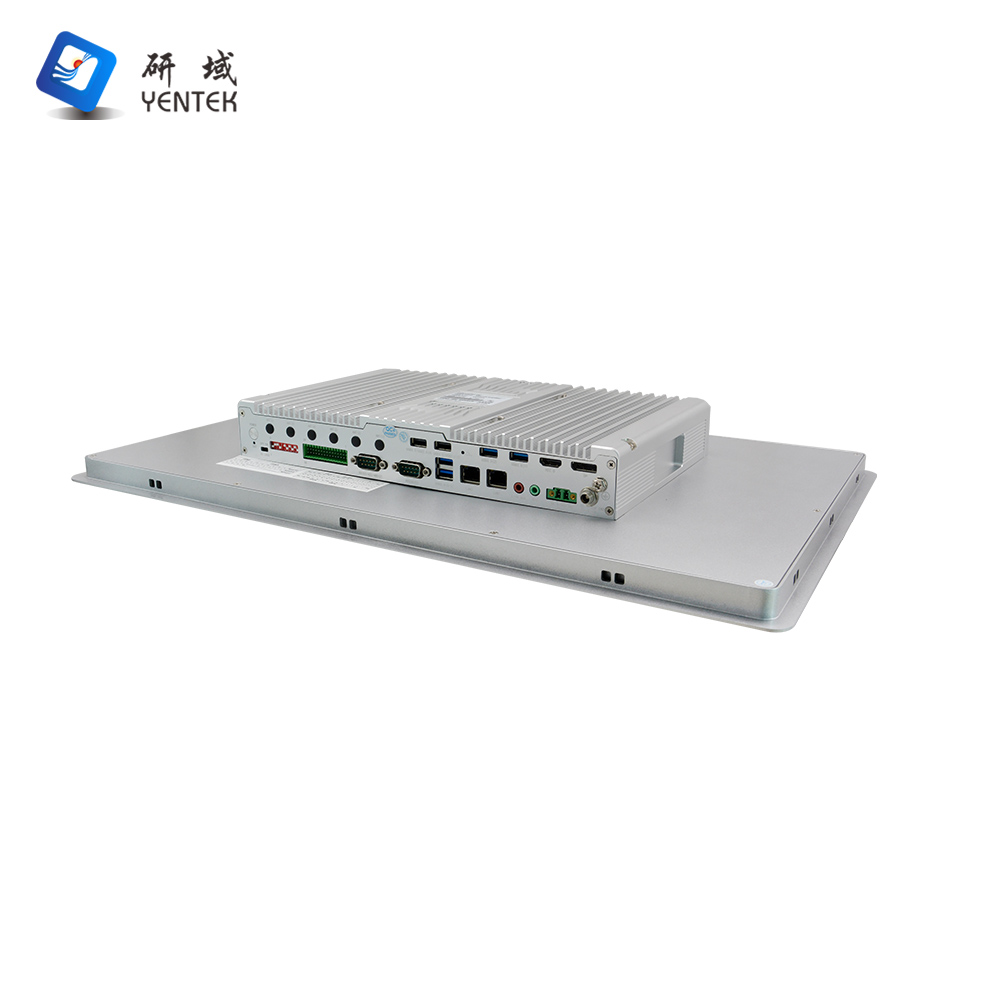

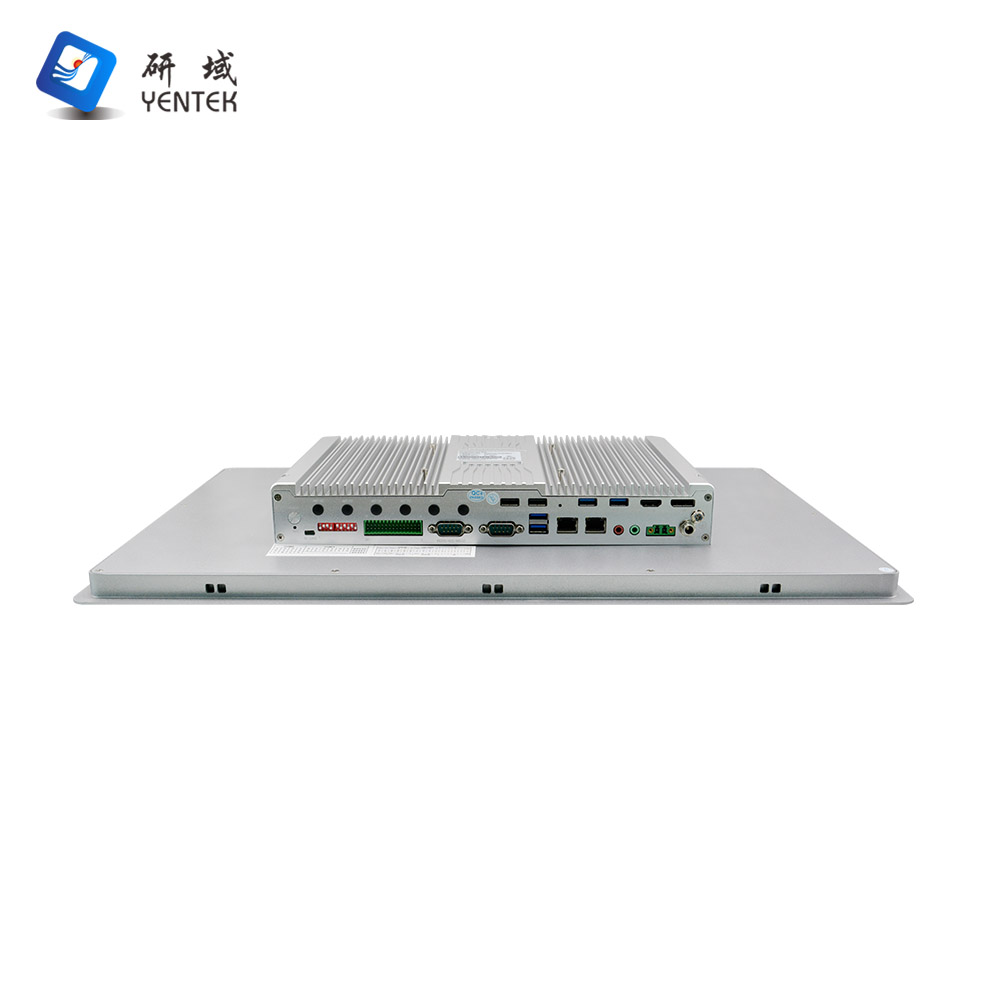

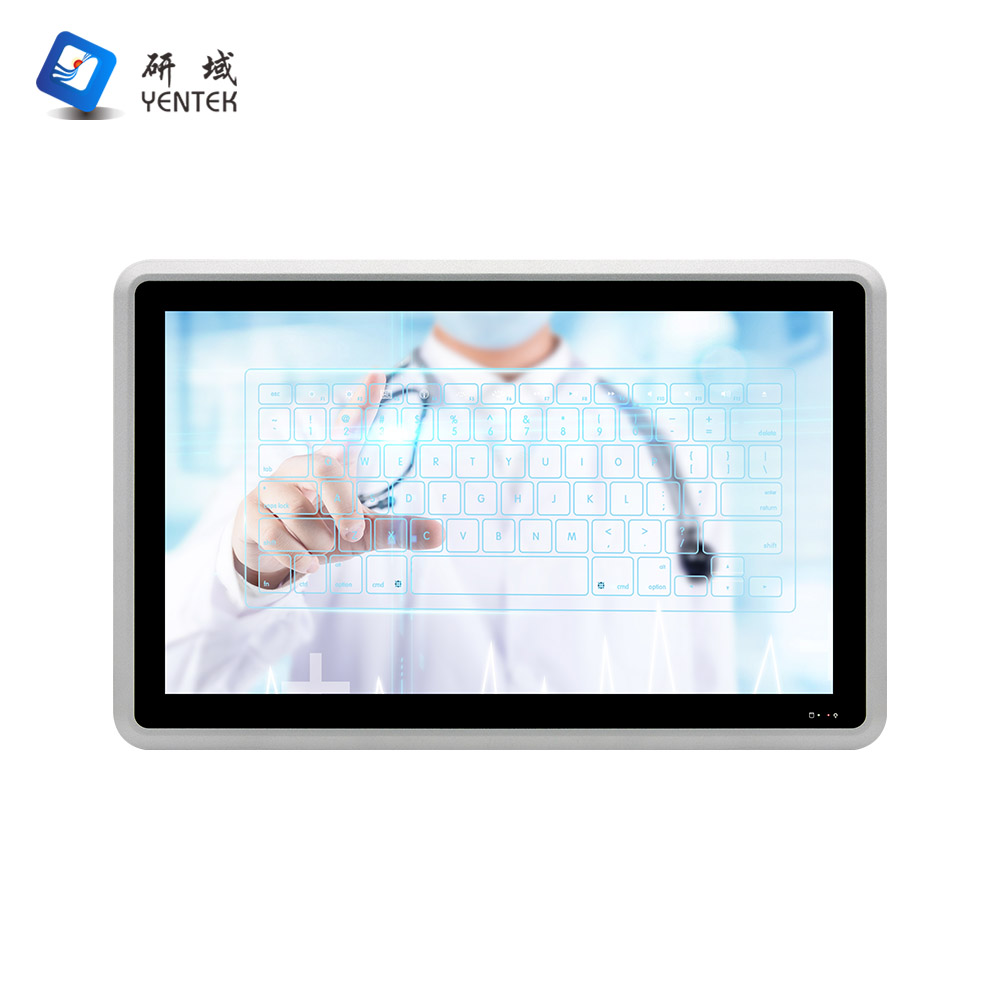

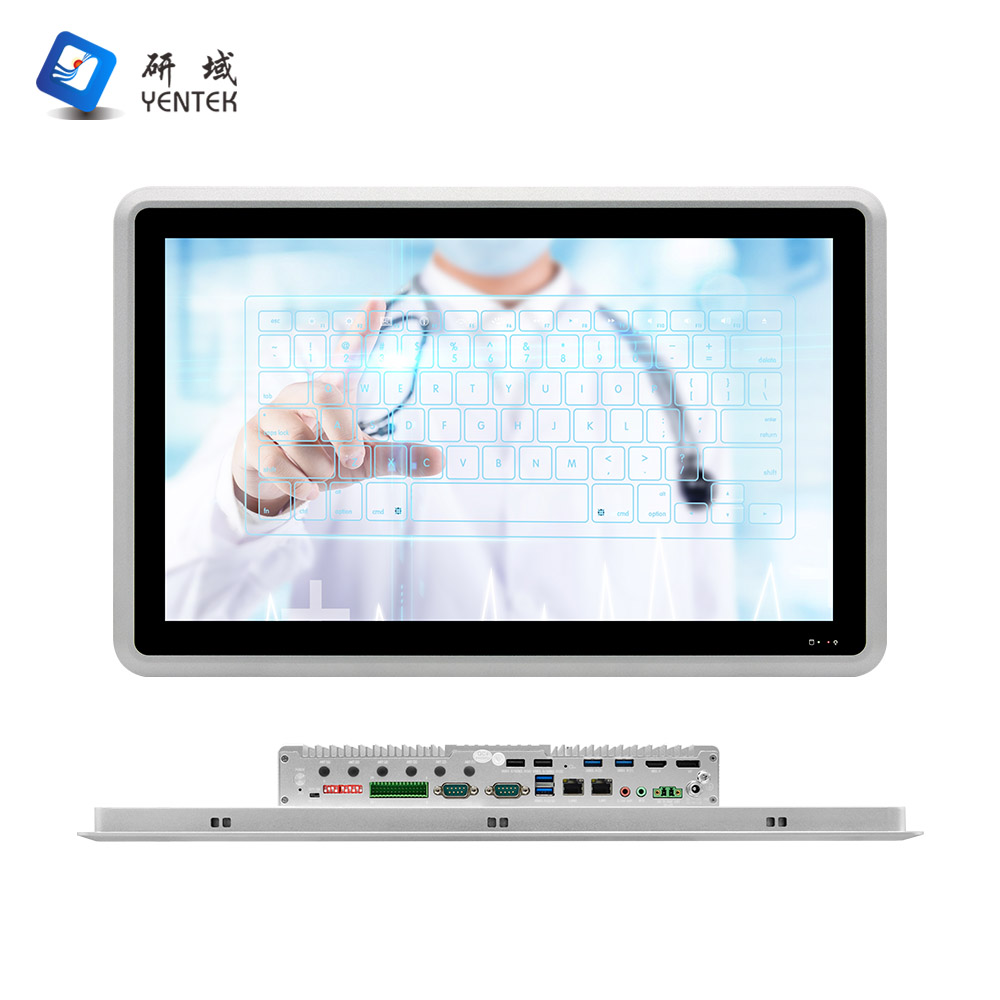

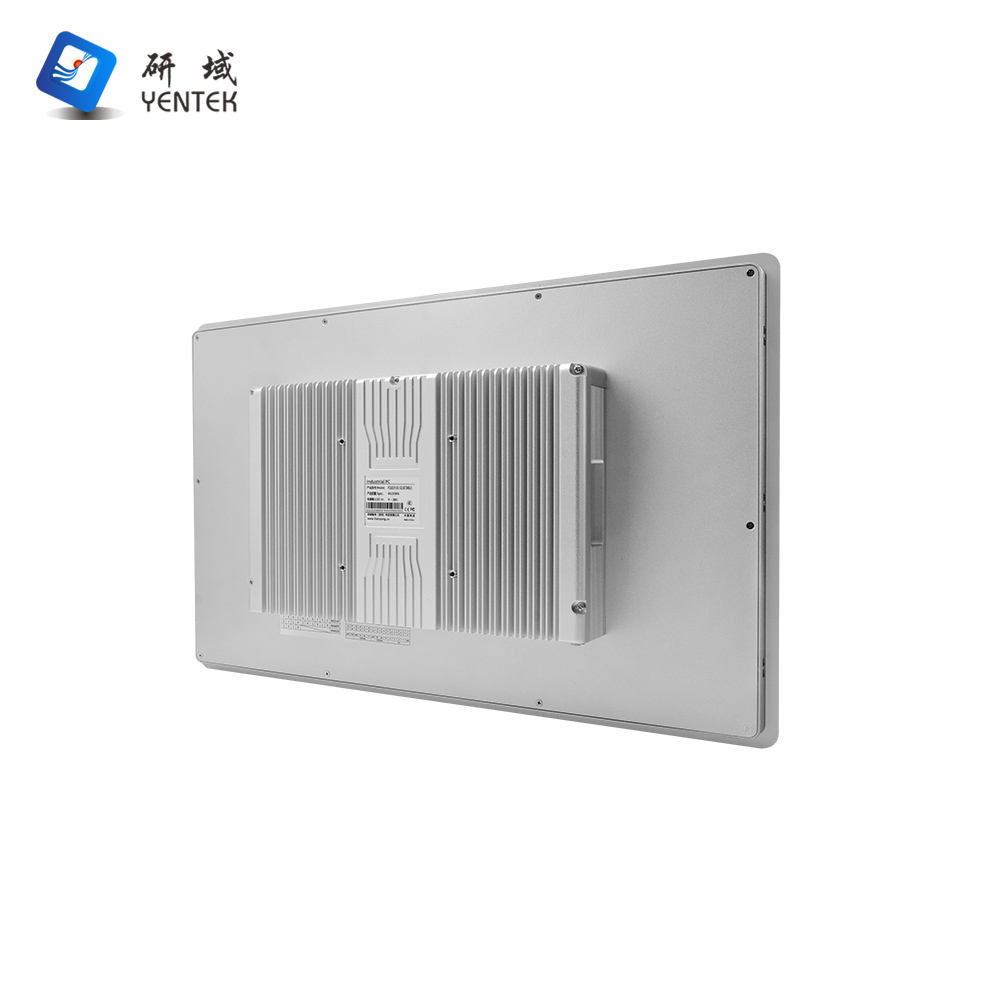

P2181Y-C6 V2.0 (Embedded)

Case

Material/Structure

Aluminum case, fanless design

Color

Silver

Dimension

L537*W335*H65mm

Net Weight

7.5KG

Installation

Support VESA(100*100)/Embedded

LCD Screen

Type

21.5” LCD, 16:9

Resolution

1920 * 1080

Lightness

300 cd/m2

Touch Screen

Type

Capacitive，10-point touch

Light Transmission

>86%

Motherboard

CPU

Integrated Intel®J6412/2.0GHz quad-core quad-thread processor, TDP 10W

Graphics

Integrated Intel® UHD Graphics

Memory

2*SODDR4 3200MHz, support up to 16GB

IO Ports

POWER

1*Power button, 1* One-key recovery, 1*AC LOSS

LED

1*Power LED, 1* HDD LED

Display

1*HDMI（4096x2304@24Hz）, 1*DP（4096x2304@60Hz）

LAN

2*Intel I210 Gigabit Ethernet, support Wake On LAN、PXE

USB

4*USB3.0, 2*USB2.0

COM

6*RS232，COM1 DB9 RS232，COM2 DB9 RS232/485/422，COM3-6 RS232/485 on 2*10pin Phoenix connector，COM1-2 support pin9 charged function

DI/DO

4*DI，4*DO (On the 2*15P phoenix connector)

Remote Switch

1*Switch signal, 1*Power indicator signal (On the 2*15P Phoenix connector)

DIP Switch

10-digit DIP switch, COM2~6 RS232/485/422 selection

Audio

1*Line out，1*MIC

Power

1*DC (5.5*2.5)  Circular Connector or 1*2P(P=5.08mm) phoenix connector, support 9V~36V power input

Storage

SATA

1*2.5”SATA port

SS

1*M.2, supports Key-M, 2280, NVME PCIEx4 SSD

MSATA

1*MSATA

Expansion

WiFi

1*M.2, supports Key-E, 2230, supports WiFi+BT module

5G

1*M.2, supports Key-B, 3042/3052, 5G module

OS

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

Power Supply

Power Type

DC 9V~36V

Voltage Input

AC To DC 90W

Environment

Operating Temp.

-10℃～50℃

Storage Temp.

-20℃～70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P2181Y-C6 V2.0(J6412)

J6412/2.00G

2*SODDR4

Q642HD1

P1082-C6/P1071-LED

4/4

2

6

1

2

4

9~36V

2

P2181Y-C6 V2.0(7300U)

I5-7300U/2.6G

2*SODDR4

Q68HD1

P1082-C6/P1071-LED

4/4

2

6

1

2

4

9~36V

3

P2181Y-C6 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1082-C6/P1071-LED

4/4

2

6

1

/

6

9~36V

4

P2181Y-C6 V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

Q102HD1

P1082-C6/P1071-LED

4/4

2

6

1

/

6

9~36V

5

P2181Y-C6 V2.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1082-C6/P1071-LED

4/4

2

6

1

/

6

9~36V

6

P2181Y-C6 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

Q305HD1

P1082-C6/P1071-LED

4/4

2

6

1

2

4

9~36V

7

P2181Y-C6 V2.0(N305)

I3-N305/Turbo 3.8G

1*SODDR4

Q305HD1

P1082-C6/P1071-LED

4/4

2

6

1

2

4

9~36V

8

P2181Y-C6 V2.0(1235U）

I5-1235U/1.3G

2*SODDR4

Q122HD1

P1082-C6/P1071-LED

4/4

2

6

1

/

6

9~36V
