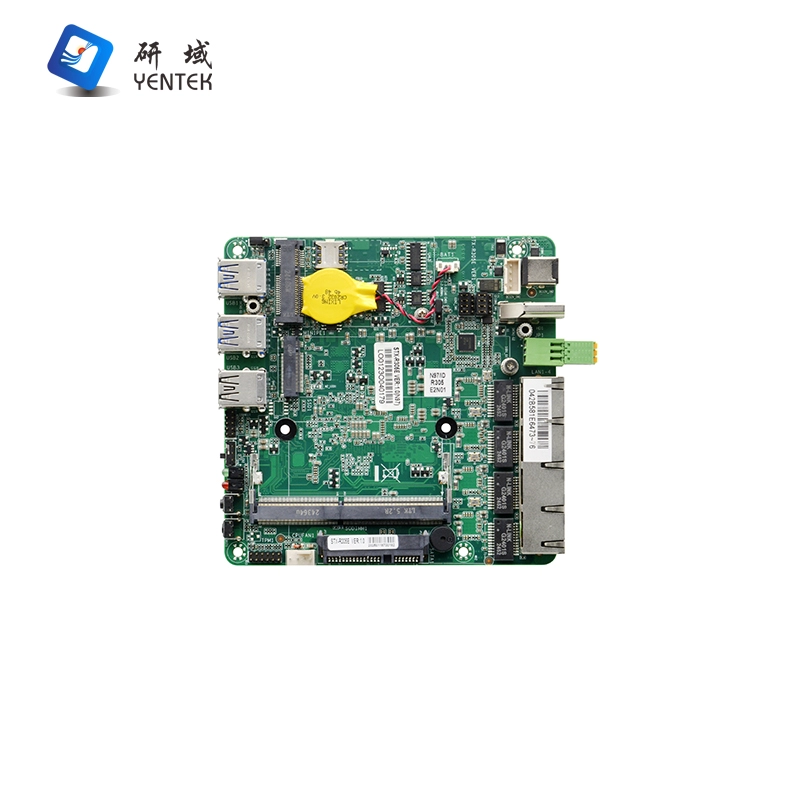

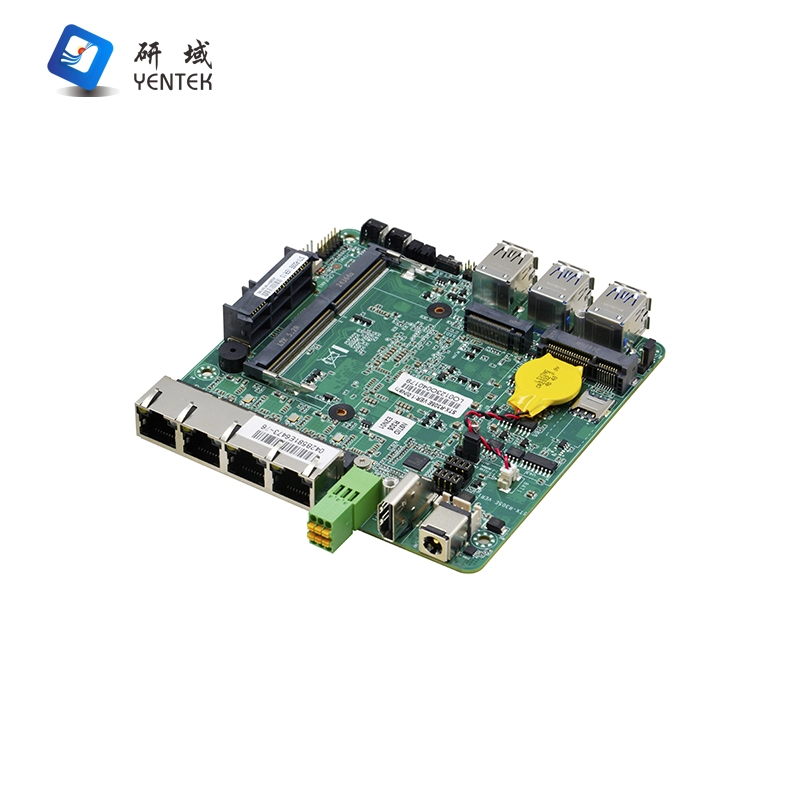

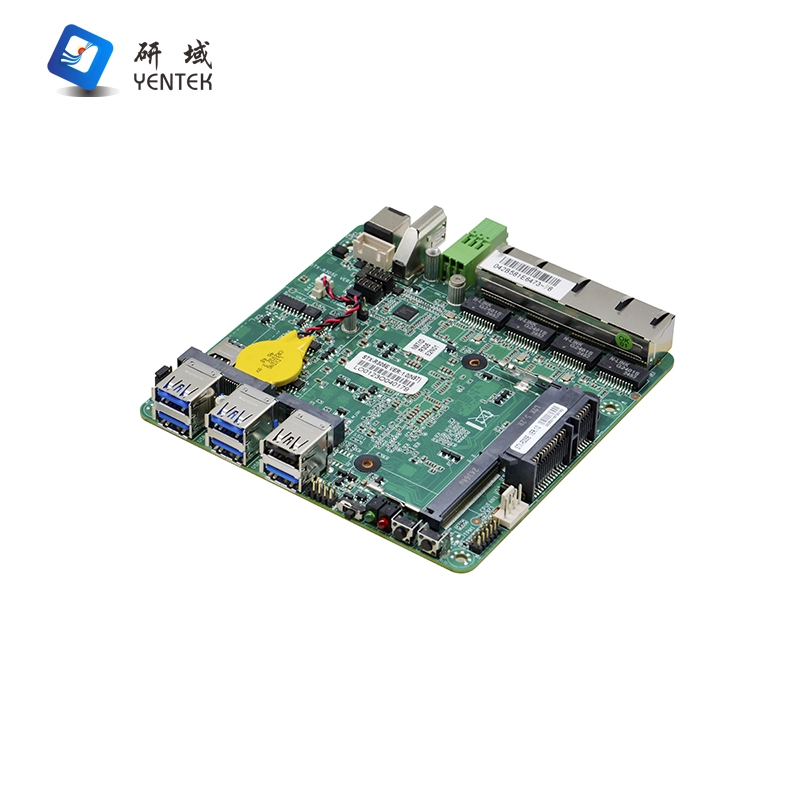

STX-R305E

Processor

Integrated Intel® Alder Lake-N N97 3.6GHz Quad-Core Processor, TDP 12W

Compatible with Intel® Alder Lake-N full series CPU, flexible for   customers to choose

Chipset

SOC

Memory

1* SODIMM slot, support single channel 3200MHz DDR4 memory, maximum   support 16GB

Display

Integrated Intel® UHD Graphics Support DirectX 12 OpenGL 4.5, support 4K

1* HDMI1.4 interface, support for the highest resolution: 4096X2304@24Hz

Network

4* Intel I210AT Gigabit NIC chip, support for Wake-on-LAN/PXE

Storage

1* M.2 slot, support for M.2 2280 NVME PCIE3.0 X1/SATA Adaptive SSD

1* 2.5" SATA HDD bay for direct HDD installation

Audio

N/A

Expansion

1* MINI-PCIE slot, support WIFI/4G module

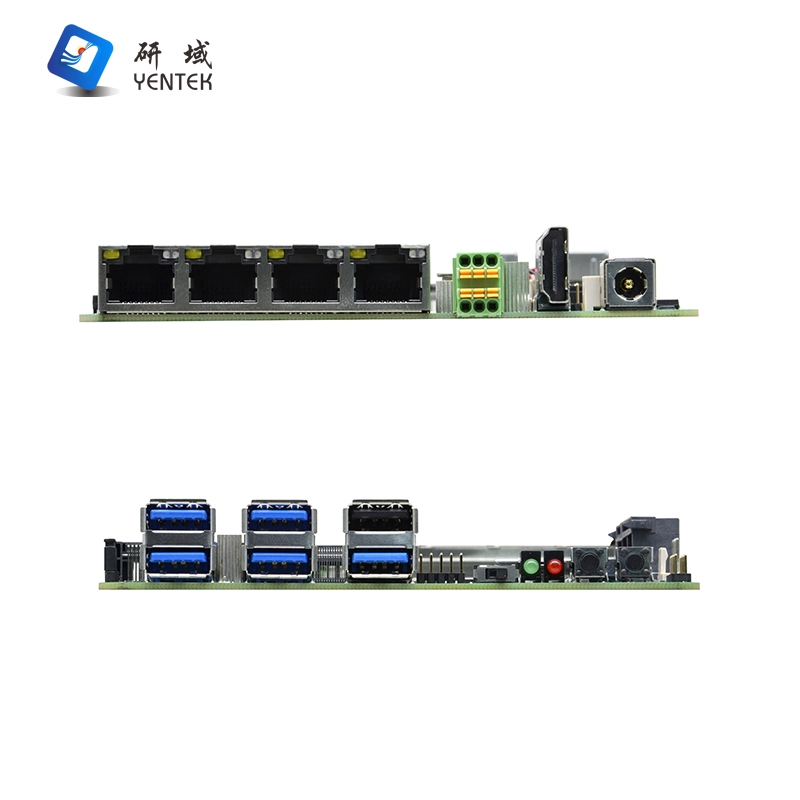

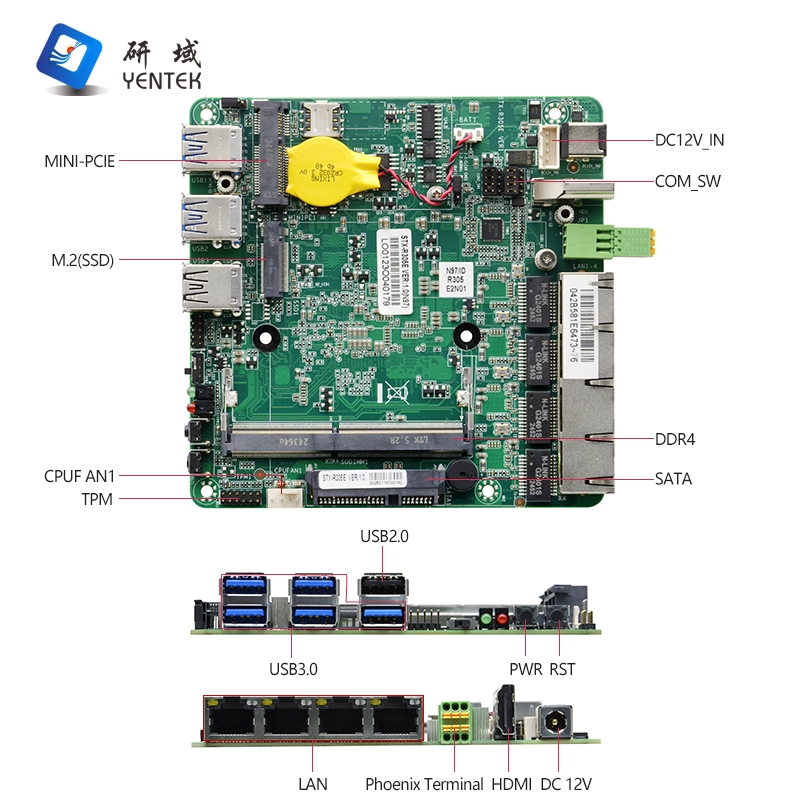

Rear I/O Ports

4* RJ45 Gigabit network interface

1* DC12V power input interface

1* HDMI1.4 interface

1* Phoenix Terminal 2*3pin,PH=2.54mm,support 2 serial ports, and Serial   port support RS232/485

Front I/O Ports

5* USB3.0,1*USB2.0

1* Power on/off control switch

1* Power Indicator, 1* HDD Indicator

1* Power Switch, 1* Reset Switch

Built-in I/O Ports

1* DC Power Connector 1*4pin, support 12V power input/output

1* TPM Connector 2*6pin

1* Front Panel Function Buttons and Indicator Interface 2*5pin

1* SIM Card Holder 1*4pin SIM card holder

Fan Ports

1*4pin CPU smart fan interface

GPIO

N/A

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10 /Windows 11/Linux

Power Type

DC 12V single power supply input

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Operating Humidity

5%-95% relative humidity, no condensation

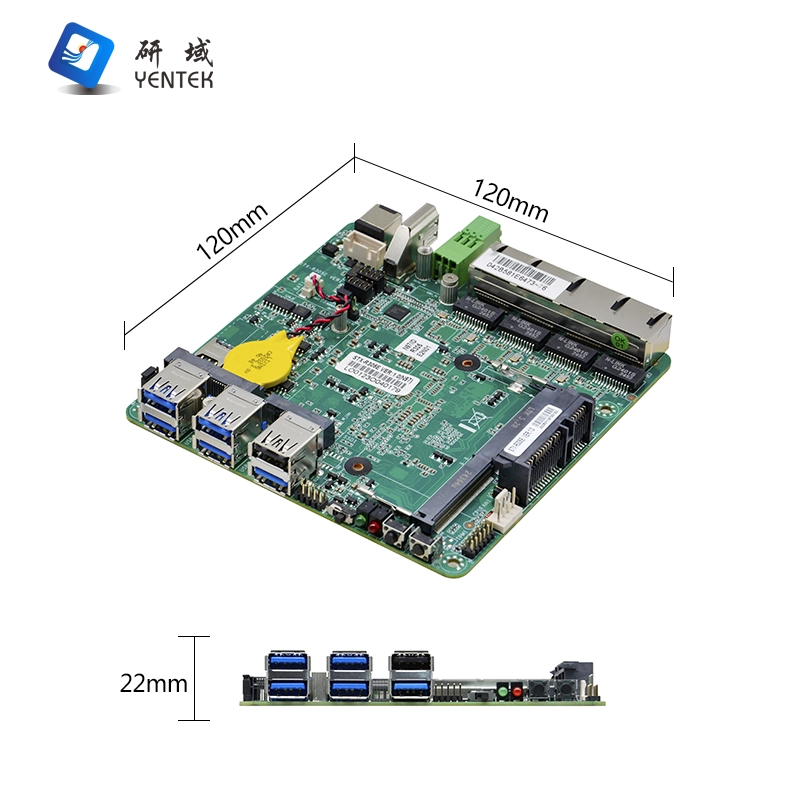

Dimensions

120mm x 120mm

1

STX-R305E VER:1.0

N97

3.6G

1*SODDR4

/

1

/

/

4*I210AT

6

2

2

DC12V
