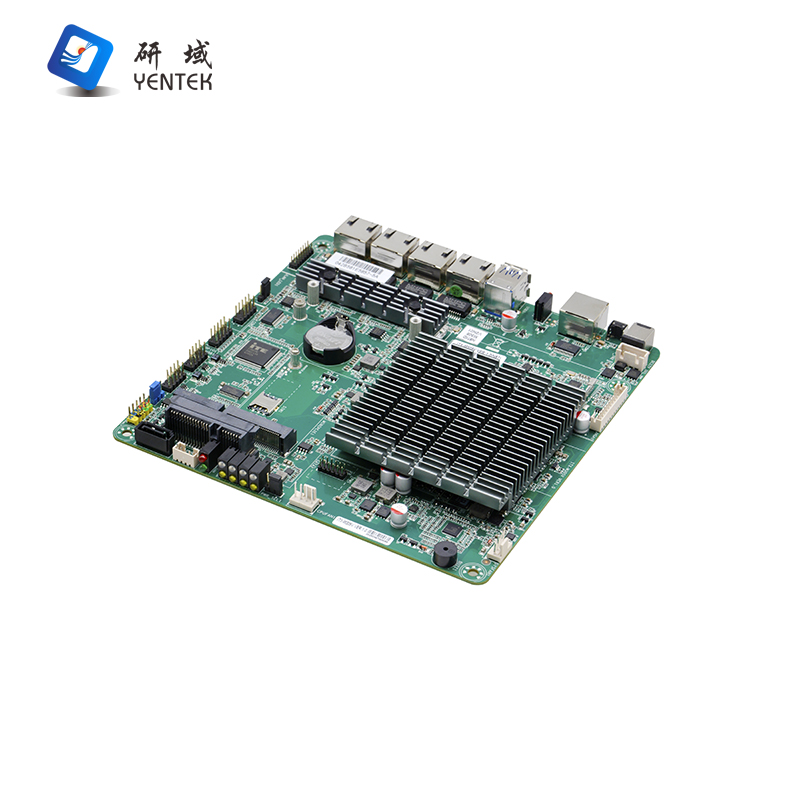

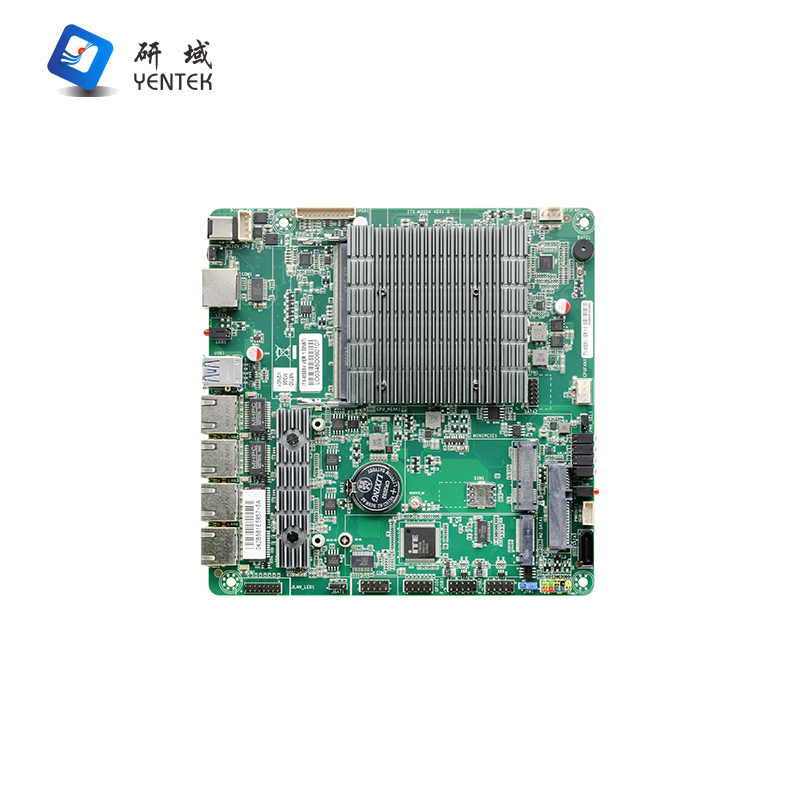

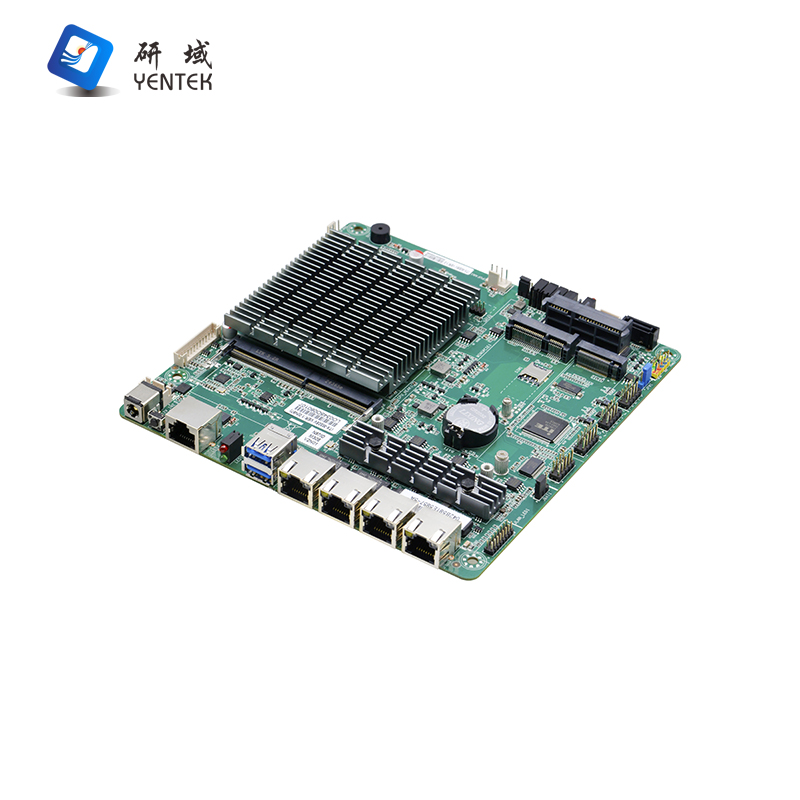

ITX-M305V

Processor

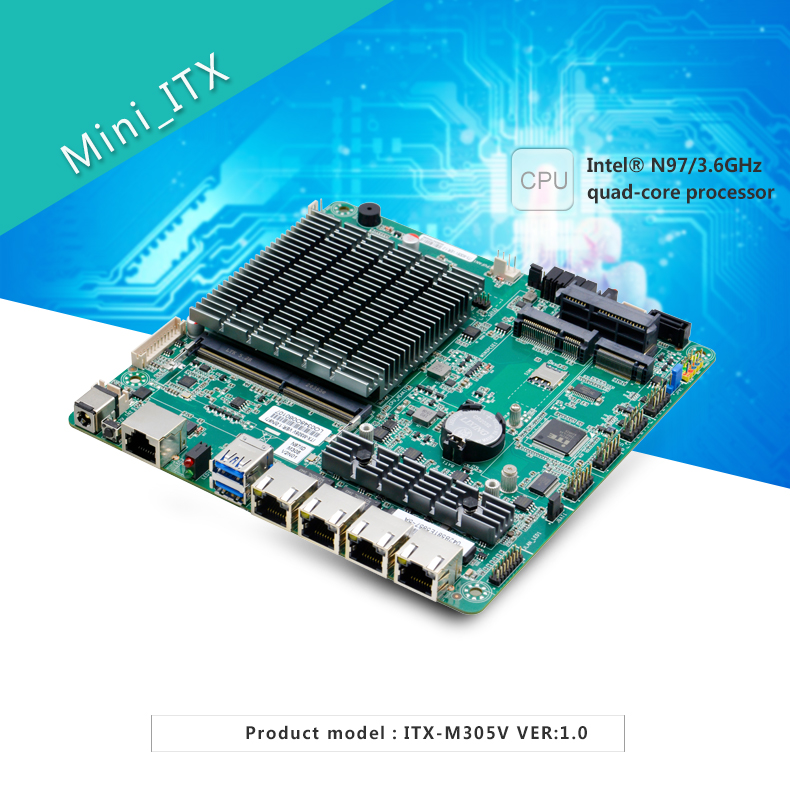

Integrated Intel® Alder Lake-N N97 3.6GHz Quad-Core   Processor, TDP 12W, with a wide range of CPU options

Compatible with the full range of Intel® Alder Lake-N CPU for   flexible customer selection

Chipset

SOC

Memory

1* SODIMM slot, support single-channel   3200MHz DDR4 memory up to 16GB.

Display

Integrated Intel® UHD Graphics, 1* VGA display output

Network

4* Intel I225V Gigabit LAN card, support   Wake-on-LAN and PXE function.

Storage

1* SATA 2.5-inch notebook hard drive   bay, can be installed directly on the hard drive, transfer speed up to 6Gbps

1* Standard 7PIN SATA hard drive   connector (with 2.5-inch hard drive bay for adaptive either one)

1* M.2 slot, support M.2280 NVME PCIE   X1/SATA adaptive SSD

Expansion Slots

1* MINIPCIE slot, support WIFI/4G module

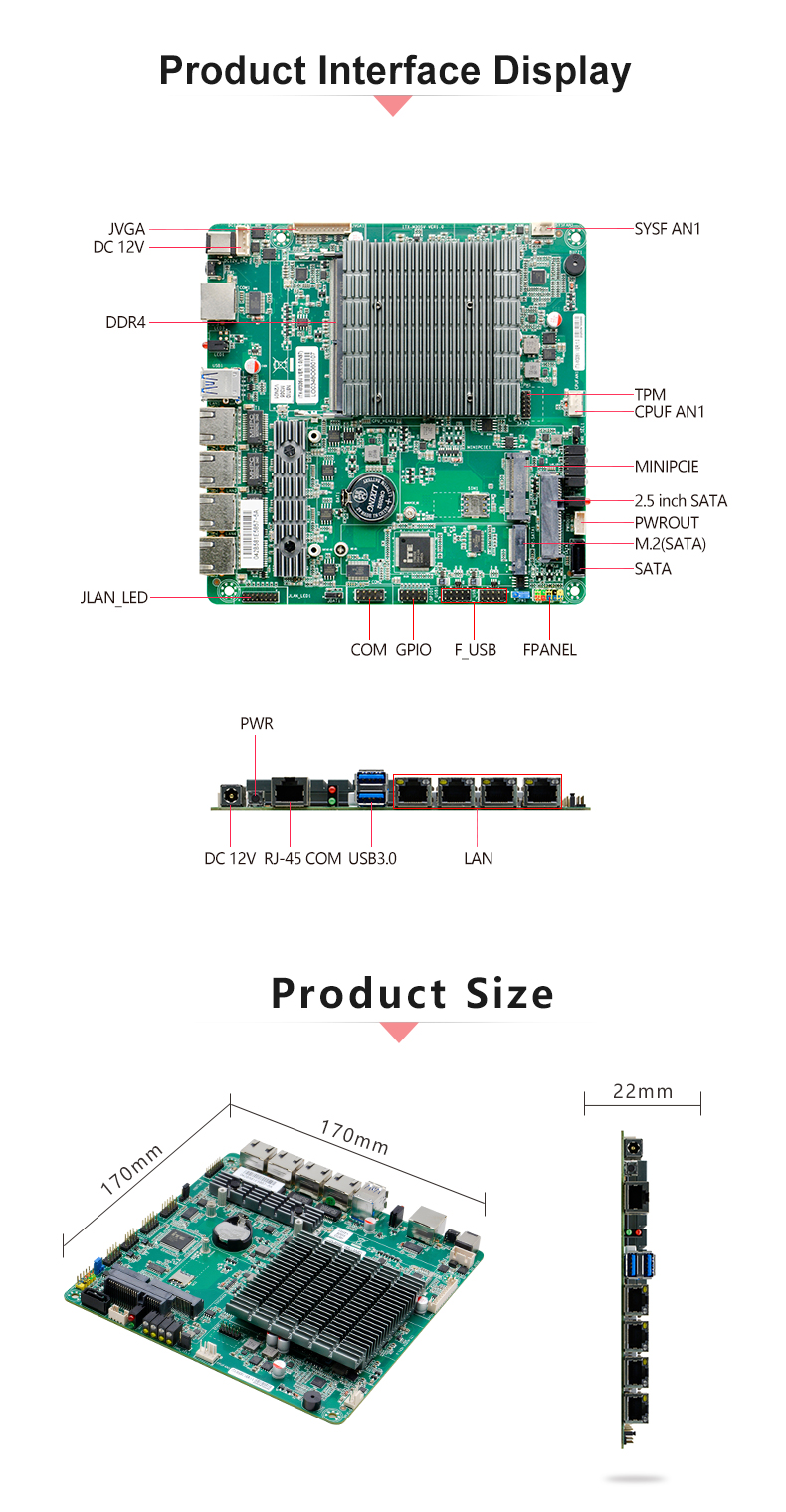

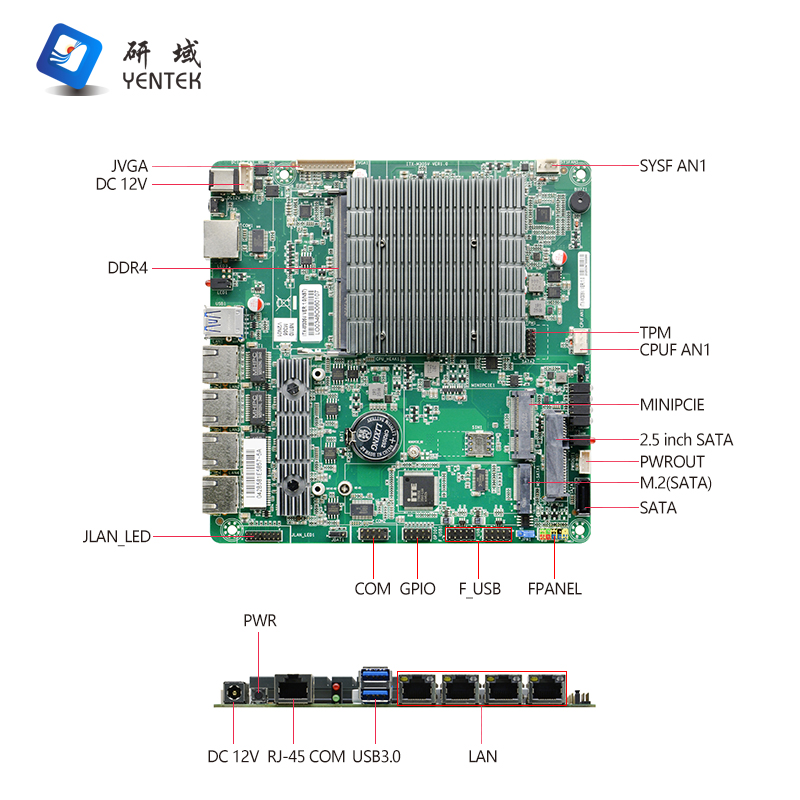

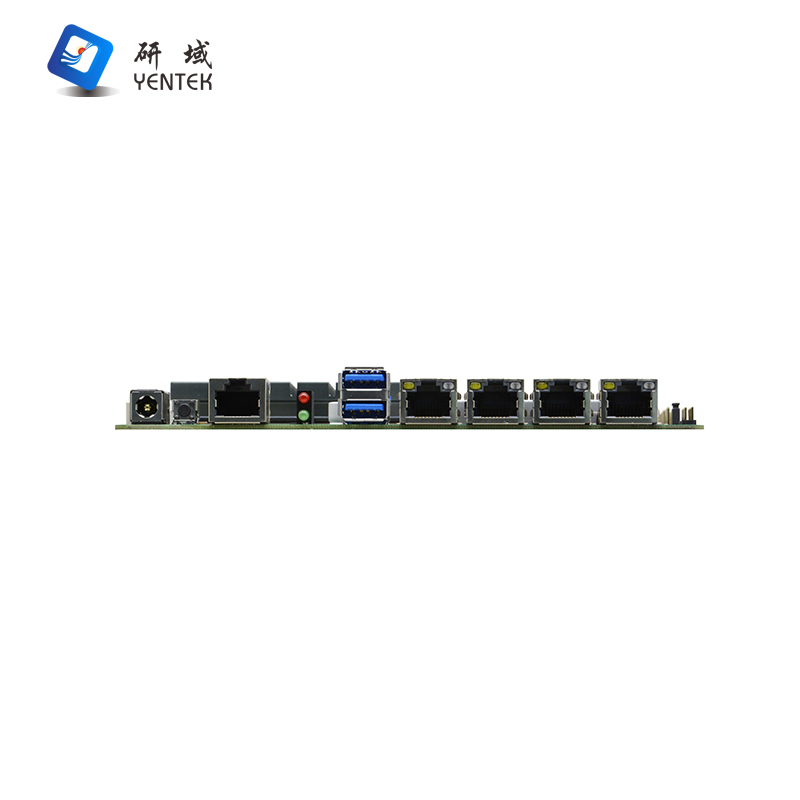

Backplane I/O Ports

1* 12V DC power input connector

4* RJ-45 Gigabit network interface

1* CISCO standard RJ-45 serial port

2* USB 3.0 interface

1* Power switch

2* Hard Disk Indicator, 2* Power Indicator

4* Network Indicator, 4* Network Data   Transfer Indicator

Built-in I/O Ports

1* 4pin DC power connector (can be 12V   input/output power connector)

1* RS232 serial port 2*5pin

4* USB 2.0 interface 2*5Pin

1* JVGA interface 1*12Pin

1* Network indicator 2*8Pin

1* Front Panel Switch Button and   Indicator Interface 2*5Pin

1* HDD power supply connector 1*4pin

1* SIM card holder

Fan Interface

Fanless cooling design, reserved 1*4pin CPU fan interface,   1*4pin system fan interface

GPIO

Support 4 input/output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/11/Linux

Power Supply Type

Adopt DC 12V power supply

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

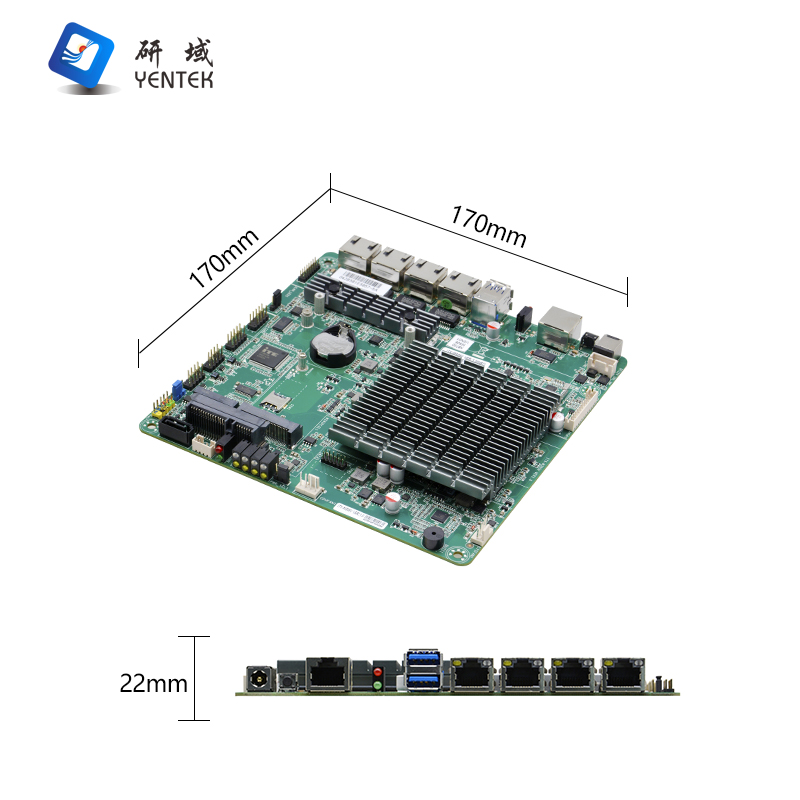

Dimension

170mm x 170mm
