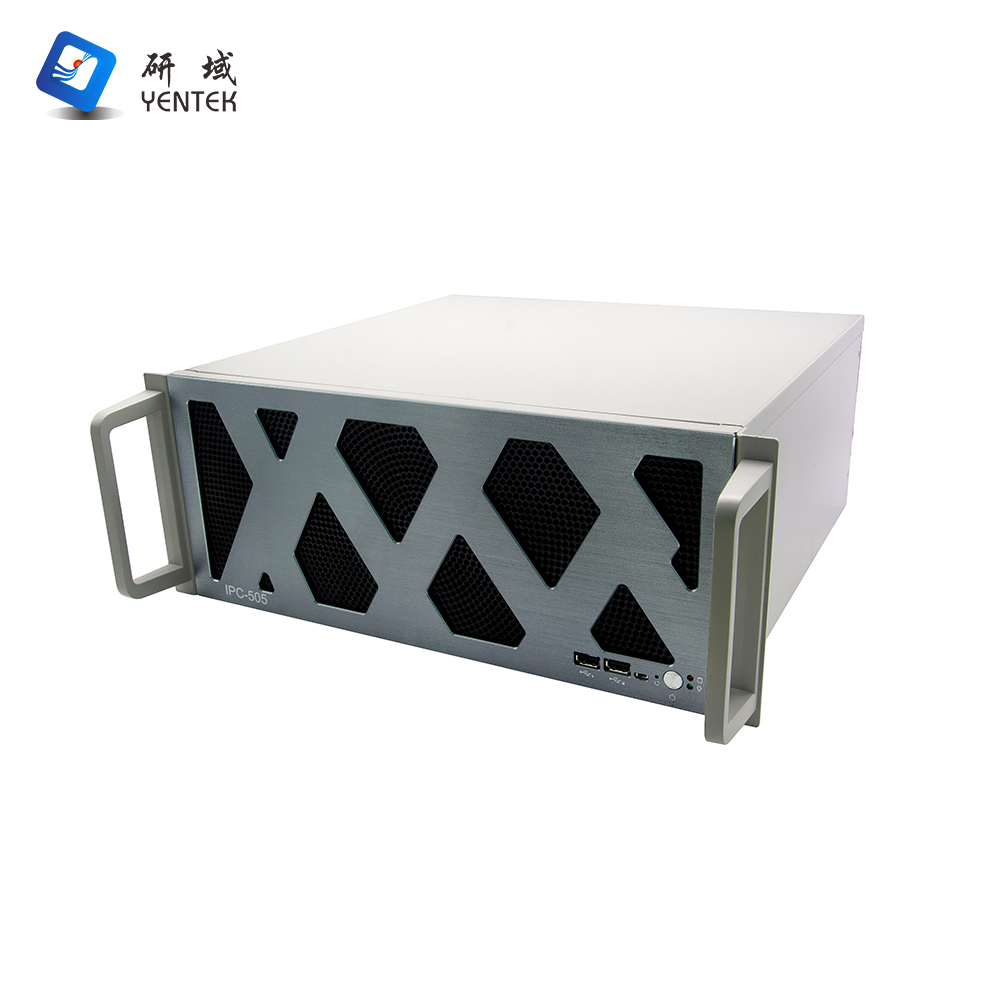

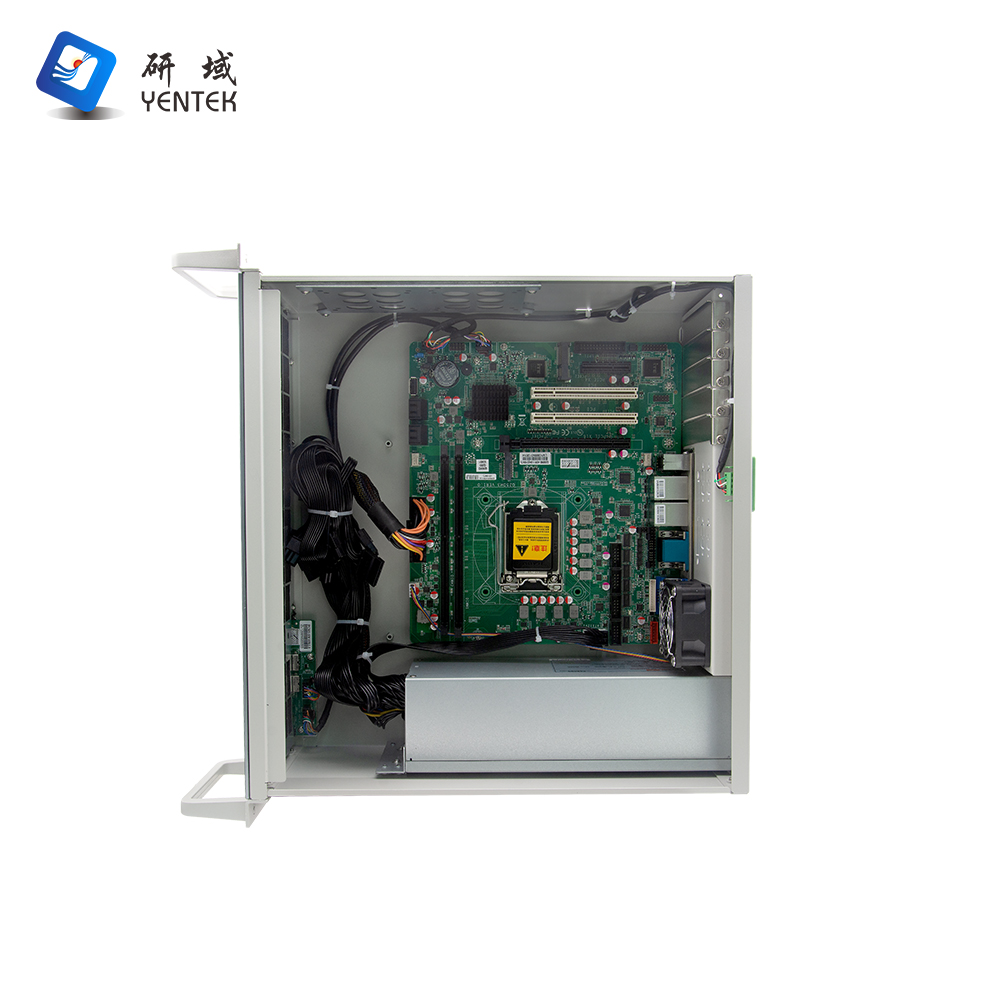

IPC-505Z

Chassis

Material/structure

Galvanised steel sheet material

Color

Iron grey

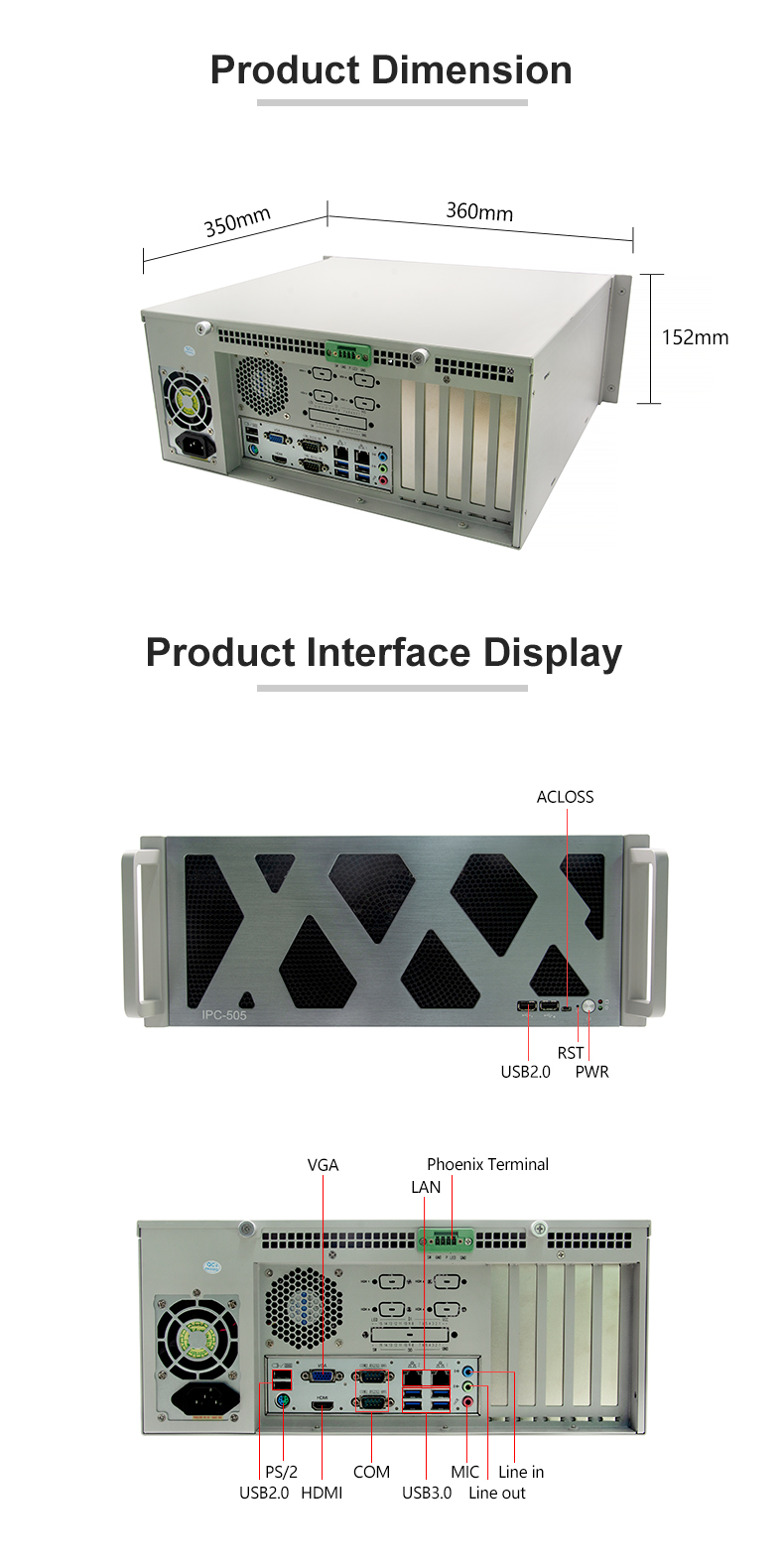

Size (LWH)

360mm*350mm*152mm

Weight (bare net)

7.60KG

Installation

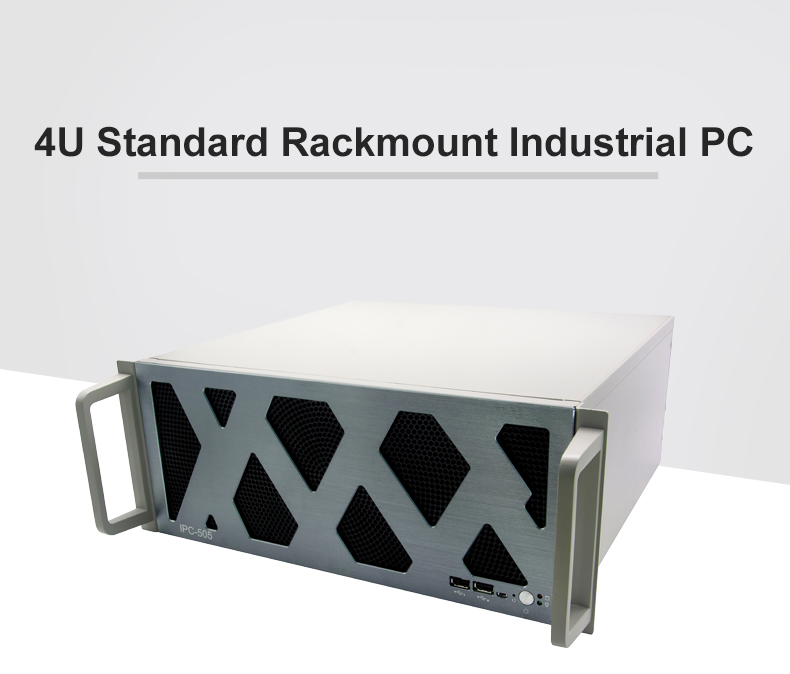

Desktop/4U Rackmount

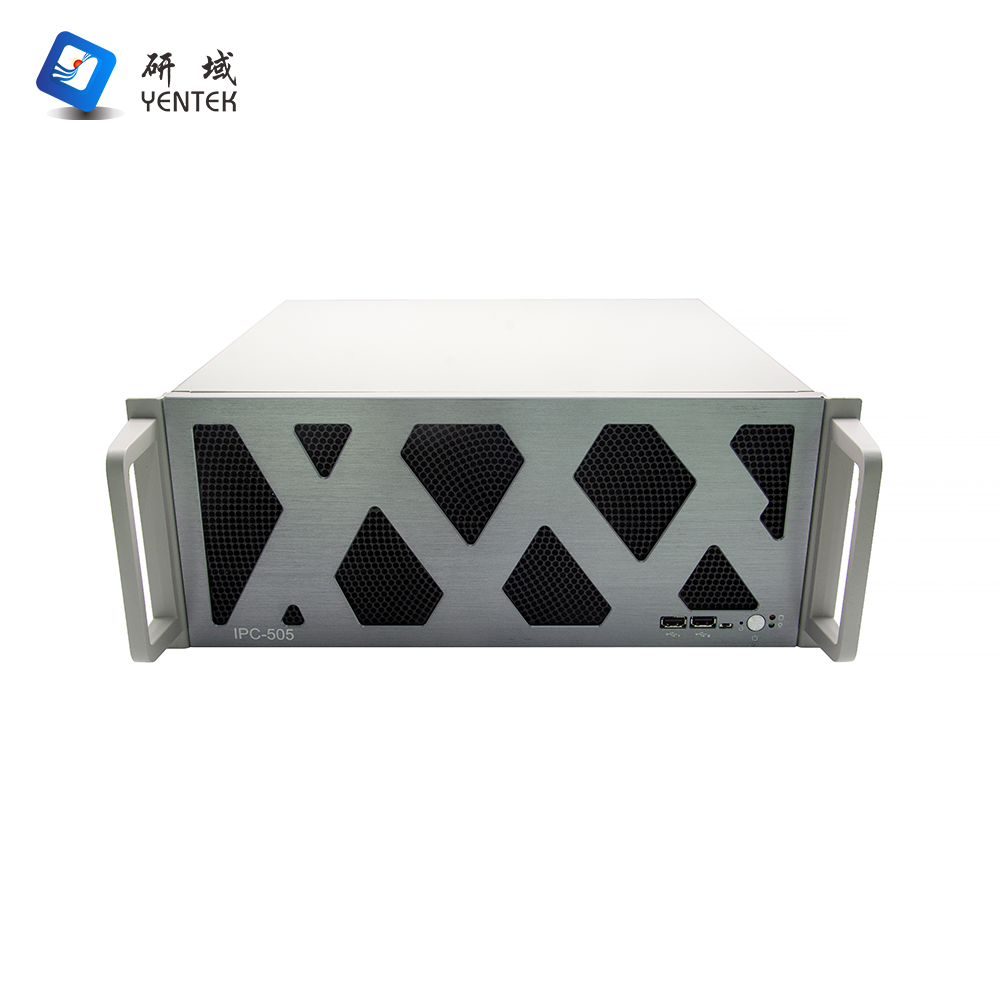

Front Panel Connectors

POWER

1*Power on key, 1*Reset key

LED

1*Power Indicator, 1*Hard Drive Indicator

USB

2*USB2.0

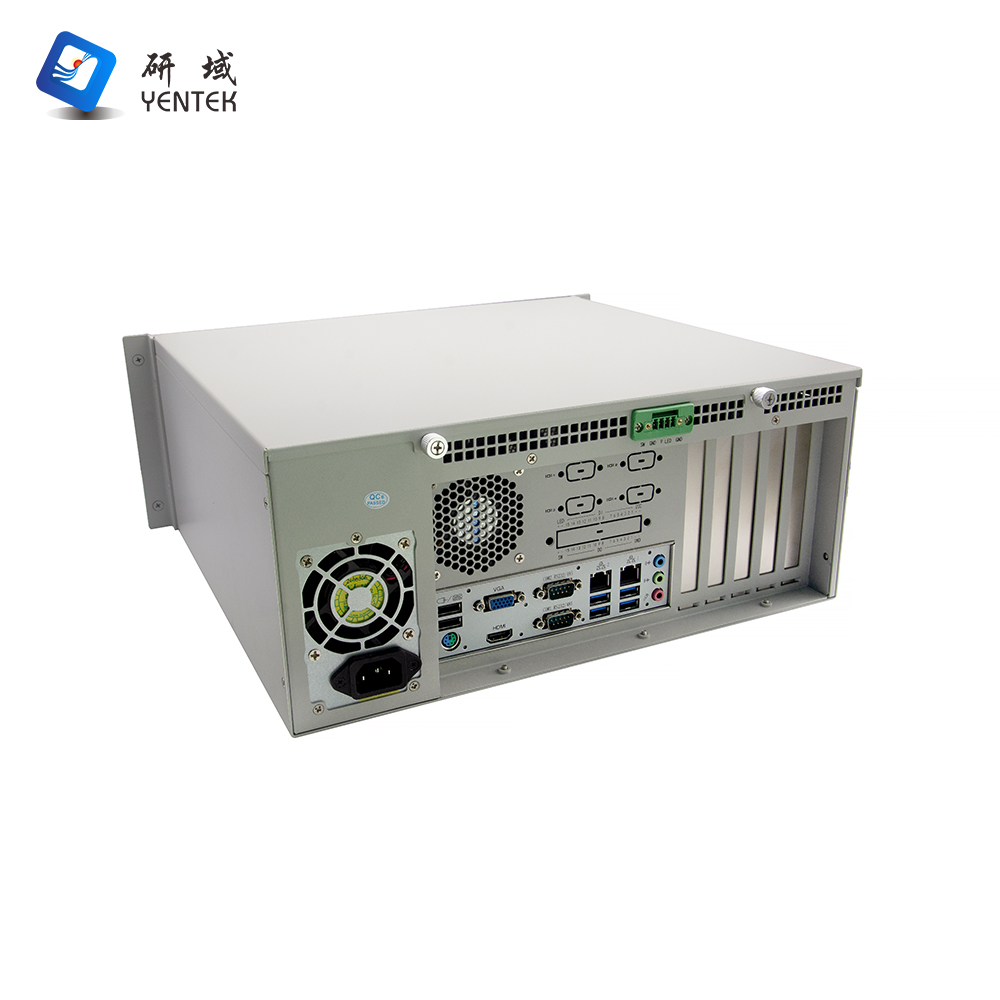

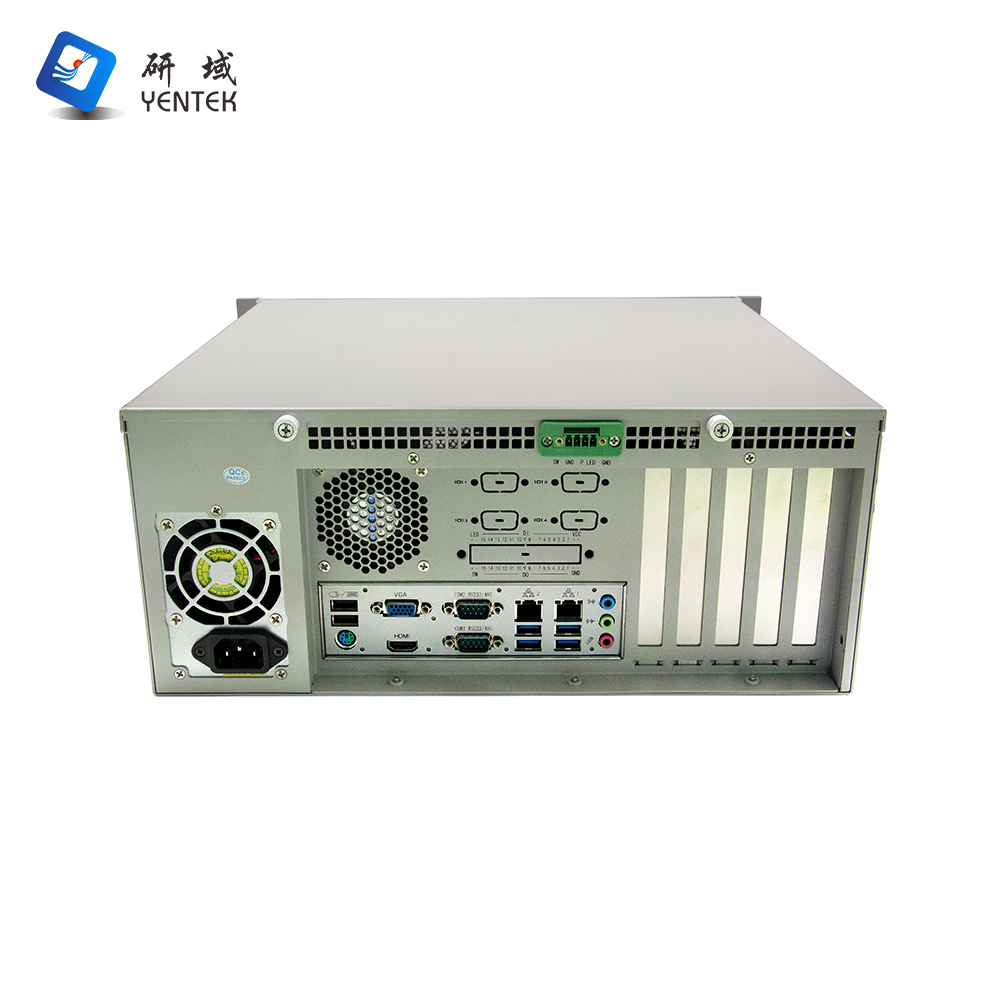

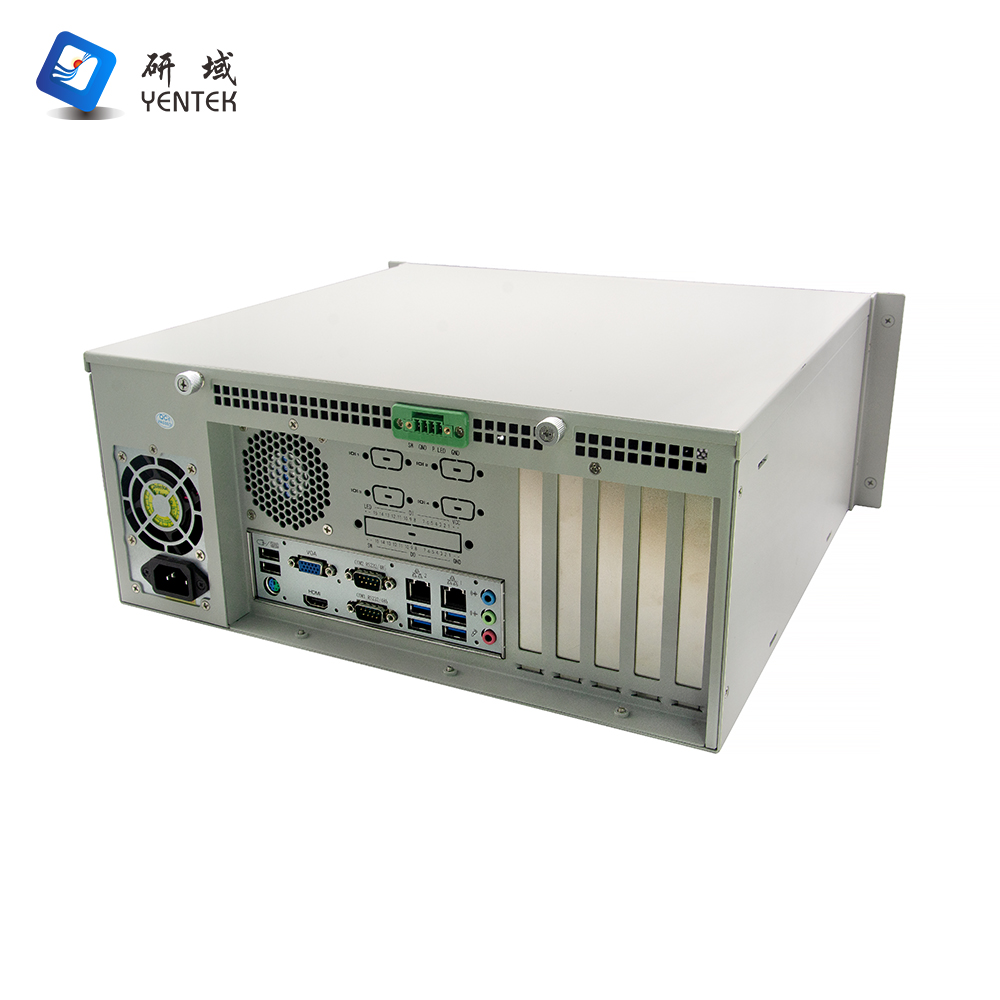

Rear Panel Connectors

Display Interface

1*VGA, 1*HDMI, support dual display

LAN

2*RJ45

USB

8*USB (USB3.0/2.0 number according to the motherboard)

Phoenix Terminal

1*4P Phoenix terminal (including 1*power indicator/1*boot signal)

PS/2

1*PS/2 keyboard and mouse interface

Audio

1*Line out, 1*MIC, 1*Line in

Storage

SATA

1*3.5" inch HDD bay or 1*2.5" inch HDD bay

Expansion

PCIE/PCI

Support 4 standard PCIE/PCI expansion

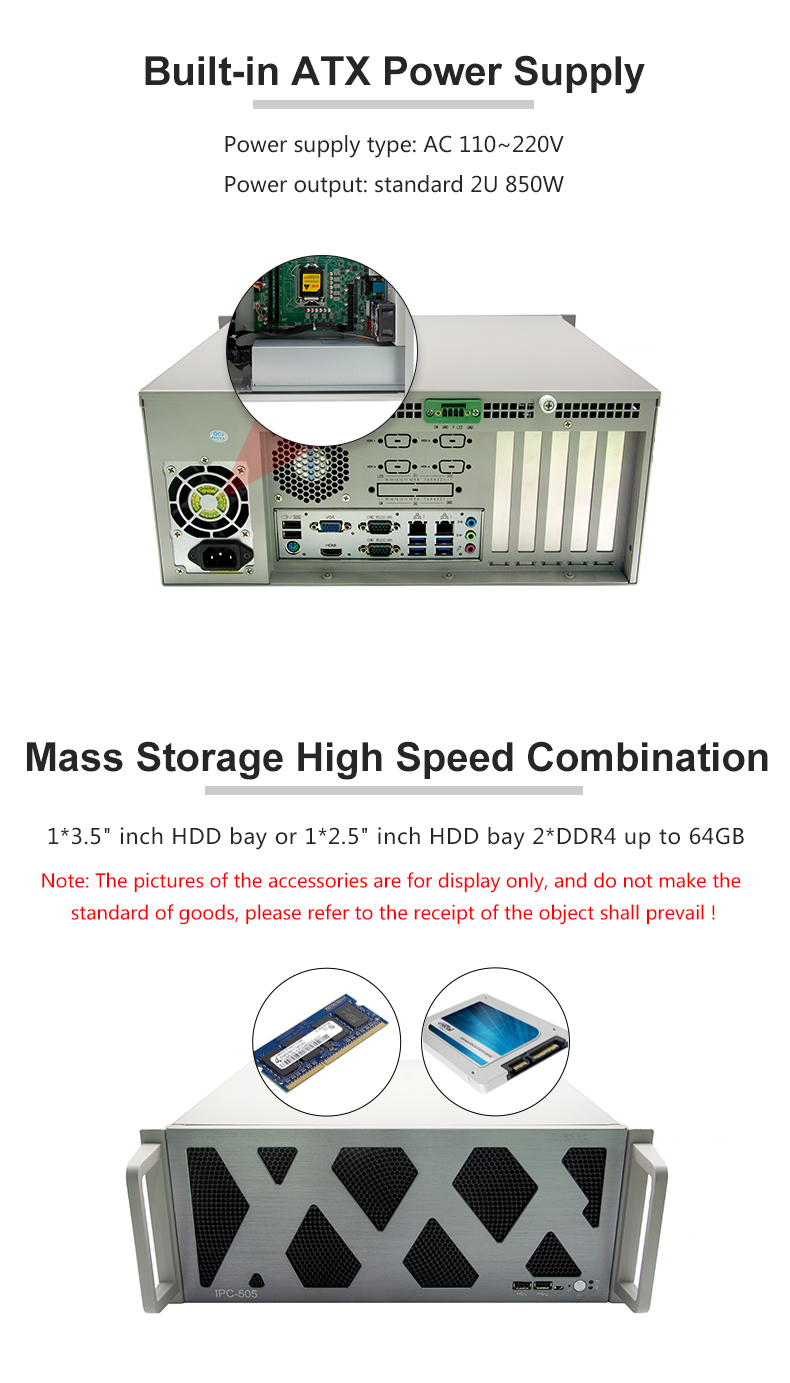

Power Requirements

Power Type

AC 110~220V

Power Output

Standard 2U 850W

Environment

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating

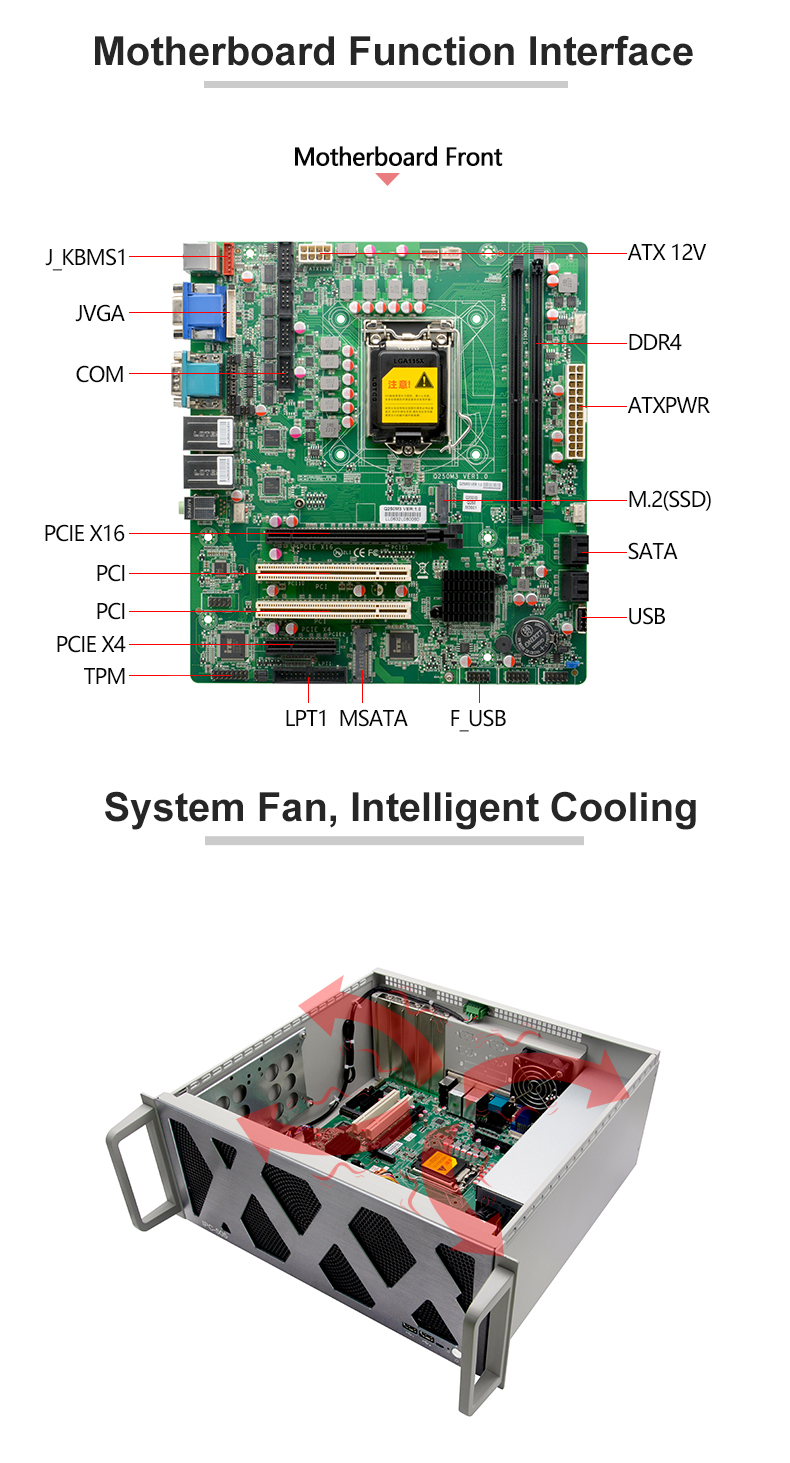

1

IPC-505Z V1.0(B75M3)

LGA1155

2*DDR3

B75M3

IPC505-SW

2

1

1

4

4

6

2U power

2

IPC-505Z V1.0(Q77M3)

LGA1155

2*DDR3

Q77M3

IPC505-SW

2

1

1

4

4

6

2U power

3

IPC-505Z V1.0(Q85M3)

LGA1150

2*DDR3

Q85M3

IPC505-SW

2

1

1

4

4

6

2U power

4

IPC-505Z V1.0(Q86M3)

LGA1150

2*DDR3

Q86M3

IPC505-SW

2

1

1

4

4

6

2U power

5

IPC-505Z V1.0(Q250M3)

LGA1151

2*DDR4

Q250M3

IPC505-SW

2

1

1

4

4

6

2U power
