| Model number | IPC-505MS V1.0(W680MS) | |
| Chassis | Material/Structure | Galvanized Steel Material |
| Colour | Iron gray | |

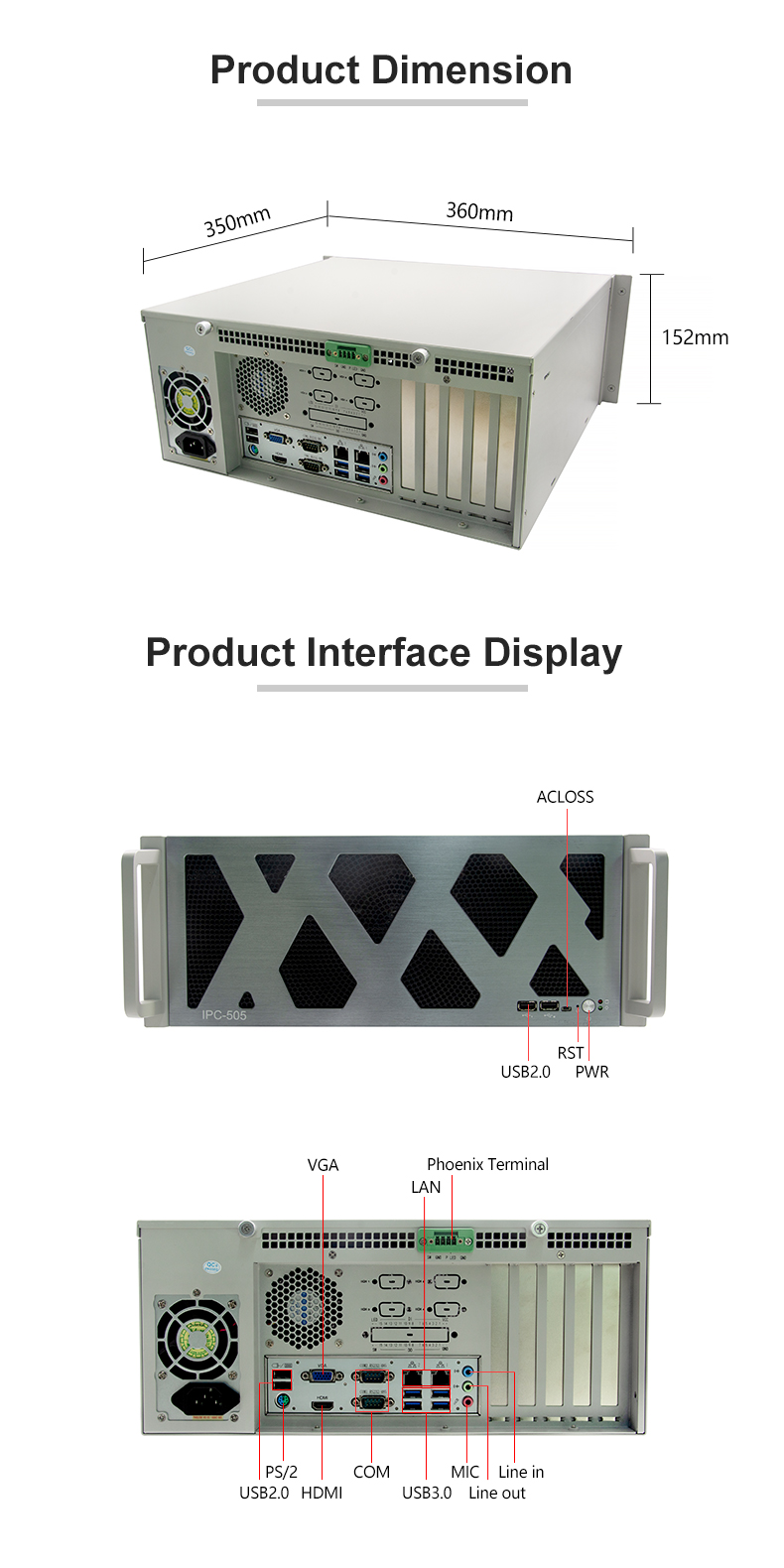

| Dimensions | 360mm*350mm*152mm | |
| Weight (bare weight) | 7.60 KG | |

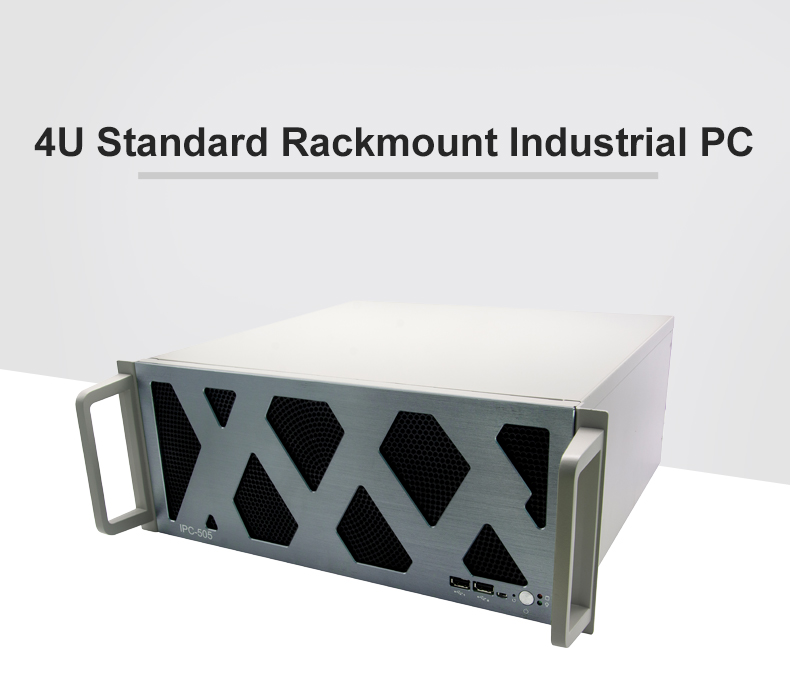

| Install | Desktop /4U rack type | |

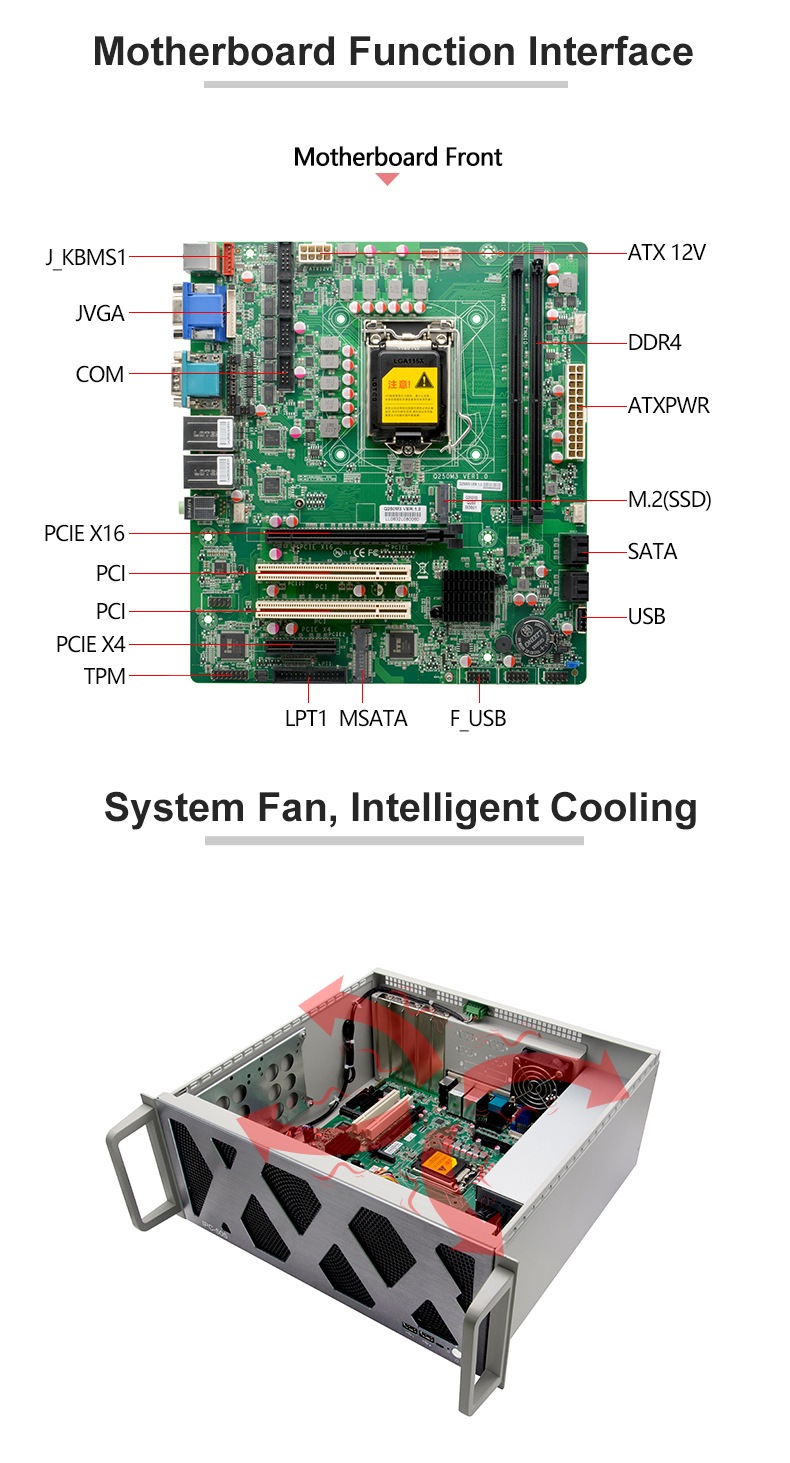

| Main board | CPU | Supports Intel LGA1700 12th/13th Intel Celeron/Pentium/Core i3/i5/i7/i9 processors |
| System chip | Intel W680 high-speed chipset | |
| Reveal | Integrated Intel® HD Graphics Graphics control | |
| Internal memory | 2 * SODDR4 DIMM slots, supporting a dual-channel maximum of 3200MHz, 128GB, and ECC | |
| Front panel interface | POWER | 1* Power button, 1* Reset button, 1*ACLOSS(Power on DIP switch) |
| LED | 1* Power indicator, 1* hard disk indicator | |
| USB | 2 * USB2.0 | |

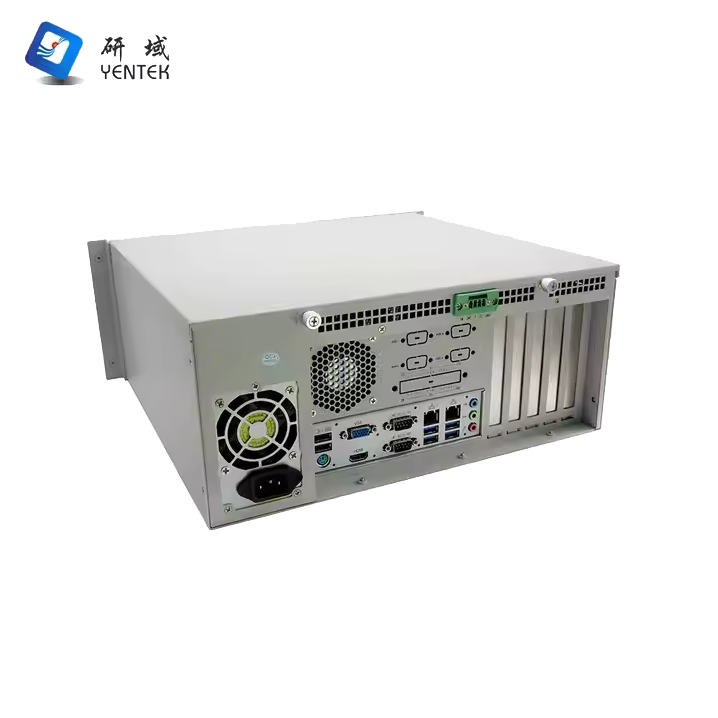

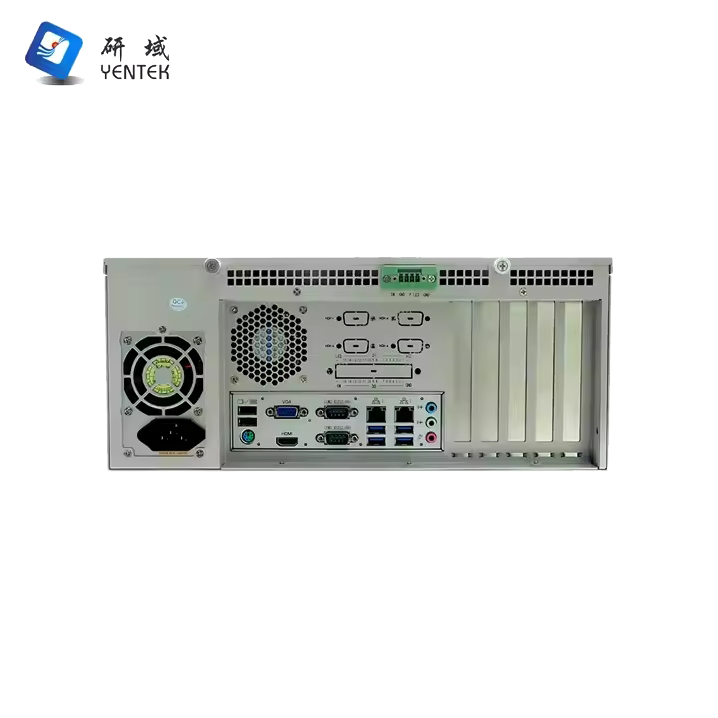

| Rear panel interface | Display interface | 1*VGA, 1*HD OUTPUT1.4 |
| USB | 10*USB3.2 Gen2x1, 10Gbps | |
| LAN | 7*Intel I210 Gigabit network cards, six of which support POE | |
| PS/2 | 1*PS/2 keyboard and mouse interface | |
| Audio frequency | 1*Line out, 1*MIC | |
| Phoenix terminal | 1*4pin Phoenix terminal (Power indicator/Power on signal) Two groups of 2*10pin Phoenix terminals, supporting DIO 16 in and 16 out tape isolation | |
| Power source | 1*AC power input port | |
| Store | SATA | 1 * 3.5" hard disk or 1 x 2.5" hard disk |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2/SSD: Key-M, 2280, NVME PCIEx4 SSD | |
| Extend | PCIE x16 | 1* PCIE4.0x16 |
| PCIE x4 | 2* PCIE4.0x4 | |
| PCIE x1 | 1*PCIE4.0 x1 | |
System support | Windows | Windows 10/11 |
| Linux | Ubuntu | |

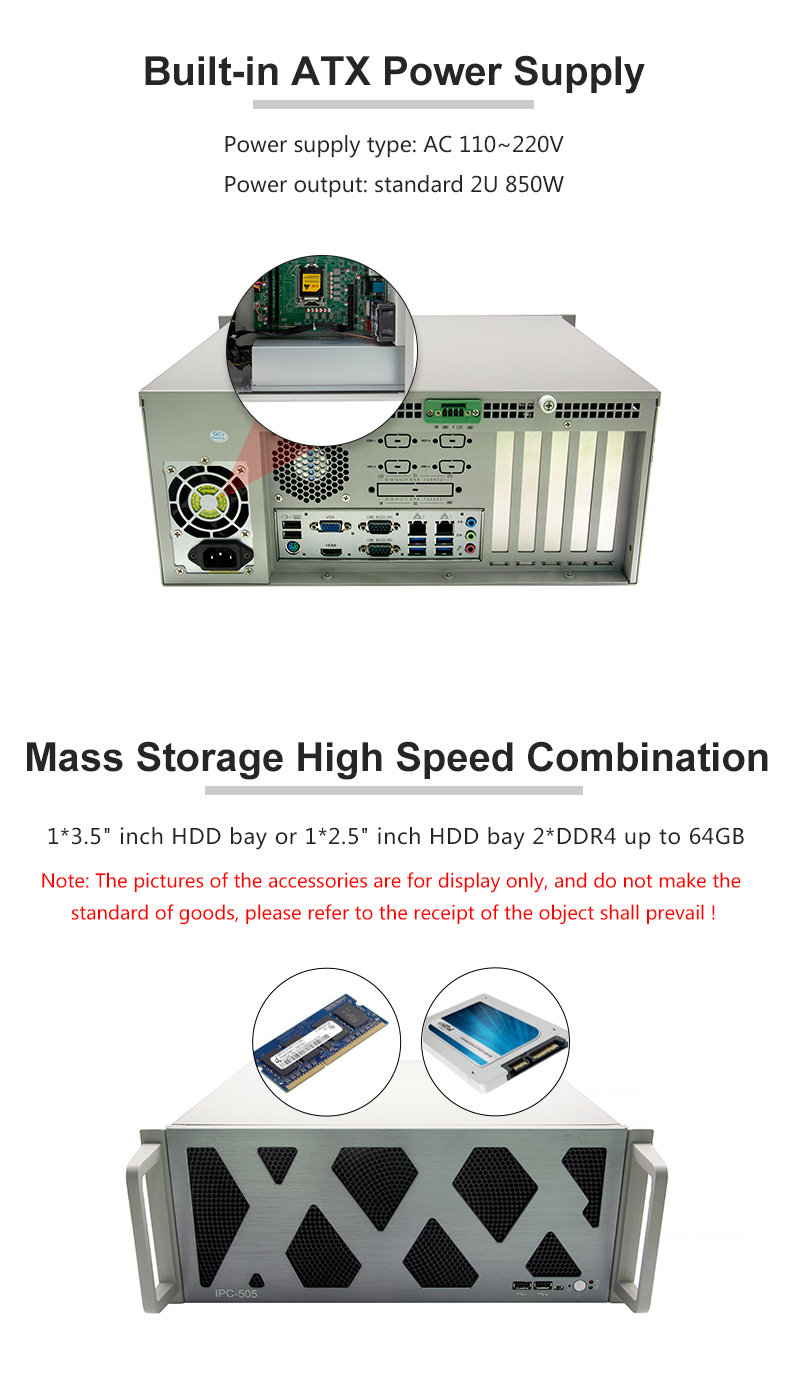

| Power demand | Power supply type | AC 110-220V |
| Power output | 2U 850W as standard | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | IO Board | LAN | HD OUTPUT | COM | VGA | USB2.0 | USB3.2 | Power |
| 1 | IPC-505MS V1.0(W680MS) | LGA1700 | W680MS | 2*SODDR4 | W680MS-POE/MS-GPIO/IPC505-SW | 7 | 1 | 4/Optional | 1 | 2 | P10 | 2U |
