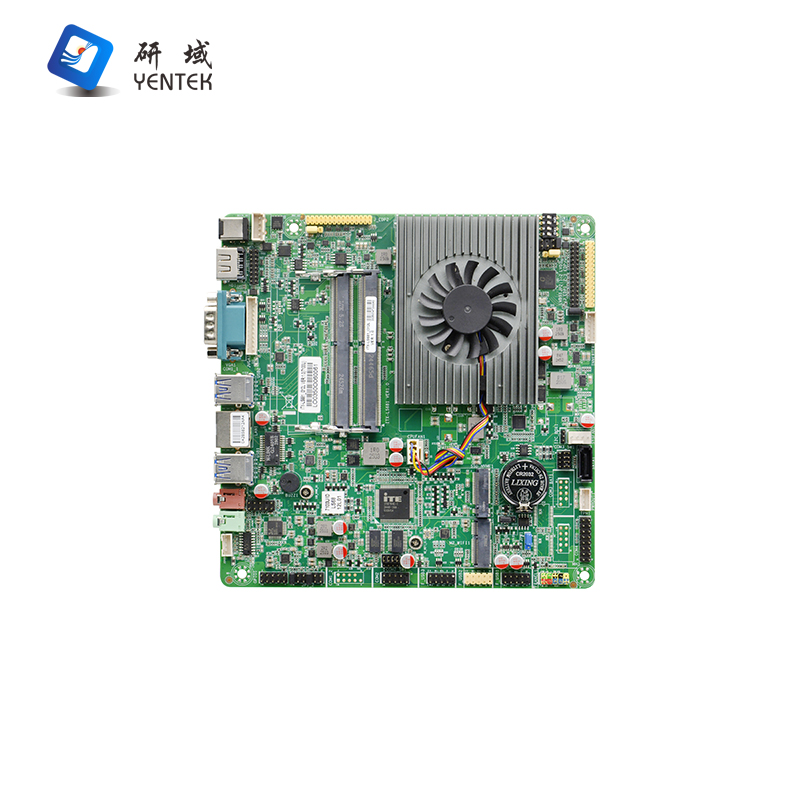

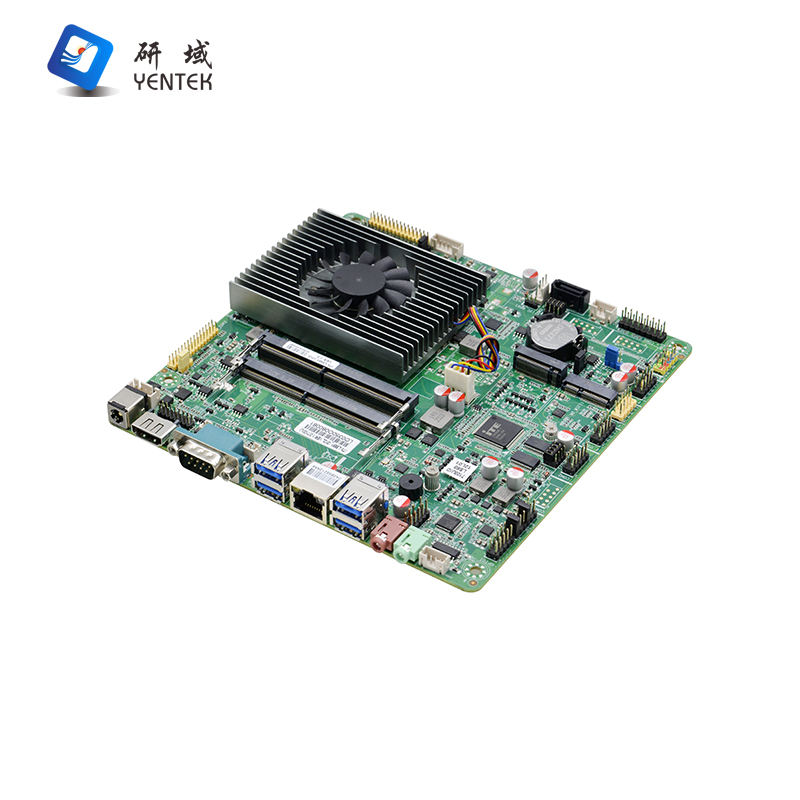

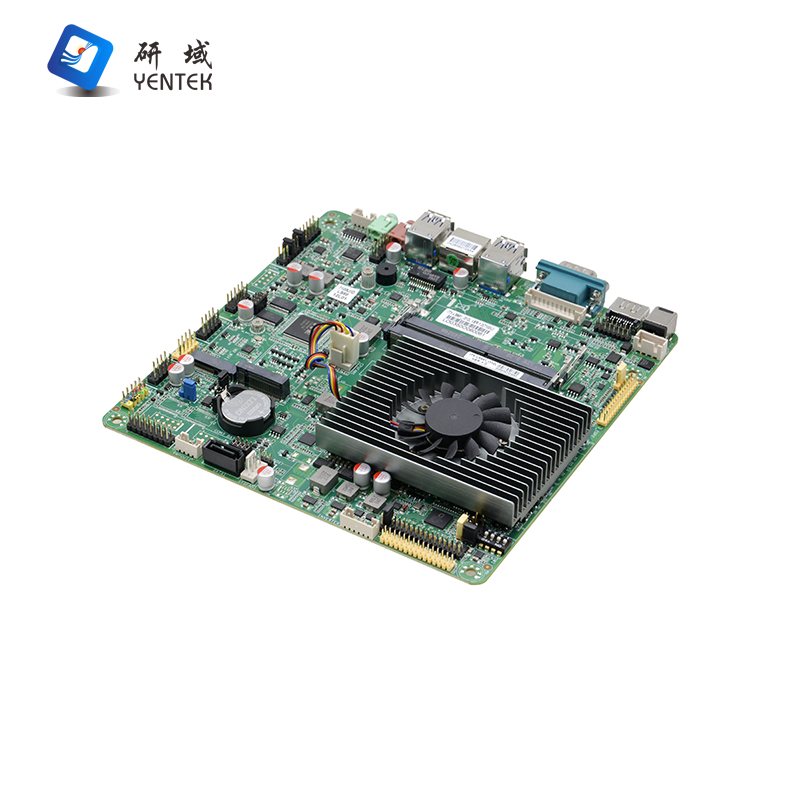

ITX-LS681_I312L

Processor

Integrated Intel® I3-7100U   2.4GHz Dual-Core Quad-Thread Processor, TDP 15W

Compatible with Intel®   Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 Low Power Processors

Chipset

SOC

Memory

2*DDR4 SODIMM memory slots,   supports 2133MHz memory up to 32GB

Display

Integrated Intel® HD Graphics   620, support DirectX 12, OpenGL 4.5, support 4K

1*VGA interface, support for   the highest resolution: 1920X1200@60Hz

1*HDMI1.4   interface, support for the highest resolution: 4096X2304@24Hz

1*Support dual-channel 24bit   LVDS interface

2*EDP interface, EDP1 and LVDS   interface is through the jump to choose one, VGA and EDP2 is through the jump   to choose one

Can support dual EDP display,   or LVDS + EDP display

Network

1* RTL8111H Gigabit LAN card, support Wake-on-LAN   and PXE function.

Storage

1* SATA3.0 hard drive   interface, transfer speed up to 6Gbps

1* M.2 slot, support for M.22280 NVMEPCIE X4/SATA SSD   specification

Audio

Integrated ALC897 7.1 +   2-channel hi-fi audio controller, support for MIC, Line_out, amplifier

Support amplifier 2Ω5W speakers

Expansion Slots

1* M.2 slot, support M.2 2230   WIFI/Bluetooth module

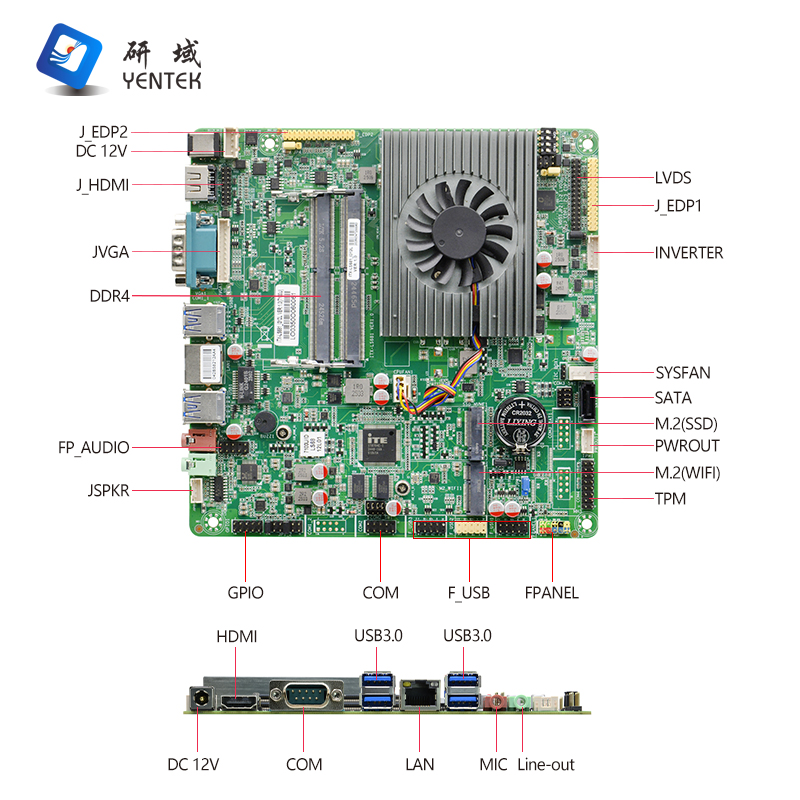

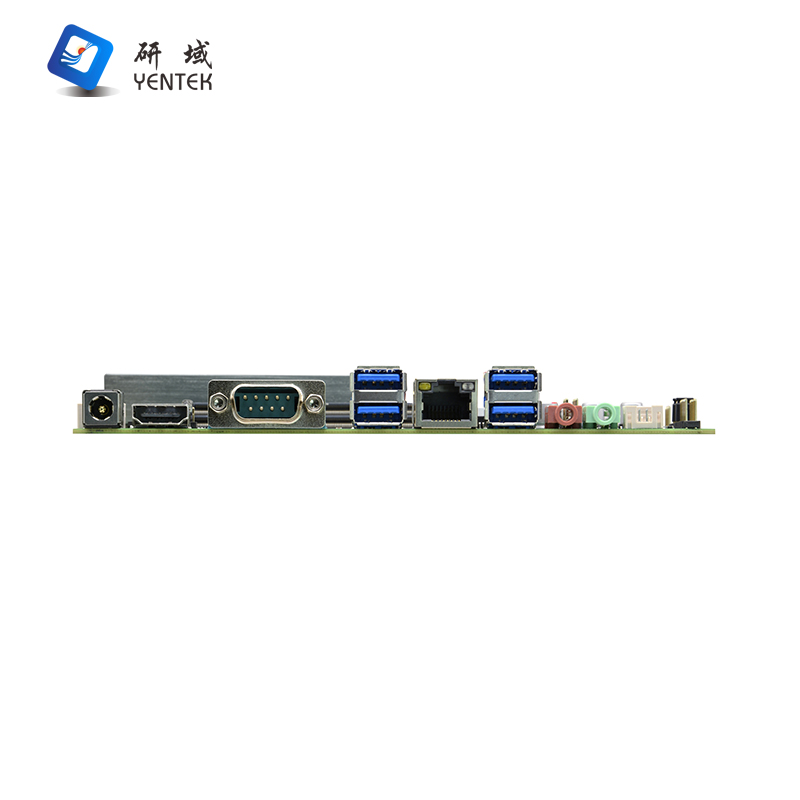

Backplane I/O Ports

4* USB3.0 interface

1* HDMI interface

1* DB9 RS232 serial port, and   DB15 VGA interface for two choose one

1* RJ45 Gigabit network   interface

1*Line-out (Green), 1*MIC (Red)

1*DC12V power supply Support 12V   power input and output

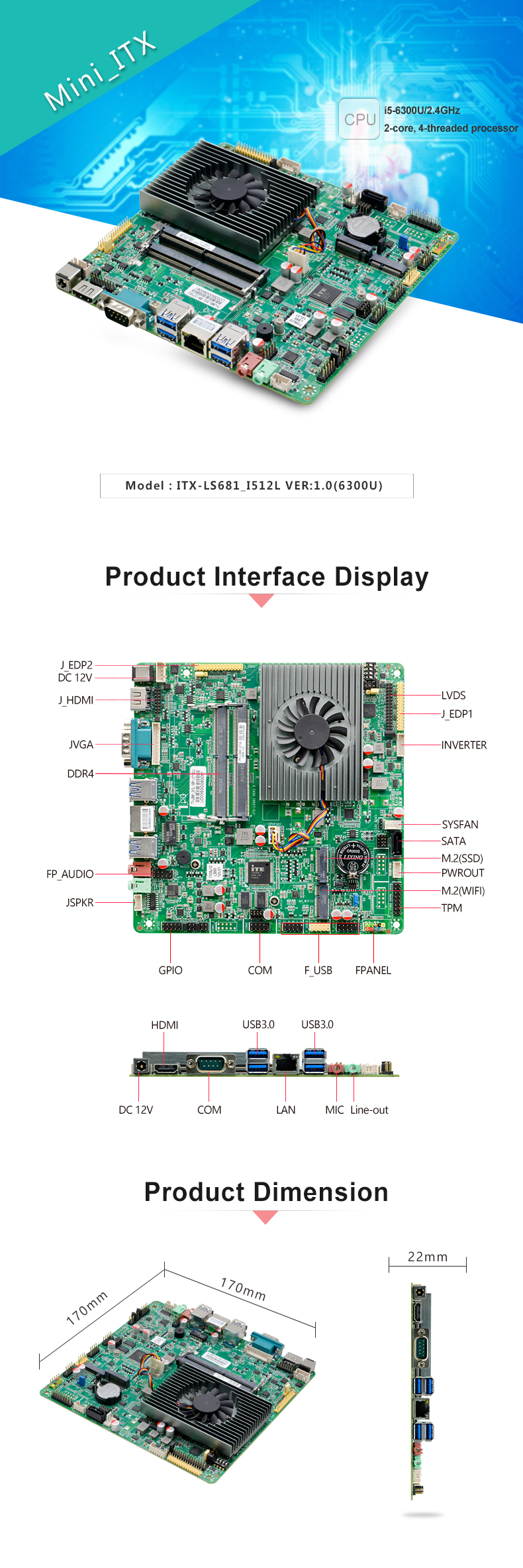

Built-in I/O Ports

1* JVGA1 interface 1*12pin   (with DB15 same signal)

1* JHDMI connector 2*8pin (same   signal as HDMI connector)

1* LVDS interface 2*15pin,   support dual-channel 24bit

2* EDP connector (yellow)   2*15pin, EDP1 and LVDS interface for the two through the jump to choose one,   VGA and EDP2 for the two through the jump to choose one

1* LVDS backlight power supply   interface 1*6pin

1* RS232 serial interface, 2 *   5pin which COM1/2 support the 9pin charged, COM2 support RS485 function

6* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* Front panel switch button   and indicator interface 2*5Pin

1* HDD power supply interface   1*4pin

1* Amplifier connector   1*4pin

1* 4pin DC power connector (can   be used as 12V input/output power connector)

1* SIM card slot

1* TPM2.0 interface 2*8pin

Fan Interface

1*4pin CPU smart fan interface,   1* 4pin system fan interface

GPIO

Support 4 input/output GPIOs

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Supply Type

DC 12V power supply

Operating System

 Windows 7/10/11, Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

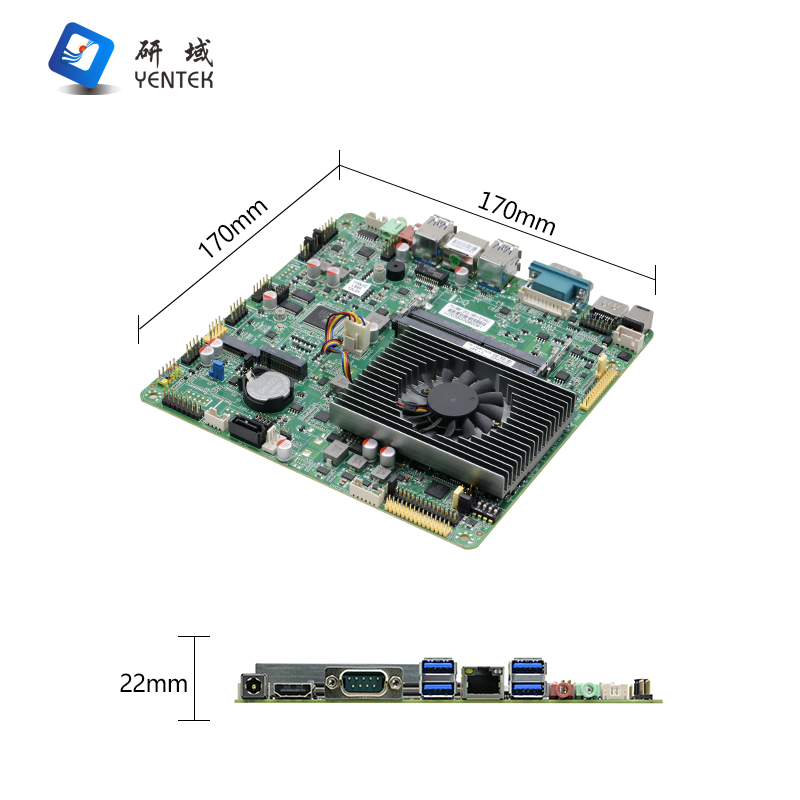

170mm x 170mm
