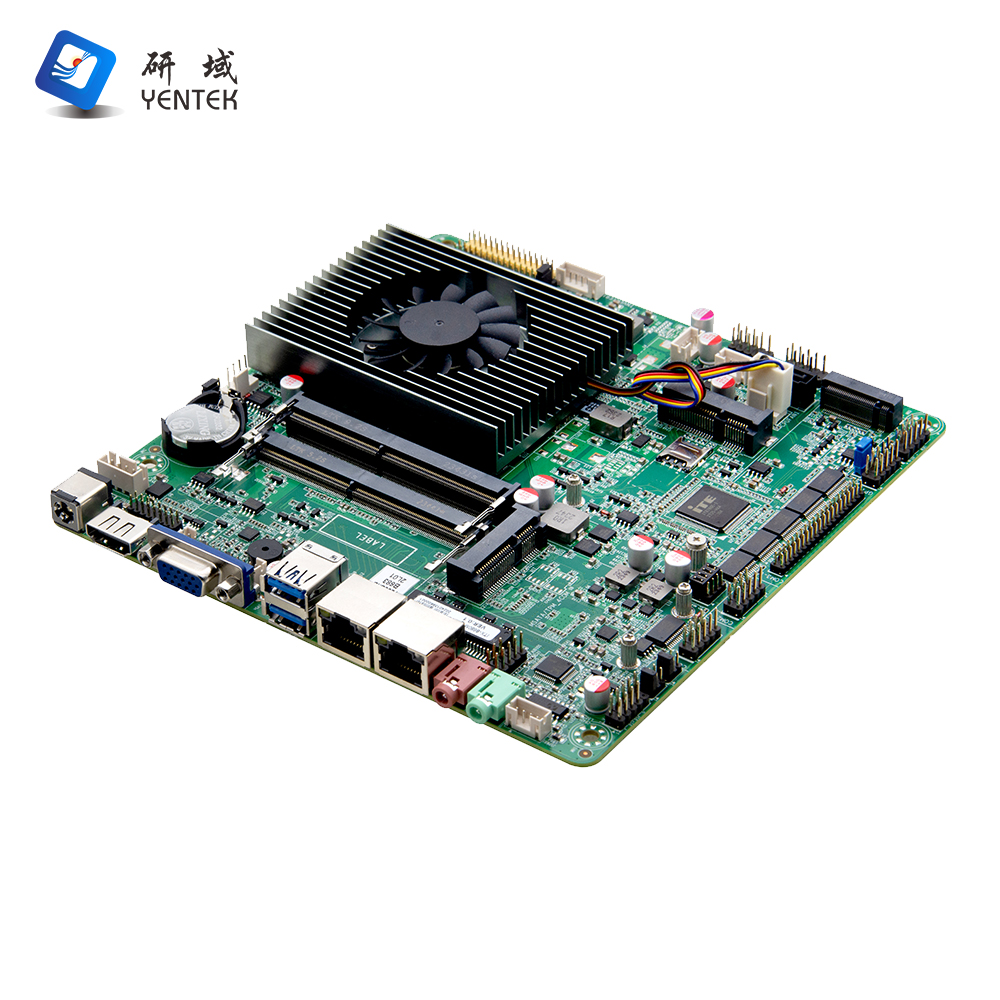

| Product model | ITX-B680M1_I526L VER:0.1(7200U) |
| Processor | Integrated Intel®I5-7200U 2.5GHz dual-core quad-thread processor,TDP 15W |
| Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low power processors |
| Chipset | SOC |
| Internal memory | 2 * DDR4 SODIMM slots, supporting 2133 MHZ memory and a maximum of 32GB memory |
| Show | Integrated Intel®HD Graphics S620, support DirectX 12, OpenGL 4.5, support 4K |
| The maximum resolution supported by the 1 x VGA port is 1920X1200@60Hz |
| 1*HD OUTPUT1.4 port, the highest resolution supported is 4096X2304@24Hz |
1* Supports dual-channel 24bit LVDS interface |
| 1*EDP interface, and LVDS interface to choose one of the two through the jump |
| Network | 2* Intel WGI210AT Gigabit network adapter, supporting network wake up and PXE functions |
Deposit
| 1* SATA3.0 hard disk interface, transmission speed up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps |
| 1* M.2 slot, supporting M.22280 NVMEPCIE X4 or SATA SSDS |
| Tone frequency | Integrated ALC897 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifier |
| Support power amplifier 2Ω5W speaker |
| Expansion | 1* Mini-PCIE slot, supporting WIFI/4G module |
I/O ports on the backplane
| 2* USB3.0 port |
| 1* HD OUTPUT port |
| 1 x DB15 VGA port |
| 2* RJ45 Gigabit network interface (LAN1 and dual-layer USB2.0) |
| 1*Line-out(green），1*MIC(red） |
| 1*DC12V power supply Supports 12V power input and output |
| Built-in I/O interface | 1* JVGA1 port, 1*12pin (same signal as DB15 port) |
| 1* JHD OUTPUT interface 2*8pin(same signal as HD OUTPUT interface) |
| 1* LVDS interface 2*15pin, support dual channel 24bit |
| 1* EDP interface (yellow) 2*15pin, with LVDS for one of two via jump |
1* LVDS backlight power supply interface 1*6pin |
| 6* RS232 serial interface, where COM1/2 support 9pin live, COM2/3 support RS485/422 function |
8* USB2.0 interface 2*5pin |
| 1* front audio interface 2*5pin |
| 1* Front panel switch button and indicator port 2*5Pin |
| 1* hard drive power port 1*4pin |
| 1* power amplifier interface 1*4pin |
| 1* 4pin DC power interface (12V input/output power interface) |
| 1* SIM card slot |
| Fan interface | 1* 4pin CPU smart fan connector, 1* 4pin system fan connector |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7,Windows 10 , Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
