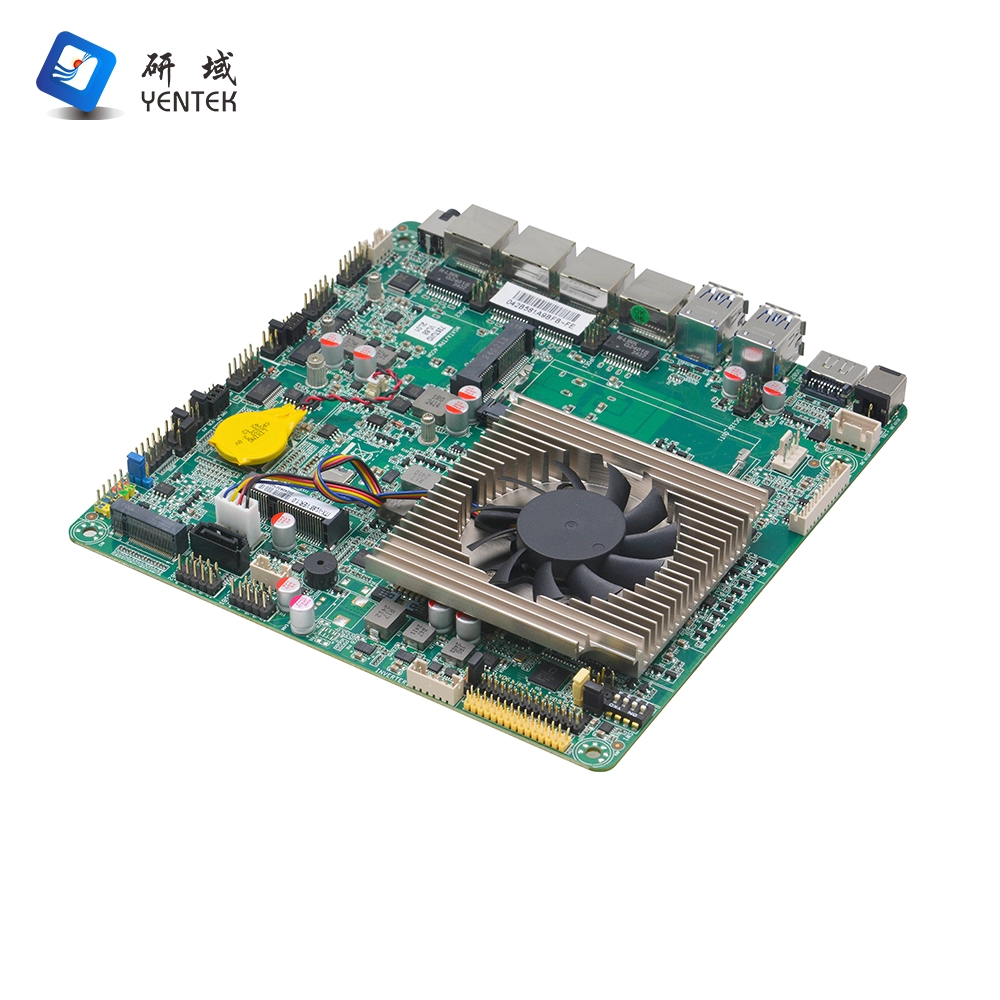

ITX-VL68

Processor

Integrated   Intel® I5-7267U 3.1GHz Dual-Core Quad-Thread Processor, TDP 28W

Compatible   with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 Low Power Processors

Chipset

SOC

Memory

1*DDR4 SODIMM   memory slot, supports 2133MHz memory up to 32GB

Display

Integrated Intel® Iris® Plus Graphics   650, support for DirectX 12, OpenGL 4.5, support for 4K

1*VGA   interface, support for the highest resolution: 1920X1200@60Hz

1*HDMI1.4   interface, support for the highest resolution: 4096X2304@24Hz

1*Support   dual-channel 24bit LVDS interface

1   * EDP interface, and the LVDS interface is through the jump through the two   choose one

Network

4* Intel WGI210AT   Gigabit LAN card, support for Wake-on-LAN, PXE function.

Note: can support POE, to POE function need   to match the VL68-PW expansion board

Storage

1* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* MSATA slot,   support Intel protocol SSD, transfer speed up to 6Gbps.

Note: MSATA and   TPM-4COM for two choose one, can support the use of TPM-4COM small board to   expand 4 serial ports, the default is MSATA, to use TPM-4COM function need to   change the BIOS

1* M.2 slot,   support for M.22280 NVME PCIE X4/SATA SSD

Audio

Integrated   ALC897 7.1 + 2-channel hi-fi audio controller, support MIC, Line_out,   amplifier

Support amplifier 4Ω3W   speakers

Expansion Slots

1*   Mini-PCIE slot, support WIFI/4G module

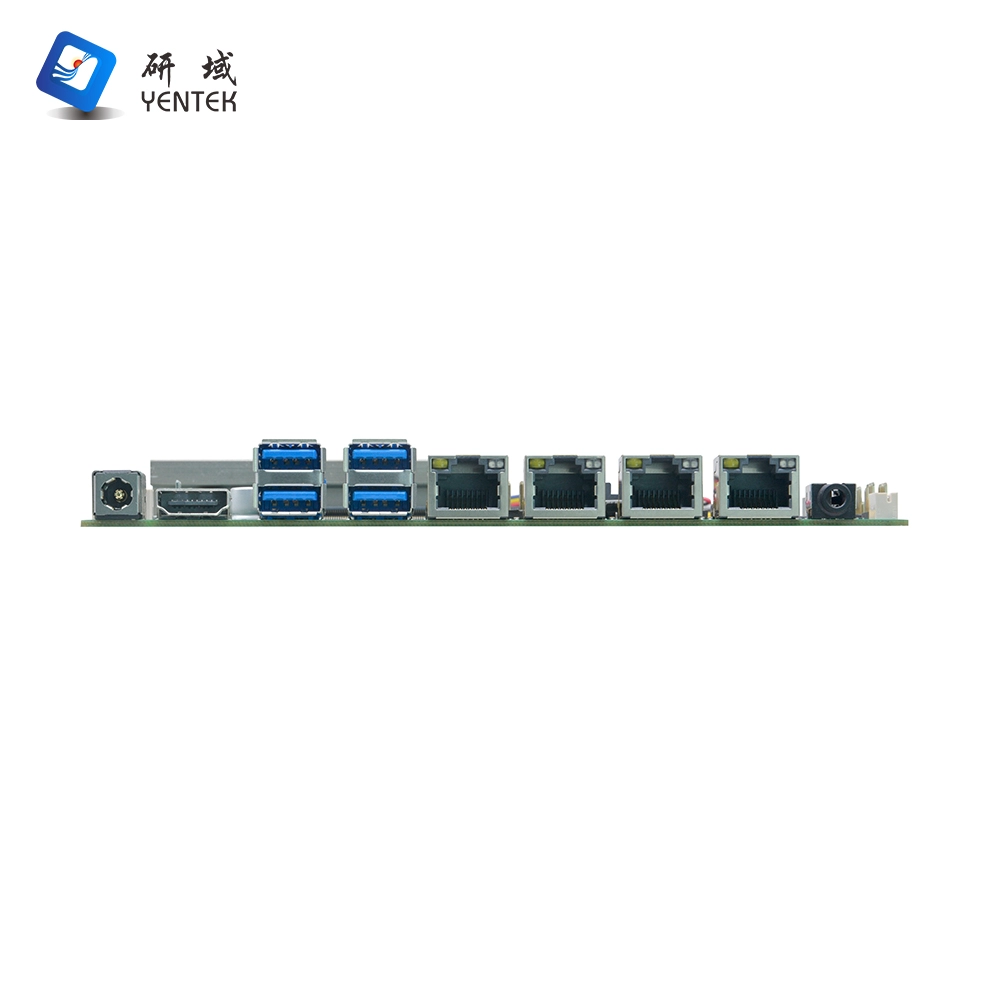

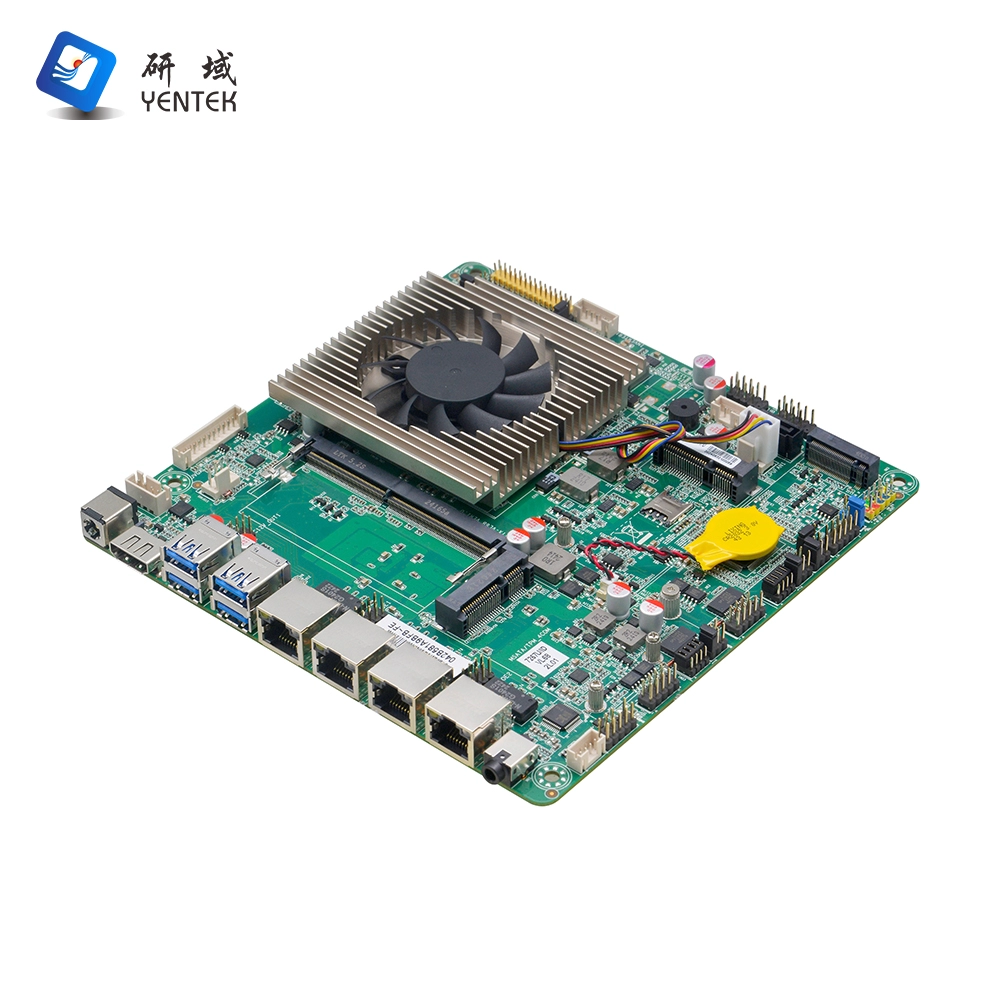

Backplane I/O Ports

1*   DC12V power supply interface

1*   HDMI1.4 interface

4*   USB3.0 interface

4*   RJ45 Gigabit network interface

1*   Two and one audio interface

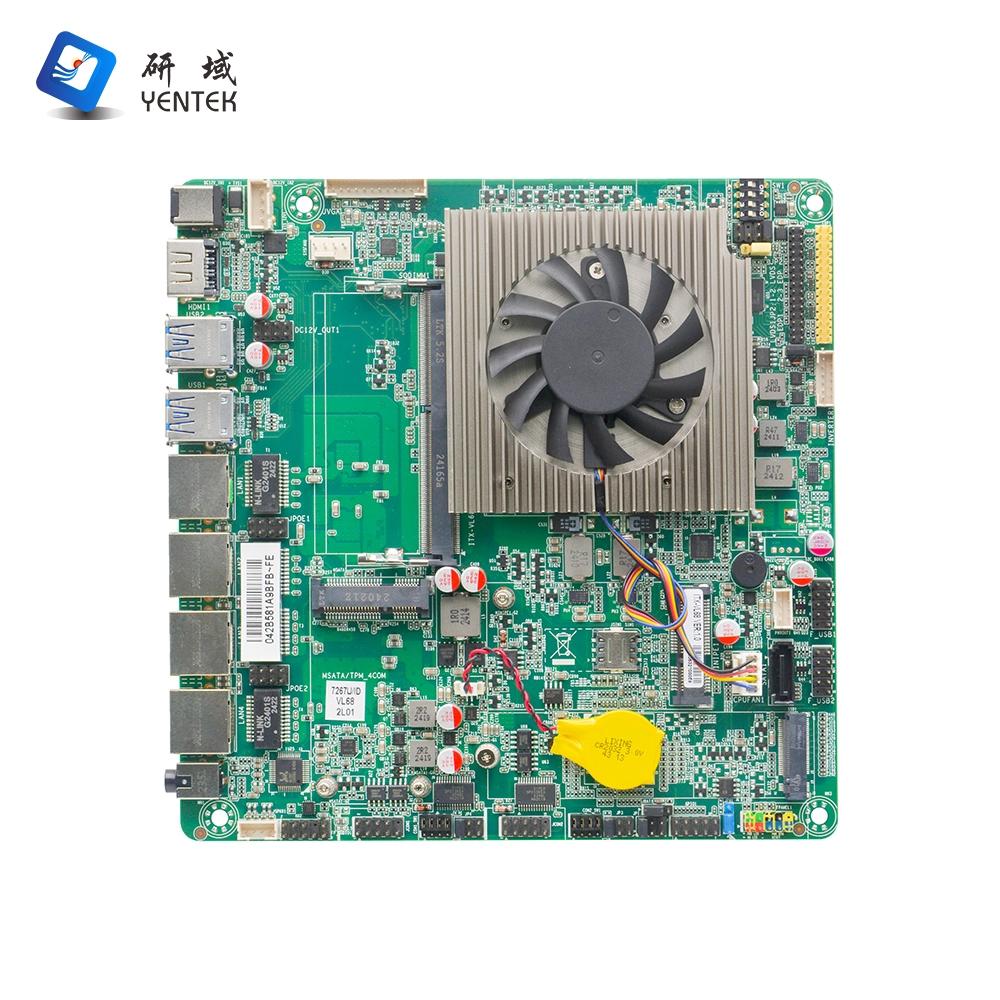

Built-in I/O Ports

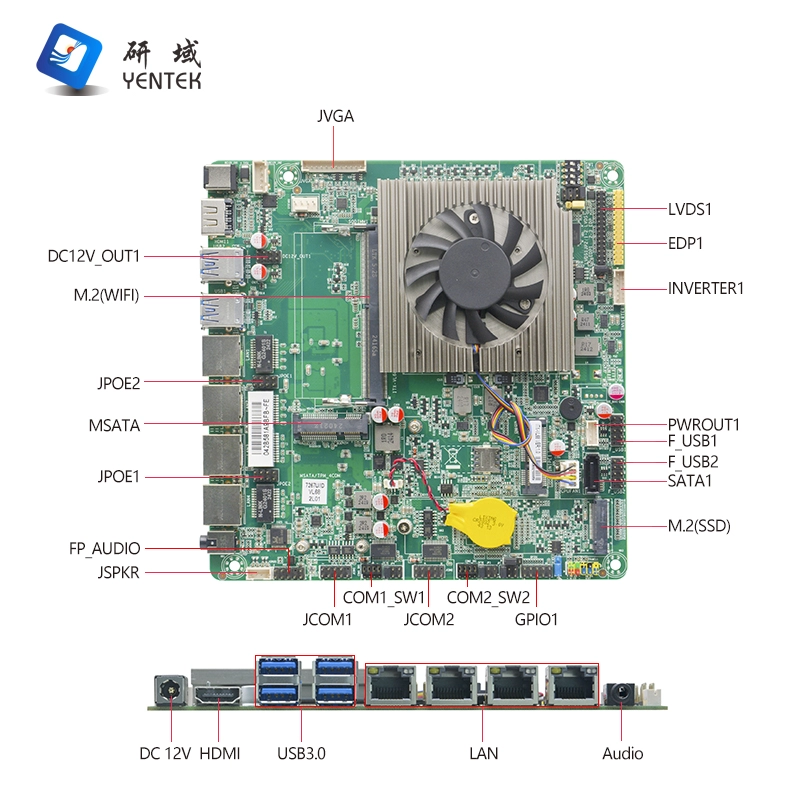

1*   JVGA1 connector 1*12pin

3*   2*4pin PH=2.54mm pin header, connect to VL680-PW small board

1*   LVDS interface 2*15pin, support dual channel 24bit

1*   EDP connector (yellow) 2*15pin, and LVDS is through the jumpers to choose   one.

1*   LVDS backlight power supply interface 1*6pin

2*   RS232 serial interface, support for RS485/422 function, and the LVDS   backlight power supply interface 1*6pin

4*   USB2.0 interface 2*5pin

1*   Front panel switch button and indicator interface 2*5Pin

1*   HDD power supply interface 1*4pin

1*   Front Audio Interface 2*5pin

1*   Amplifier connector 1*4pin

1*   4pin DC power connector (can be used as 12V input/output power connector)

1*   SIM card slot

Fan Interface

1*4pin   CPU smart fan interface, 1*4pin system fan interface

GPIO

Support 4 input/output   GPIO

BIOS

64Mb Flash ROM

Watchdog

Support   hardware reset function (256 levels, 0~255 seconds)

Power Supply Type

DC 12V   power supply

Operating System

 Windows 7, Windows 10, Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

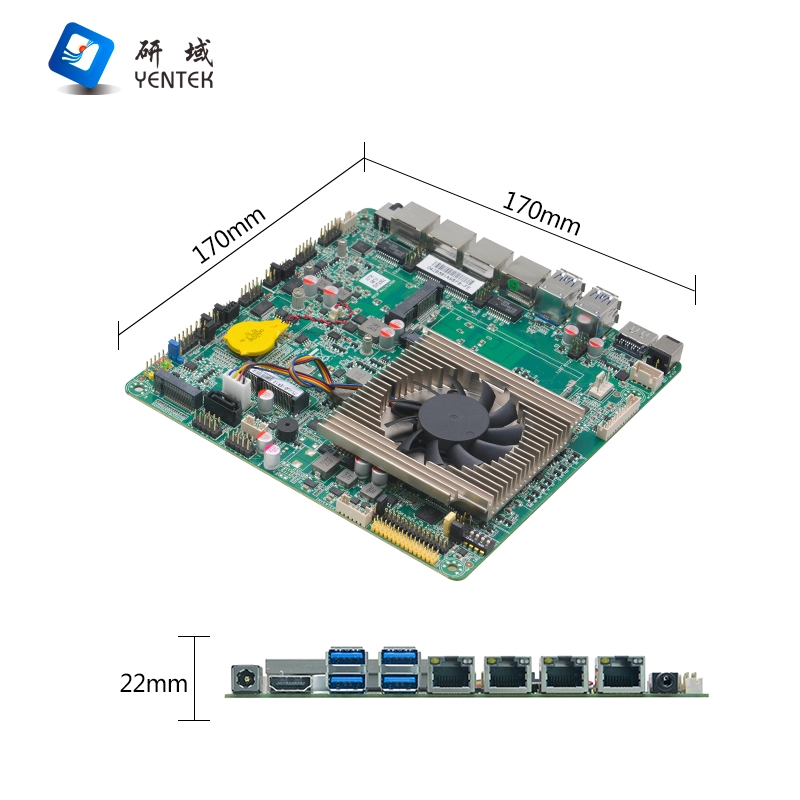

Dimension

170mm x 170mm

1

ITX-VL68 VER:1.0(7267U)

I5-7267U

3.1G

1*SODDR4

1

1

1

1

4*210AT

8

2

COM2

DC12V
