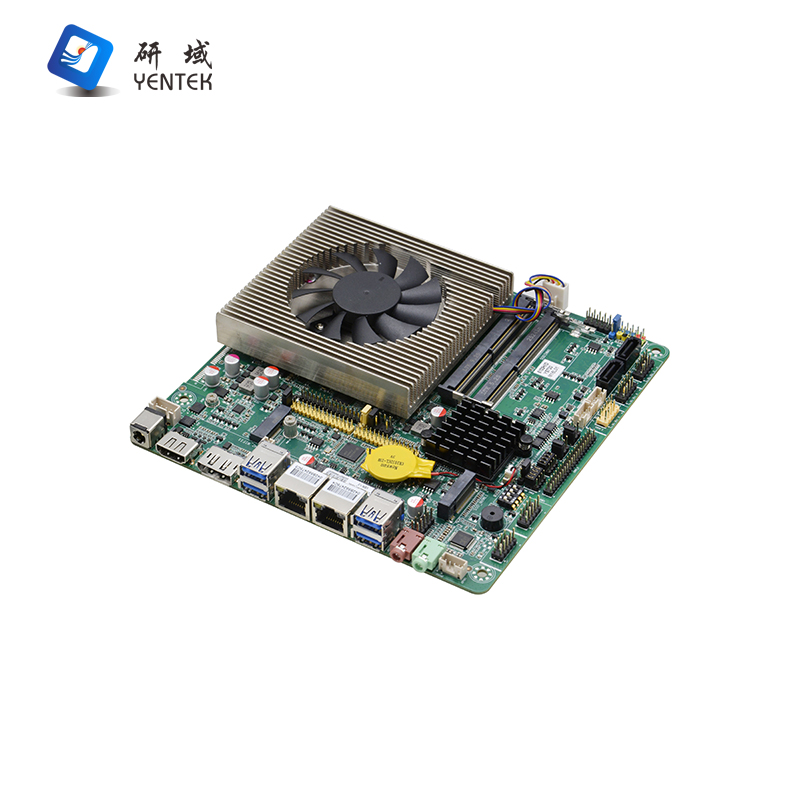

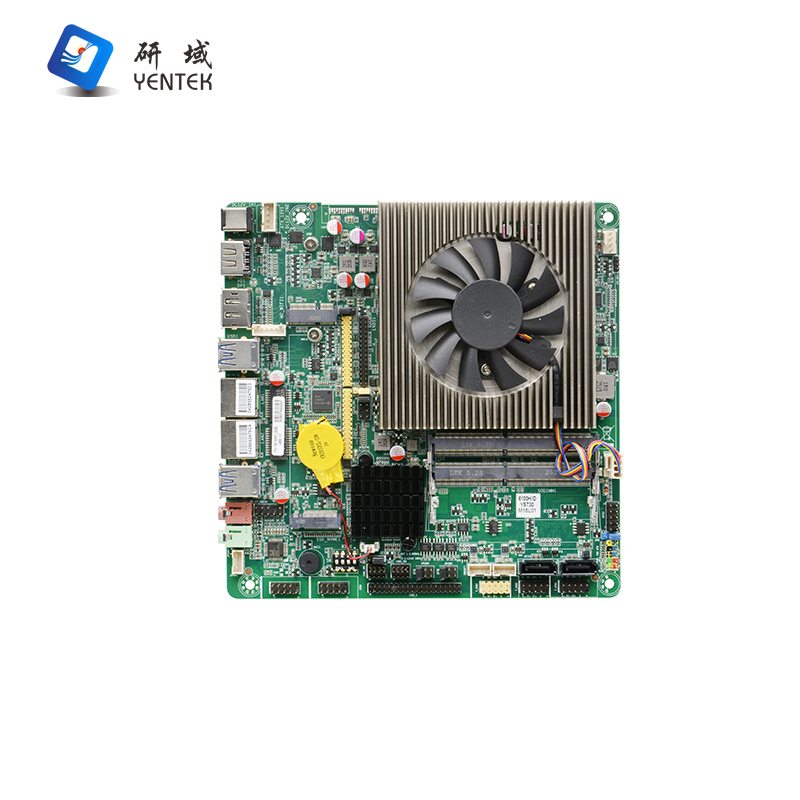

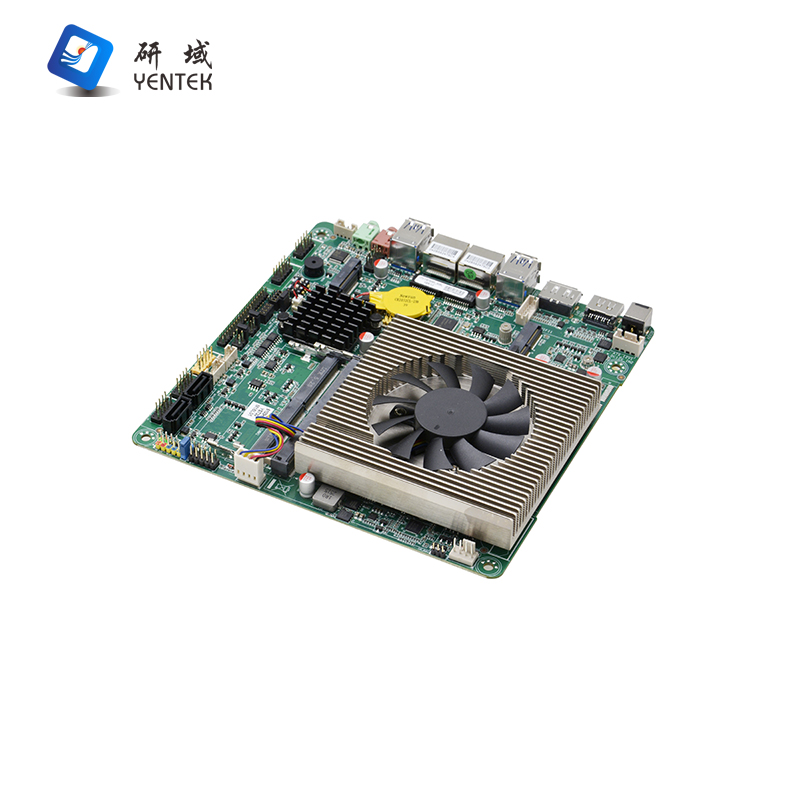

ITX-YS730M1_I526L

Processor

Integrated Intel® Kaby Lake Core i5-7300HQ / 2.5GHz   quad-core quad-thread processor, TDP 45W

Compatible with Intel® Skylake-H/Kaby Lake-H Core   i3/i5/i7 processors

Chipset

Features Intel® B150 high-speed chipset

Memory

2x DDR4 SODIMM memory slots, supporting up to   2400MHz memory, with a maximum capacity of 64GB

Display

Integrated Intel® HD Graphics 630 graphics card,   supporting DirectX 12, OpenGL 4.5, and 4K display

1x HDMI 1.4 port, supporting a maximum resolution of   4096x2304@30Hz

1x DisplayPort interface, supporting a maximum   resolution of 4096x2304@60Hz

1x LVDS interface, 2x EDP interfaces, with 1 EDP   interface sharing a jumper with LVDS

Note: Supports dual EDP display or LVDS+EDP display.   Supported display combinations include: LVDS single display, EDP1 single   display, LVDS+EDP2 dual display, EDP1+EDP2 dual display. J_EDP2 cannot be   used independently

Network

2x I210AT Gigabit Ethernet controller chips,   supporting network wake-up/PXE functionality

Storage

2x   SATA 3.0 hard drive interfaces, with data transfer speeds up to 6 Gbps

1x   M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 2.0 x4/SATA adaptive standard   SSD

Audio

On-board ALC897 7.1+2-channel high-fidelity audio   controller, supporting MIC/Line-out, amplifier

Amplifier supports 4Ω/3W dual-channel

Expansion Slots

1x M.2 slot, supporting M.2 Key E 2230 Wi-Fi module

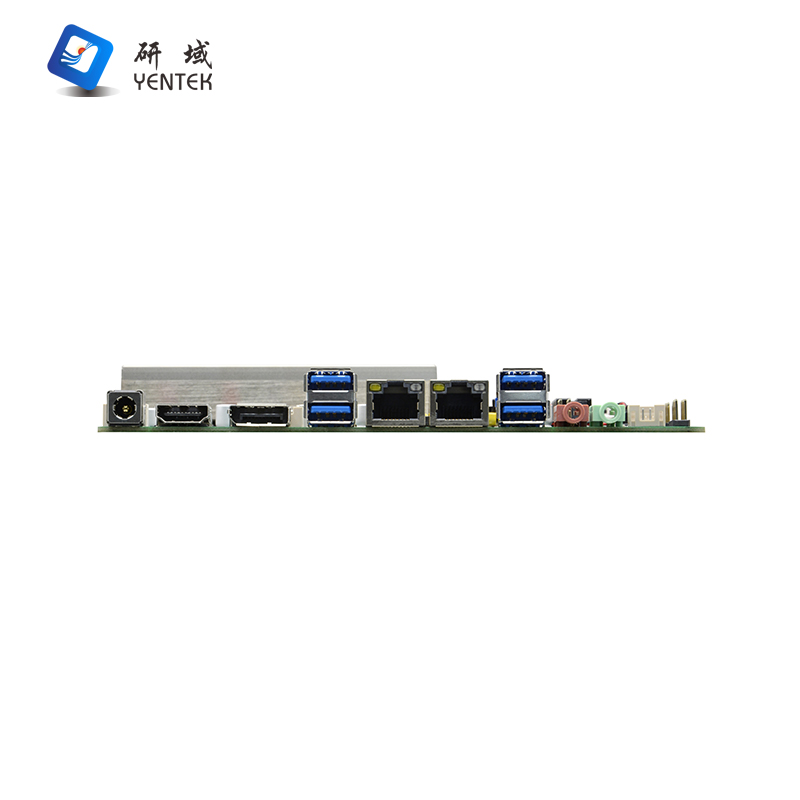

Backplane I/O Ports

4x USB 3.0 ports

1x HDMI port

1x DP port

2x RJ45 Gigabit network ports

1 x Line-out (green), 1 x MIC (red)

1 x   DC12V power input port

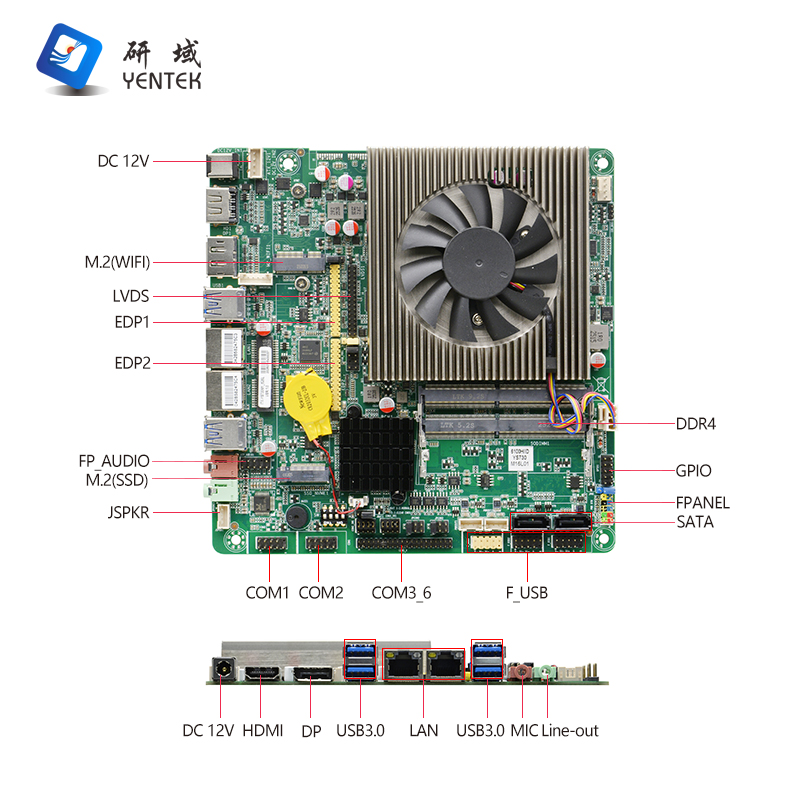

Built-in I/O Ports

1 x   LVDS port 2 x 15-pin, supporting dual-channel 24-bit

2 x   EDP ports, 2 x 15-pin, with EDP1 and LVDS selectable via a jumper

1 x Backlight power supply port 1 x 6-pin

6* RS232 serial interfaces, COM2/3 support   RS485/422

6* USB 2.0   interfaces, 2*5-pin, with F_USB3 being a USB port from PCIe

1* Front audio interface, 2*5-pin

1* Amplifier interface, 1*4-pin

2* Hard drive power supply voltage interfaces,   1*4-pin

1x front panel function button and indicator light   interface, 2x 5-pin

1x 4-pin DC power interface. Supports 12V power   input/output

Fan Ports

1x 4-pin CPU smart fan interface; 1x 4-pin system   fan interface

GPIO

Supports 4-channel input/output GPIO   functionality

BIOS

64MB Flash ROM

Supported Systems

Windows 10/Linux

Watchdog

Supports hardware reset functionality (256 levels,   0–255 seconds)

Power Type

Supports DC 12V power   supply

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5% to 95% relative humidity, no condensation

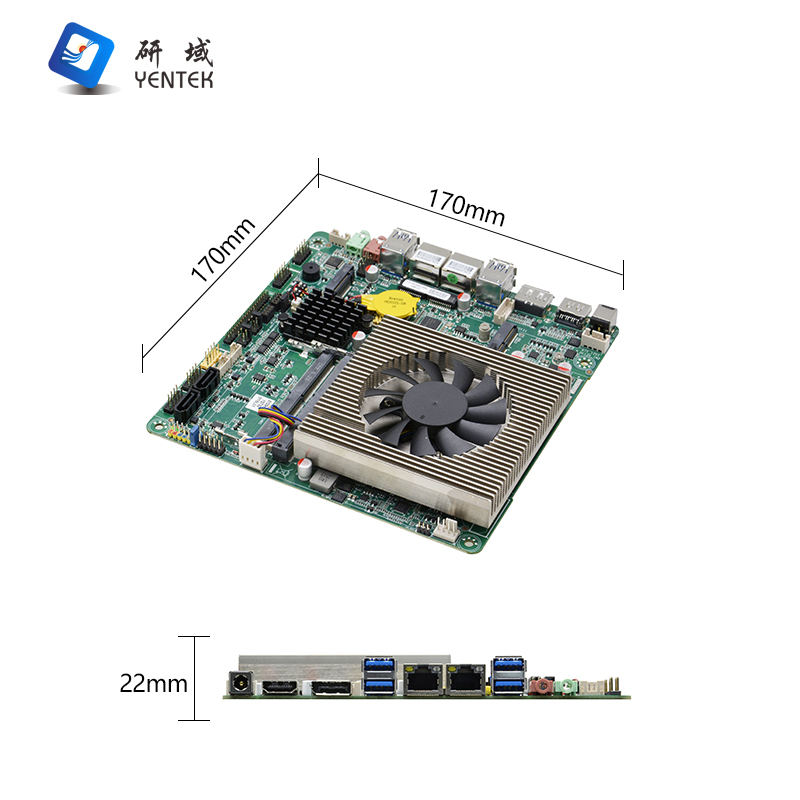

Dimensions

170mm x 170mm
