ITX-YH853A1_R723L

Processor

Integrated AMD Ryzen™ 7 8845HS 3.8GHz, 8-core 16-thread   processor, TDP 35–54W, NPU TOPS 16

Compatible with AMD Ryzen™ 5/7 series processors

Chipset

SOC

Memory

2x DDR5 SODIMM memory slots, supporting dual-channel memory   up to 5600MHz, maximum capacity 64GB

Display

Integrated AMD Radeon™ 780M graphics, supporting DirectX 12   and 4K/60Hz

2x HDMI 2.0 ports, maximum supported resolution:   3840x2160@60Hz

1x dual-channel 24-bit LVDS interface

1x EDP interface, shared with LVDS via jumper selection

Supports HDMI/LVDS or EDP synchronous/asynchronous triple   display

Network

2x RTL8111 1GbE network cards, supporting Wake-on-LAN and PXE   functionality

Storage

1x M.2 slot supporting M.2 Key M 2280 NVMe PCIe 4.0 x4   specification SSD

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio   controller, supporting MIC, Line_out, and amplifier

Supports amplifier for 4Ω 3W speakers

Expansion Slots

1x M.2 slot supporting M.2 Key E 2230 Wi-Fi/Bluetooth module

1x 80-pin high-speed header, including 4x PCIe, ESPI, USB,   DDI signals (requires YH753-H2 expansion board)

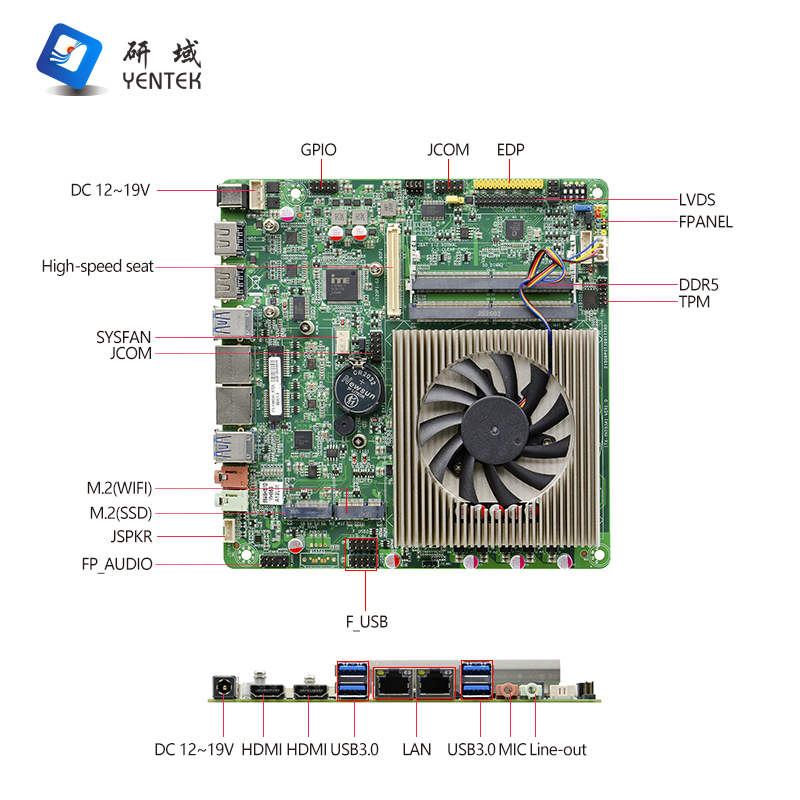

Rear Panel I/O Ports

4x Type-A USB 3.0 ports (5Gbps)

2x HDMI 2.0

2x RJ45 Gigabit Ethernet ports

1x Line-out (green), 1x MIC (red)

1* DC power interface, supporting 12V~19V input

Integrated I/O Ports

1* LVDS interface 2*15-pin, PH=2.0mm, supporting dual-channel   24-bit

1* LVDS backlight power supply interface 1*6-pin PH=2.0mm

1* EDP interface 2* 15-pin, PH=2.0mm, selectable with LVDS   via jumper

2x RS232 serial interfaces, 2x5-pin, PH=2.54mm, COM2 supports   RS485 functionality

4x USB 2.0 interfaces, 2x5-pin, PH=2.54mm

1x Front audio interface, 2x5-pin, PH=2.54mm

1x Front panel switch button and indicator interface,   2x5-pin, PH=2.54mm

1x Amplifier interface, 1x4-pin, PH=2.0mm

1x DC power interface, 1x4-pin, PH=2.5mm (can serve as 19V   input power interface)

1x TPM interface, ESPI specification, 2x6-pin, PH=2.0mm

Fan Connectors

1x4-pin CPU intelligent fan interface, 1x4-pin system fan   interface

GPIO

Supports 4-channel input/output GPIO   functionality

BIOS

256Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by DC 12–19V supply

Operating System

Windows 10/11/Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

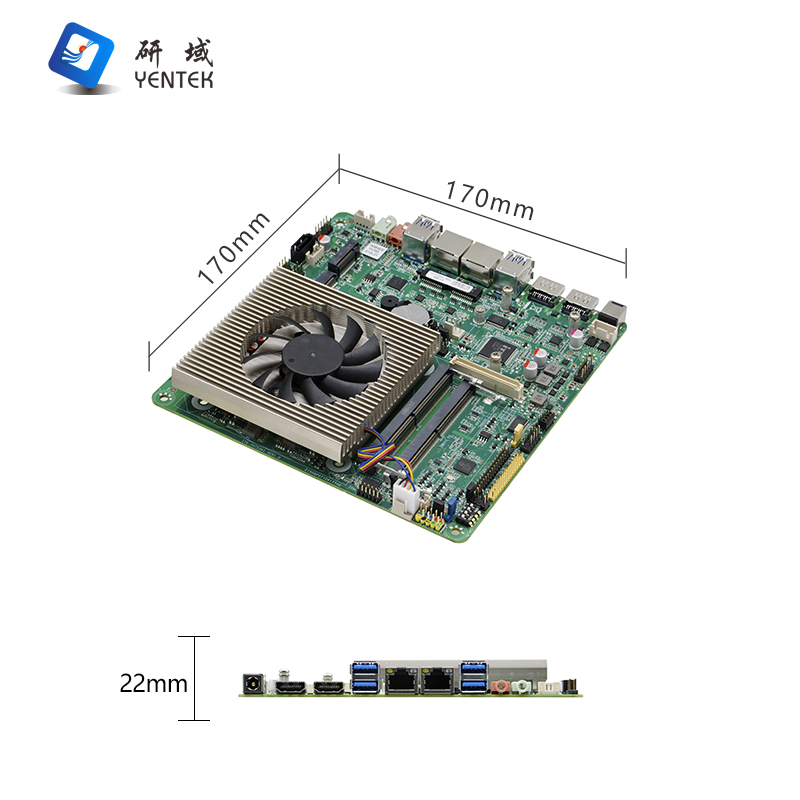

Dimensions

170mm x 170mm
