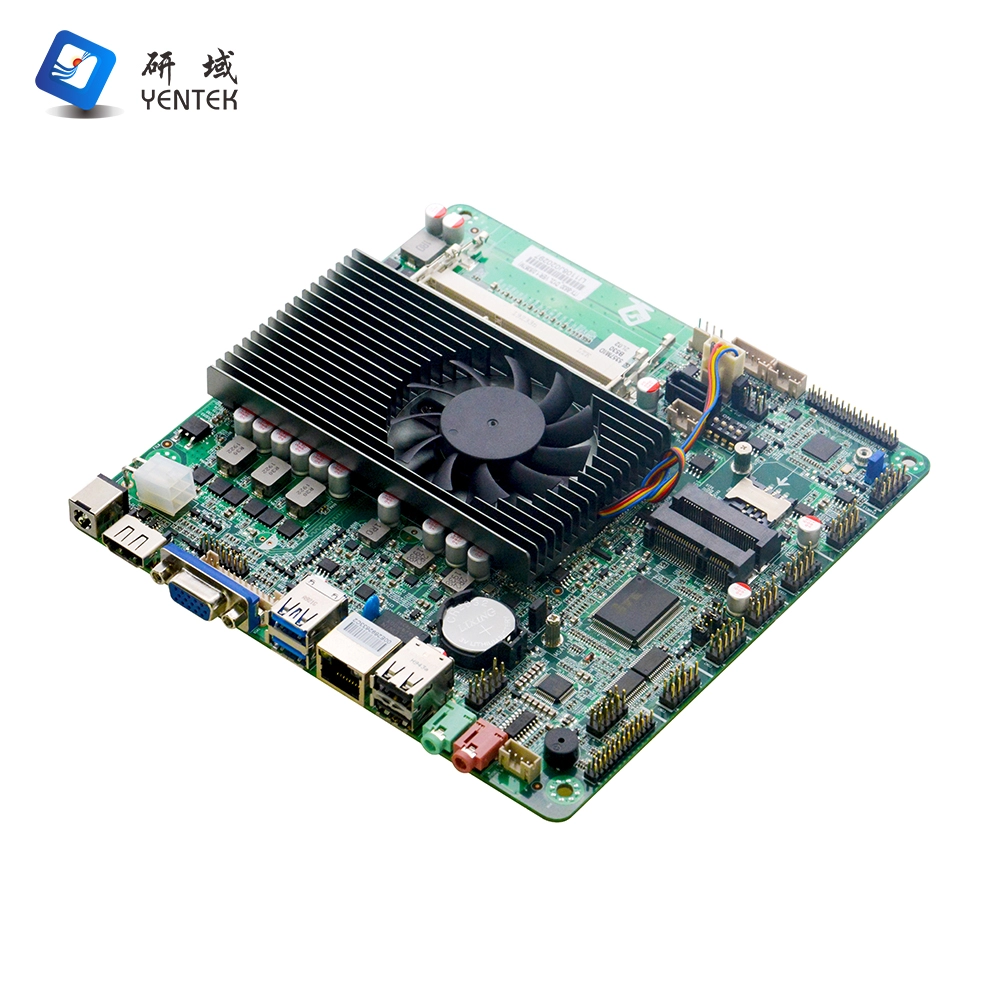

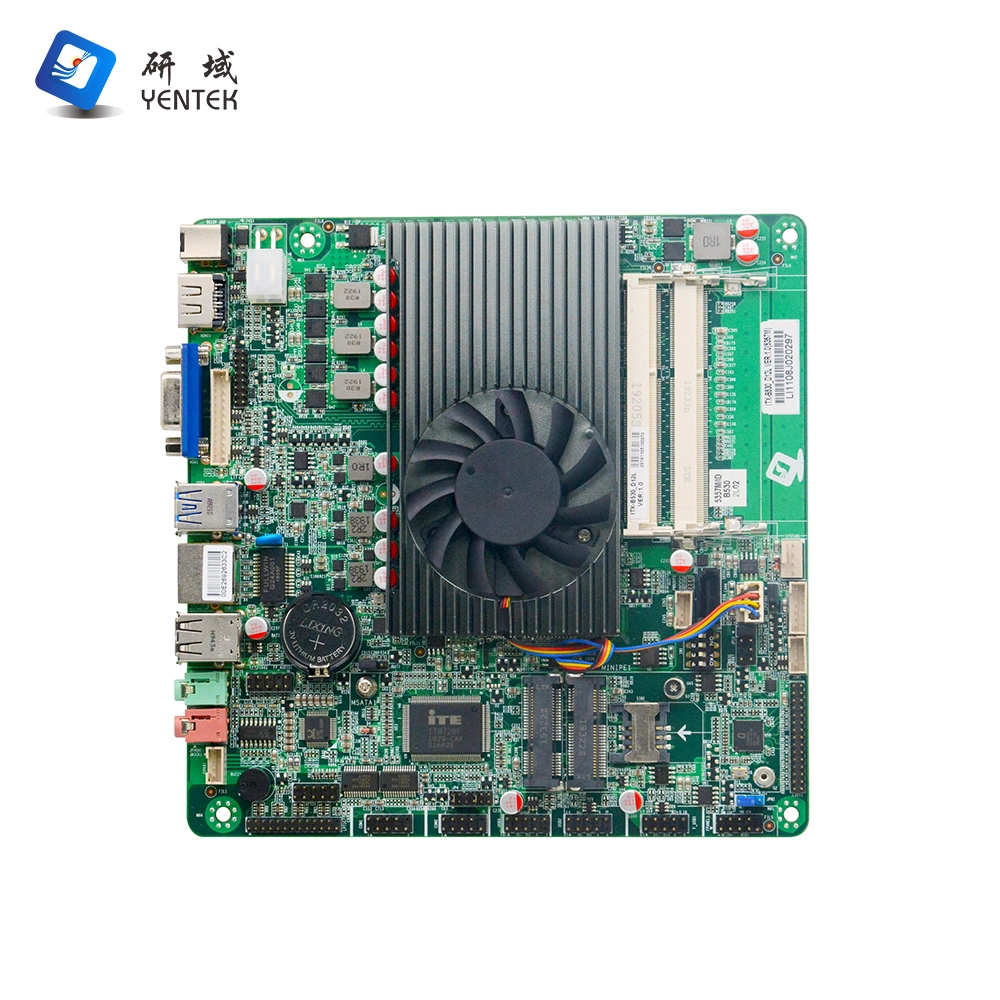

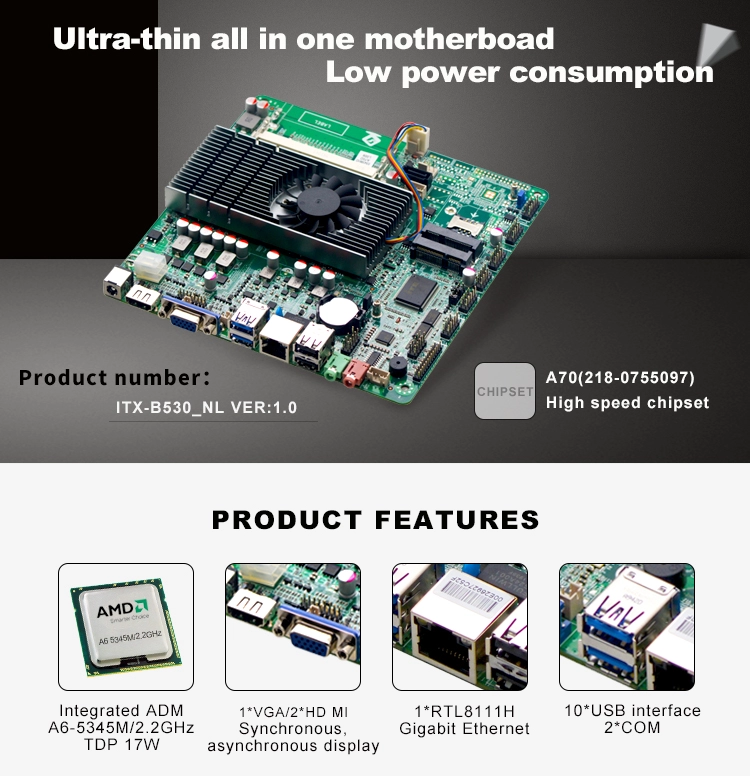

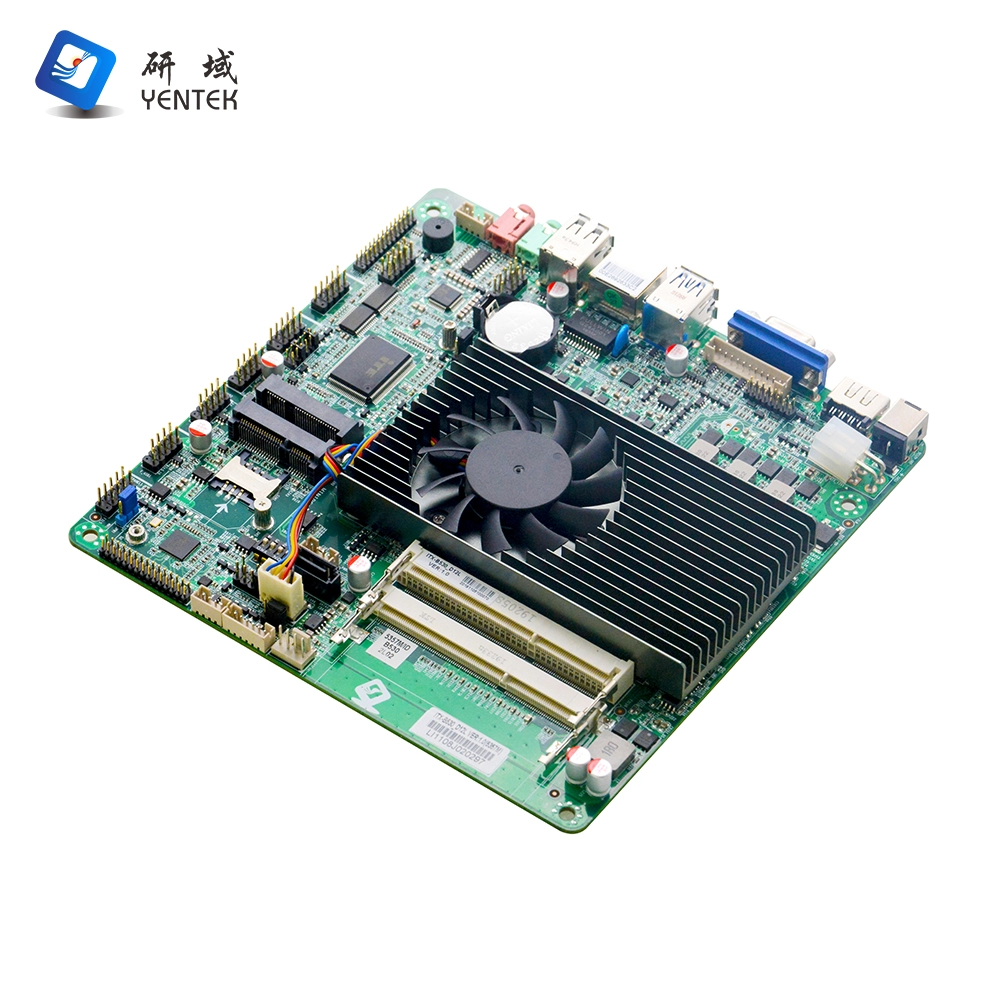

Product model | ITX-B530_D12L VER:1.0(5357M) |
Processor | integrated AMD A6-5357M@2.9GDual-core 2-thread processor ,TDP35W Compatible with APU A10/A8/A6/A4 (FP2 package) dual-core, quad-core processors |
Chipset | Adoption of A70 (218-0755097) high-speed chipset |
Internal memory | 2* SODIMM memory slots, support dual-channel DDR3 1333MHz memory, maximum support 16GB |
Display | Integrated AMD Radeon HD 8000 series core graphics |
1*VGA interface, 2*HDMI interface, 1* LVDS interface, support dual-channel 24BIT |
Network | 1* RTL8111H Gigabit LAN card, support Wake-on-LAN and PXE function |
Store | 1* SATA3.0 hard drive interface, transfer speed up to 6Gbps |
1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps |
Audio | On-board ALC662 6-channel hi-fi audio controller, support for MIC/Line-out amplifier |
Amplifier recommended to use 2Ω 5W speakers |
Expansion | 1* Mini-PCIE slot, support WIFI, 3G/4G modules |

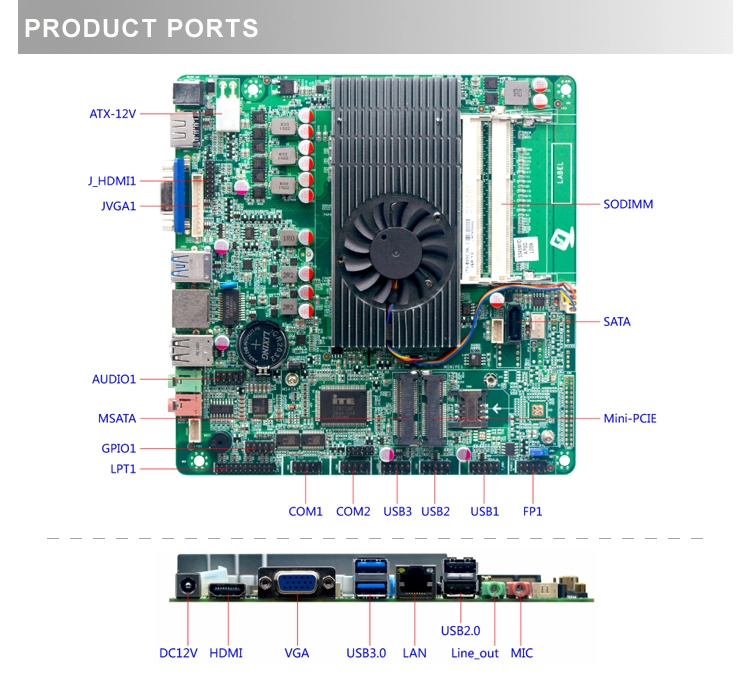

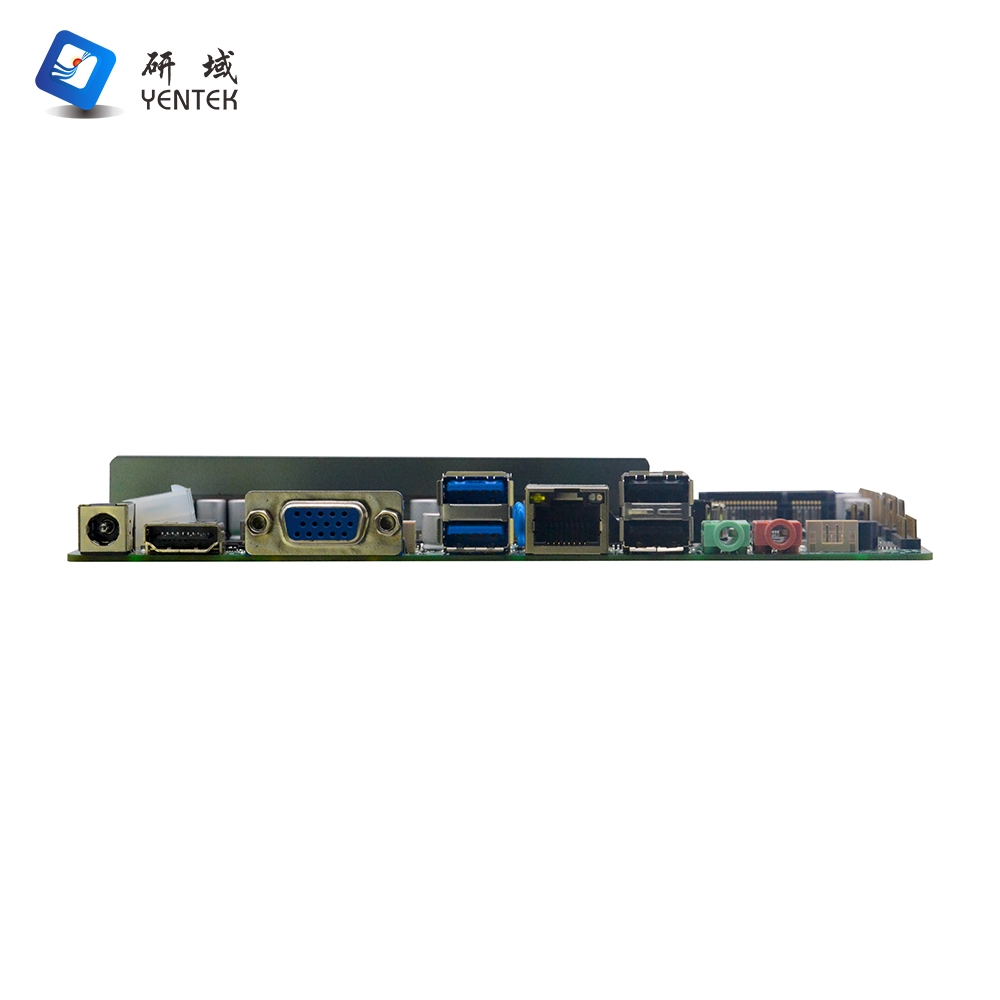

Backplane I/O Interface
| 2* USB 2.0 interface |
2* USB 3.0 interface |
1* HDMI interface |
1* VGA interface |
1* RJ-45 Gigabit network interface |
1* Line out(green) |
1* MIC(red) |
1* DC 12V power input connector |
Built-in I/O interface | 1* JVGA connector 1*12pin same signal as DB15 |
1* JHDMI connector 2*8Pin |
1* LVDS connector 2*15pin |
1* Screen backlight power supply connector 1*6pin |
1* Screen Brightness Adjustment Connector 1*4pin |
6* USB 2.0 ports 2*5pin |
2* RS232 serial ports, all 9 pins support power-up function |
1* LPT print interface ,2*13pin |
1* Front Audio Interface 2*5pin |
1* power amplifier interface 1*4pin |
1* Amplifier connector 1*4pin |
1* Front panel function button and indicator connector 2*5pin |
1* SIM card holder |
1* 4pin ATX power connector (can be 12V input/output power connector) |
1* HDD power supply connector 1*4pin |
Fan interface | 1*4pin CPU Smart Fan connector, 1*4Pin Smart System Fan connector |
GPIO | Support 4 input/output GPIO function |
BIOS | 32Mb Flash ROM |

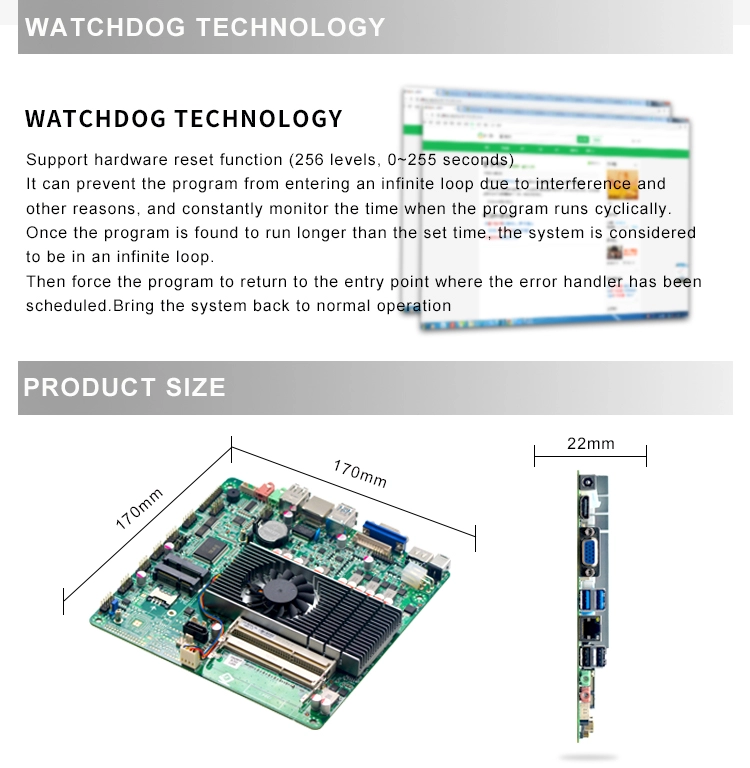

Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
Power supply type | DC 12V single power supply |
Operating temperature | -10℃ to 60℃ |
Storage temperature | -20℃ to 70℃ |
Working humidity | 5%-90% relative humidity, no condensation |
Dimension | 170mm x 170mm |
