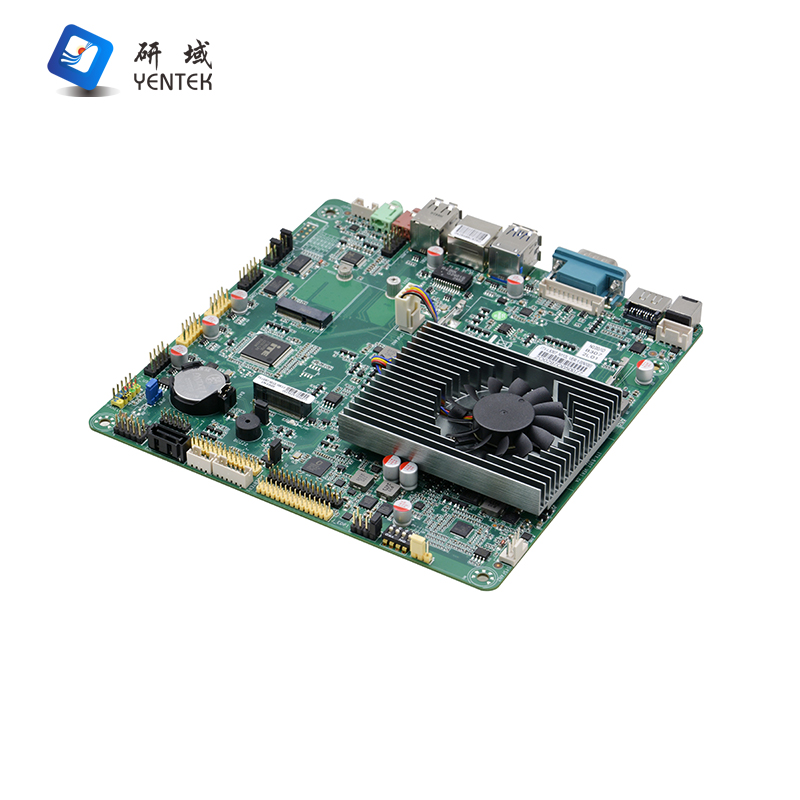

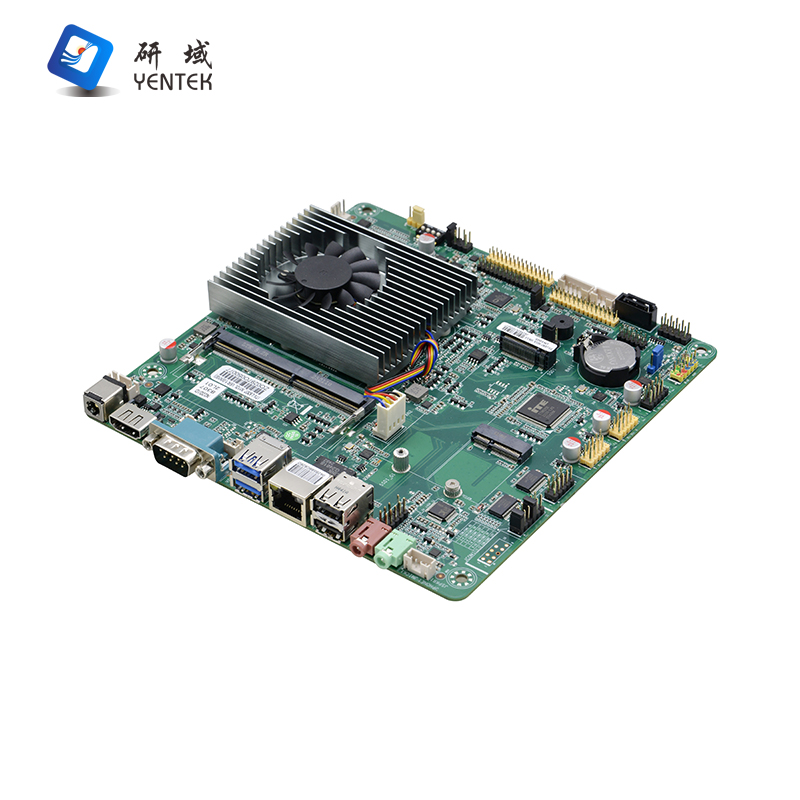

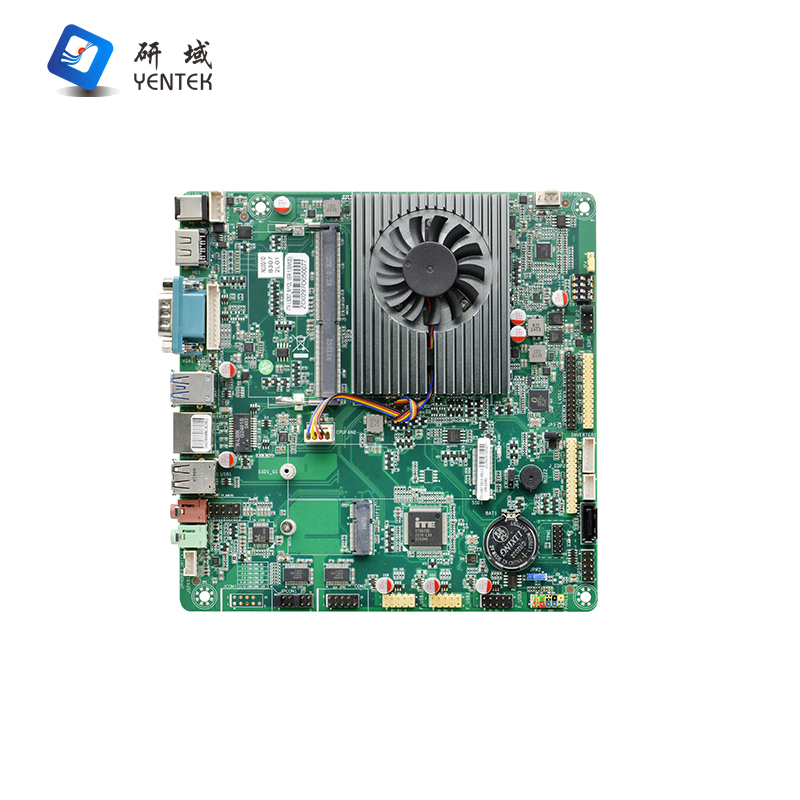

ITX-LS307_N112L

Processor

Integrated Intel® Alder Lake-N N100   3.4GHz Quad-Core, Quad-Thread Processor, TDP 6W

Compatible with the full range of Intel®   Alder Lake-N CPUs for flexible customer selection

Chipset

SOC

Memory

1* SODIMM   slot, supports single-channel 3200MHz DDR4 memory up to 16GB

Display

Integrated Intel® UHD Graphics core   graphics card, support for DirectX 12.1, OpenGL4.6

1* VGA, 1* HDMI1.4 interface, 1* LVDS   interface, 2* EDP interface

Note: LVDS and EDP1 interface is through   the jump risk one of the two choices

Can support dual EDP display or LVDS +   EDP display, support for display combinations are: LVDS single display, EDP1   single display, LVDS + EDP2 dual display, EDP1 + EDP2 dual display, J_EDP2 cannot   be used separately

Network

1* RTL8111H Gigabit LAN card, support   Wake-on-LAN and PXE function.

Storage

1* 7pin SATA3.0 hard drive interface, transfer rate up to 6Gbps

1* M.2   slot, support M.2 Key M 2280 PCIE X1/SATA adaptive SSD

Audio

Onboard ALC897 7.1+2-channel hi-fi audio   controller, supports MIC/Line-out

Amplifier recommended to use 4Ω 3W   speakers

Expansion Slots

1* M.2 slot, support M.2 Key E 2230 WIFI   module

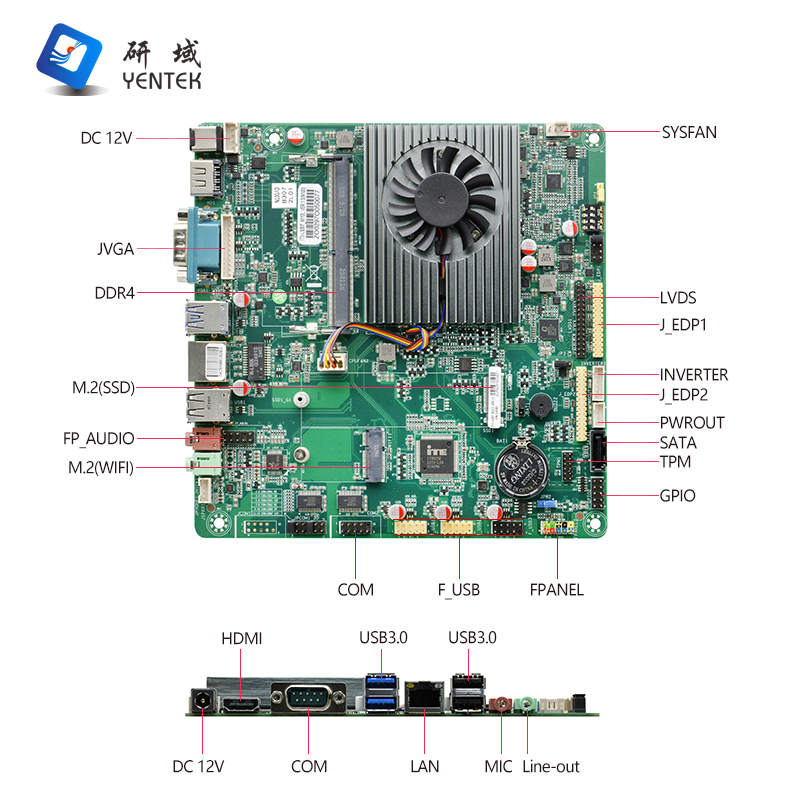

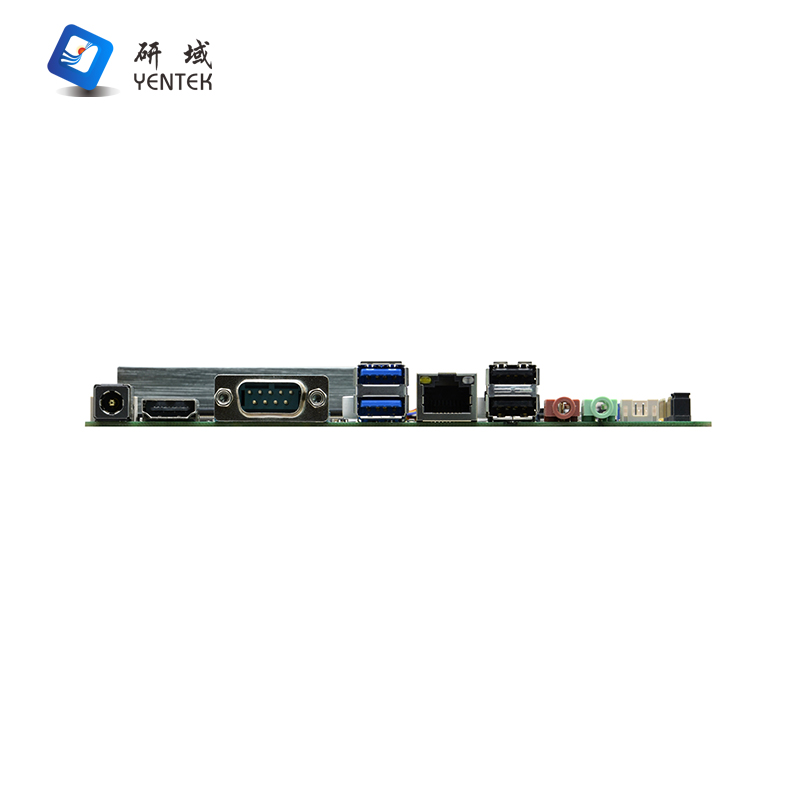

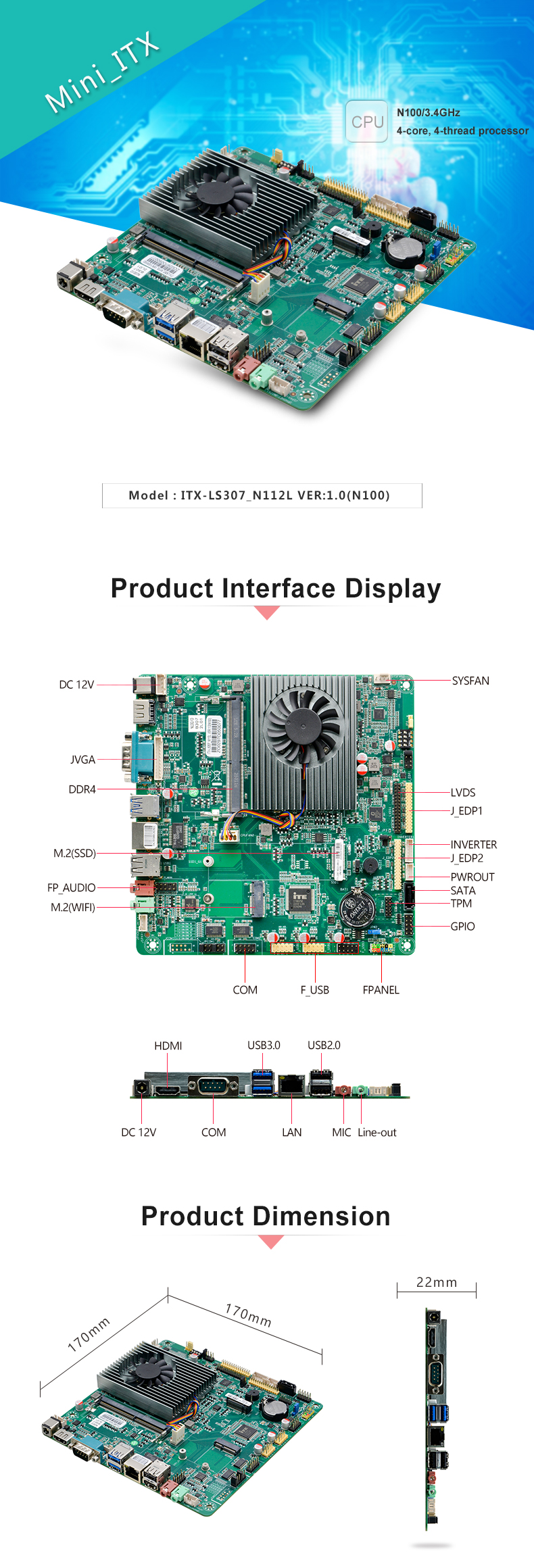

Backplane I/O Ports

1* DC 12V power input interface

1* DB9 serial port, and DB15 for the two   choose one

1* HDMI1.4 display interface

2* USB3.0 interface, 2* USB2.0 interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1* MICK (red)

Built-in I/O Ports

1* DC power connector, 1*4pin support 12V power input and output

1* JVGA interface 1*12pin

1* LVDS interface, 2*15pin, support dual-channel 24BIT

2* EDP interface (yellow), 2*15pin, of which EDP1 and LVDS is   through the jumper two choose one

1* Screen backlight power supply connector 1*6pin

6* USB2.0 interface, 2*5pin, of which F_USB1 and F_USB2 are PCIE   transfer USB

1* RS232 serial interface, COM1/2 support for the 9th pin   charged function, COM1 and external DB9 for the two choose one

1* HDD power supply interface 1*4pin

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

1* Front Panel Function Button and Indicator Interface 2*5pin

1* TPM connector 2*6pin

Fan Interface

1*4pin CPU smart fan interface, 1*4pin system fan interface

GPIO

Support 4 input/output GPIO

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256   levels, 0~255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

DC 12V power supply

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

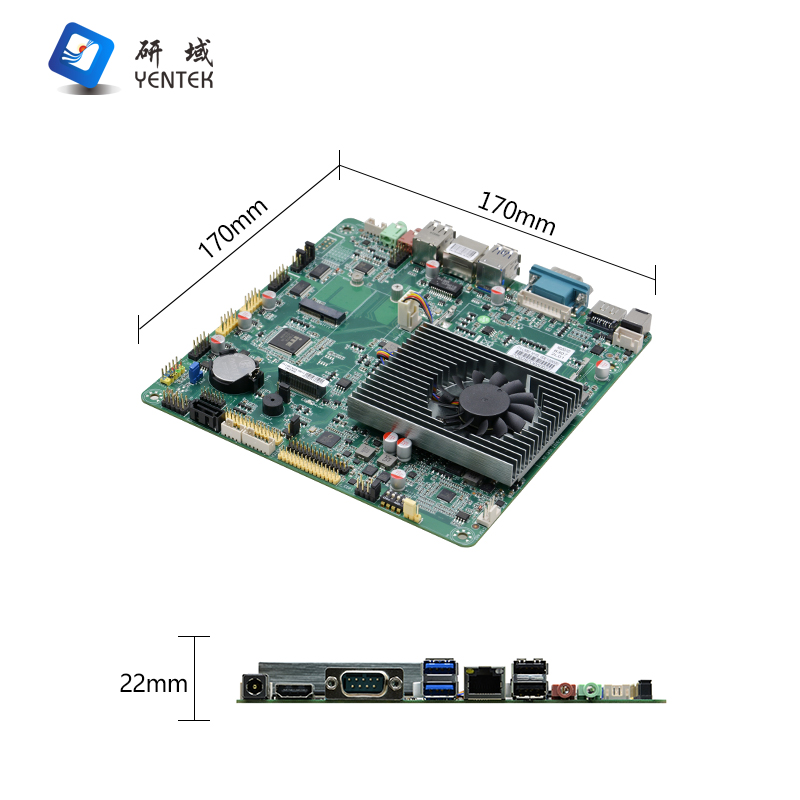

Dimension

170mm x 170mm
