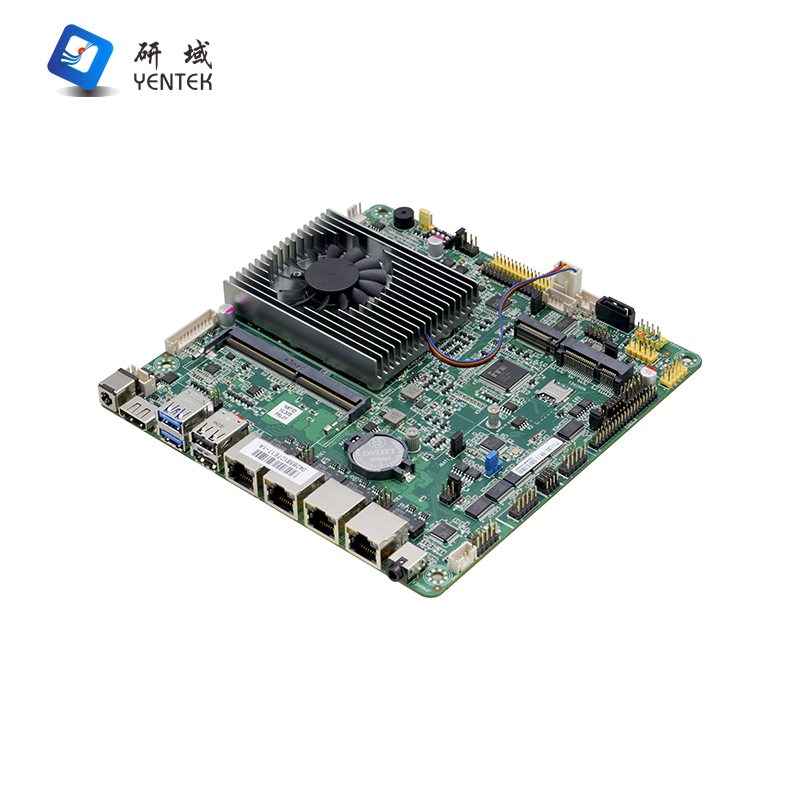

ITX-VL305

Processor

Integrated Intel® Alder Lake-N N97 3.6GHz Quad-Core   Processor with 12W TDP

Compatible with   the full range of Intel® Alder Lake-N CPUs for flexible customer selection

Chipset

SOC

Memory

1* SODIMM   slot, supports single-channel 3200MHz DDR4 memory up to 16GB.

Display

Integrated Intel® UHD Graphics core graphics card, support for   DirectX 12.1, OpenGL4.6

1* VGA, 1* HDMI1.4 interface, 1* LVDS interface, 1* EDP   interface

Note: LVDS and EDP interfaces for the jump through the risk of   one of the two options

Network

4* Intel WGI210AT Gigabit LAN card, support   Wake-on-LAN and PXE function.

Note: can support POE, to POE function need   to match VL68-PW expansion board

Storage

1* 7pin SATA3.0   hard drive interface, transfer rate up to 6Gbps

1* M.2 slot,   support M.2 Key M 2280 NVME PCIE X1/SATA specification SSD

Audio

Onboard ALC897 7.1+2-channel hi-fi audio   controller, supports MIC/Line-out.

4Ω 3W speaker recommended for amplifier.

Expansion   Slots

1* Mini-PCIE slot, support for WIFI/4G modules

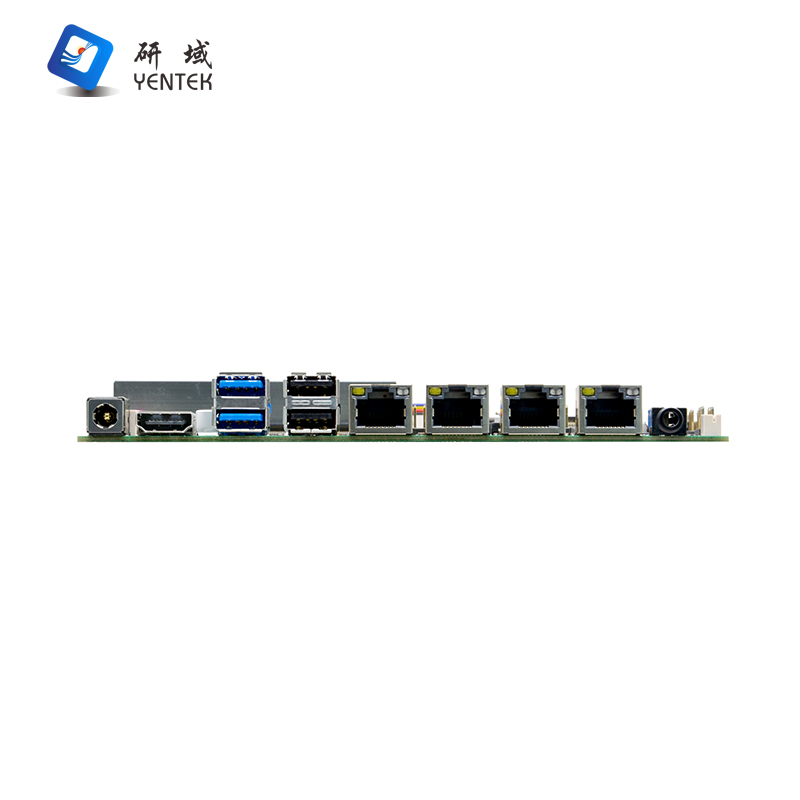

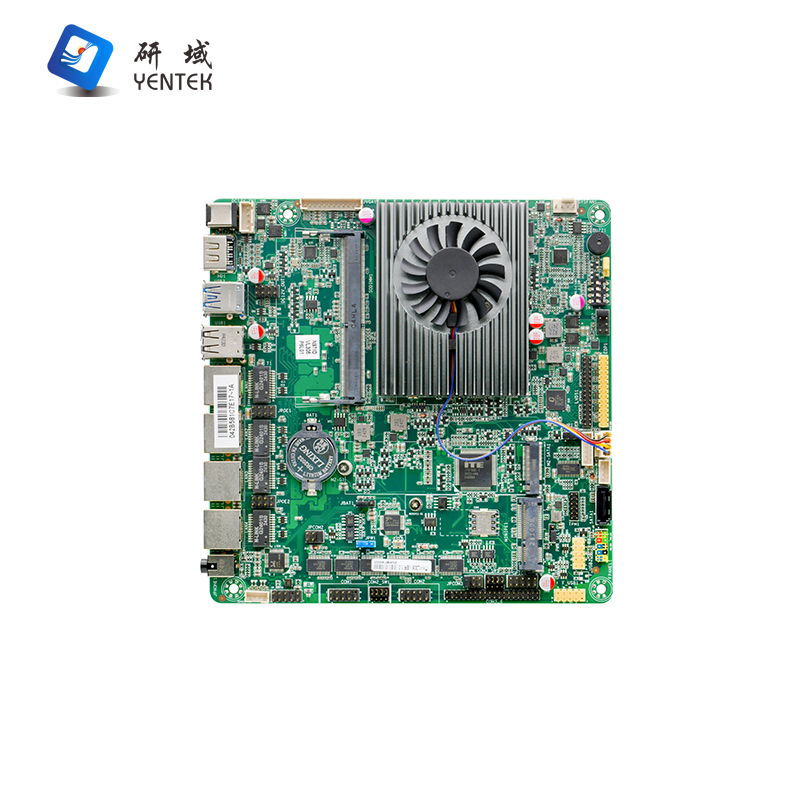

Backplane   I/O Ports

1* DC 12V power input   interface

1*   HDMI1.4 display interface

2* USB3.0 interface,   2*USB2.0 interface

4* RJ45 Gigabit network   interface

1* Two and one audio   interface

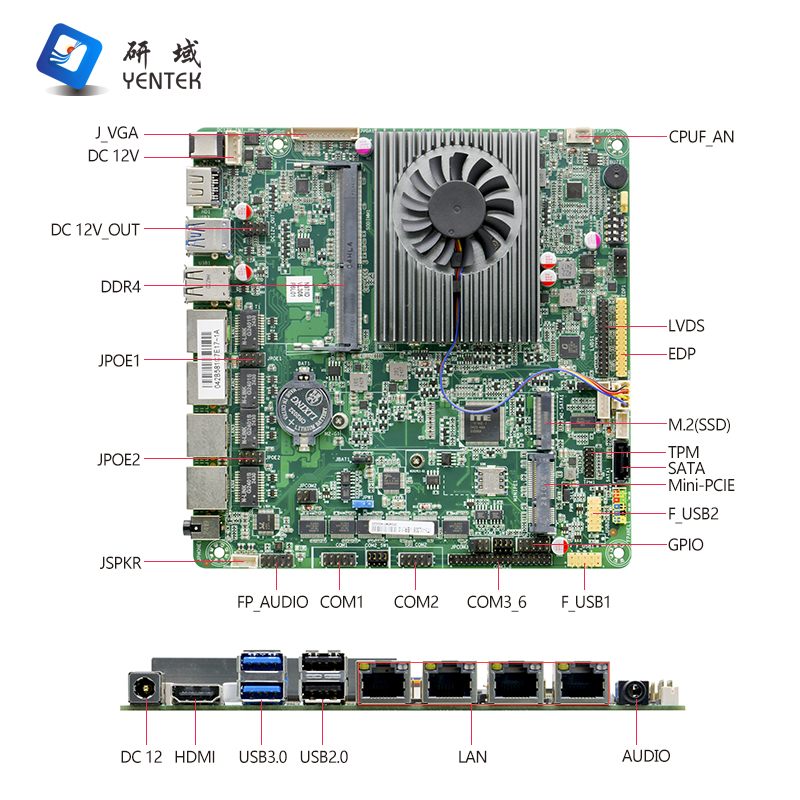

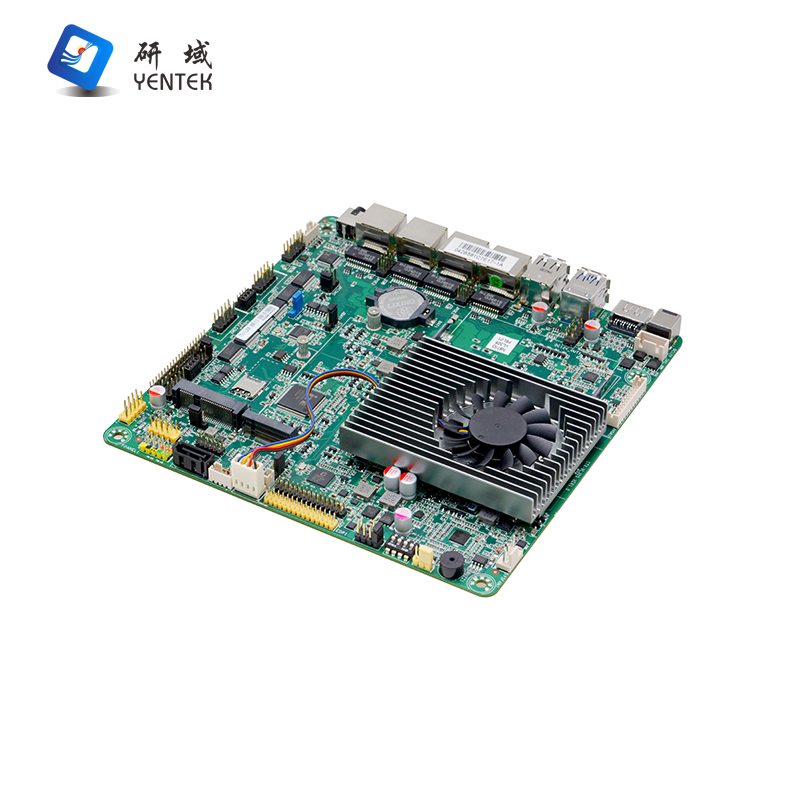

Built-in   I/O Ports

1* JVGA1   interface 1*12pin

3* 2*4pin PH=2.54mm pin header, connect to VL680-PW small board

1* LVDS interface, 2*15pin, support dual-channel 24BIT,

1* EDP connector (yellow),   2*15pin, and LVDS through the jumpers for the two options

1* Screen backlight power   supply interface 1*6pin

4* USB2.0 interface, 2*5pin,   6* RS232 serial interface, 2*5pin, 2*5pin, 2*5pin, 2*6pin

6* RS232 serial interface,   COM2/COM3 support RS485/422 function.

1* HDD power supply   interface 1*4pin

1* Front Audio Interface   2*5pin

1* Amplifier interface   1*4pin

1* SIM card slot

1* Front Panel Function   Button and Indicator Interface 2*5pin

1* TPM Pin ESPI   Specification 2*6pin

1* 4pin DC power connector   (can be 12V input/output power connector)

Fan   Interface

1*4pin CPU smart fan   interface, 1*4pin system fan interface

GPIO

Support   4 input/output GPIO

BIOS

256Mb   Flash ROM

Watchdog

Support   hardware reset function (256 levels, 0~255 seconds)

Operating   System

Windows   10/Windows 11/Linux

Power   Supply Type

DC   12V power supply

Operating   Temperature

-10℃～60℃

Storage   Temperature

-20℃～70℃

Working Humidity

5%-95%   relative humidity, non-condensing

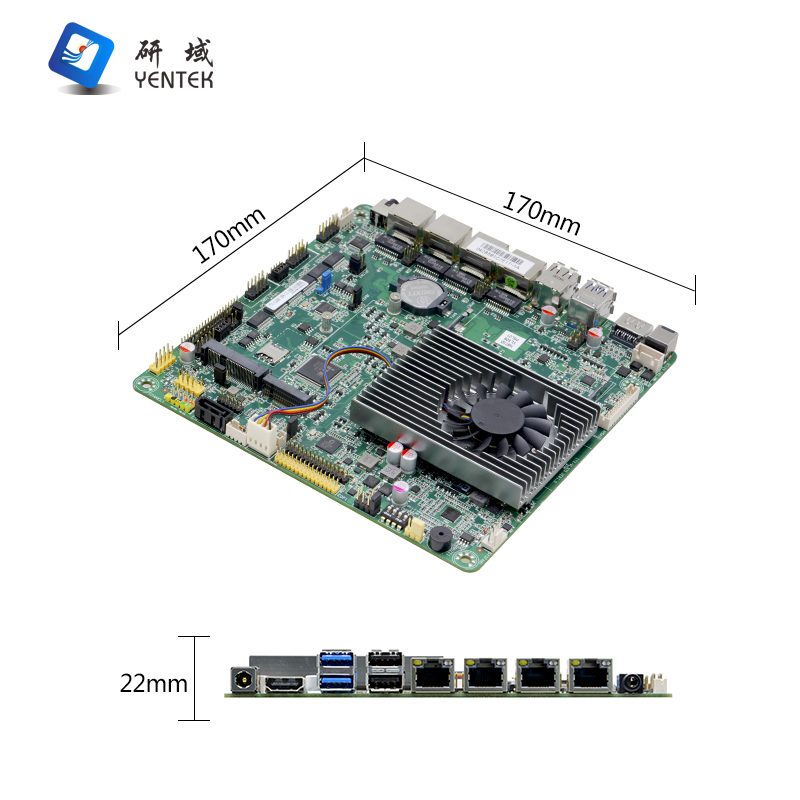

Dimension

170mm x 170mm
