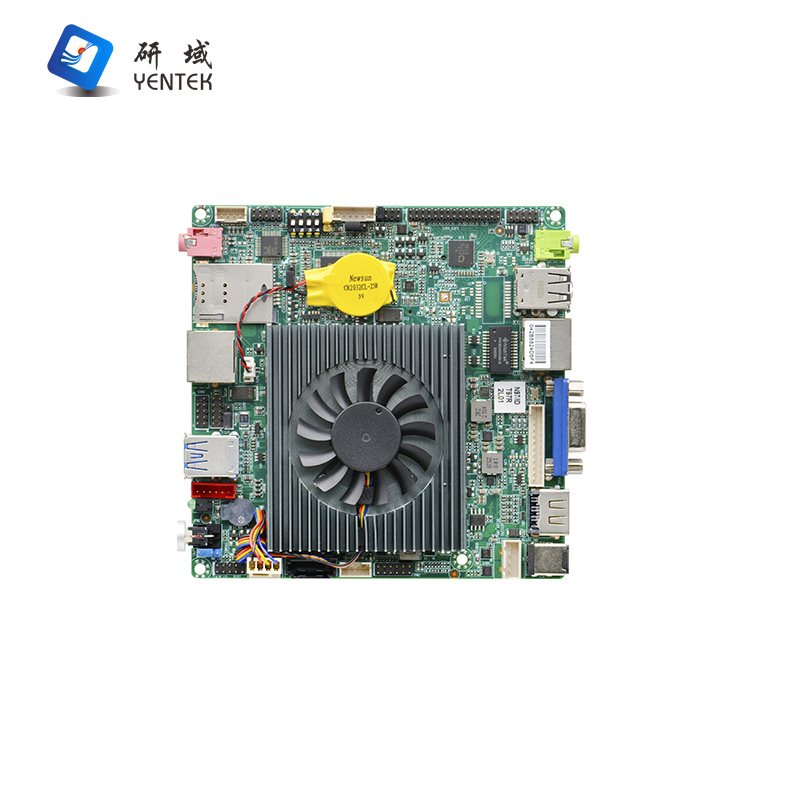

STX-T97_1L

Processor

Integrated Intel® Alder Lake-N N97   3.6GHz quad-core processor, TDP 12W

Compatible with the full range of Intel®   Alder Lake-N CPUs, offering customers flexible selection options

Chipset

SOC

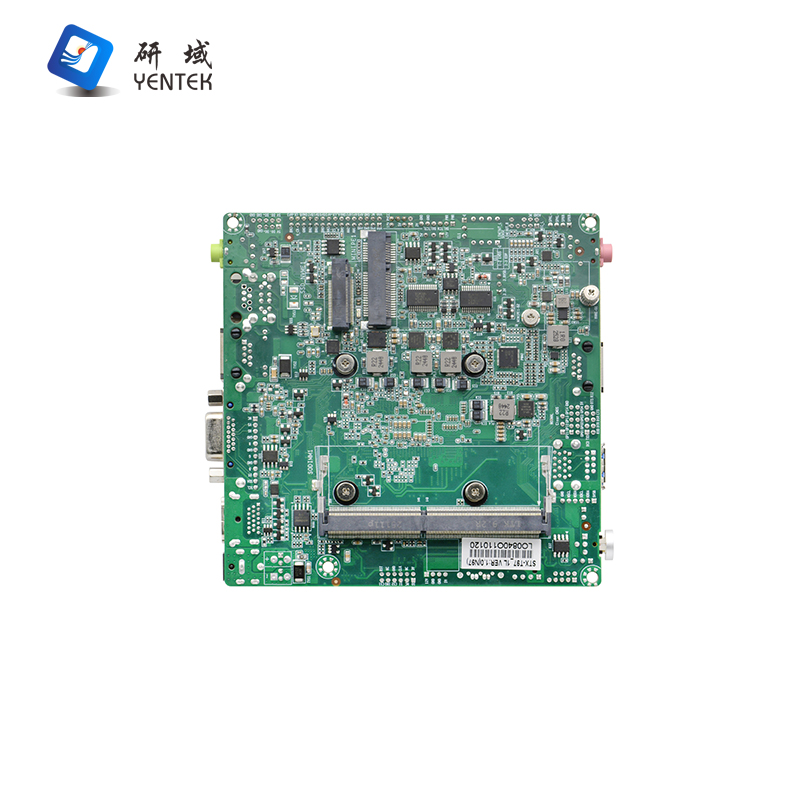

Memory

1x SODIMM slot, supporting   single-channel 3200MHz DDR4 memory, maximum capacity 32GB

Display

Integrated Intel® UHD Graphics core graphics

1x VGA, 1x HDMI, 1x LVDS interface   (supports dual-channel 24-bit), shared with EDP via jumper selection

Supports synchronous/asynchronous   display via VGA, HDMI, or LVDS

Network

1x RTL8111H Gigabit Ethernet controller,   supporting Wake-on-LAN/PXE functionality; LAN2 shares pin with dual-layer USB   2.0

Storage

1x 7-pin SATA 3.0 hard drive interface,   transfer rate up to 6Gbps

1x M.2 slot, supporting M.2 Key M 2280   PCIe x1/SATA adaptive specification SSD

Audio

Onboard ALC897 7.1+2-channel high-fidelity   audio controller, supporting MIC/Line-out. Amplifier

Amplifier recommended for use with 4Ω 3W   speakers

Expansion Slots

1x Mini-PCIe slot supporting Wi-Fi/4G   modules

Note: When using a 4G module, only   single-sided modules may be employed

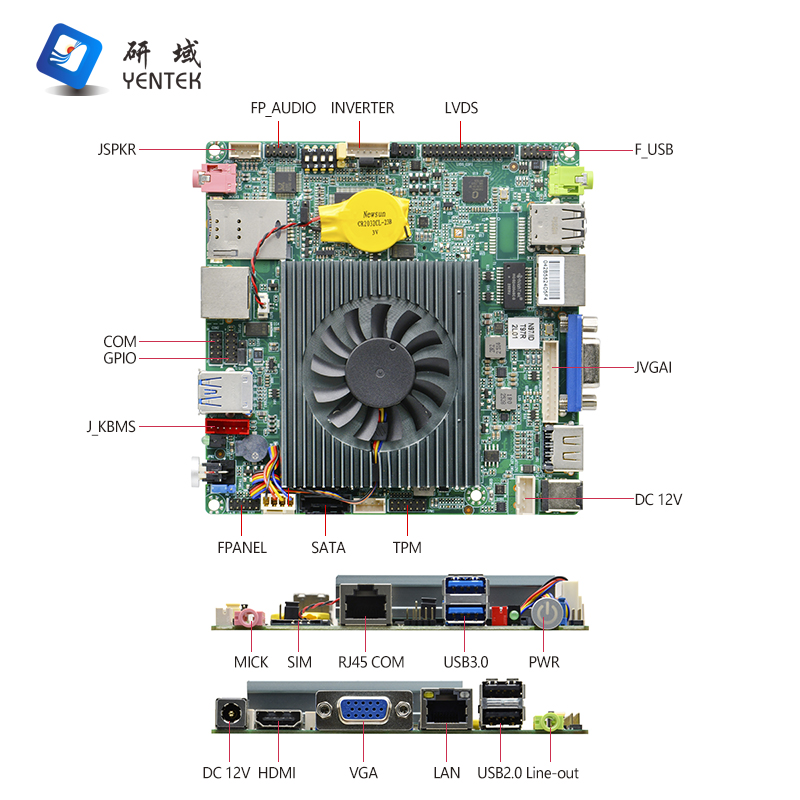

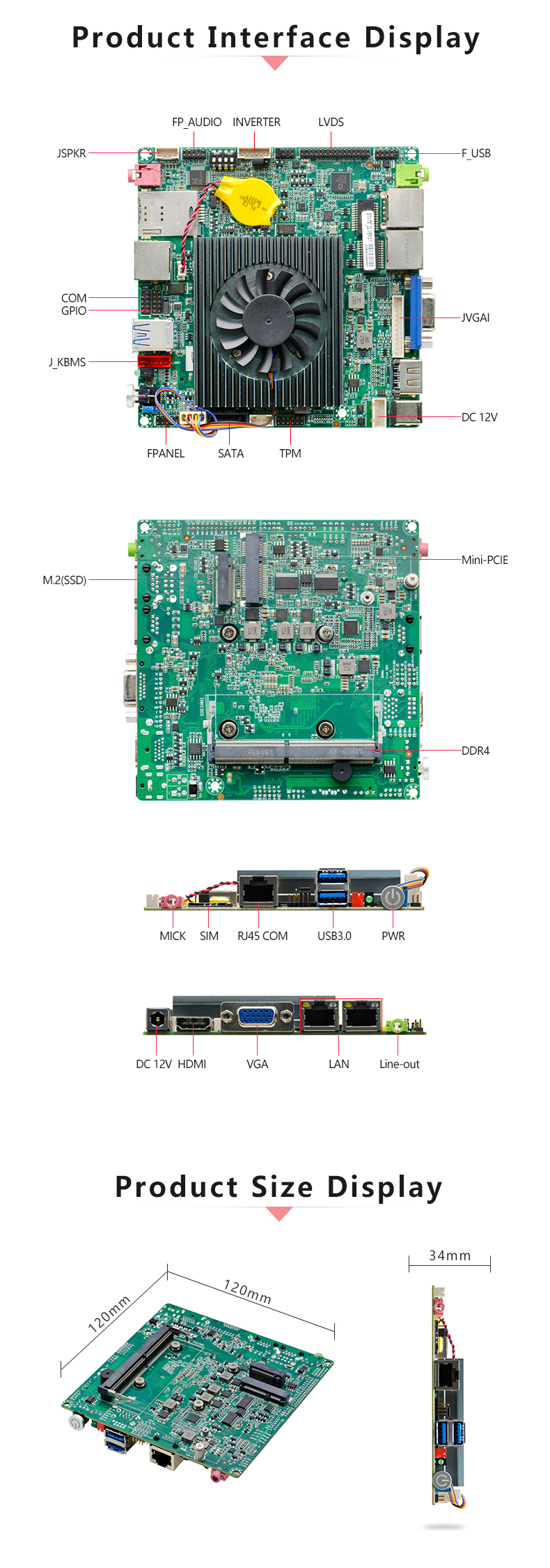

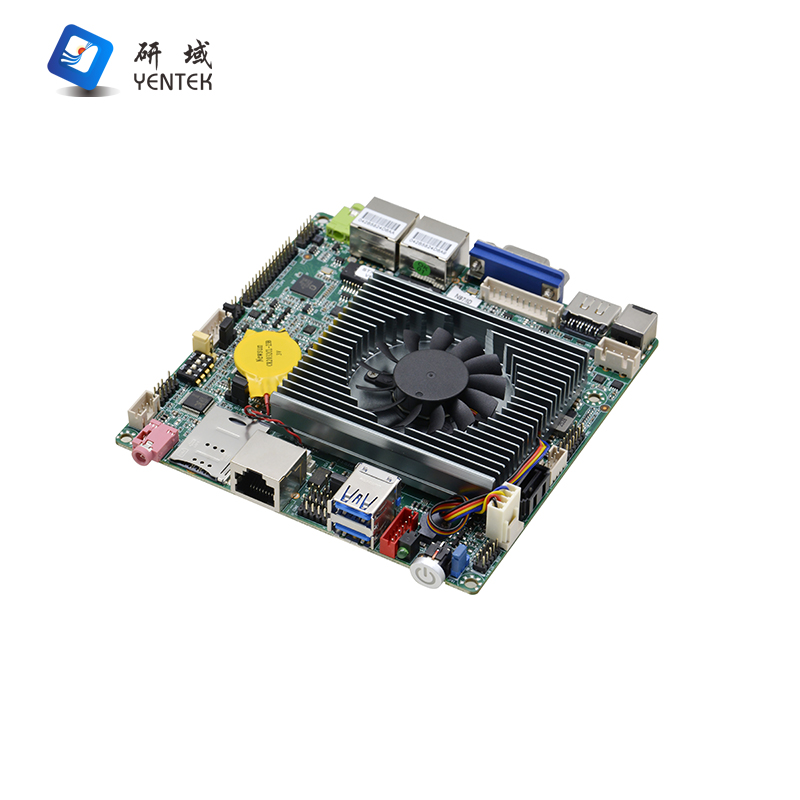

Front I/O Ports

1x Power switch with indicator light

1x Power indicator (green)

2x USB 3.0 ports

1x RJ45 serial port

1x SIM card slot

1x MIC (red)

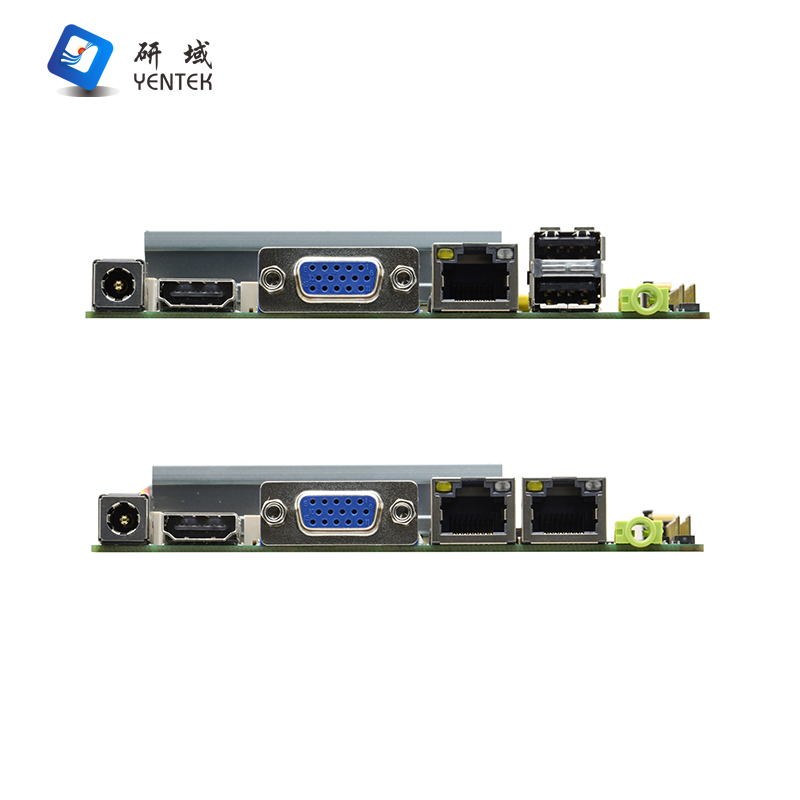

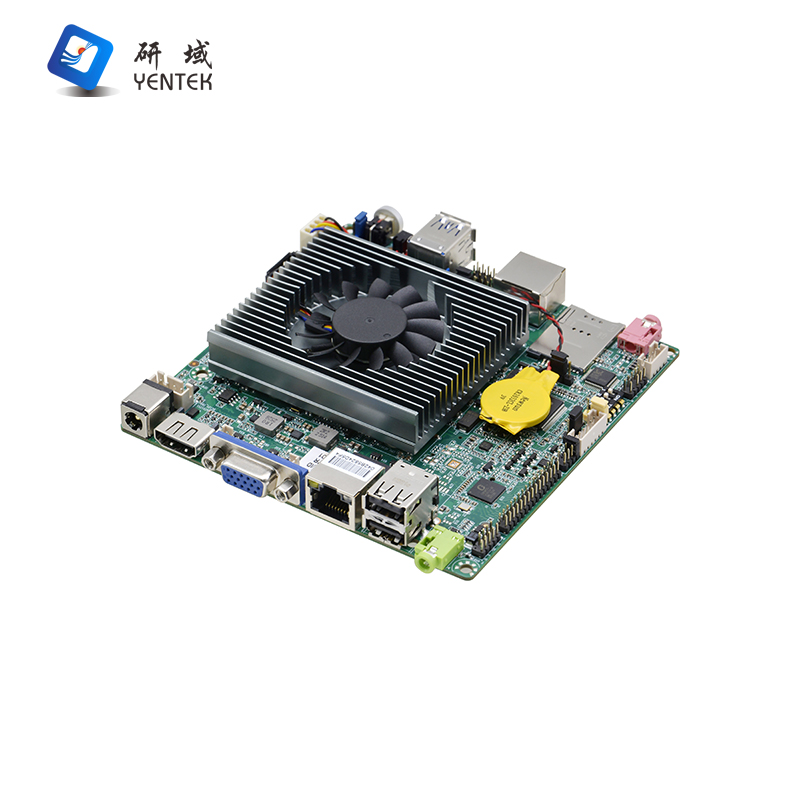

Rear I/O Ports

1x Line-out (green)

1x RJ45 Gigabit Ethernet port (shared   with dual USB 2.0 ports)

2x USB 2.0 ports

1x VGA port

1x HDMI 1.4 port

1x DC 12V power input

Internal I/O Ports

1x LVDS interface (2x15-pin), shared   header with EDP (selectable via jumper)

1x LVDS backlight interface (1x6-pin)

1* JVGA1 interface (1*12-pin) with   identical signals to DB15

1* RS232 serial port (2*5-pin), supports   RS485 (requires component modification for RS485 functionality)

2* USB 2.0 ports (2*5-pin)

1* PS/2 mouse/keyboard interface   (1*6-pin)

1* Front panel audio interface (2*5-pin)

1x Hard Disk Power Connector (1x4-pin)

1x Front Panel Function Button and Indicator   Connector (2x5-pin)

1x 4-pin DC Power Connector, supporting   12V power input/output

1x Amplifier Connector (1x4-pin)

1x TPM Connector (2x6-pin)

Fan Connectors

1x 4-pin CPU Intelligent Fan Connector,   1x 4-pin System Fan Connector

GPIO

Supports 4-channel input/output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Supports hardware reset function (256   levels, 0–255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

DC_12V single power input

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

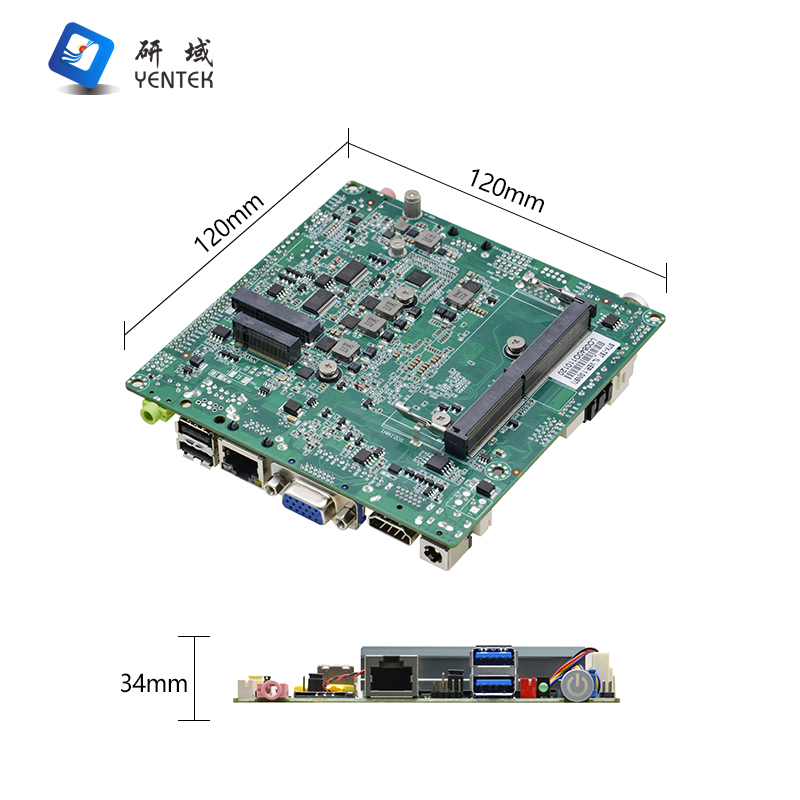

Dimensions

120mm x 120mm

1

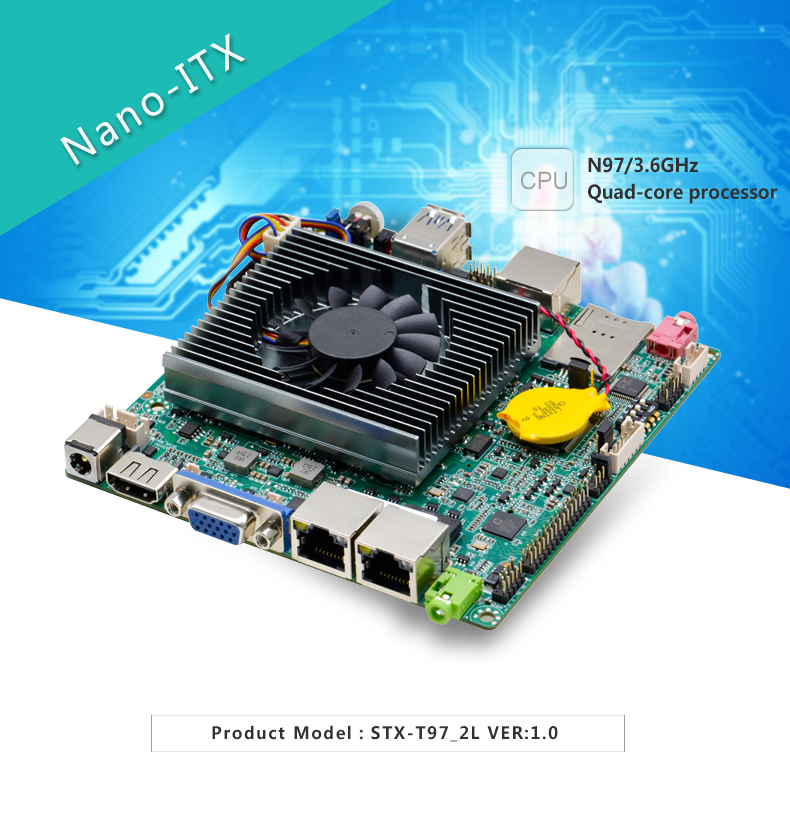

STX-T97_2L VER:1.0

N97

3.6G

1*SODDR4

1

1

2ch/24BIT

2*8111H

4

2

DC/12V

STX-T97_1L VER:1.0

N97

3.6G

1*SODDR4

1

1

2ch/24BIT

1*8111H

6

2

DC/12V
