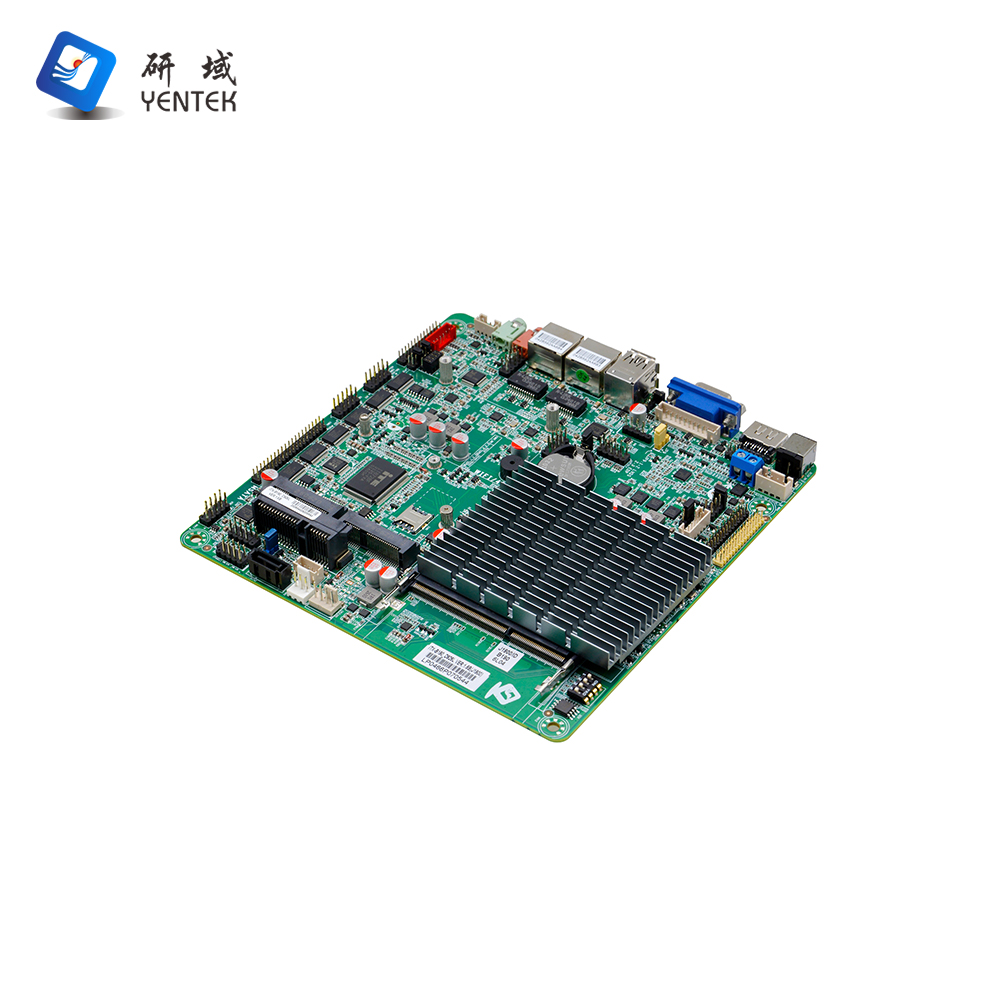

ITX-B190_D926L VER:1.6B

Processor

Integrated Intel® Celeron J1900/2.00GHz quad-core processor, TDP 10W

Compatible with the full range of Intel® Bay Trail -I/M/D CPUs, offering customers flexible choice

Chipset

Based on the Intel® Bay Trail SoC platform

Memory

1× SODDR3L memory slot, supporting single-channel 1600/1333MHz DDR3L/1.35V memory, with a maximum capacity of 8GB

Display

Integrated Intel® HD Graphics

1 × VGA, 1 × HDMI, 1 × LVDS, 1 × EDP; LVDS and EDP are mutually exclusive via a jumper setting, with LVDS as the default

Supports synchronous/asynchronous display via VGA, HDMI and LVDS

Network

2 × Realtek RTL8111H Gigabit Ethernet ports, supporting Wake-on-LAN and PXE

Storage

1 × SATA 2.0 hard drive interface

1 × SATA 2.5-inch laptop hard drive bay, suitable for direct hard drive installation

1 × mSATA slot supporting SSDs, with transfer speeds up to 3 Gbps

Note: The 2.5-inch hard drive bay and 7-pin SATA are mutually exclusive; the default is the 7-pin SATA. When using the 2.5-inch hard drive bay, the 7-pin SATA cannot be used

Audio

On-board ALC262 6-channel high-fidelity audio controller, supporting MIC/Line-out and power amplifier

A 4Ω 3W speaker is recommended for the power amplifier

Expansion Slots

1 × Mini-PCIe slot, supporting Wi-Fi and 4G modules

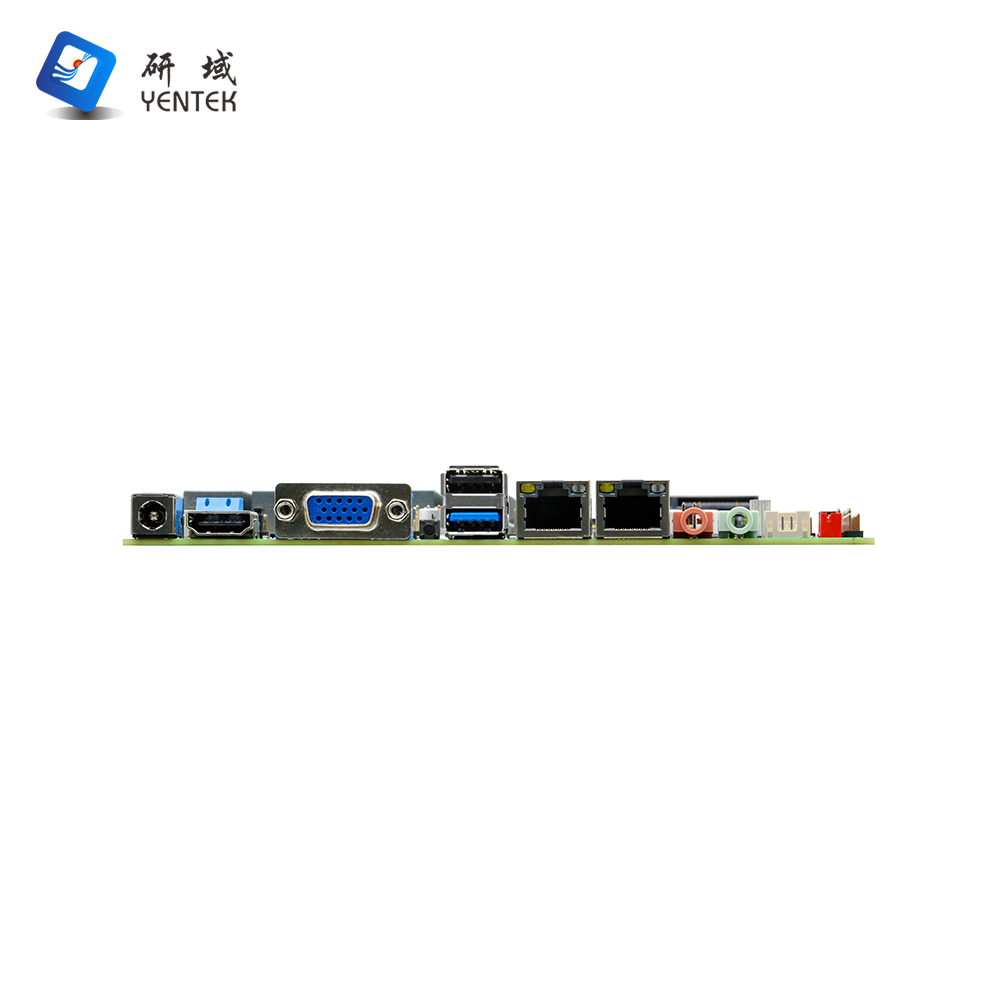

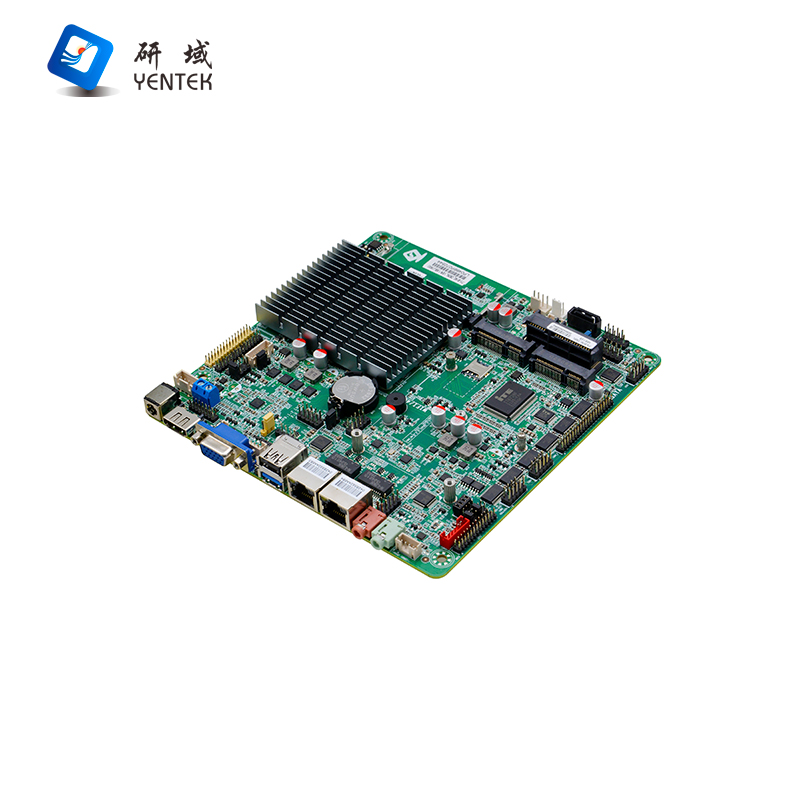

Rear Panel I/O Ports

1 × HDMI display port

1 × VGA display port

1 × USB 2.0 port

1 × USB 3.0 port

2 × RJ-45 Gigabit Ethernet ports; note that LAN2 and USB1 are mutually exclusive

1 × Line-out port (green), 1 × MIC port (red)

1 × 12V DC power input port

1 × CMOS reset button (reserved)

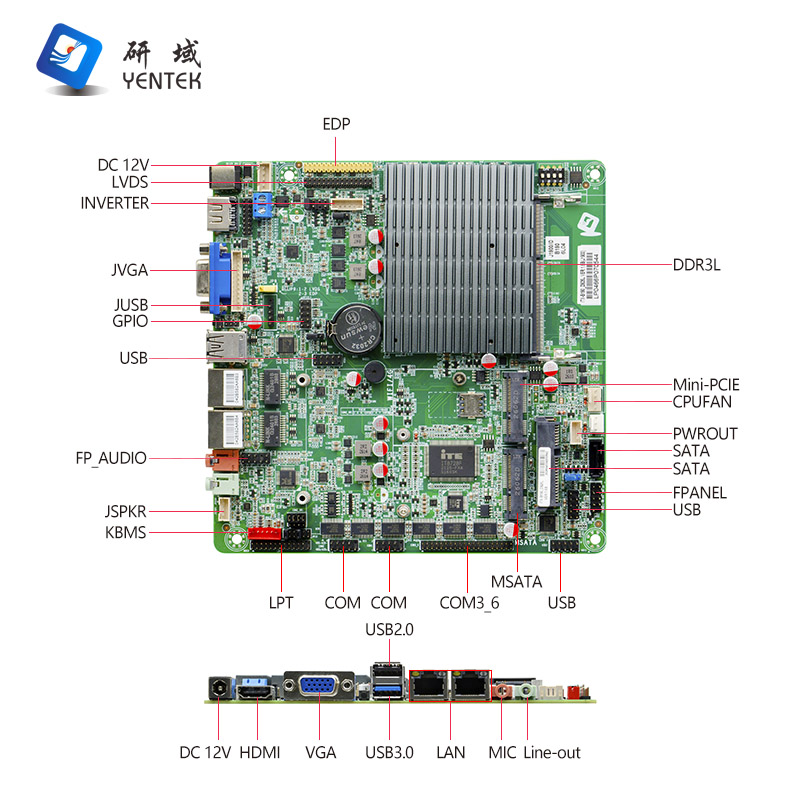

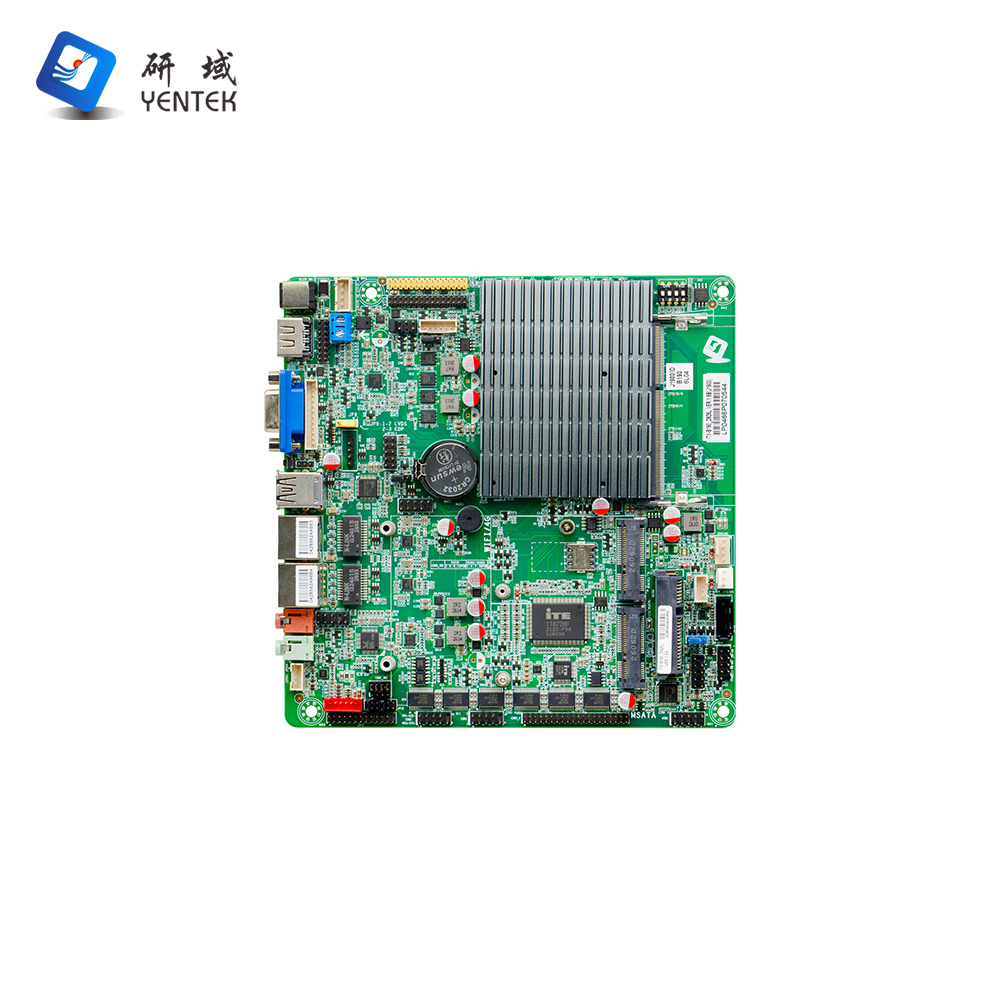

On-board I/O Ports

1 × 4-pin 12V DC power connector

1 × 2-pin blue power connector

1 × 5-pin USB 2.0 port

6 × USB 2.0 ports (2 × 5-pin), of which USB5 and USB1 are mutually exclusive

1 × J_HDMI port (2 × 8-pin; same signal as HDMI1 on the backplane I/O)

1 × JVGA port (1 × 12-pin; same signal as DB15)

1 × LVDS port (2 × 15-pin; supports dual-channel 24-bit)

1 × Display backlight power supply connector: 1 × 6-pin

1 × EDP connector, 2 × 15-pin; either this or the LVDS connector is active via a jumper setting; LVDS is the default

1 × PS/2 keyboard and mouse connector (red): 1 × 6-pin

6 × RS232 serial ports; COM1/COM2 support pin 9 power supply, and COM2 supports RS485/422 modes

1 × LPT parallel interface, 2 × 13-pin

1 × front audio interface, 2 × 5-pin

1 × front panel switch and indicator interface, 2 × 5-pin

1 × hard drive power supply interface, 1 × 4-pin

1 × power amplifier interface, 1 × 4-pin

1 × SIM card slot

Fan Connectors

Fanless cooling design; provisions for 1 × 4-pin CPU fan connector and 1 × 3-pin system fan connector

GPIO

Supports 4-channel GPIO input/output

BIOS

64 Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating System

Windows 7/Windows 10/Linux

Power Supply Type

Powered by 12 V DC

Operating Temperature

–10 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative humidity, non-condensing

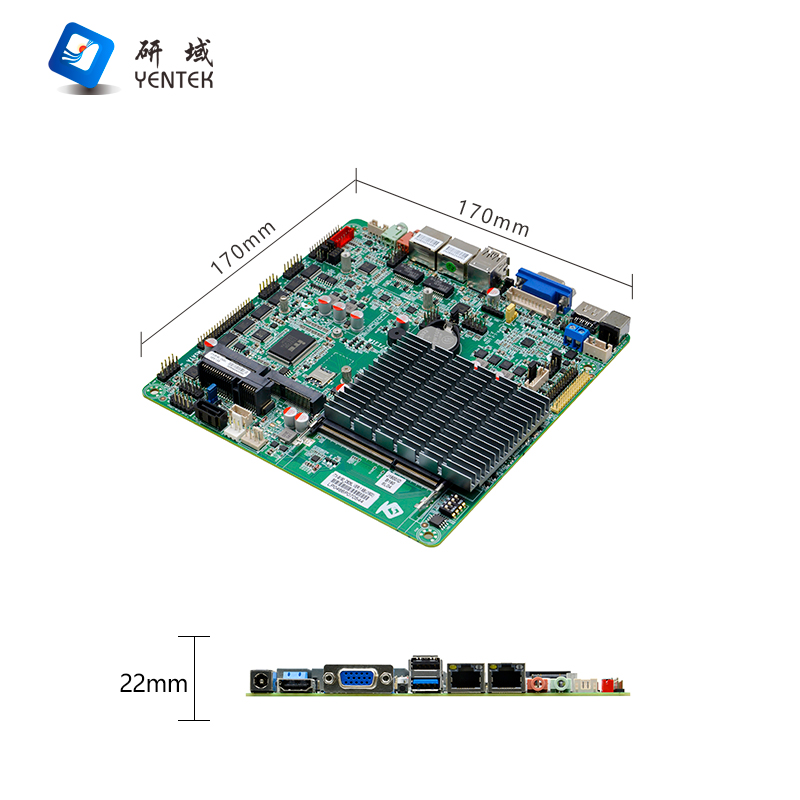

Dimensions

170mm x 170mm

1

ITX-B190_D912L VER:1.6

 J1900

2.0G

1*SODDR3L

1

1

2ch*24bit

1

1*8111H

9

2

COM2

DC12V

2

ITX-B190_D812L VER:1.6

J1800

2.41G

1*SODDR3L

1

1

2ch*24bit

1

1*8111H

9

2

COM2

DC12V

3

ITX-B190_D926L VER:1.6

J1900

2.0G

1*SODDR3L

1

1

2ch*24bit

1

2*8111H

7

6

COM2

DC12V

3

ITX-B190_D926L VER:1.6B

J1900

2.0G

1*SODDR3L

1

1

2ch*24bit

1

2*8111H

7

6

COM2

DC12V
