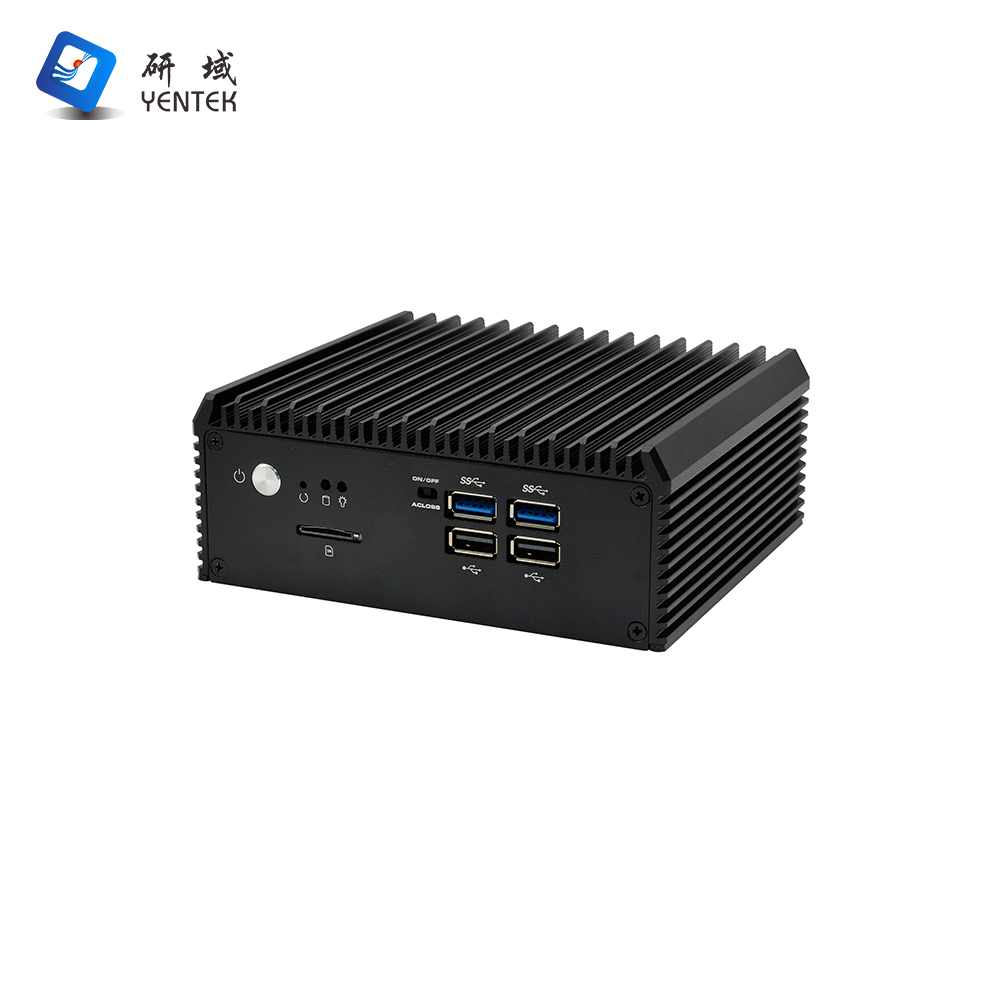

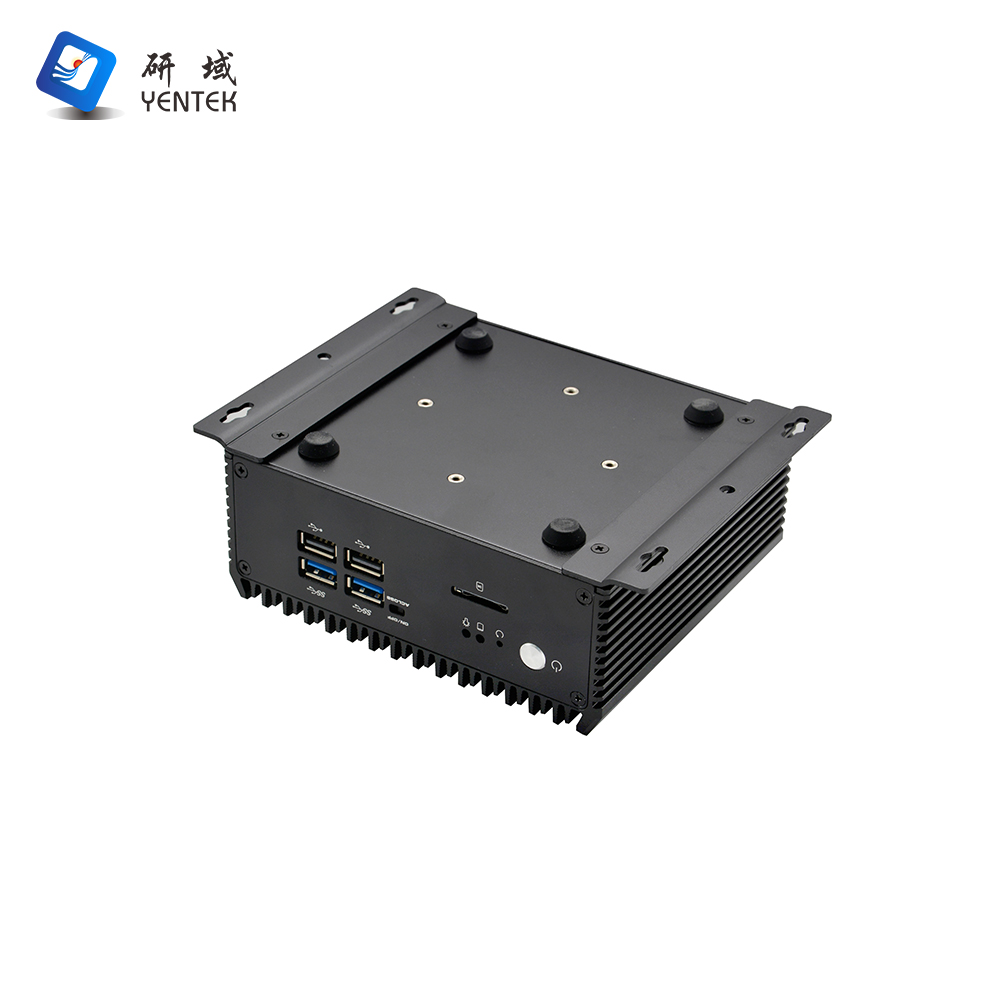

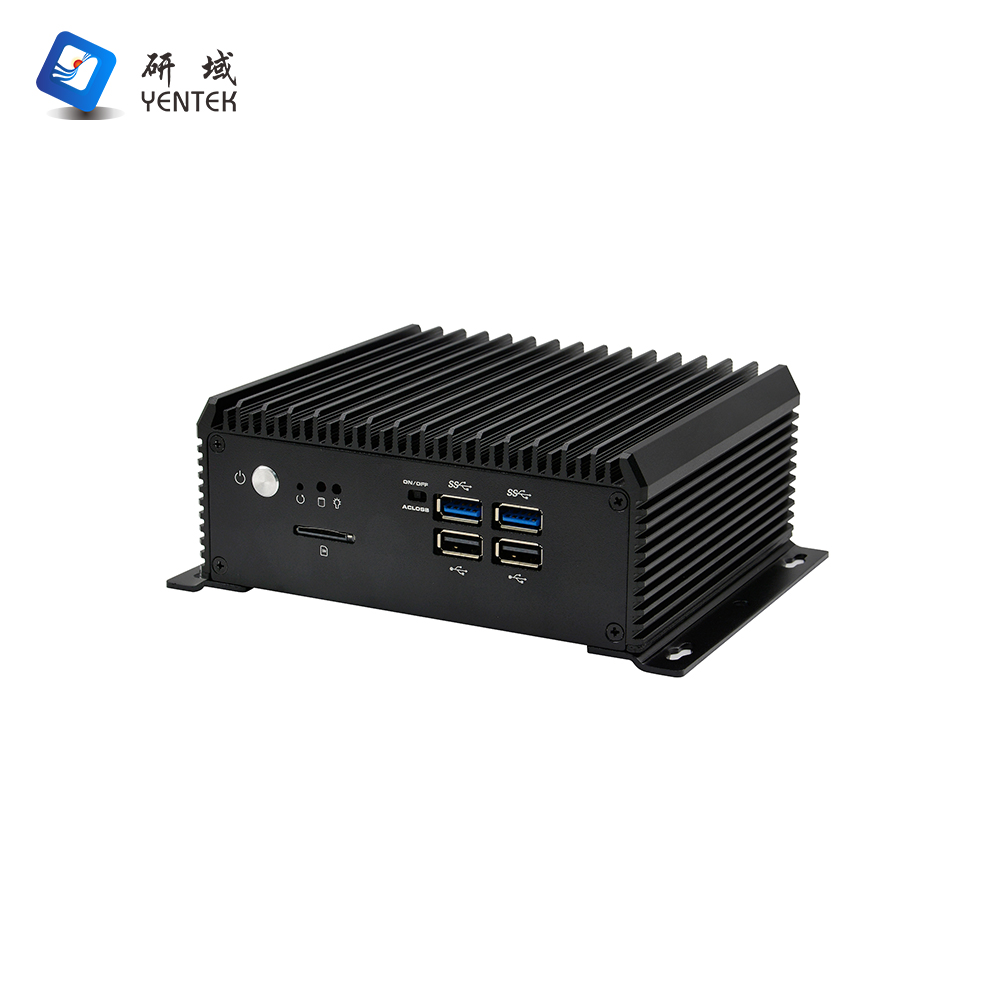

C4350Z-HD

Chassis

Material/Structure

All-aluminum alloy, fanless   cooling structure

Color

Glossy black

Dimensions (LxWxH)

150*126*56.5MM

Installation

Desktop/Embedded

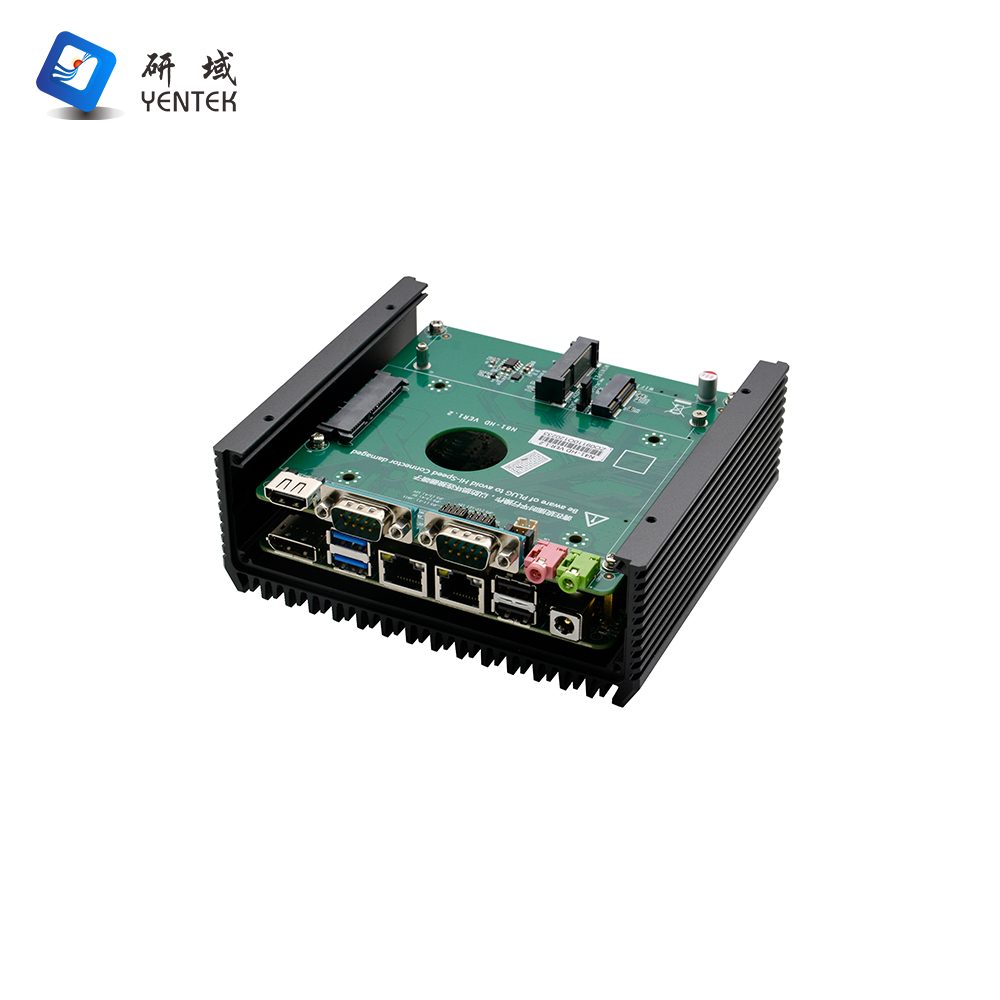

Motherboard

CPU

Integrated Intel® Core™   i5-10210U processor, 1.60GHz quad-core with 8 threads, TDP 15W

Display

Integrated Intel® UHD Graphics

Memory

2x DDR4 2666MHz memory slots,   supports up to 64GB

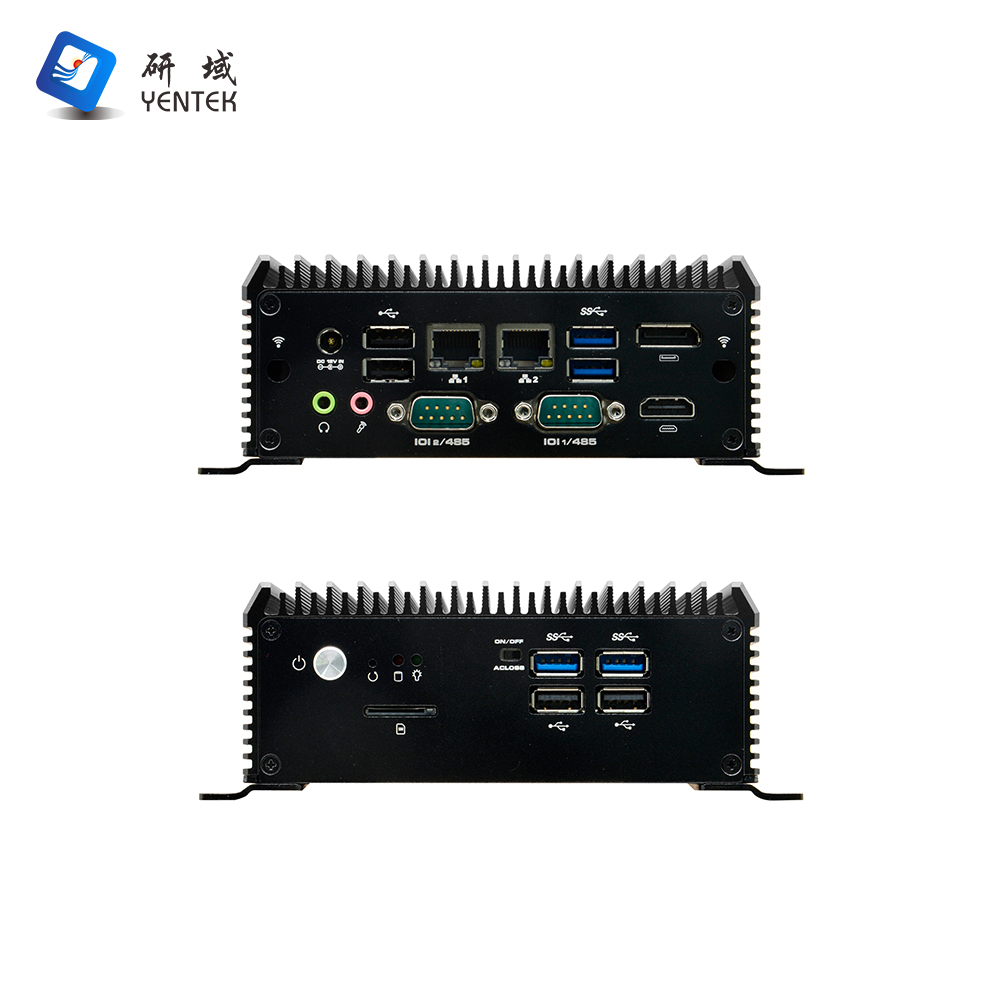

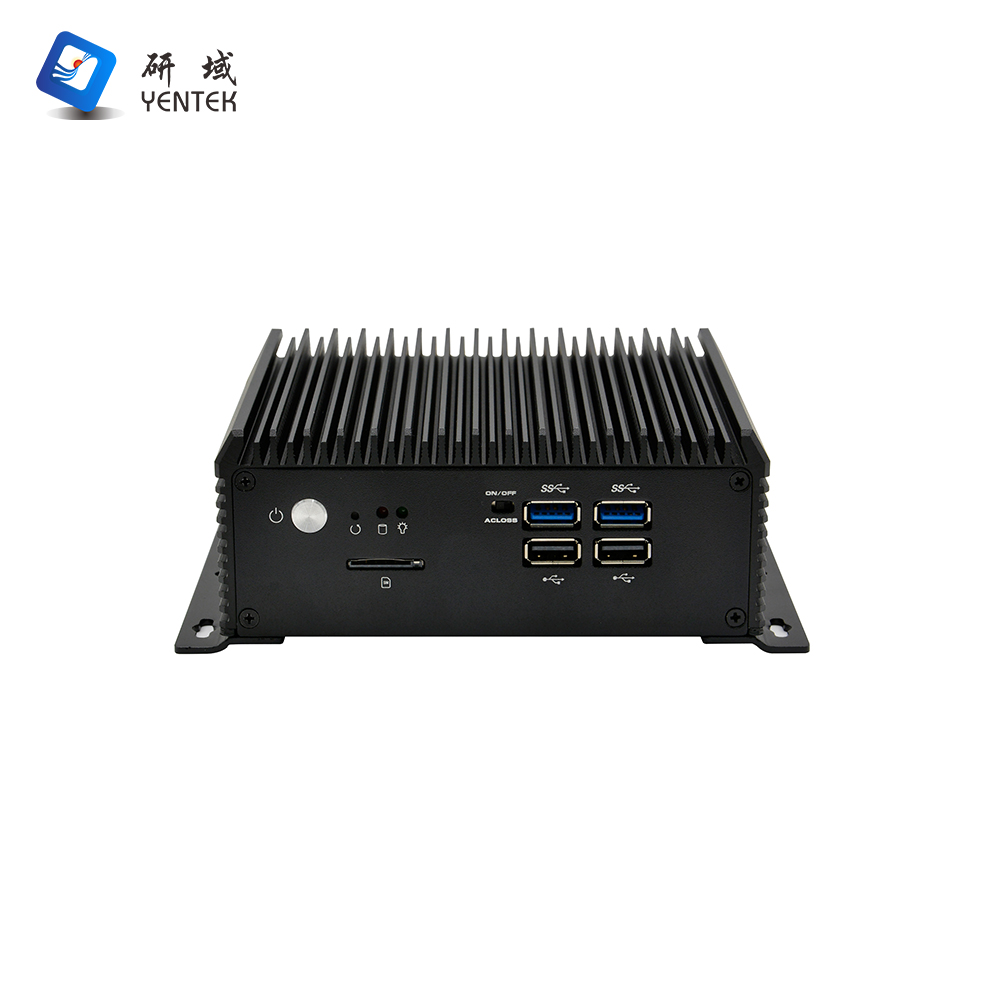

Front Panel Connectors

POWER

1* Power switch, 1* Reset   switch, 1* ACLOSS (Power-on boot DIP switch)

USB

2* USB 2.0, 2* USB 3.0

SIM

1* SIM card slot

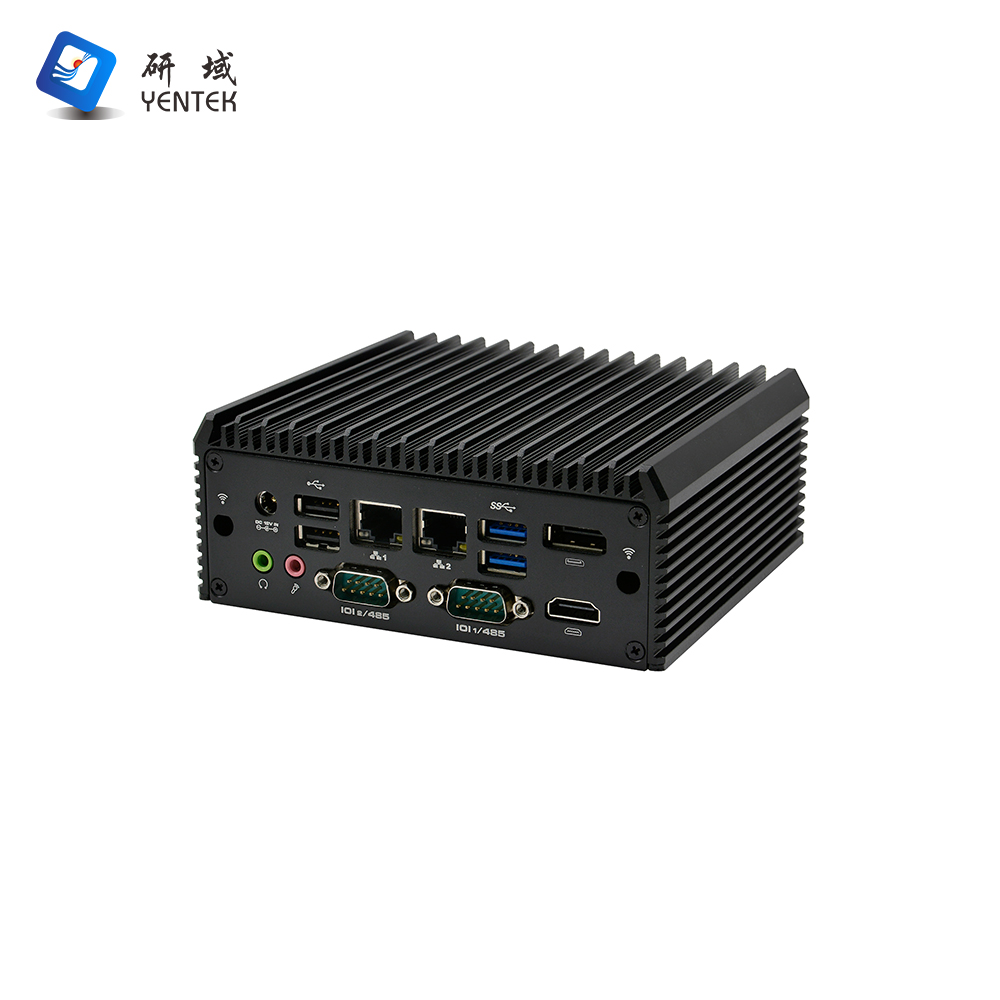

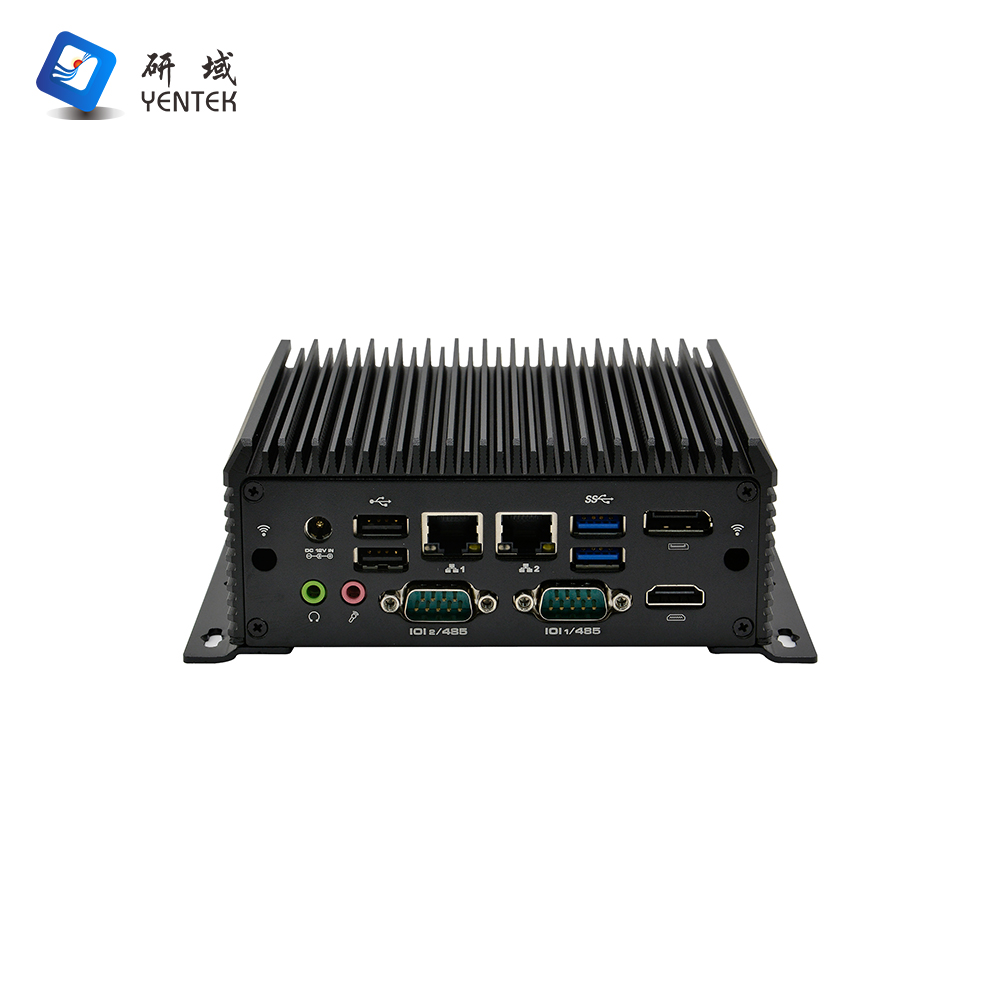

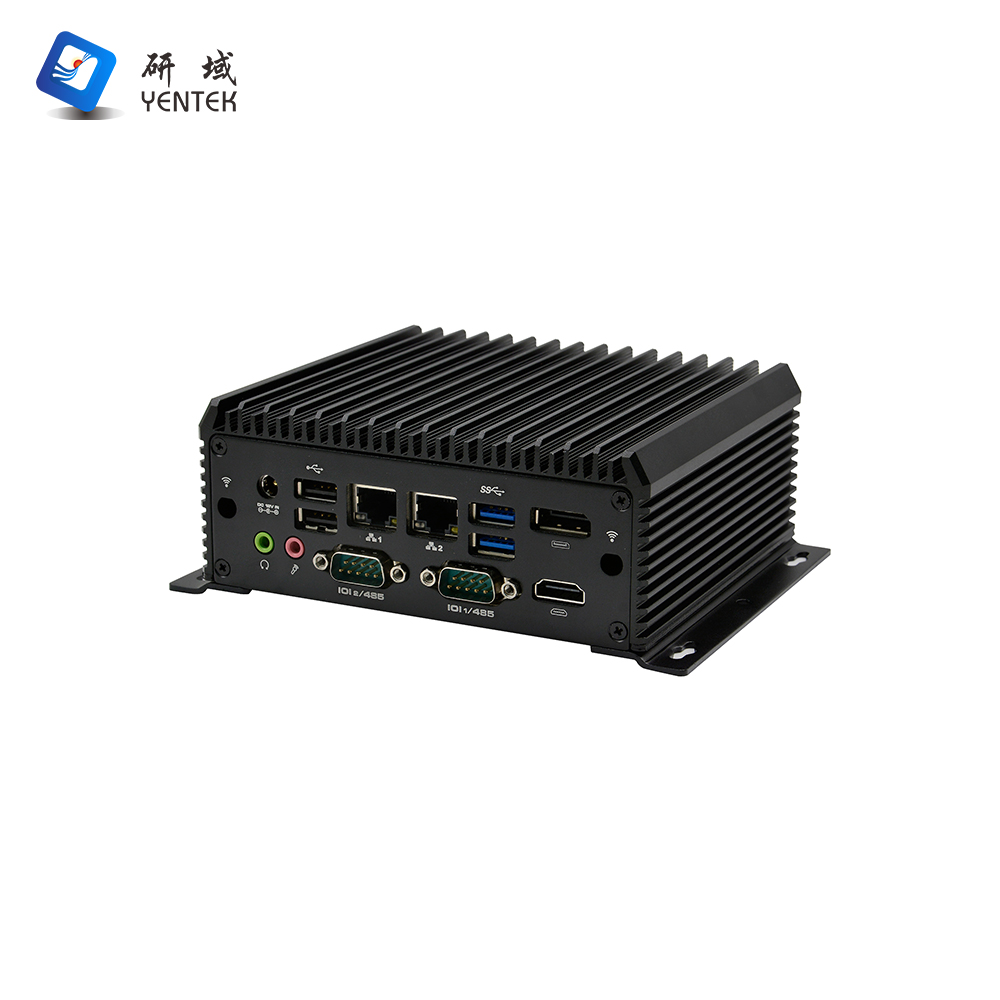

Rear Panel   Connectors

Display Interface

1* HDMI 2.0 (4096x2304@60Hz), 1*   DisplayPort (4096x2304@60Hz)

LAN

2x Realtek 8111H Gigabit   Ethernet ports, supporting Wake-on-LAN and PXE boot

USB

2x USB 2.0, 2x USB 3.0

COM

2x RS232/485 DB9 serial ports,   supporting 9th pin power function

Audio

1x Line out, 1x MIC

Power Supply

1x DC 12V power input

Storage

SATA

1x 2.5-inch HDD bay

SSD

1x M.2 slot supporting Key-M,   2280, NVMe PCIe x4 SSD

Expansion

4G

1x Mini-PCIe slot supporting 4G

WiFi

1x M.2 slot supporting Key-E,   2230, WiFi

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Supports hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power Supply Type

External power adapter

Input Voltage

DC 12V

Output Power

AC to DC, 60W (depending on   specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%-95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating
