C6850Z-P4

Chassis

Material/Construction

All-aluminium   fanless design

Colour

Glossy   black finish

Dimensions   (LxWxH)

L235 × W192   × H57mm

Weight (net   weight)

1.95kg

Mounting

Desktop/built-in   configuration

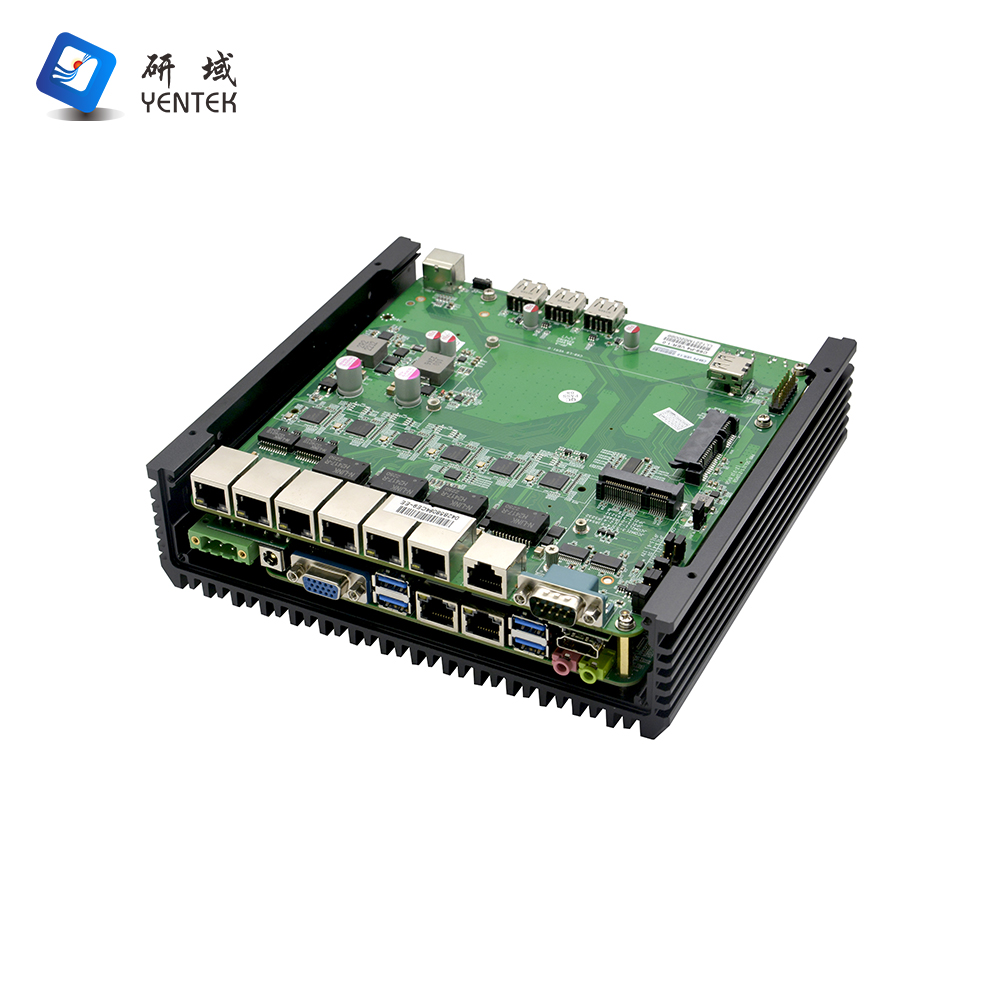

Motherboard

CPU

Integrated   Intel® Core™ i3-8145U processor (2.10GHz, dual-core quad-thread), TDP 15W

Display

Integrated   Intel® UHD Graphics

Memory

2x DDR4   SODIMM memory slots, supporting 2400MHz memory, maximum 64GB

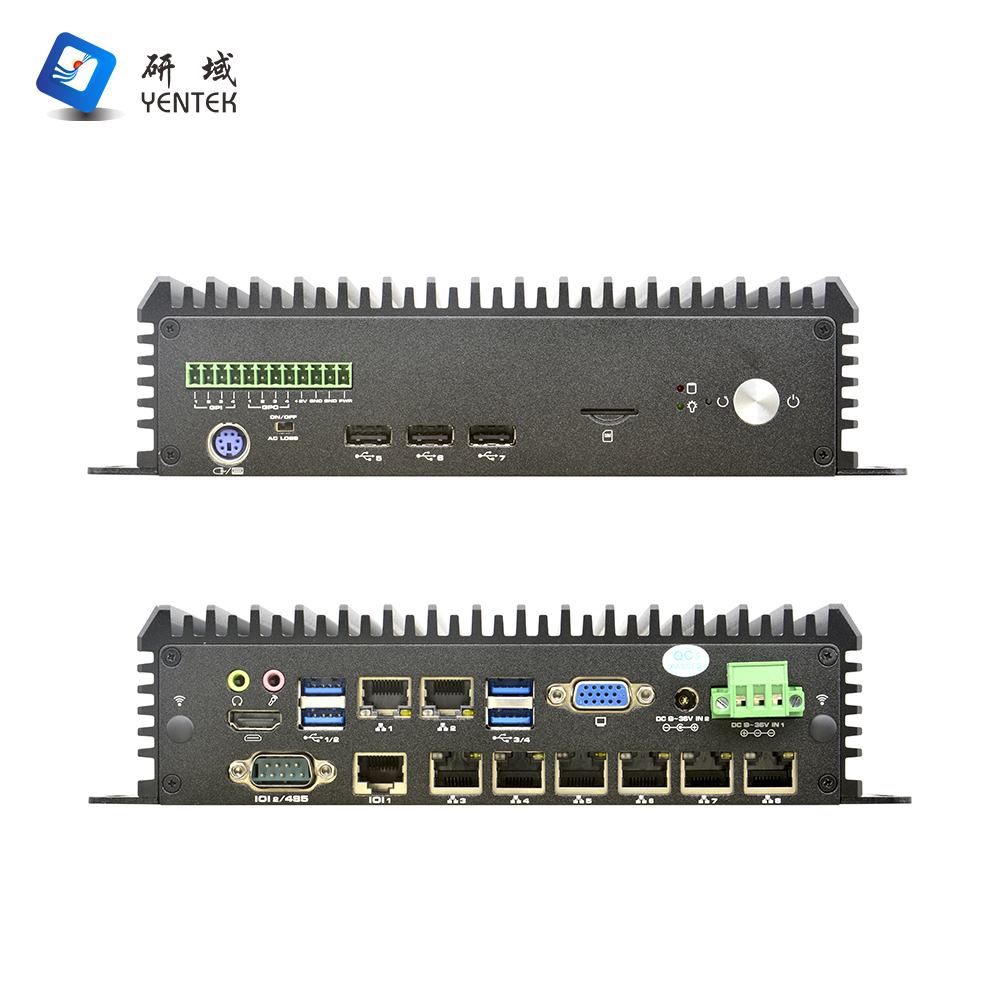

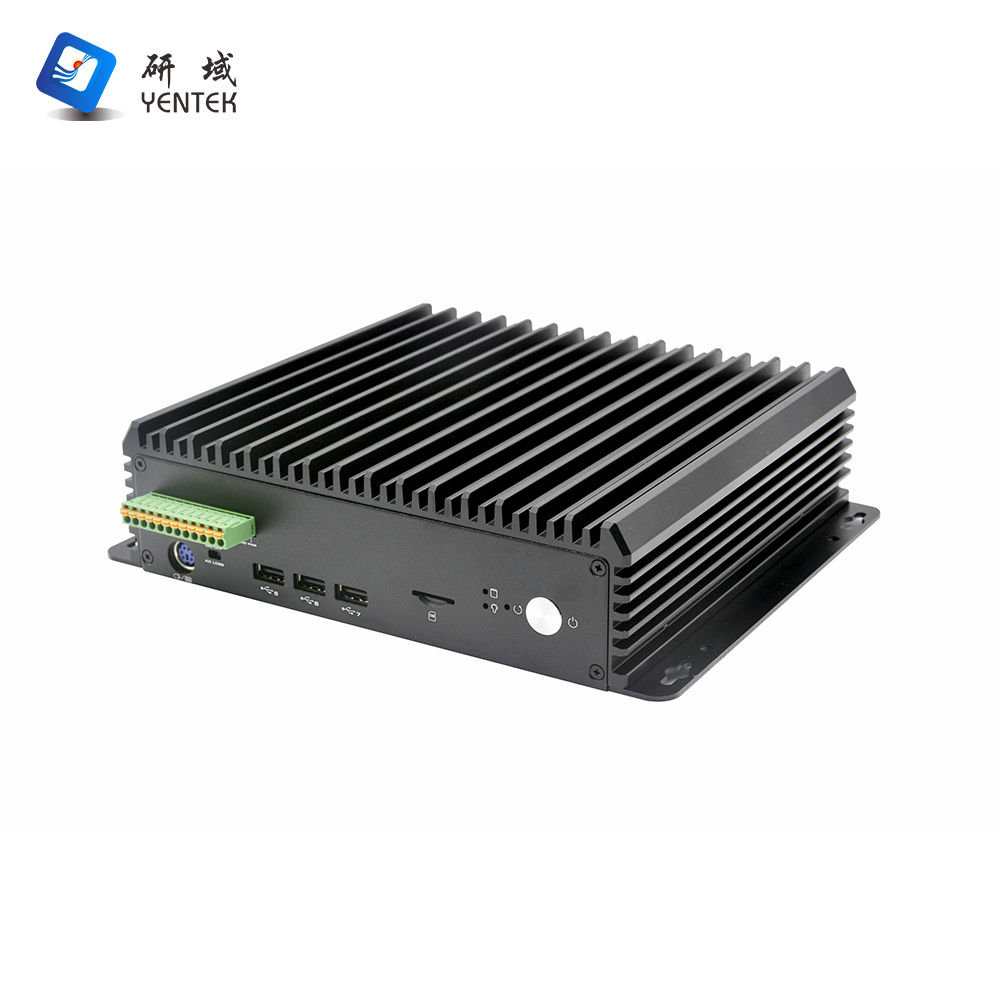

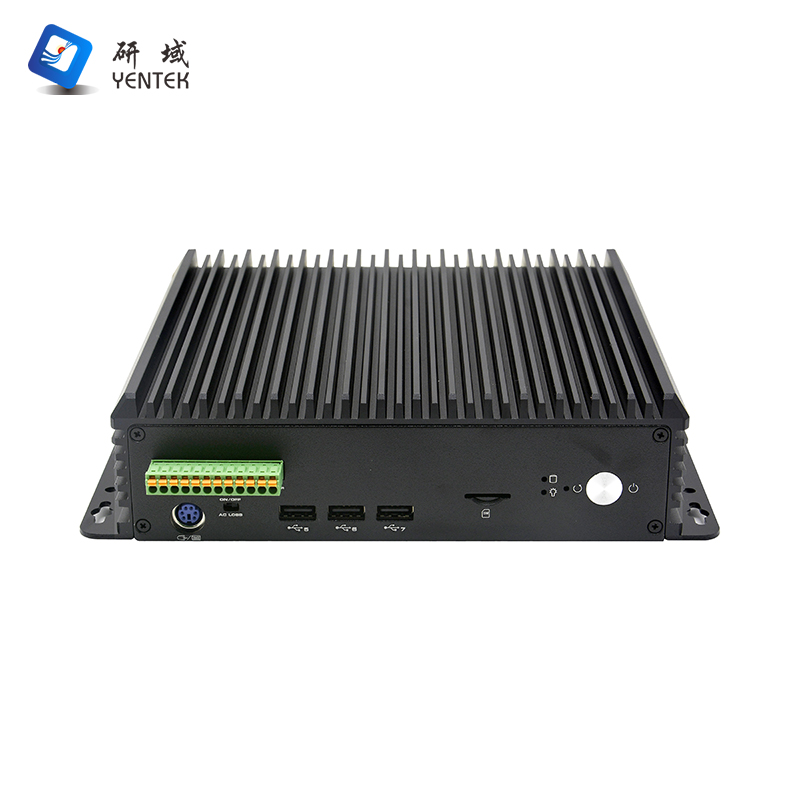

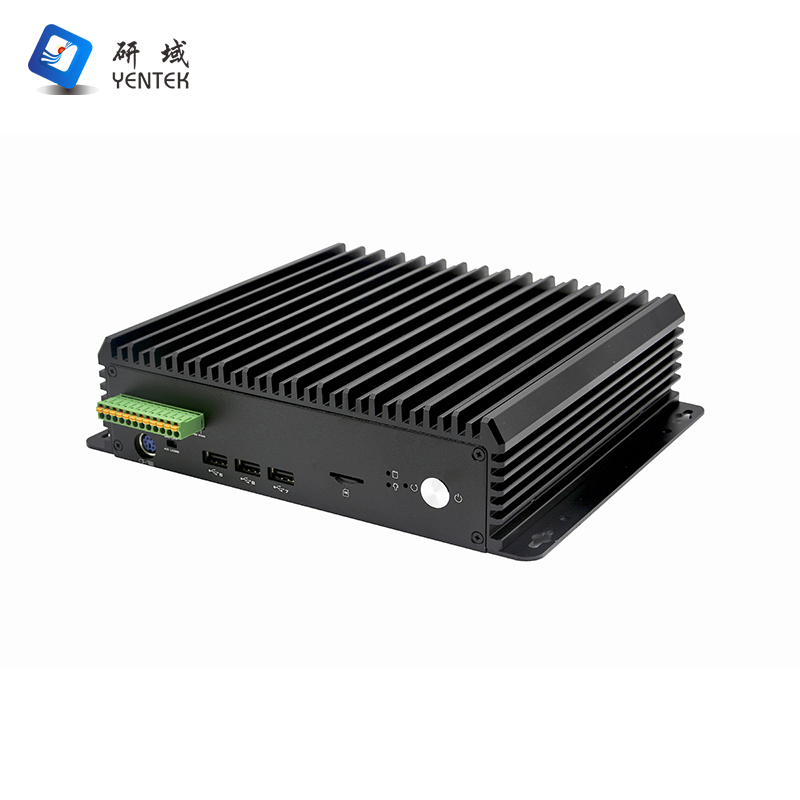

Front Panel   Connectors

POWER

1x Power   switch, 1x One-touch reset, 1x ACLOSS (power-on boot DIP switch)

LED

1x Power   indicator, 1x Hard drive activity indicator

USB

3x USB 2.0   ports, 1x internal USB 2.0

PS2

1x PS/2   port

Phoenix Connector

1x 12-pin   header (includes 4x input/4x output GPIO/switch/LED)

SIM

1x SIM card   slot

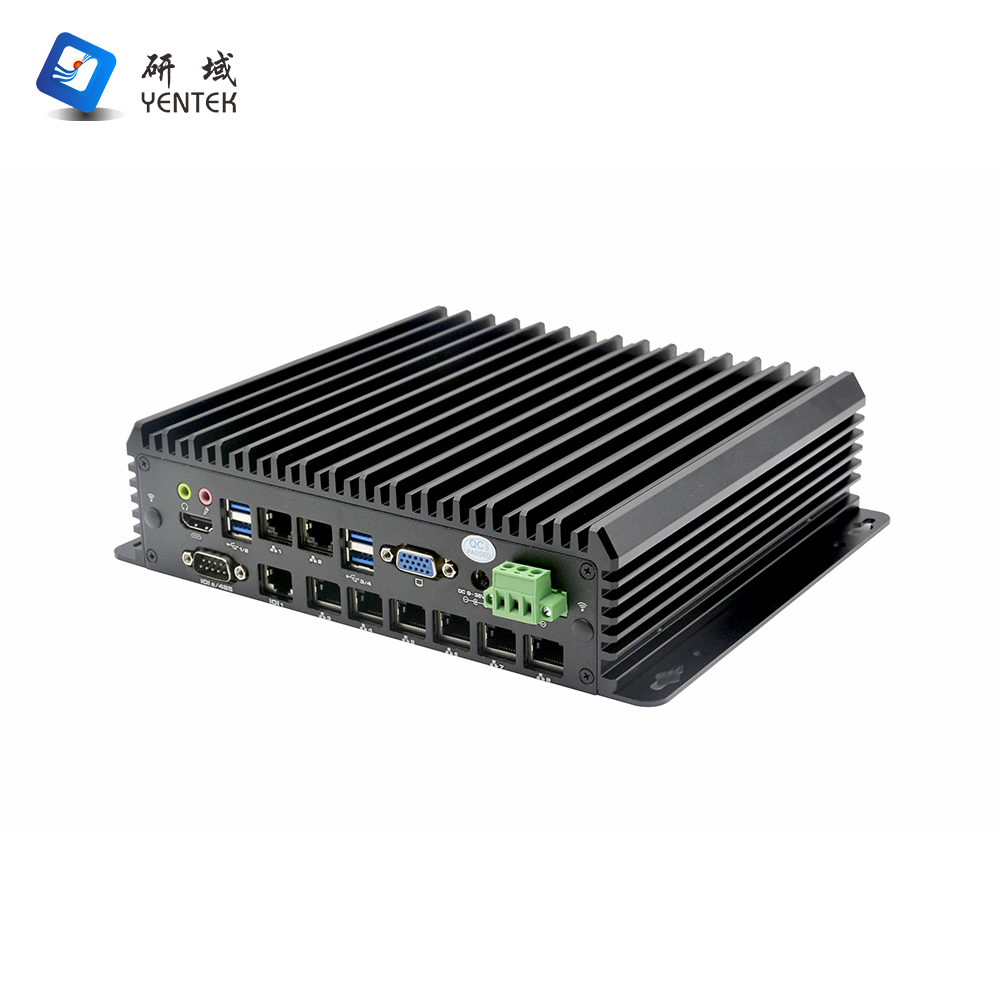

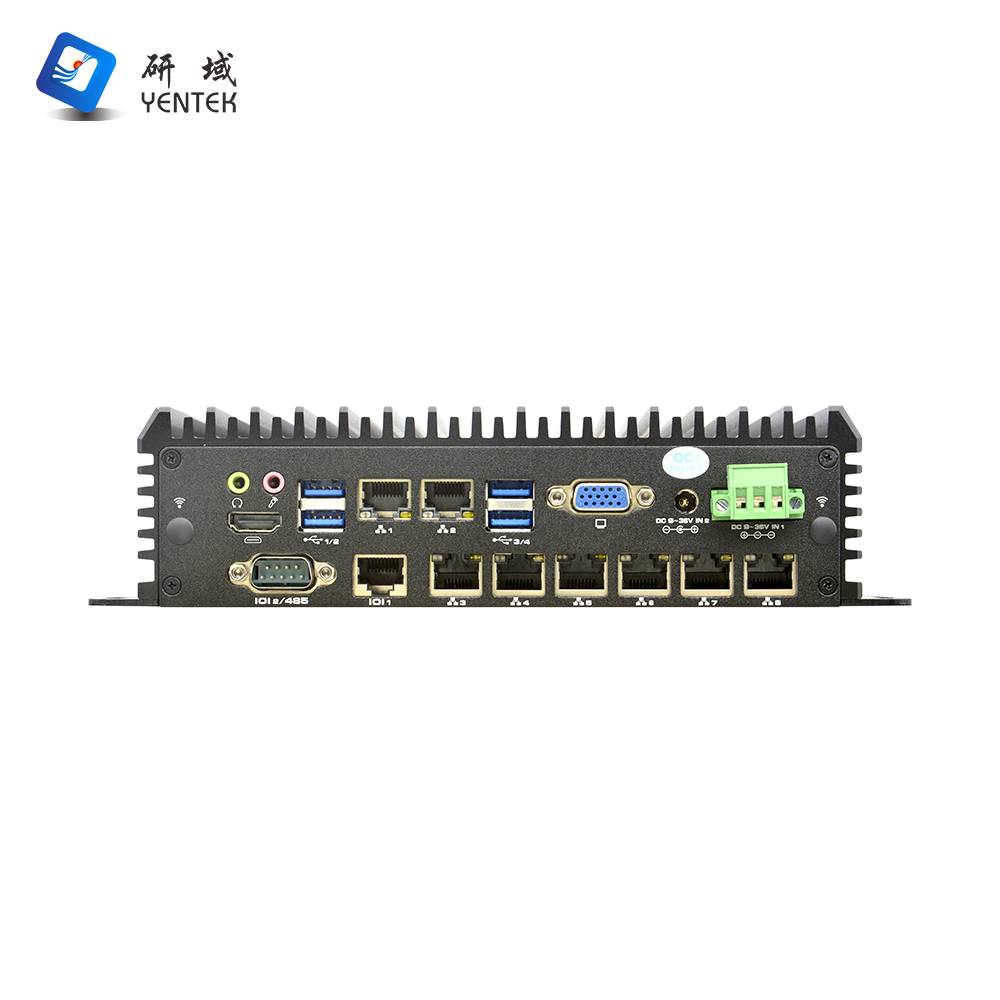

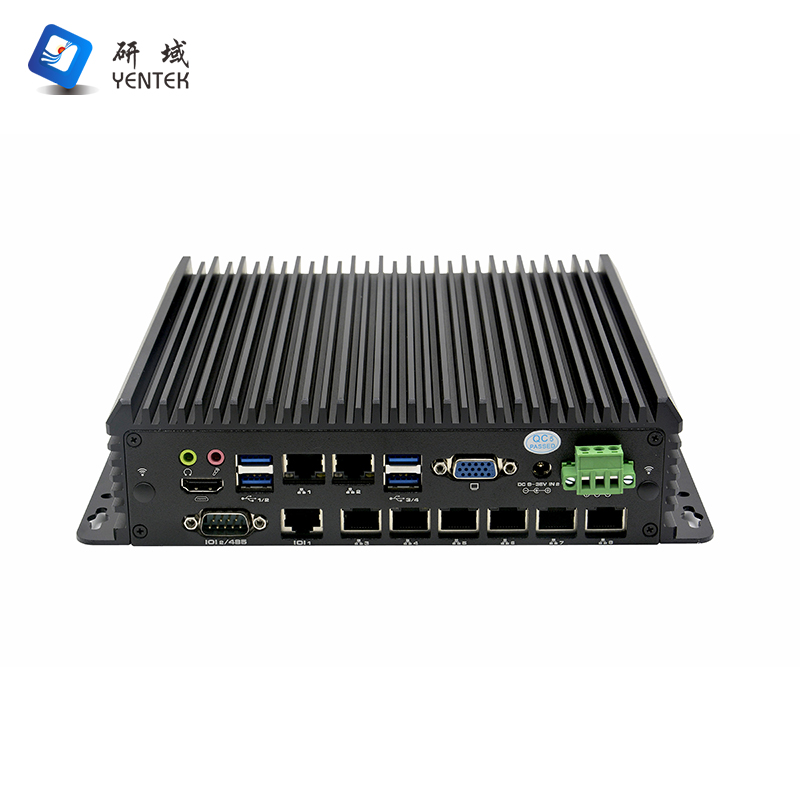

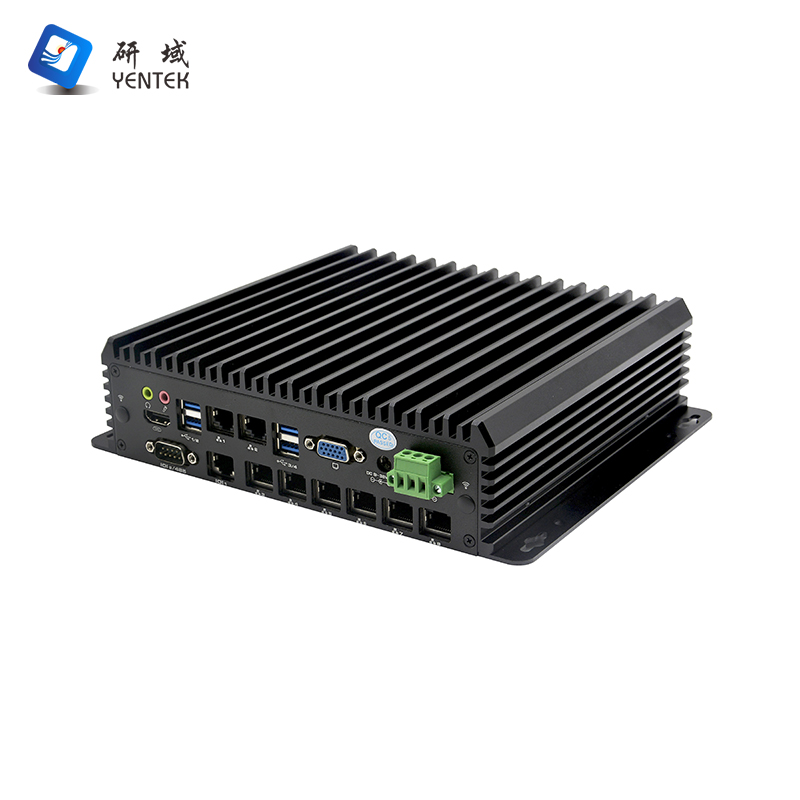

Rear Panel   Connectors

Display   Interface

1x VGA   port, 1x HDMI 1.4 port

LAN

8x Intel   I210AT Gigabit Ethernet ports (supports Wake-on-LAN, PXE functionality), LAN   ports 3-6 support POE (supports 48V)

USB

4x USB 3.0   ports

COM

1x   RS232/485 DB9 serial port (supports 9th pin power function); 1x RJ45 serial   port (supports RS232/485, defaults to 232)

Audio

1x Line   out, 1x MIC

Power   Supply

1x DC power   connector or 1x 3P Phoenix terminal connector, supporting 9~36V wide voltage   input

Storage

SATA

1x 2.5-inch   hard drive bay

mSATA

1x mSATA

Expansion

Mini PCIe

1x Mini   PCIe, supporting Wi-Fi or 4G module (Wi-Fi and LAN8 mutually exclusive,   default LAN8)

System   Support

Microsoft   Windows

Windows 7

Linux

Ubuntu

Watchdog

Supports   hardware reset function (256 levels, 0–255 seconds)

Power   Requirements

Power   Supply Type

External   power adapter

Input   Voltage

9–36V

Power Output

AC to DC   60W or higher (depending on specific device)

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%–95%   relative humidity, non-condensing

Operating   Vibration

0.5g rms/5-500HZ/random/operating
