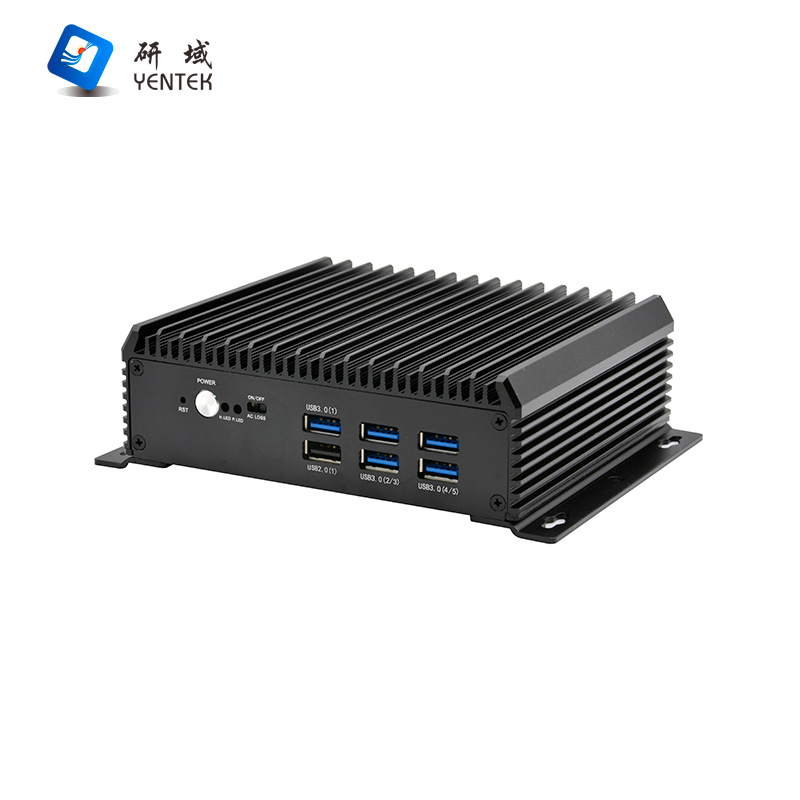

C2120Z-W4

Chassis

Material/Structure

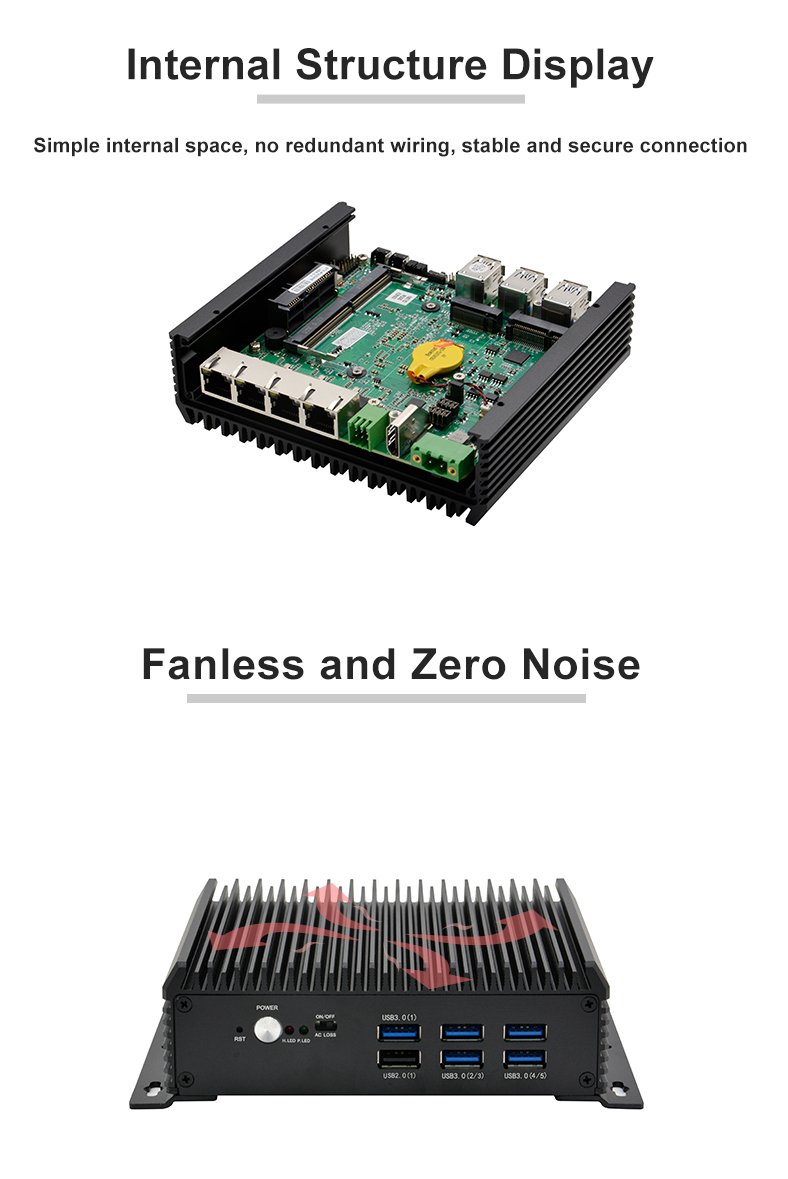

All-aluminum alloy, fanless   cooling structure

Color

Black

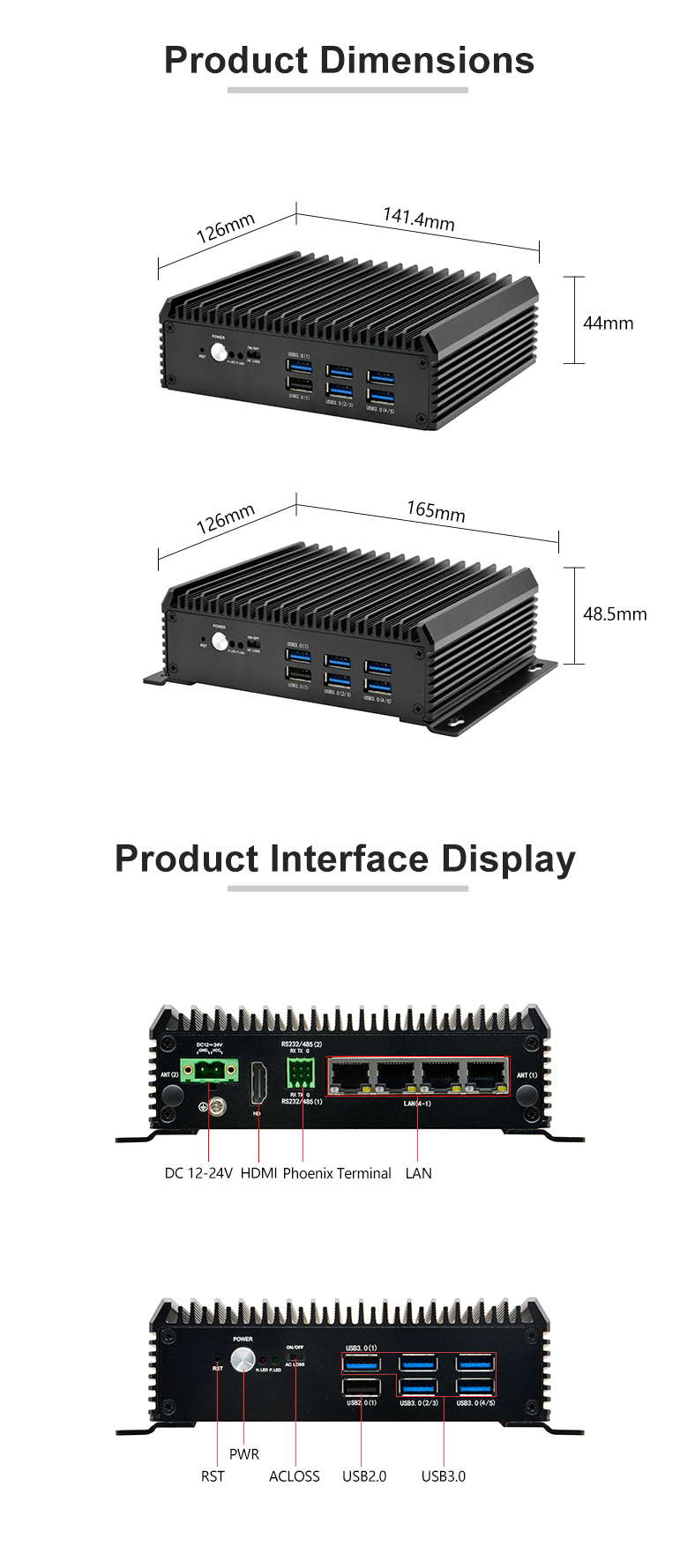

Dimensions (LxWxH)

L141.4*W126*H44MM

Weight (Net Weight)

0.7KG

Installation

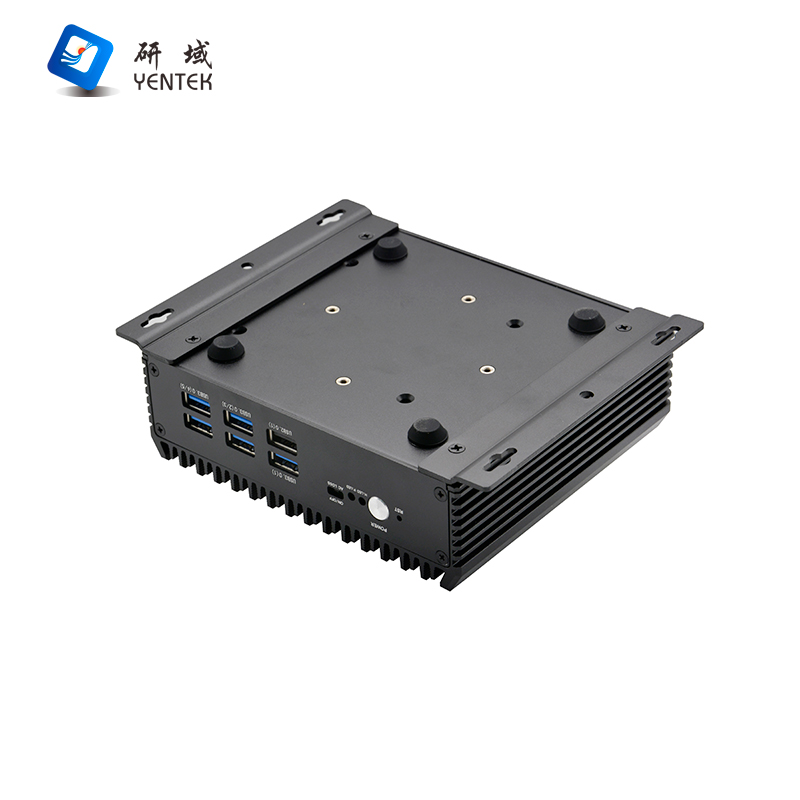

Supports desktop/wall-mount   installation

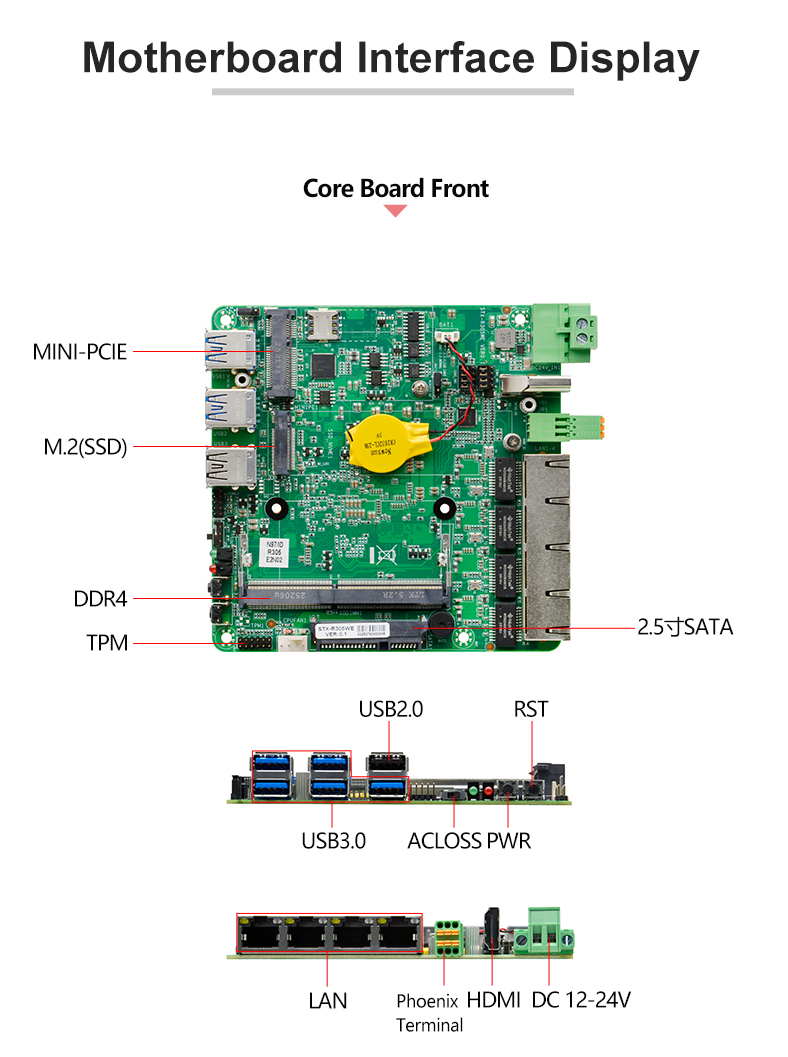

Motherboard

CPU

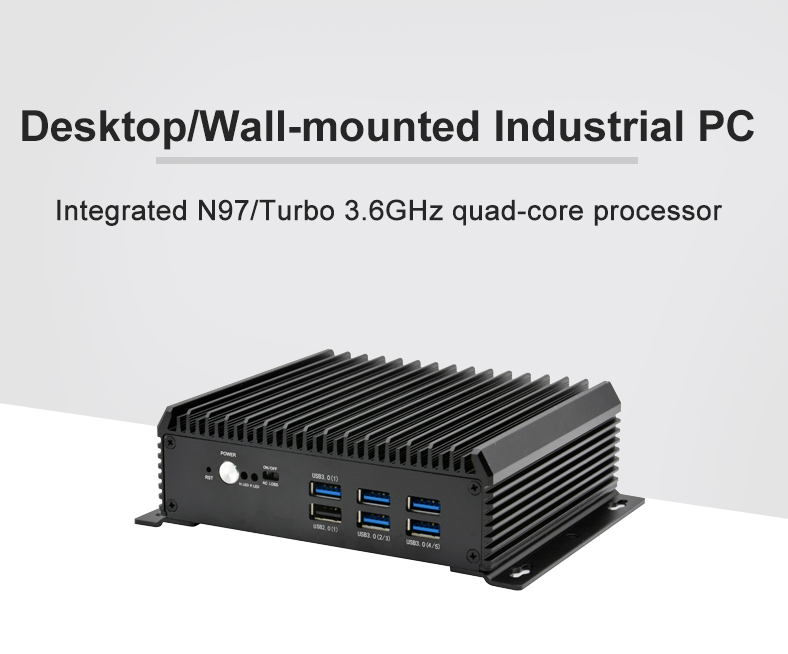

Integrated Intel® Alder Lake-N   N97/Turbo 3.6GHz quad-core processor, TDP 12W

Memory

1*SODDR4 3200MHz, supports up to   16GB

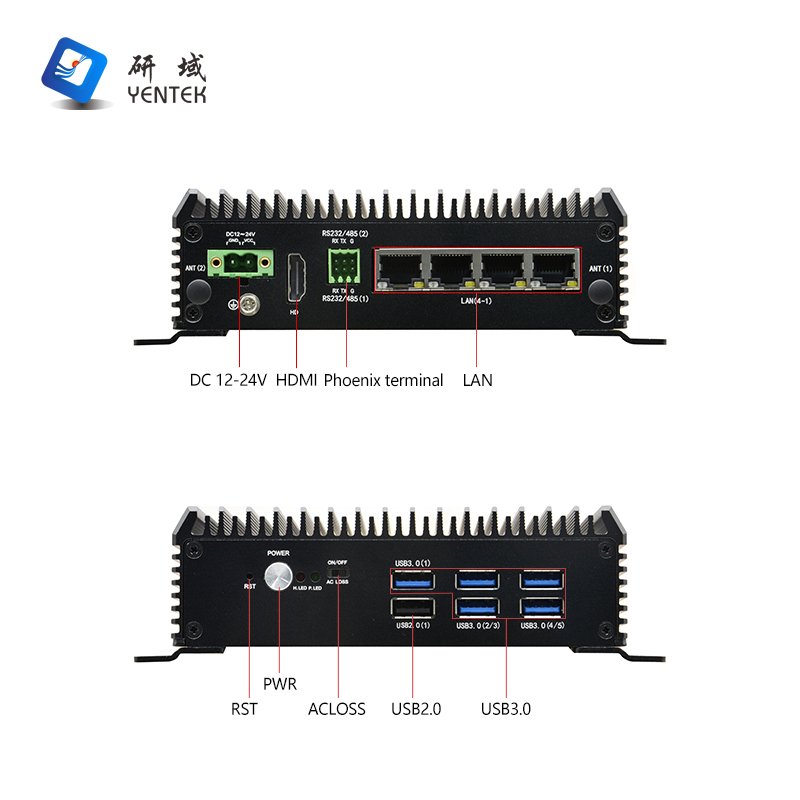

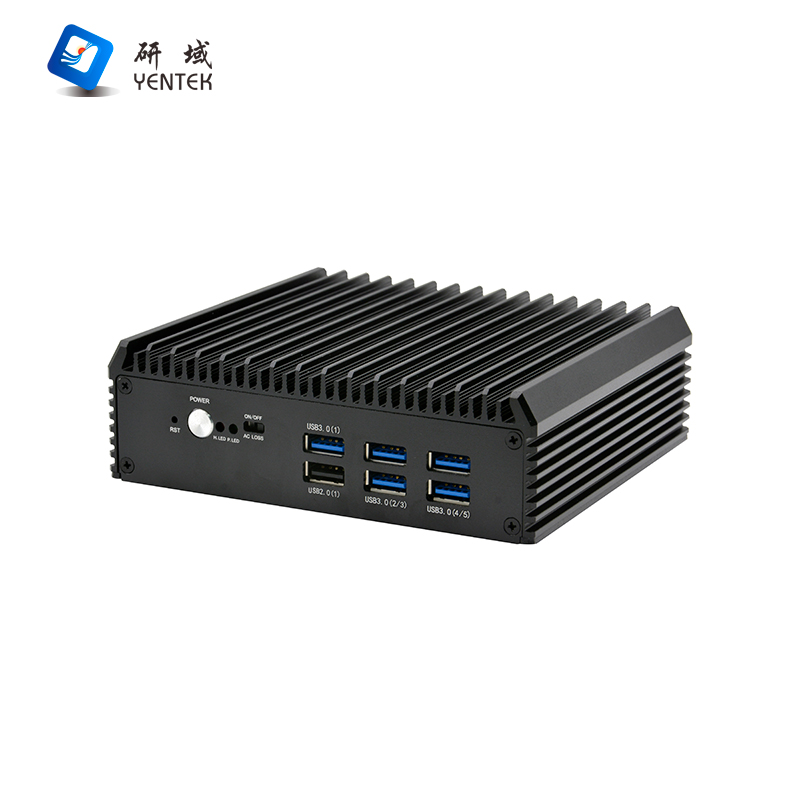

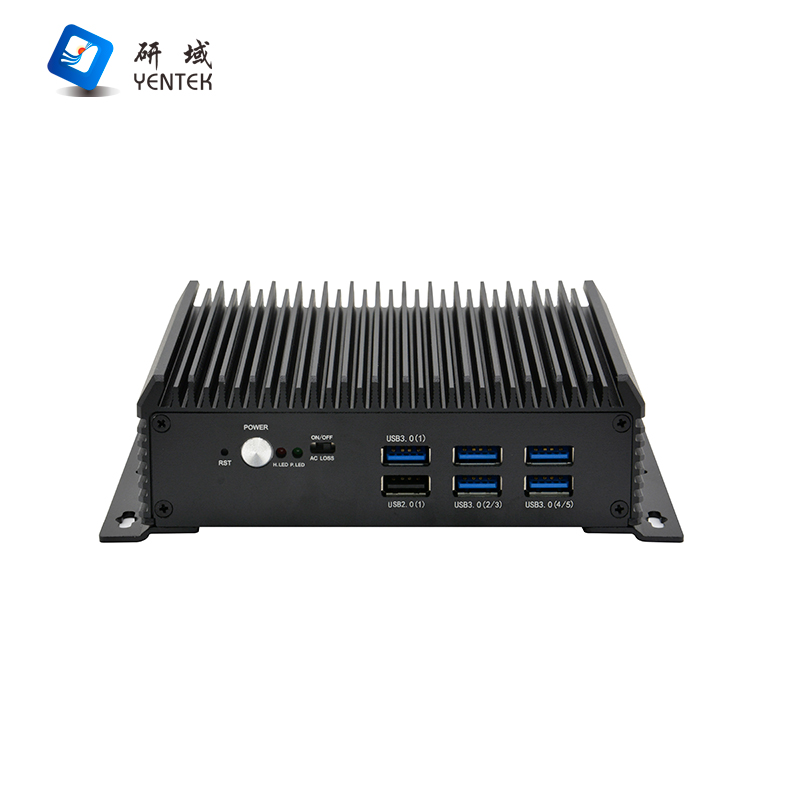

Front Panel Connectors

POWER

1x Power Switch, 1x One-Touch   Reset, 1x ACLOSS (Power-On DIP Switch)

LED

1x Power Indicator, 1x HDD   Activity Indicator

USB

5x USB 3.0, 1x USB 2.0

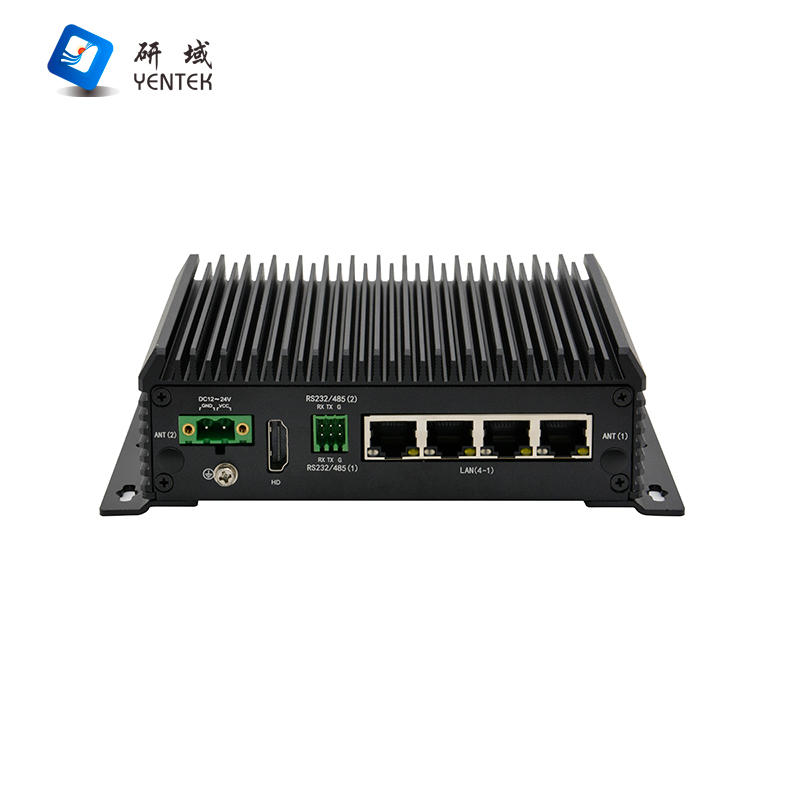

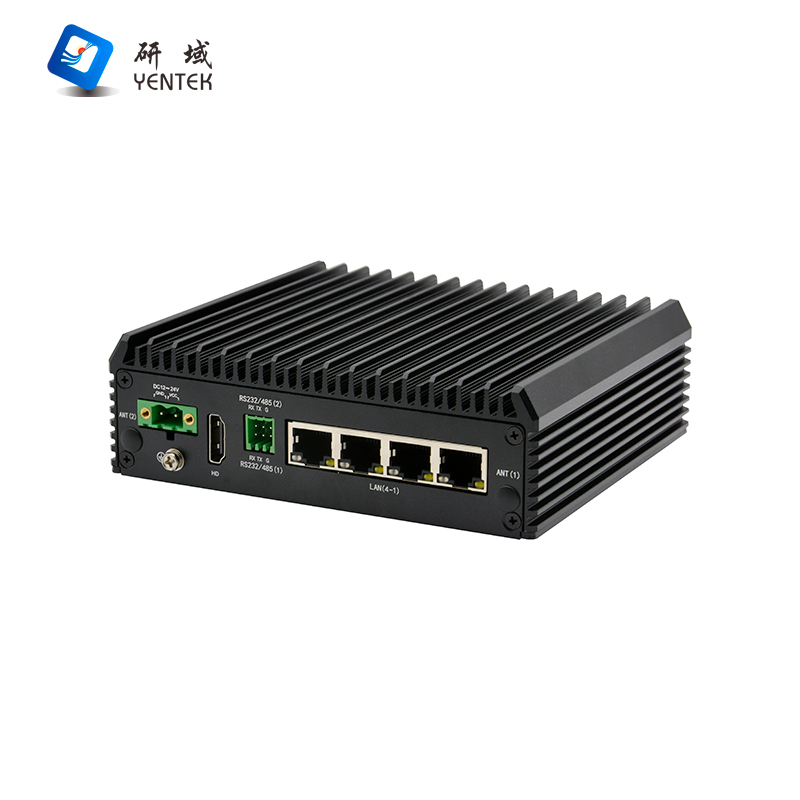

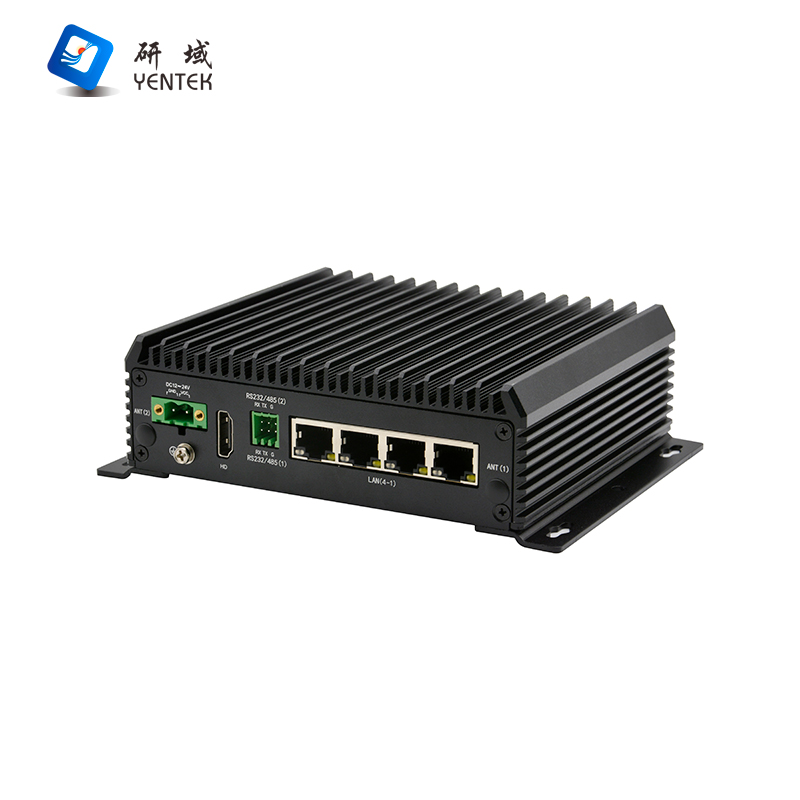

Rear Panel Connectors

Display Interface

1x HDMI 1.4 (4096x2160@60Hz)

LAN

4x Intel I210 Gigabit Ethernet   Ports, supports Wake-on-LAN and PXE functionality

COM

2x RS232/485 (via 2x 3P=2.54mm   Phoenix connectors)

Power Supply

1x 2P Phoenix connector,   supports DC 12-24V wide voltage input

Storage

M.2

1x M.2 slot, supports Key-M,   2280, NVMe PCIe x1/SATA auto-adaptive SSD

SATA

1x 2.5-inch HDD bay (7mm   thickness)

Expansion

WiFi/4G

1x M.2 PCIe slot, supports   Key-M, 2280, NVMe PCIe x1/SATA adaptive SSD

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Supports hardware reset function   (256 levels, 0~255 seconds)

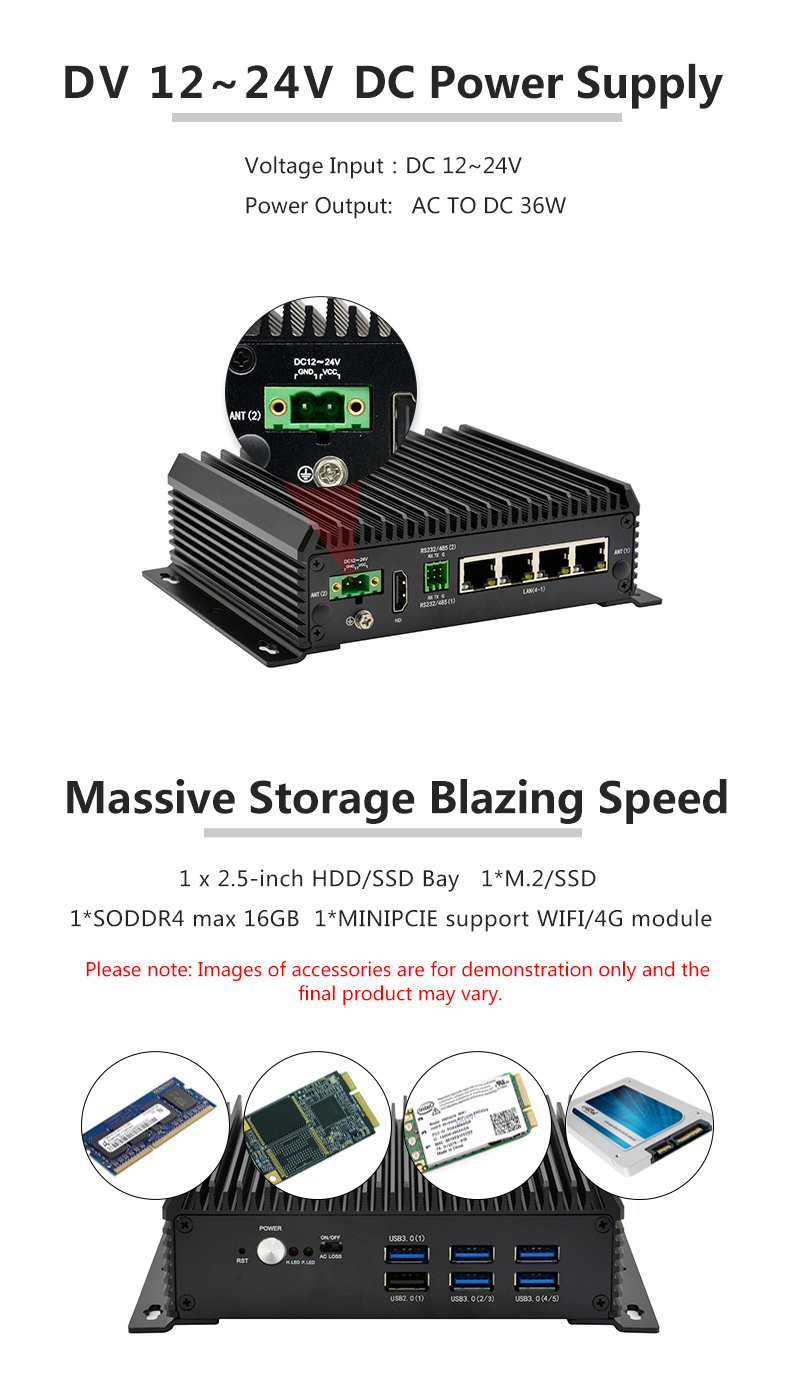

Power Requirements

Power Supply Type

DC 12-24V

Power Output

AC to DC 36W

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%-95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random

1

C2120Z-W4 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

STX-R305WE

M.2+2.5

4*I210

2

1

5

1

DC 12-24V
