C4350Z-H2 V2.0

Chassis

Material/Construction

All-aluminium alloy, fanless   cooling structure

Colour

Glossy black

Dimensions (L x W x H)

141 × 126 × 56.5 mm

Weight (net weight without   accessories)

0.98 kg

Installation

Desktop/built-in

Motherboard

CPU

Integrated Intel® Core™ i5-8260U   processor, 1.60 GHz quad-core with eight threads, TDP 15W

Display

Integrated Intel® UHD Graphics

Memory

2x DDR4 2400MHz, supports up to 64GB

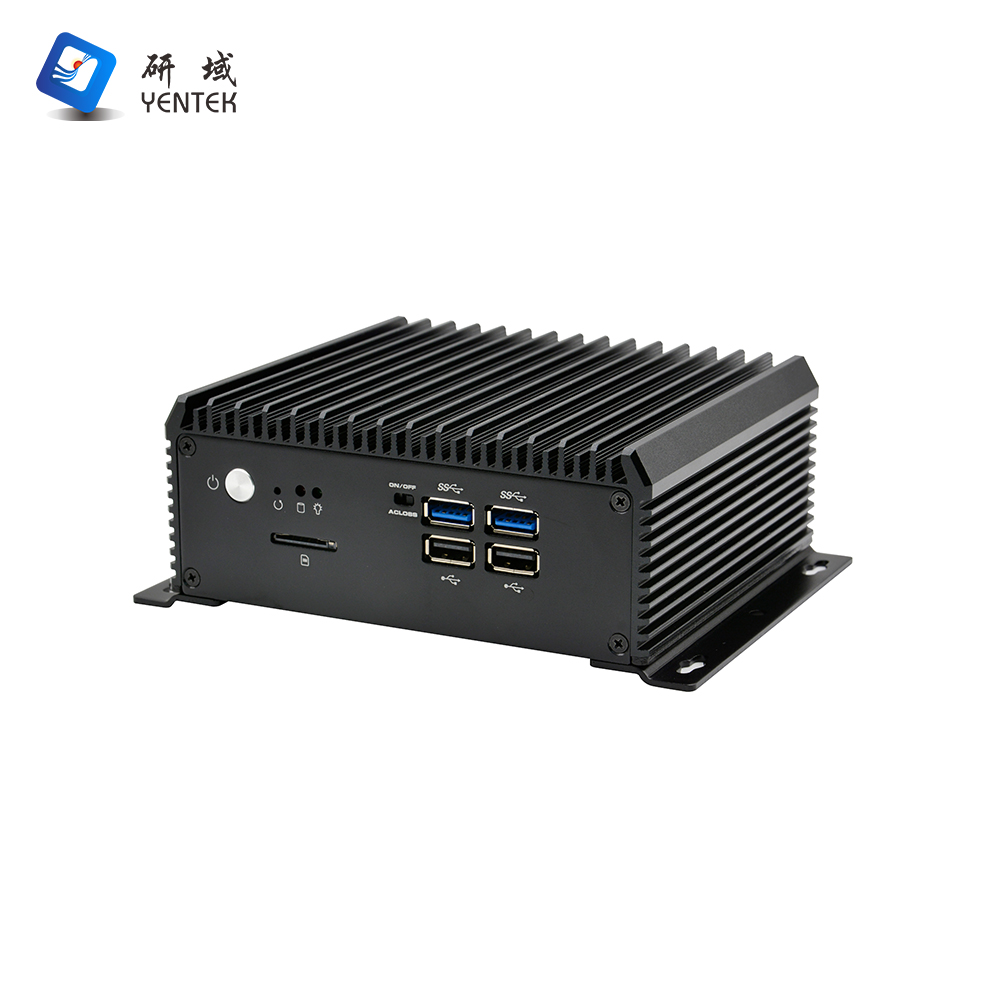

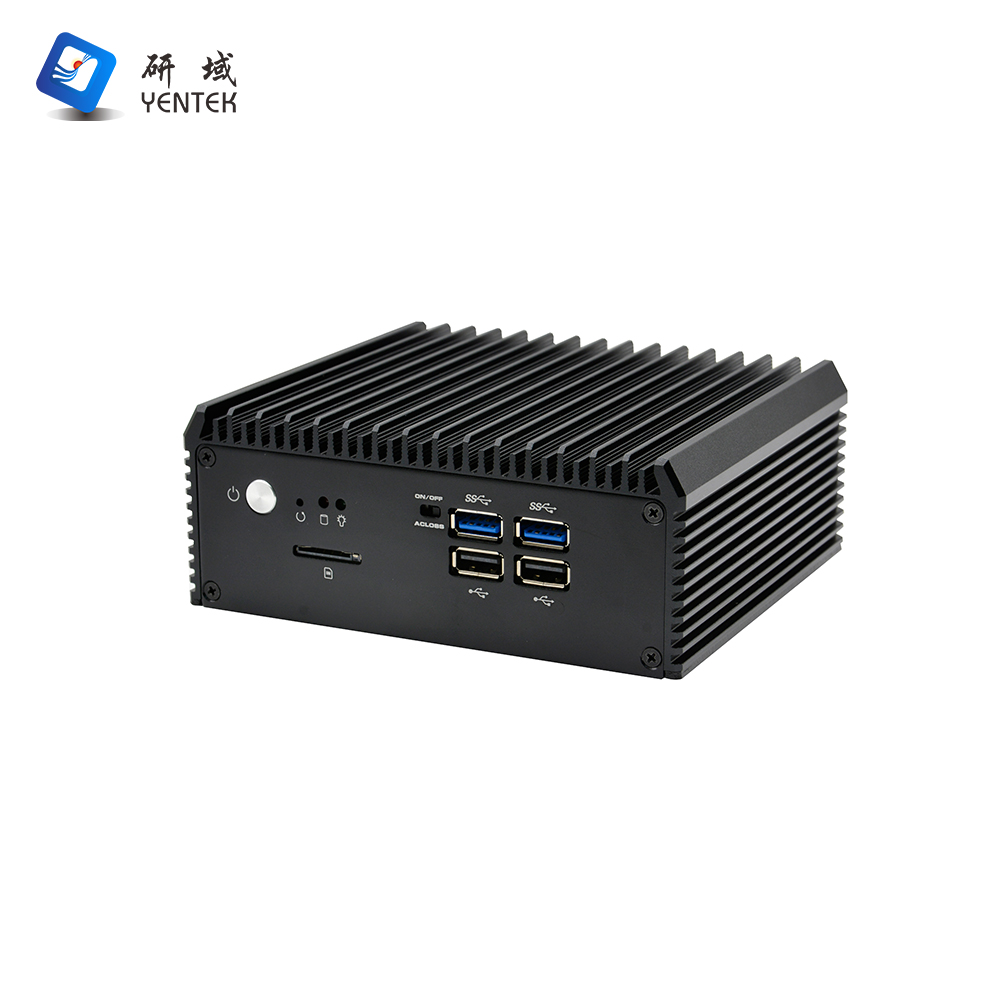

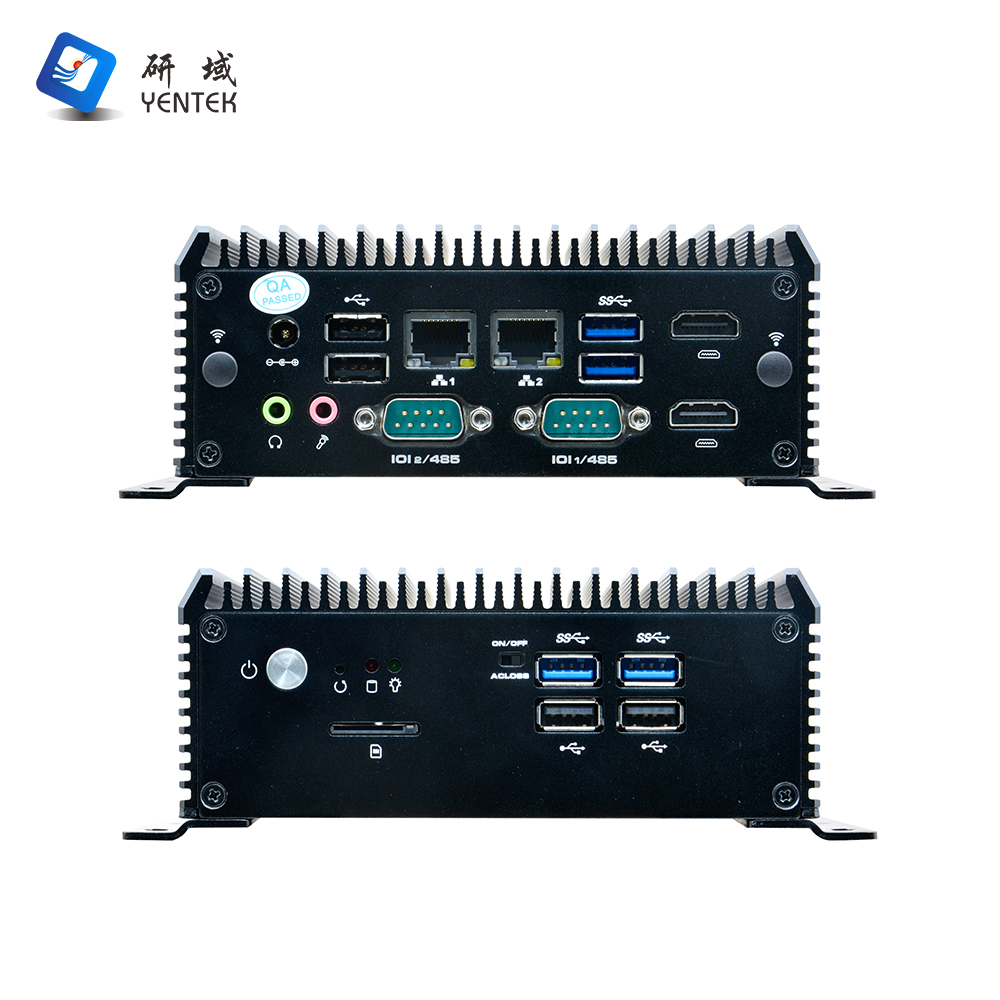

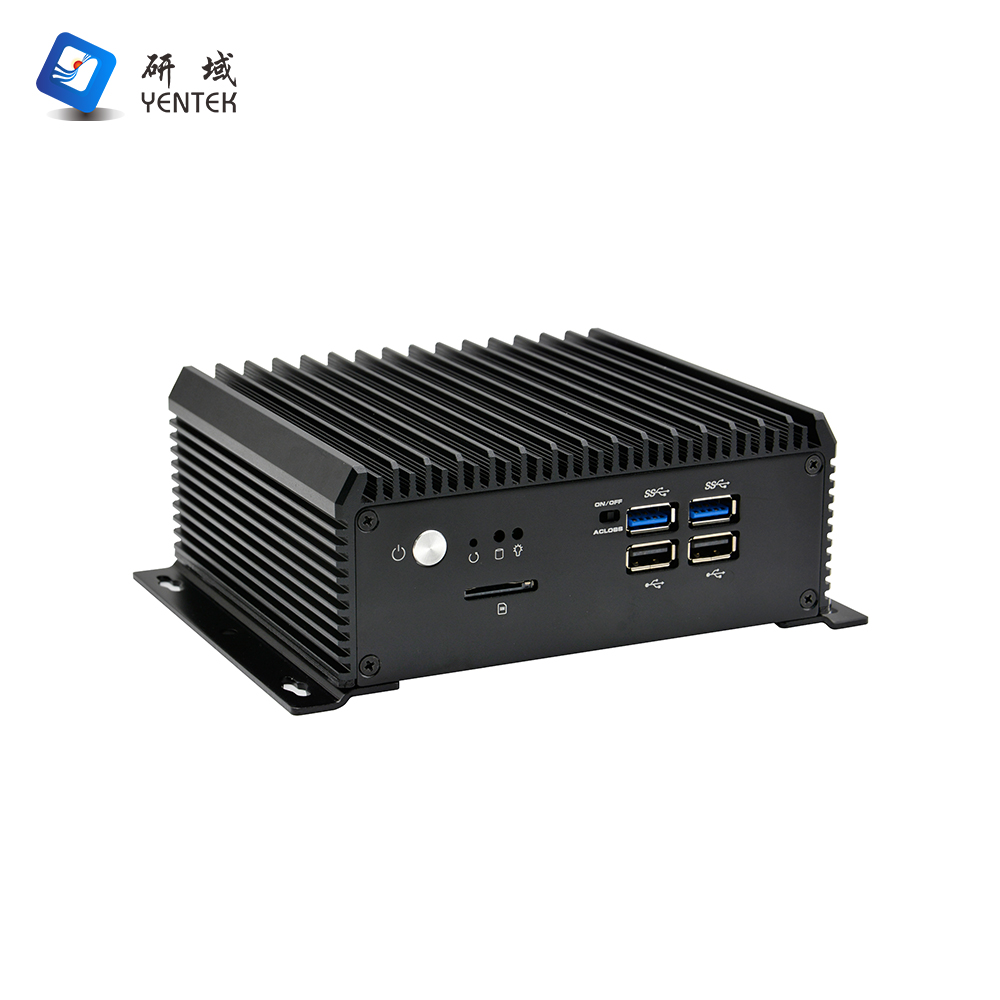

Front Panel Connectors

POWER

1x Power switch, 1x Reset   button, 1x ACLOSS (power-on boot DIP switch)

LED

1 x Power indicator, 1 x Hard   drive activity indicator

USB

2 x USB 2.0 ports, 2 x USB 3.0   ports

SIM

1 x SIM card slot

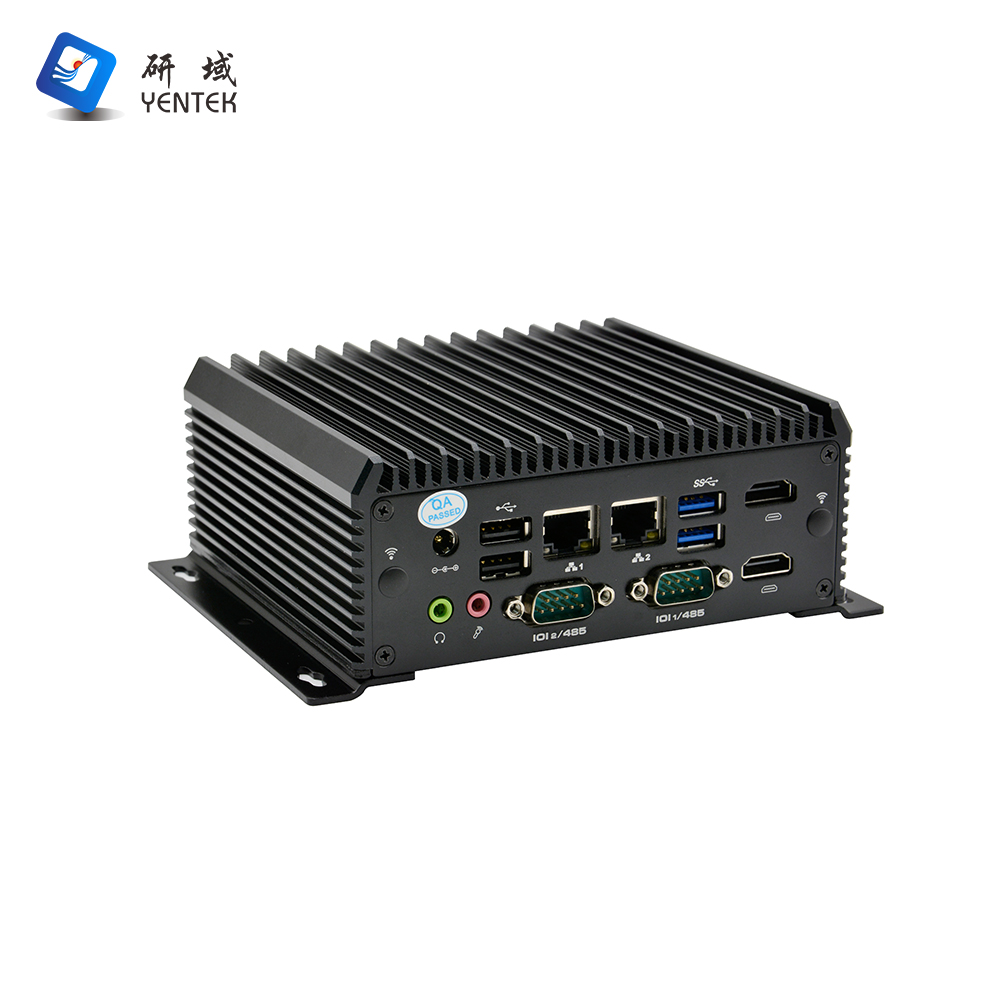

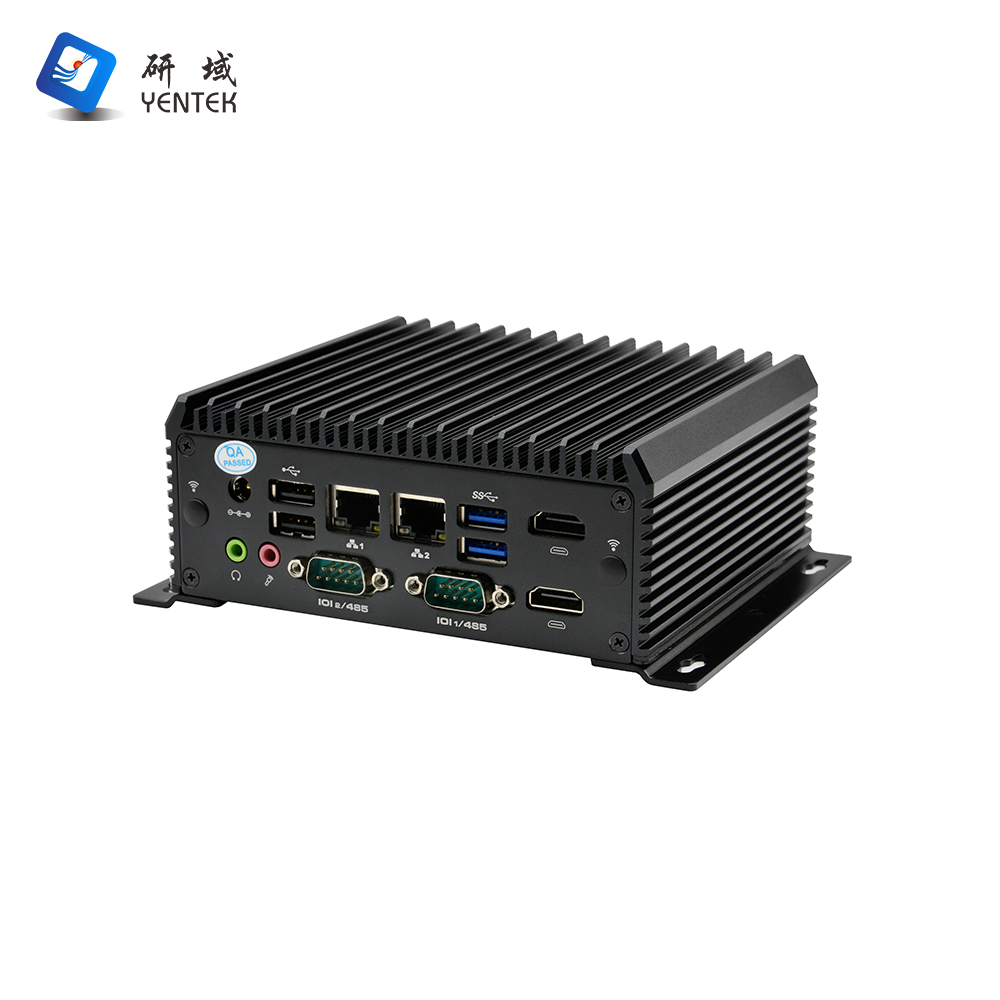

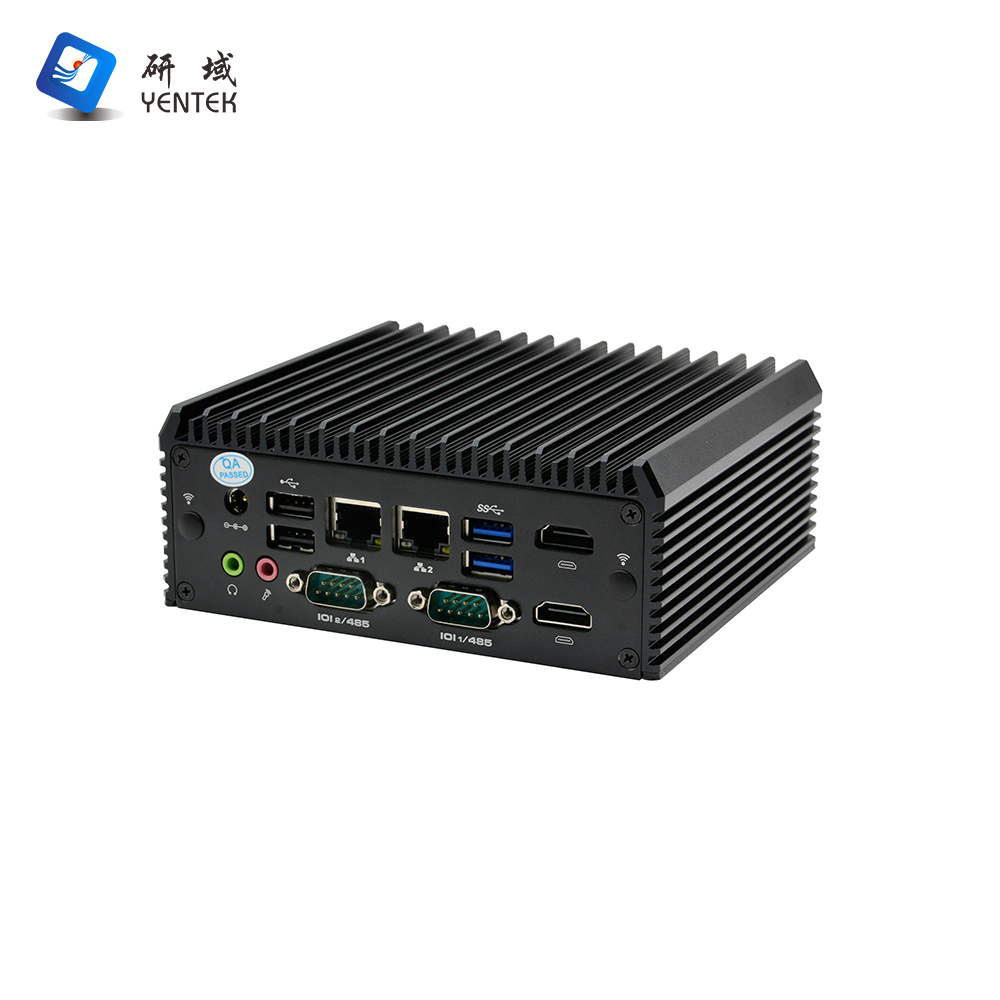

Rear Panel Connectors

Display Interface

1 x HDMI 1.4 (4096x2304@24Hz), 1   x HDMI 2.0 (4096x2304@60Hz)

LAN

2x Realtek 8111H Gigabit   Ethernet, supporting Wake-on-LAN and PXE functionality

USB

2x USB 2.0, 2x USB 3.0

COM

2x RS232/485 DB9 serial ports, supporting   9th pin power function

Audio

1x Line out, 1x MIC

Power Supply

1x DC (5.5*2.5mm) power   connector, supporting DC 12V input

Storage

SATA

1x 2.5-inch hard drive bay

SSD

1x M.2 slot, supporting Key-M,   2280 form factor, NVMe PCIe x4/SATA adaptive SSD

Expansion

4G/WiFi

1x M.2 PCIe slot, supporting 4G   or WiFi

WiFi

1x M.2 slot supporting Key-E,   2230 form factor, WiFi module

System Support

Windows

Windows 10

Linux

Ubuntu

Watchdog

Supports hardware reset function   (256 levels, 0–255 seconds)

Power Requirements

Power Supply Type

DC 12V

Power Output

AC to DC 60W

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random
