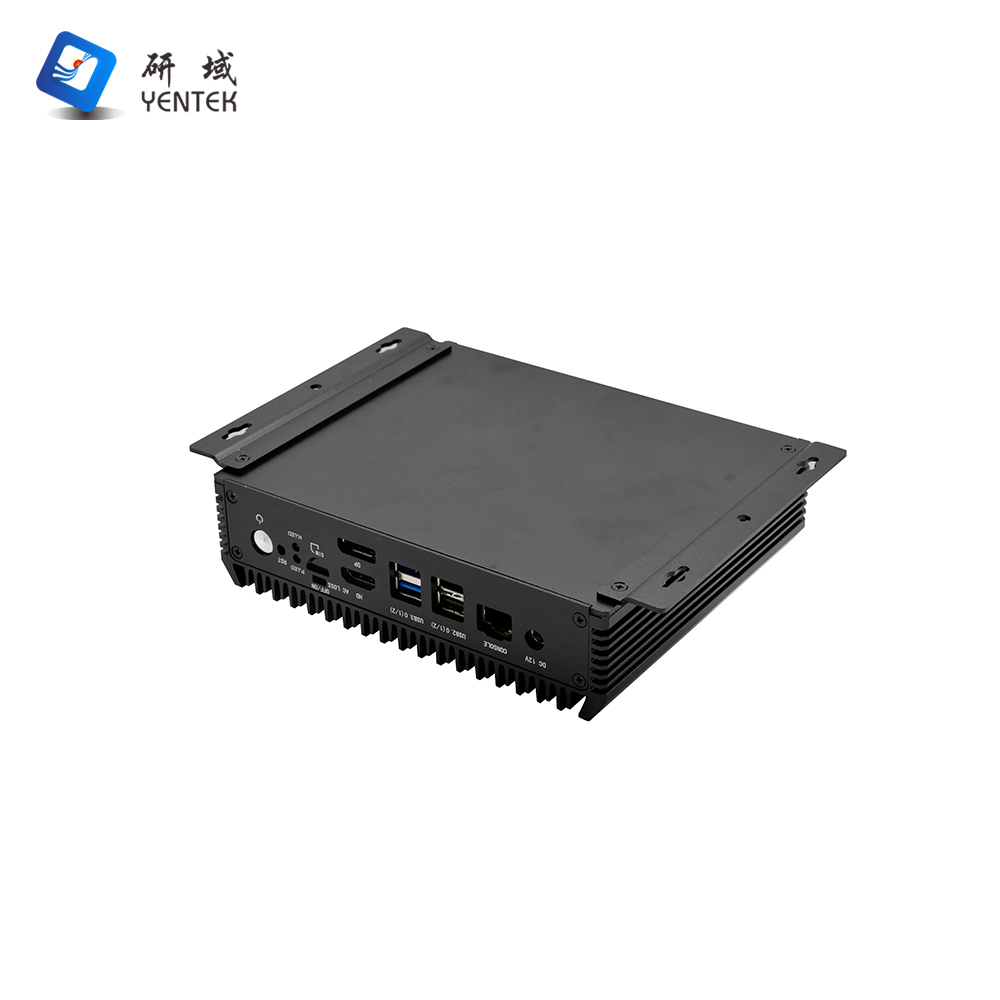

C5120Z-L8

Case

Material/Construction

All-aluminium alloy, fanless cooling design

Colour

Black

Dimensions

209 mm × 148 mm × 51 mm

Weight

1.1 kg

Installation

Desktop/wall-mounted

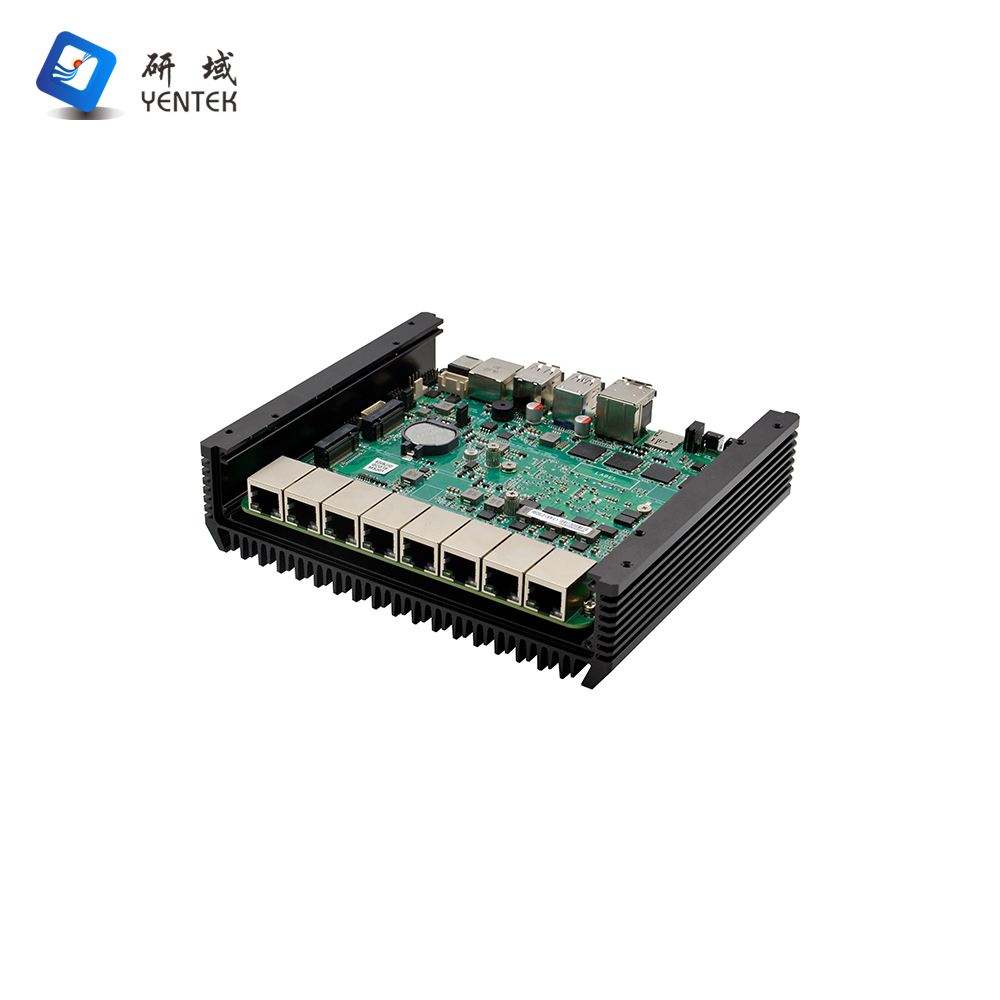

Motherboard

CPU

Integrated 10th Gen Intel® Celeron 5205U 1.9 GHz dual-core, dual-thread processor, TDP 15 W

Chipset

SoC

Memory

On-board LPDDR3-1866 16 GB memory

Display

Integrated Intel® UHD Graphics, supports DirectX 12 and OpenGL 4.5, supports 4K

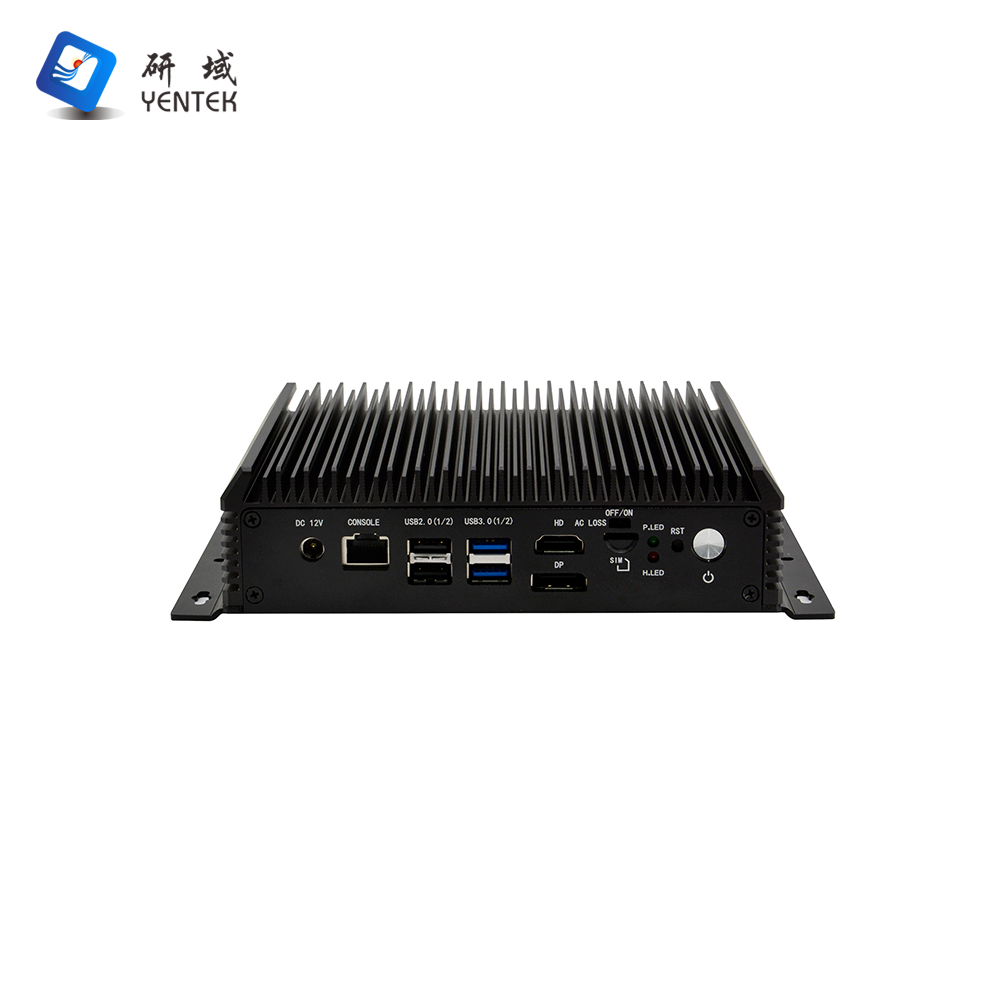

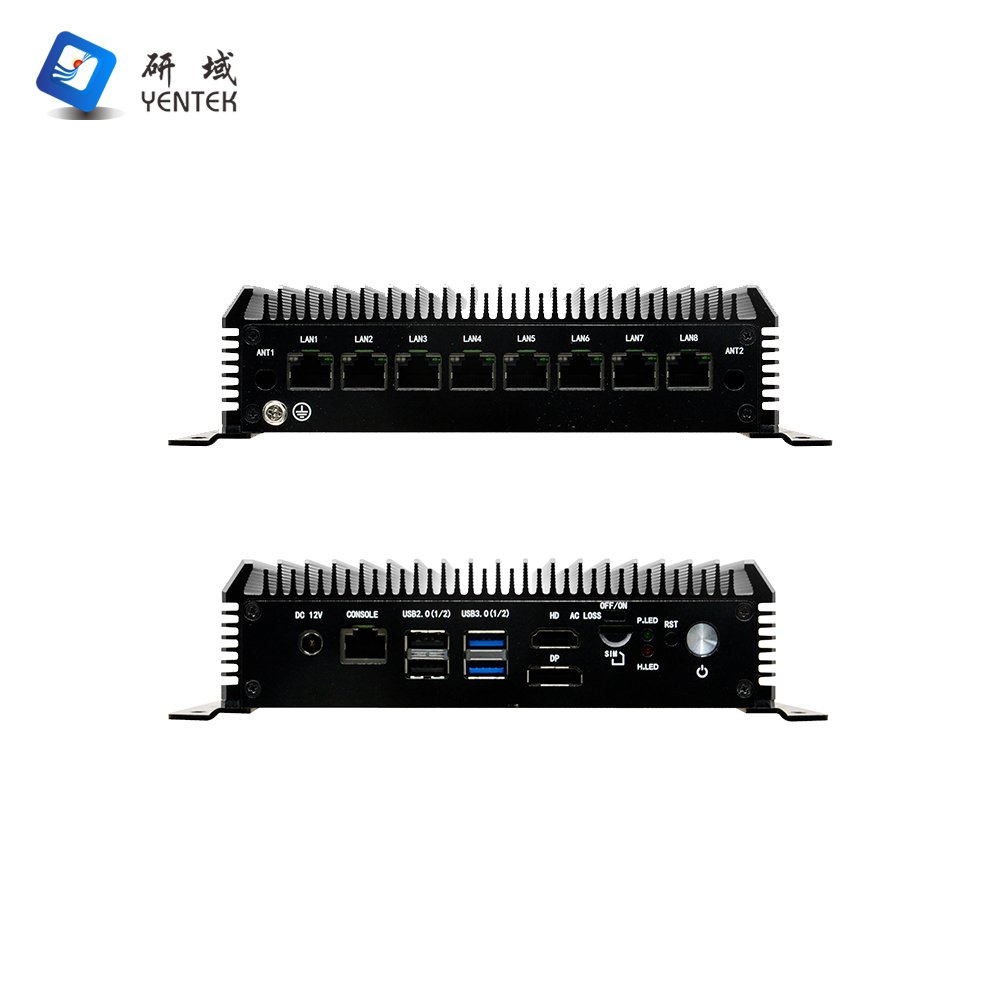

Front panel ports

Power Button

1 × Power button, 1 × Reset button, 1 × ACLOSS (power-on DIP switch)

Display

1 × HDMI, 1 × DisplayPort

LED

1 × Power indicator, 1 × Hard drive indicator

USB

2 × USB 3.0 Type-A, 2 × USB 2.0 Type-A

SIM

1 × Standard SIM card slot

Console

1 × Console serial port

Power

1 × DC power connector, supports 12V DC power supply

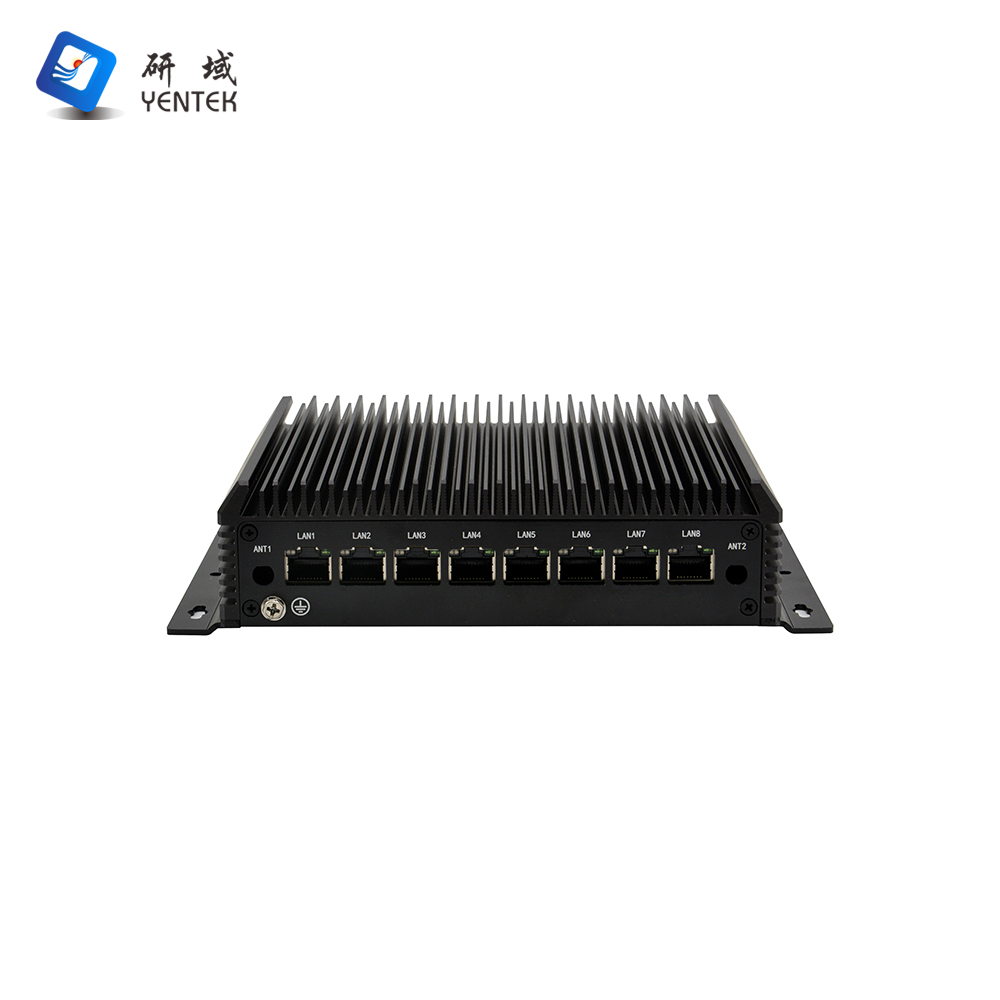

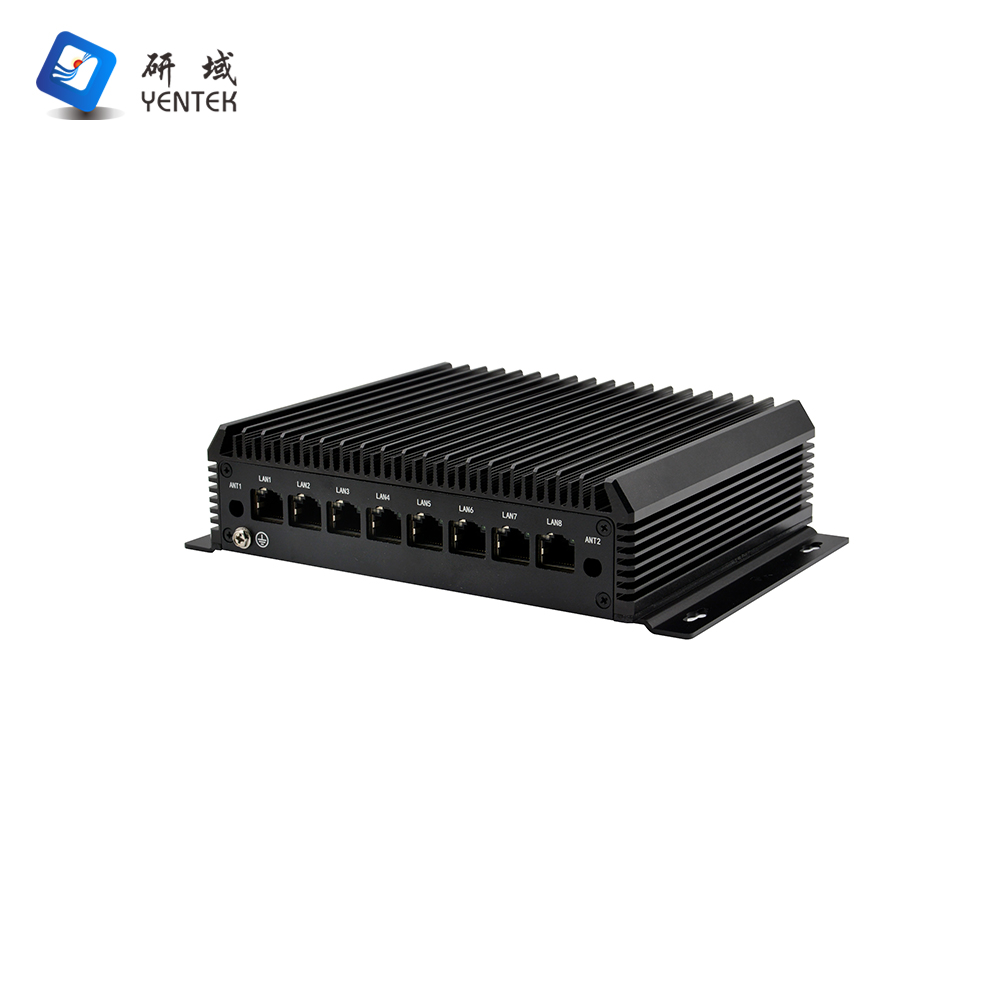

Rear panel ports

LAN

8 × RJ45 Intel I226V 2.5GbE Ethernet ports

Storage

M.2

1 × M.2 slot, supporting M.2 2280 PCIe 3.0 x4 and SATA adaptive SSD

Expansion

M.2

1 × M.2 slot, supporting M.2 Key B 3042/3052 5G modules

System

Operating System

Windows 10/11/Linux

Environment

Operating Temperature

–20 °C to 60 °C

Storage Temperature

–30 °C to 80 °C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

C5120Z-L8 V1.0(5205U)

5205U/1.9G

1*SODDR4

R528L3

/

8*I226V

1

1

1

4

DC 12V
